ES206XPP-M2

New

Omada 5-Port 2.5GBASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++

5× 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++)
1× 10 Gbps SFP+ Slot
120W PoE Budget, with up to 90W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralised Cloud Management via the web or the Omada app^†
Automatic Loop Prevention, VLAN, Port Isolation, QoS^△, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

Learn more about Omada PoE technology >

Learn more about Omada Cloud SDN>

Omada 5-Port
2.5G+1-Port 10G
Easy
Managed Switch with
4-Port PoE++

ES206XPP-M2

5× 2.5G RJ45 Ports

1× SFP+ Slot

120W Total PoE Budget*

Fanless Design for Silent Operation

Easy Centralised Management^†

Omada App^†

Traffic

Separation

Traffic

Prioritisation

Power over Ethernet, Flexible Network Deployment

Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.

4× 2.5G

PoE++

RJ45 Ports

Up to

90W

per Port

Total

120W

PoE Budget

Compatible with

802.3af/at/bt

PoE and non-PoE devices

Compatible with

802.3af/at/bt

PoE and non-PoE devices

Access Point

Gaming Consoles

8K/4K Video

Computer

Unlock the Highest
Performance of 2.5G
Multi-Gig Bandwidth and
Devices

2.5G WiFi7/6 APs

2.5G Gaming Computer

2.5G NAS/Server

PoE Lighting

2.5Gbps

2.5 ×

1Gbps

2.5 ×

Works with Omada Central Essentials
for Free and Easy Cloud Management

Omada Central Essentials provides free and easy-to-use centralised cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Cost-Performance Solution

Looking for free, worry-free cloud management for life?

Omada Central Essentials

Lifetime Free Cloud Without Additional Fees

On-site work eating up time and resources?

Reduce Maintenance Costs

Manage and Maintain from Anywhere

Multiple Application Scenarios

Wi-Fi Coverage

Works with Wi-Fi6/7
Access Points

LAN Party

Works with Gaming Consoles and TVs

Wired Connections

Works with Non-PoE Devices such as PCs
and Printers

HARDWARE FEATURES

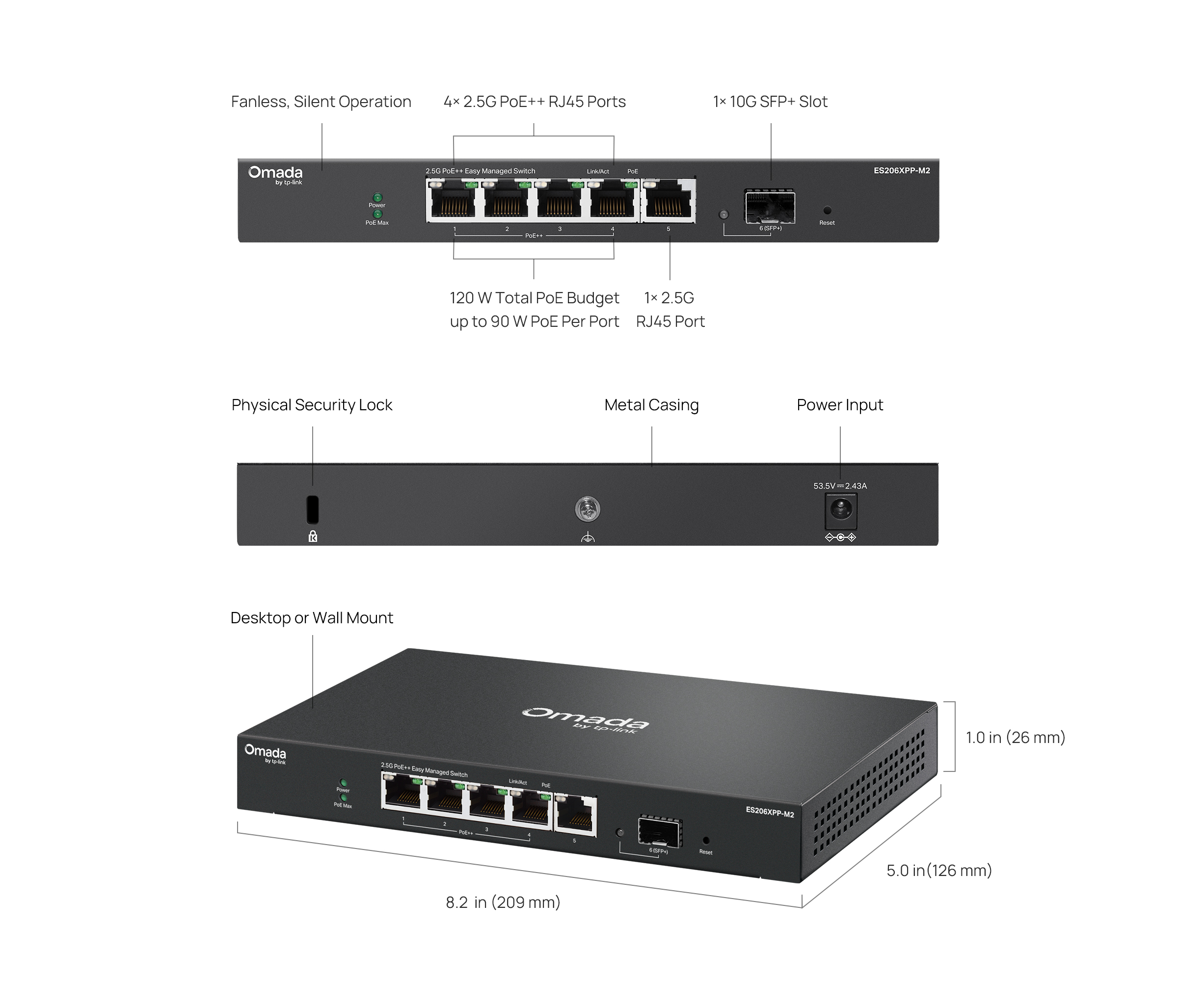

Interface	• 5× 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++) • 1× 10 Gbps SFP+ Slot • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless
Installation	• Desktop • Wall Mount
Physical Security Lock	√
Power Supply	DC Power Adapter (Output: 53.5 VDC / 2.43 A)
PoE Ports (RJ45)	• Standard: 802.3af/at/bt PoE++ compliant • PoE Ports: 4 Ports • PoE Budget: 120W available for all PoE++ ports, 90W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery^‡
Dimensions ( W x D x H )	8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm)
Surge Protection	±6 kV

PERFORMANCE
Packet Buffer Memory	640 KB
Jumbo Frame	10 KB
Switching Capacity	45 Gbps
Packet Forwarding Rate	33.48 Mpps
MAC Address Table	16K

SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control^△
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

OTHERS
Certification	FCC, CE, RoHS

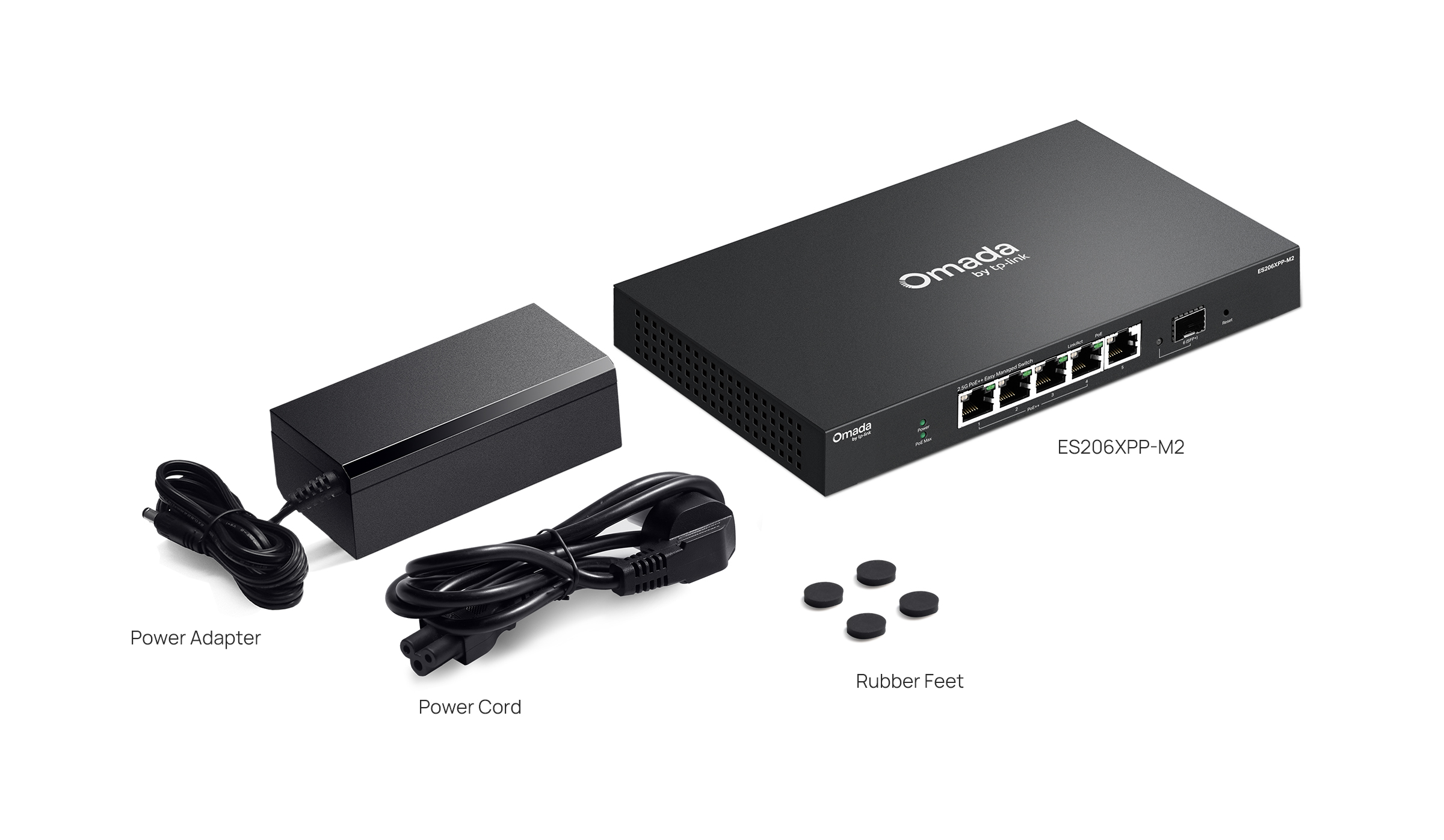

Package Content	• ES206XPP-M2 • Power Adapter • Power Cord • Rubber Feet • Installation Guide
Environment	• Operating Temperature: -5℃~40℃ (23℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

For additional version information, please go to the support page.

*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.

^△Port-based/802.1p/DSCP QoS are supported under Standalone Mode.

^†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.

^‡This switch supports PoE Auto Recovery under Standalone Mode (managed separately without a controller) and supports manual PoE Recovery under Controller Mode (centrally managed with a controller).
