Fusion 2.5G

Coming Soon

Omada Fusion 2.5G Gateway

License‑Free Cloud Management for Multi‑Site Work
Simplified Setup with Auto Device Detection via Bluetooth and One-Tap Bulk Device Adoption
Enterprise‑Grade Performance: High-Performance Quad-Core CPU, 5× 2.5G Ports, IPS/IDS at 2.1 Gbps*, High‑Speed VPN Performance
Quick Troubleshooting via Touchscreen, Less On-Site Work
Secure Remote Network Access, One Click Away with Omada LightLink VPN
Advanced Software Capabilities: App‑Based ACL, Auto QoS, Full Mesh SD-WAN, Content Filtering, DPI
Flexible Mounting Options: Desktop, Wall-Mountable**, Rack-Mountable**

Gateway &
Controller in One
License-Free Cloud
Management
Simplified Setup with
Bluetooth
High-Performance
Quad-Core CPU
5× 2.5G
Ethernet
Ports
Fast Troubleshooting
via Touchscreen
IPS/IDS Throughput
at 2.1 Gbps*
One‑Click Secure
Remote Access
App-Based
Access
Control
One-Click
Auto QoS

Built‑In Controller at the Center of the Omada Networking Ecosystem

Gateway and controller integrated into a single device, delivering a unified solution that combines networking and centralized management at the core of the Omada networking ecosystem—ideal for single‑ and multi‑site small businesses.

License-Free Cloud Management, Lower Ongoing Costs

Built-in Controller
No Device License
Centralized
Multi-Site
Management
Remote Cloud
Control
via Web/App

Simplified Setup for Faster Deployment, Boosting Efficiency

Easily set up the Fusion 2.5G via Bluetooth using the Omada App. Automatically discover and batch adopt all other Omada networking devices at once, saving time and simplifying IT deployment.

Enterprise-Grade Performance for Fast and Reliable Operations

High-Performance Quad‑Core CPU

Ensures lightning-fast processing to overpower lag

Full 2.5G Ports for Ultra‑Fast Connectivity

Handles Wi‑Fi 7 access points and high‑speed NAS traffic without performance bottlenecks.

• Up to 4-WAN Load Balancing

• Automatic Multi-WAN Failover

IPS/IDS at 2.1 Gbps*

Powerful protection, without slowing your network down.

Superior Thermal Design

Fanless cooling for silent operation and maximum stability.

Quick Troubleshooting via Touchscreen,
Reducing On-Site Work

With an innovative 2.51" touchscreen, enjoy quick troubleshooting — all at your fingertips. Reduce on‑site work and save time with direct, on‑device monitoring.

Secure Remote Network Access, One Click Away

With Omada LightLink VPN, you can securely access your network with one click. Powered by Smart Split Tunneling, only essential traffic goes through the VPN, reducing unnecessary VPN load and preserving a smooth user experience.

Advanced Software Capabilities for Secure and Intelligent Management

One-Click Auto QoS

Ensure critical traffic always gets priority, with one-click presets or full customization.

Content Filtering & Ad Blocking

Blocks unwanted sites and intrusive ads for a safer, cleaner experience.

App-Based Access Control

Easily manage access by app and category. Control access intuitively with simple, clearly defined policies.

Full-Mesh SD-WAN in Minutes

Connect up to 20 sites with direct inter-site links—simpler to deploy, smoother for multi-site networking.

Flexible Mounting for Diverse Business Environments

Desktop

No Additional Installation Needed

Wall-Mountable

Magnetic-Mount Plate Needed**

Rack-Mountable

Rack‑Mount Kit Needed**

Works for Single and Multi-Site Small Businesses

Small Chain Stores

Small Restaurants

Small Offices

Medical Clinics

Omada Fusion 2.5G Gateway

Fusion 2.5G

Overview
Interface	• 1× 2.5G WAN port • 4× 2.5G LAN/WAN ports
Power Supply	USB type C (5V DC/3A) (Adapter included)
Managed Omada Devices	Recommended 40 devices
Managed Clients	Recommended 300+ clients
VPN Support	• Omada LightLink VPN • IPSec VPN • PPTP VPN • L2TP VPN • OpenVPN • WireGuard VPN • SSL VPN • SD-WAN
IDS/IPS Throughput	2,183Mbps / 2,152Mbps
DPI Throughput	2,206 Mbps / 2,219Mbps
Dimensions	6.3 × 5.12 × 1.24 in (160mm × 130mm × 31.5mm)
Mounting	• Desktop • Wall-mount (magnetic-mount plate sold separately) • Rack-mount (rackmount kit sold separately)

SECURITY
IDS/IPS	Signature-based IPS/IDS threat detection
ACL	• Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN
DNS Proxy	DNSSEC, DoH, DoT, DNS Redirection
Firewall Features	• Stateful Firewall • Attack Defense
Application Control	• Deep Packet Inspection (DPI) • Application Filter Rules
Filtering	URL Category, Ad Block, Allow List, Block List
ARP Inspection	• Sending GARP Packets • IP-MAC Binding • ARP Detection
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

VPN
Omada LightLink VPN	• Invite by Link • Invite by Email • LightLink Clients (253)
SSL VPN	80 Tunnels
IPsec VPN	• 20 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10) • 16 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10) • 16 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (10) • 16 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode
WireGuard VPN	√
SD-WAN	√

HARDWARE FEATURES
Indicator	LCM color touchscreen, 2.51 inch
Standards and Protocols	• IEEE 802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE 802.1q, IEEE • 802.1p, IEEE 802.1ab, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, SNMP, LLDP
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) • EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) • EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2.5GBASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity	Fanless
Button	Reset Button
Flash	64Mbit Nor+16GB eMMC
DRAM	2 GB DDR4
Net Weight	0.510 Kg
Protection	4kV surge protection
Max. Power Consumption	8.18 W (power adapter included)

PERFORMANCE
Concurrent Session	150,000
New Sessions /Second	7,800
NAT (Static IP)	2,362 Mbps / 2,361Mbps
NAT(DHCP)	2,363 Mbps / 2,359 Mbps
NAT(PPPoE)	2,355 Mbps / 2,357 Mbps
NAT (L2TP)	1,727 Mbps / 1,235 Mbps
NAT (PPTP)	1,843 Mbps / 1,399 Mbps
66 Byte Packet Forwarding Rate	3,472,452 pps / 3,472,359 pps
1,518 Byte Packet forwarding rate	202,671 pps / 202,668 pps
Omada LightLink VPN Throughput	527 Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 1,023 Mbps, • ESP-SHA256-AES256: 1,073 Mbps • ESP-SHA384-AES256: 972 Mbps • ESP-SHA512-AES256: 1,087 Mbps
OpenVPN Throughput	223 Mbps
L2TP VPN Throughput	892 Mbps
PPTP VPN Throughput	193 Mbps
SSL VPN Throughput	250 Mbps
WireGuard VPN Throughput	605 Mbps
QoS	√

Management Features
Omada App	Yes.
Cloud Access	Yes.
Service	• Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, TP-Link DDNS, DDNS Customization) • UPnP • mDNS • Reboot Schedule
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize • Port Mirroring • Syslog Support
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

BASIC FUNCTIONS
WAN Connection Type	• Static IP • Dynamic IP • PPPoE • PPTP • L2TP • MAP-E • DS-Lite
MAC Clone	Modify WAN MAC Address
DHCP	• DHCP Server • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features
Bandwidth Control	IP-based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup • Online Detection
NAT	• One-to-One NAT • Virtual Server • NAT-DMZ • FTP/H.232/SIP/IPSec/PPTP ALG • UPnP • Disable NAT
Routing	• Static Routing • Policy Routing
Session Limit	IP-based Session Limit

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password • Voucher • Local User • SMS • RADIUS • Form Auth • External LDAP Server • External Portal Server • Google

OTHERS
Certification	CE, FCC, RoHS

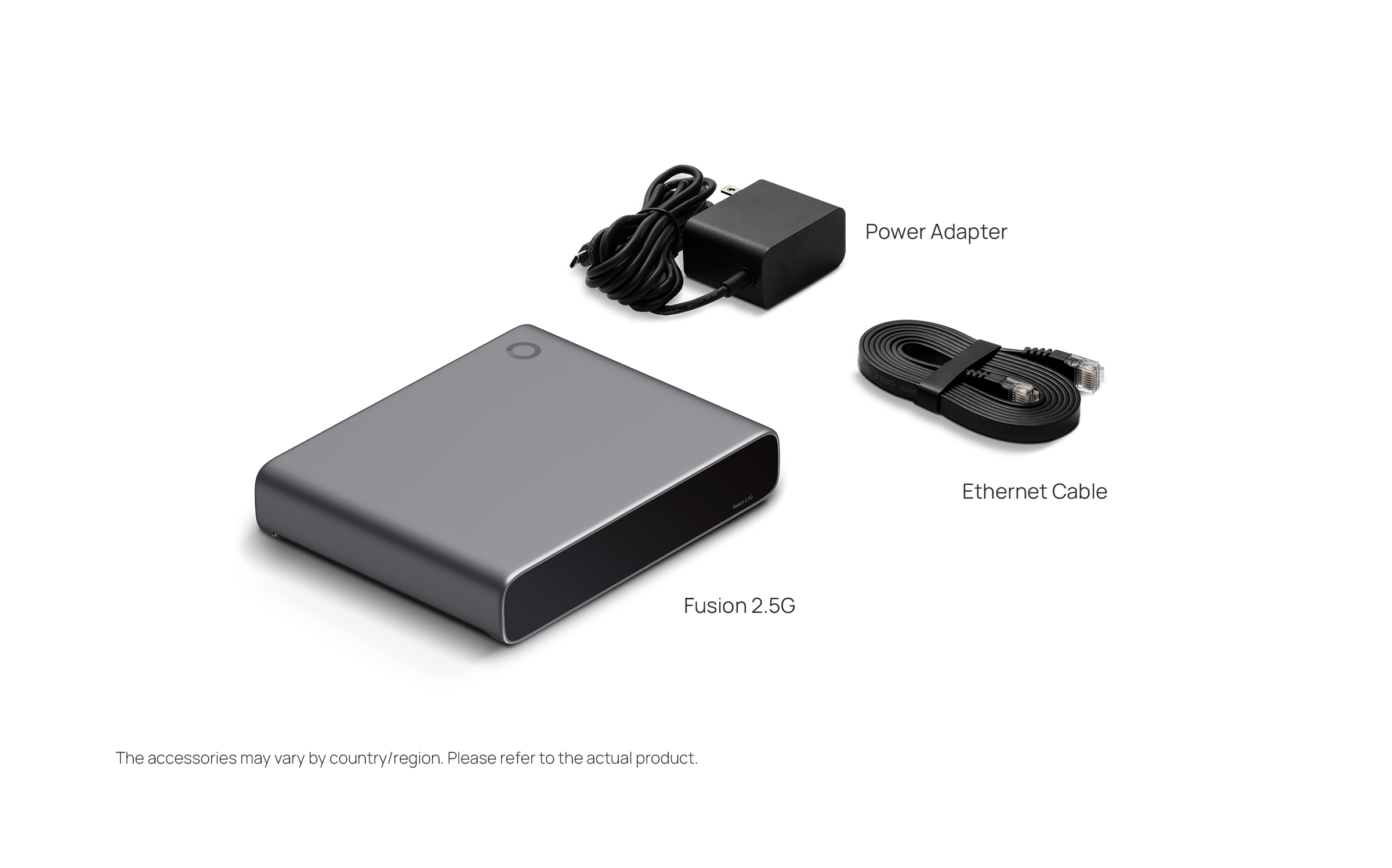

Package Content	• Fusion 2.5G • Power Adapter • Ethernet Cable • Quick Installation Guide
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: -10°C to 40 °C (14°F to 104°F) • Storage Temperature: -40 °C to 70 °C (-40°F to 158°F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing

For additional version information, please go to the support page.

*Actual throughput with IPS/IDS enabled may vary and is not guaranteed. Performance is subject to traffic conditions, enabled features, and network environment.

**Magnetic‑mount plate and rack‑mount Kit are sold separately.
