EAP775-Wall
Coming SoonBE9300 Wall Plate Wi-Fi 7 Access Point
- 6-Stream Tri-Band Wi-Fi 7: 5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
- Flexible and Aesthetic Integration: Versatile mounting design with a paintable cover included for flexible integration.§
- Multiple Ports with PoE Flexibility: 2× 2.5G Ports (1× PoE+/PoE++ In) + 3× Gigabit Ports (2× PoE Out or 1× PoE+ Out)
- Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Easy Setup, Easy to Use: Works with Omada SDN for one-click setup.
- Advanced Features: Supports centralised cloud management, mesh, and seamless roaming.△
- Complete In-Room Wi-Fi with More Connections: Supports 380+ concurrent connections** and covers up to 1050 ft² (100 m²) * for reliable and extensive wireless connectivity.
Learn more about Omada Cloud SDN>
-
6-Stream Wi-Fi 7
-
Wi-Fi Speeds up to 9.3 Gbps†
-
Paintable Cover
-
Versatile Mounting Design
-
2× 2.5G Ports
+ 3× Gigabit Ports -
802.3at/bt PoE
-
Omada Mesh &
Seamless Roaming△ -
Centralized Management
Wi-Fi 7: Swifter, Smoother, Stronger
Tri-Band Wi-Fi 7 Throughout
-
6 GHz 5675 Mbps6 GHz
-
5 GHz 2882 Mbps5 GHz
-
2.4 GHz 688 Mbps2.4 GHz
-
Higher Efficiency with 4K-QAM
-v1/img/c1_1.png)

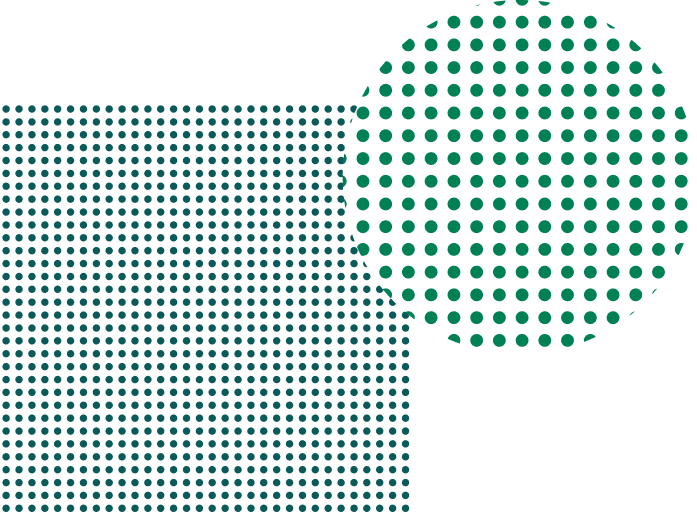

Wi-Fi 7
12 bits/symbol-v1/img/c1_2.png)

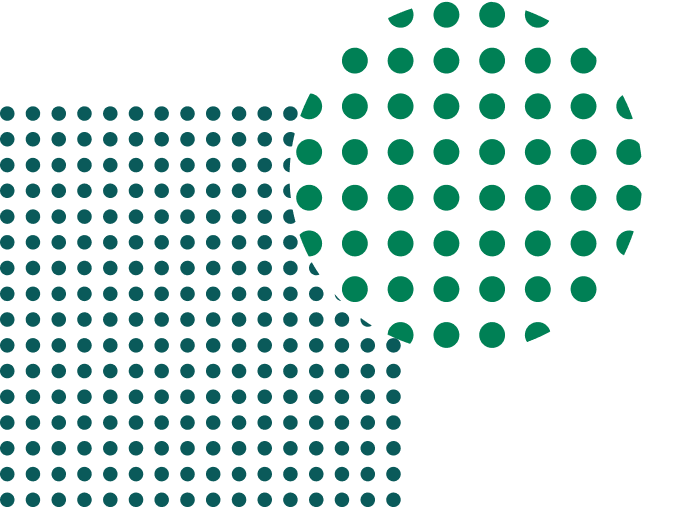

Wi-Fi 6
10 bits/symbol-v1/img/c-arrow-up.png)
20% more data transmission
-

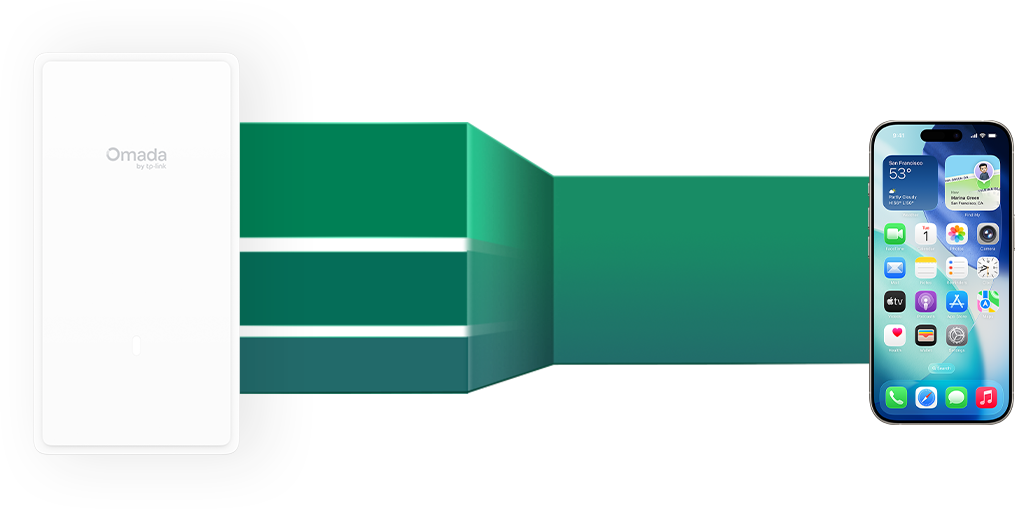

Higher Reliability
and Speeds with MLO-v1/img/c2.png)
6 GHz5 GHz2.4 GHzFaster Speed, Lower Latency

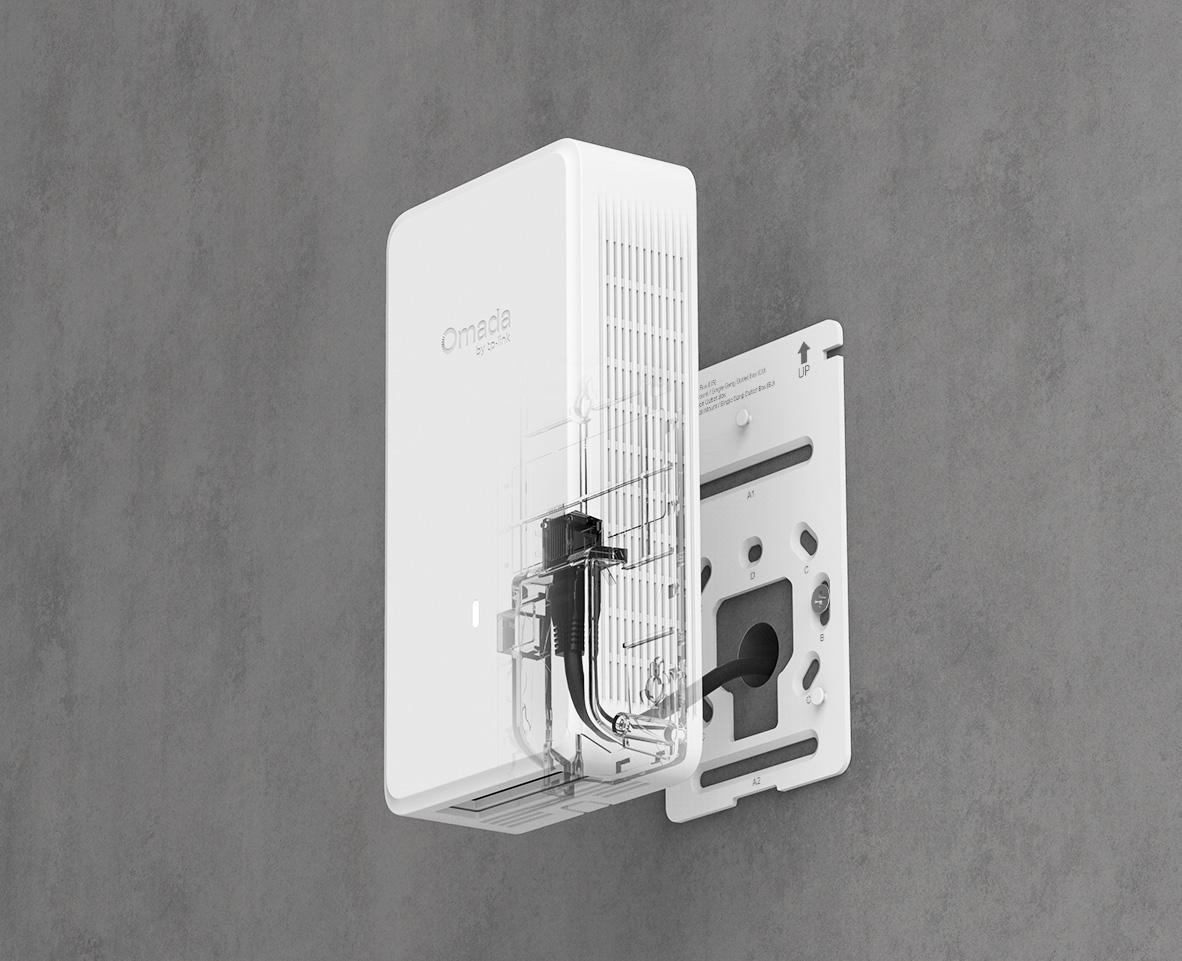

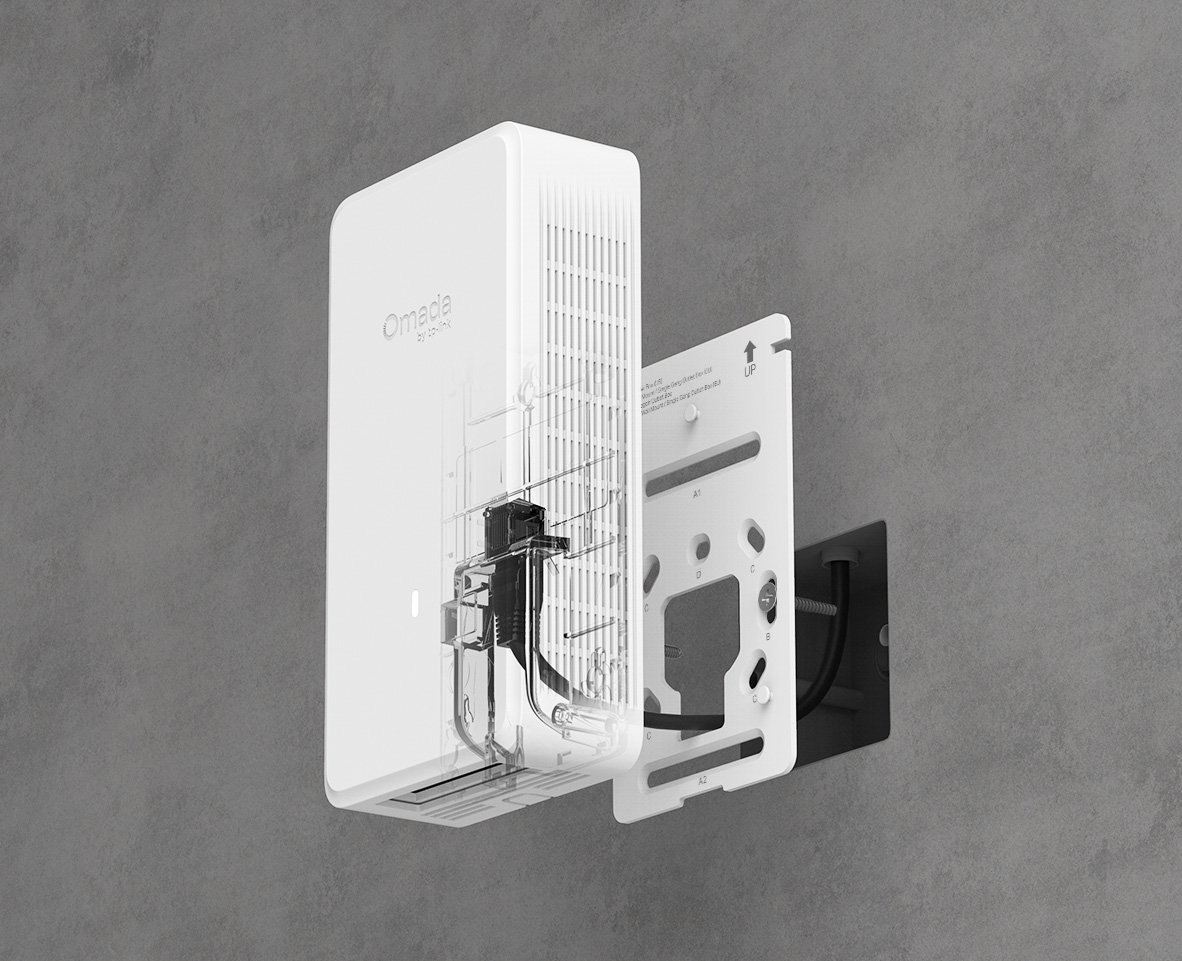

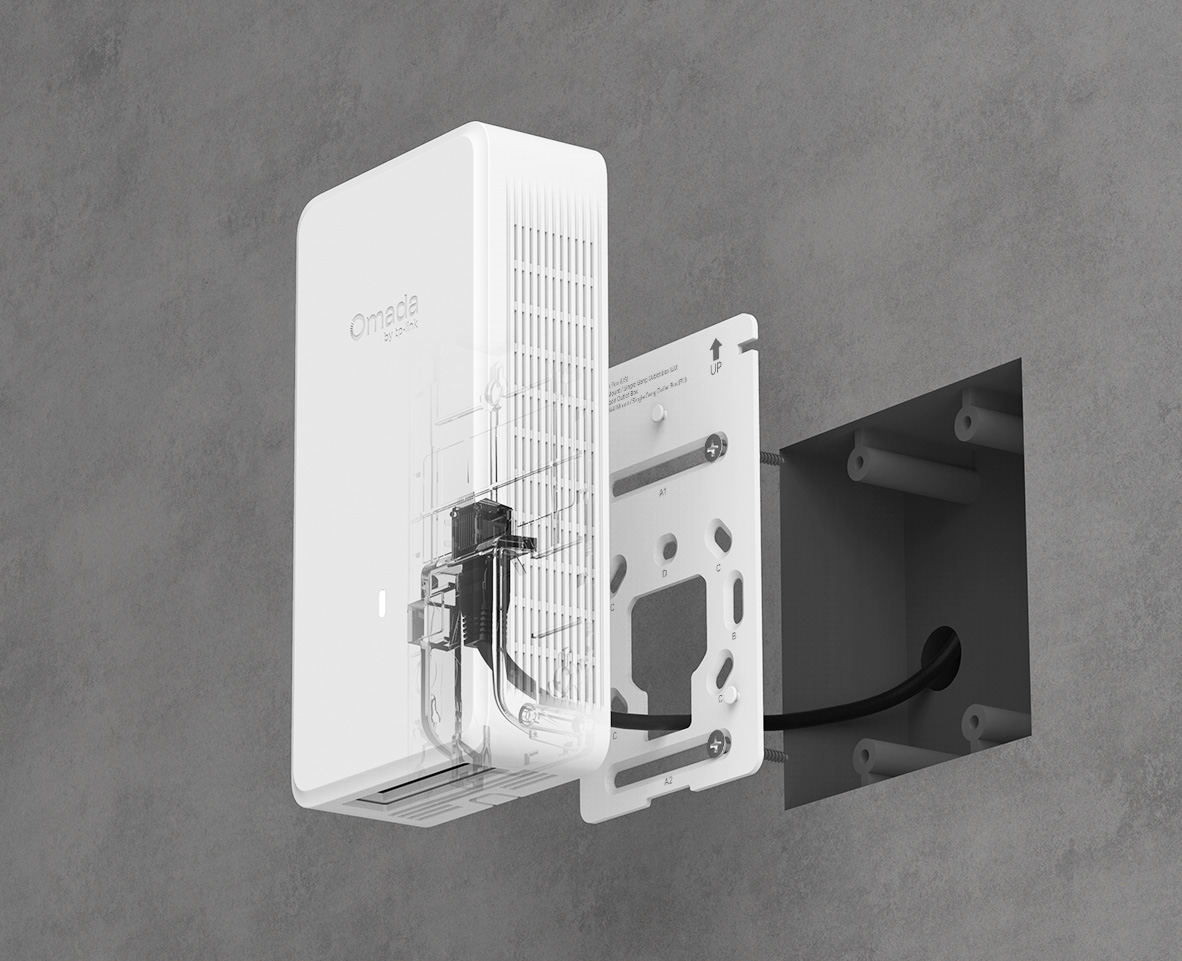

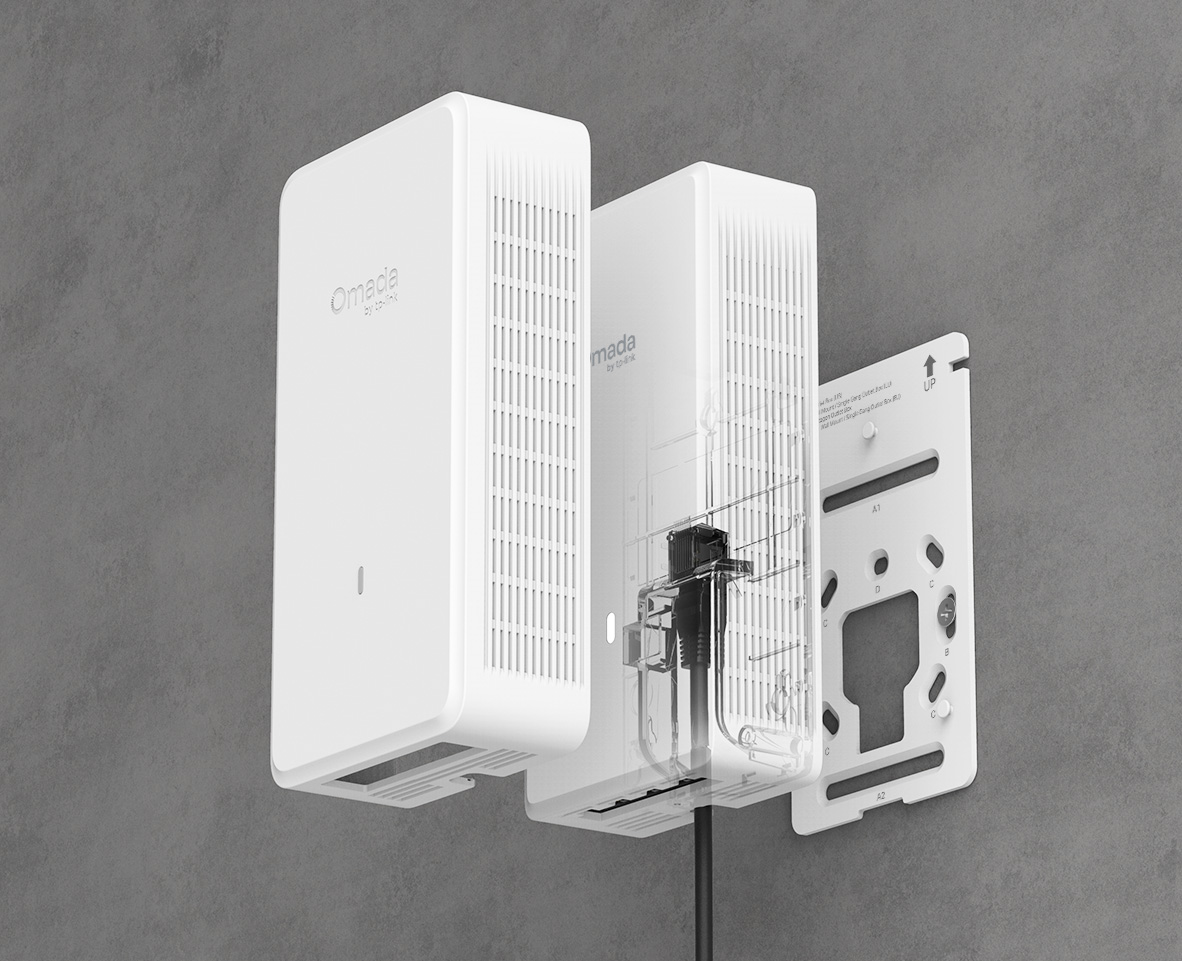

Versatile Mounting Design for
Flexible Deployment
-v1/img/d1.jpg)
-v1/img/d2.jpg)
-v1/img/d3.jpg)
-v1/img/d4.jpg)
Additional Paintable Cover for Aesthetic Integration
Equipped with a paintable cover included at no extra cost, EAP775-Wall can be easily customized to match any backgrounds.
Robust Physical Security with Anti‑Theft Design
Features a concealed anti-theft lock that secures the device flush against the wall, safeguarding your investment and ensuring reliable, uninterrupted connectivity in public areas.
Dedicated Complete,
Private WiFi Network in
Each Room
-v1/img/f1.jpg)
Apartment
-v1/img/f2.jpg)
Hospitality
-v1/img/f3.jpg)
Dormitory
-v1/img/f4.jpg)
Villa
-v1/img/f5.jpg)
Meeting Room
-v1/img/f6.jpg)
Office
Optimized Wired Performance
with 2.5G PoE Ports
2.5G Uplink Port for
Reliable Performance
Delivers outstanding speed and stable connectivity in demanding environments.
2.5G Port
Supports 802.3at PoE+, up to 30W
1×
2.5G Port
1×
Gigabit Port
2×
Gigabit Ports
(2× PoE Out or 1× PoE+ Out)
Versatile Downlink Ports with PoE Flexibility
Includes one 2.5G and three Gigabit ports. Two of the Gigabit ports support flexible PoE Out, offering either two PoE Out ports or one PoE+ Out port to power devices like IP phones and cameras.
-v1/img/g3_1.png)
IP Phone
-v1/img/g3_2.png)
Printer
-v1/img/g3_3.png)
IP TV
-v1/img/g3_4.png)
PC
Boosted Network
Security
-
Secure Guest Network with up to 24 SSIDs
-
Boost Your Business with SMS Login
-
WPA3 for Worry-Free Open Public Networks
-
Rogue AP
Detection
Seamless Integration
into Omada SDN
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
| HARDWARE FEATURES | |
|---|---|
| Interface | • Uplink: 1× 2.5G Ethernet Port• Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports (Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.The PoE Out feature requires 802.3bt input.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3at/bt PoE |
| PoE Out | Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.The PoE Out feature requires 802.3bt input. |
| Max. Power Consumption | 43.35W（with 25W PoE Out) |
| Dimensions ( W x D x H ) | 6.8 × 3.6 × 1.6 in (172.9 × 91.2 × 41.3 mm) |
| Antenna | 6× Internal Antennas• 2.4 GHz: 2× 5 dBi• 5 GHz: 2× 5.5 dBi• 6 GHz: 2× 5.5 dBi |
| Bluetooth | V5.2 |
| Mounting | Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 1050 ft² (100 m²)* |
| Concurrent Clients | 380+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz, 5 GHz, and 6 GHz |
| Signal Rate | • 6 GHz: Up to 5765 Mbps• 5 GHz: Up to 2882 Mbps• 2.4 GHz: Up to 688 Mbps |
| Wireless Functions | • MLO‡• 4K-QAM‡• Multi-RUs‡• 320 MHz Bandwidth‡• 24 SSIDs (Up to 8 SSIDs on each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• Seamless Roaming△• Beamforming• Rate Limit (Based on SSID/Client)• Load Balance• Airtime Fairness• Band Steering• Reboot Schedule• Wireless Schedule• RADIUS Accounting• MAC Authentication• Wireless Statistics• Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication△• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | 6-20 dBm (2.4 GHz, ERIP)6-23 dBm (5 GHz, U-NII-1, U-NII-2A, ERIP)6-27.5 dBm (5 GHz, U-NII-2C, ERIP)6-23 dBm (6 GHz,ERIP) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller• Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of an Omad Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Content | • EAP775-Wall• Paintable Cover• Installation Guide• Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput and coverage are not guaranteed and will vary.
§Painted covers cannot be returned or repaired.
‡Use of Wi-Fi 7 (802.11be) and features including 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△Omada mesh, seamless roaming, captive portal, and cloud access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
