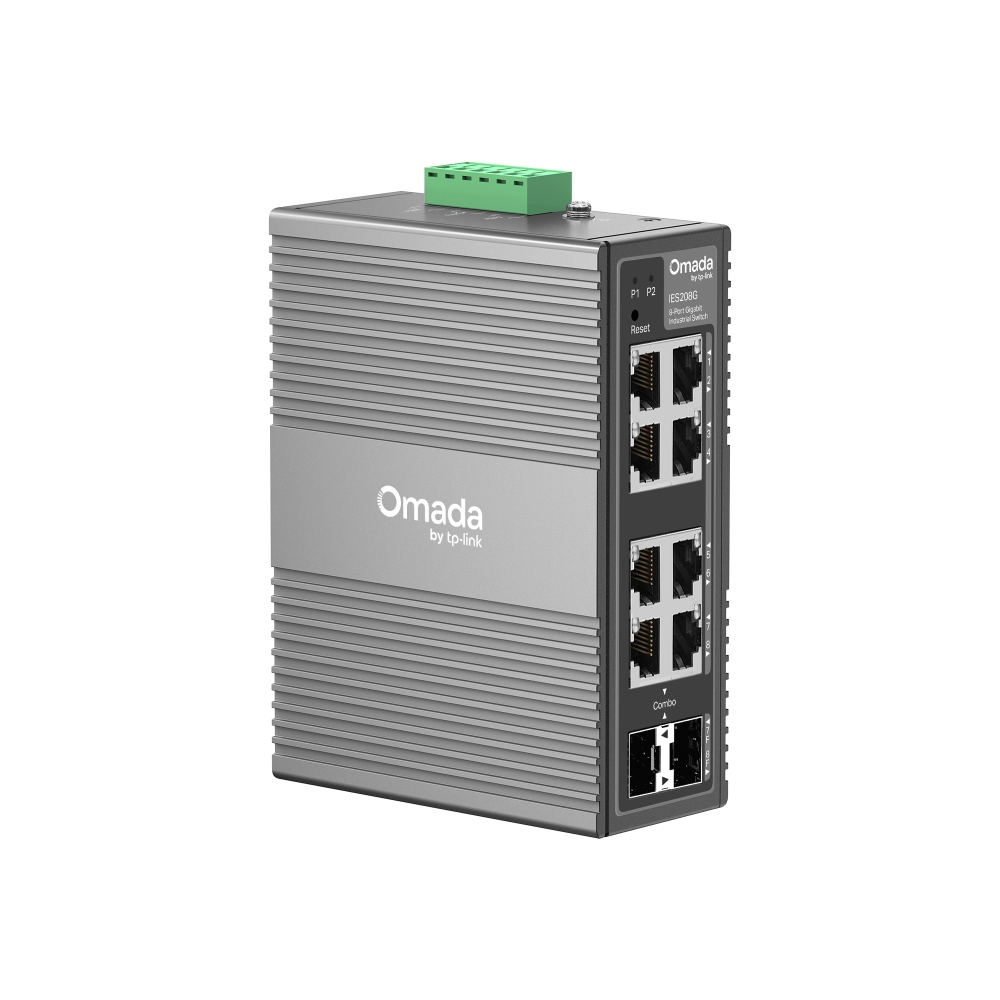

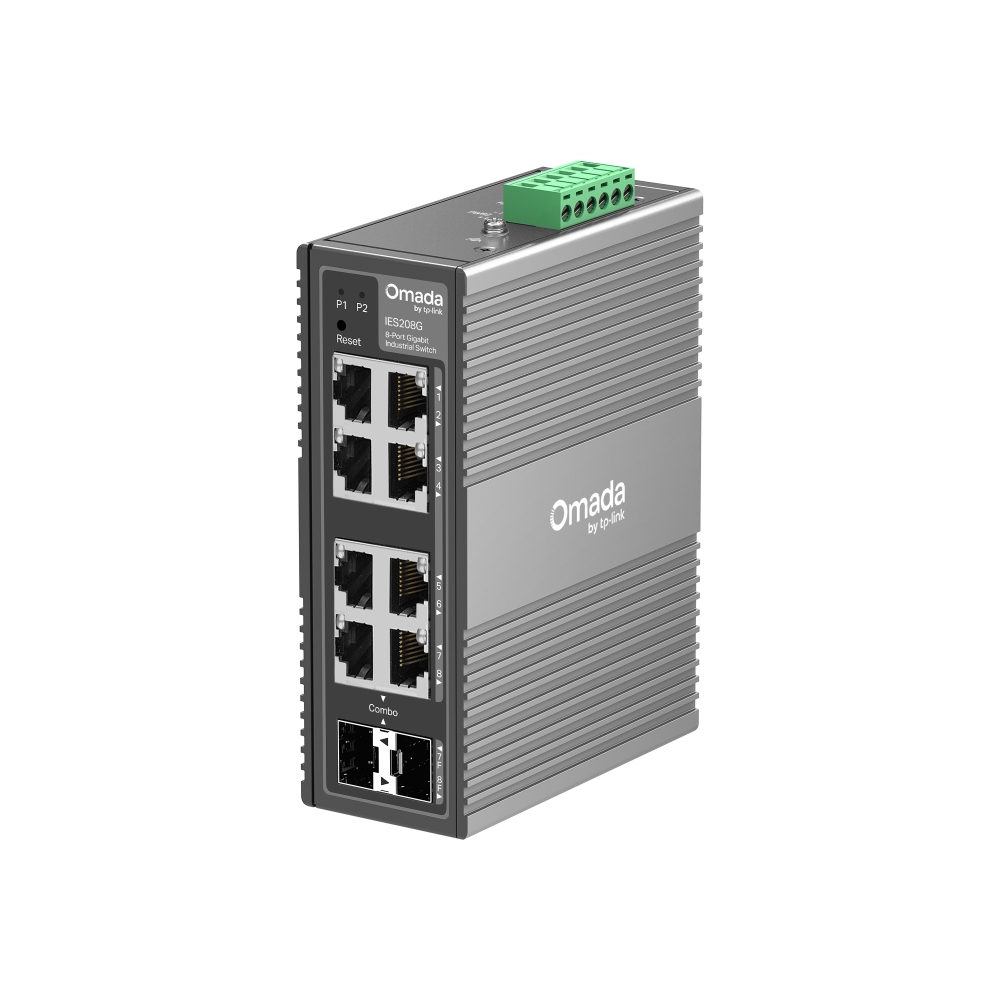

IES208G
NewOmada 8-Port Gigabit Industrial Easy Managed Switch

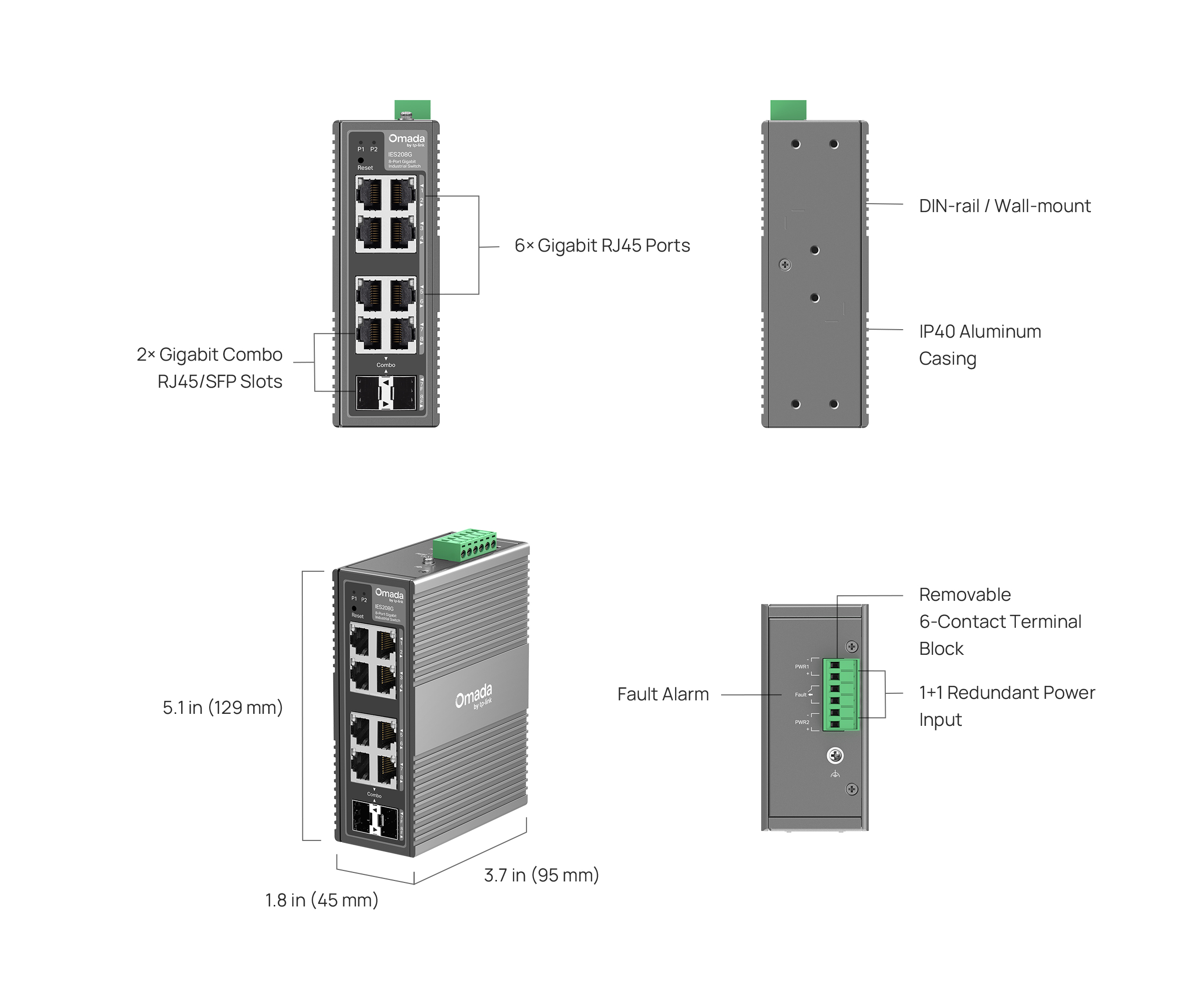

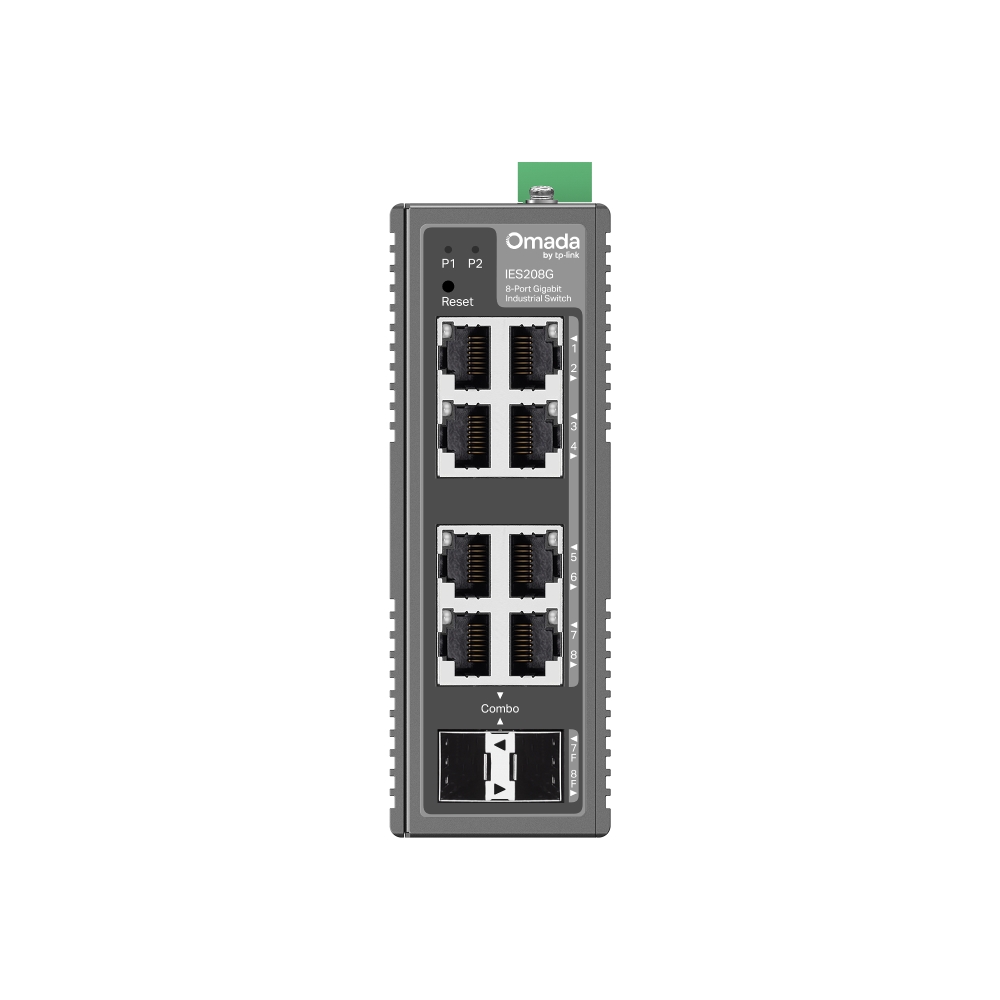

- 8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo)
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App†
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
-
8× Gigabit Ports
(6× RJ45, 2× RJ45/SFP Combo) -
-40°C to 75°C Operating Temperature
-
9.6~60VDC 1+1 Redundant Power Input
-
Industrial-Grade IP40 Aluminum Casing
-
Easy Centralized Management
-
VLAN for Traffic Separation
-
STP/RSTP for Reliable Networking
-
DIN-Rail & Wall Mounting
Industrial-Grade Protection Built for Harsh Environments
-
-40°C to 75°C Operating Temperature
-
6kV Lightning Protection
-
Industrial-Grade IP40 Aluminum Casing
Enhanced Networking Stability and Security
-

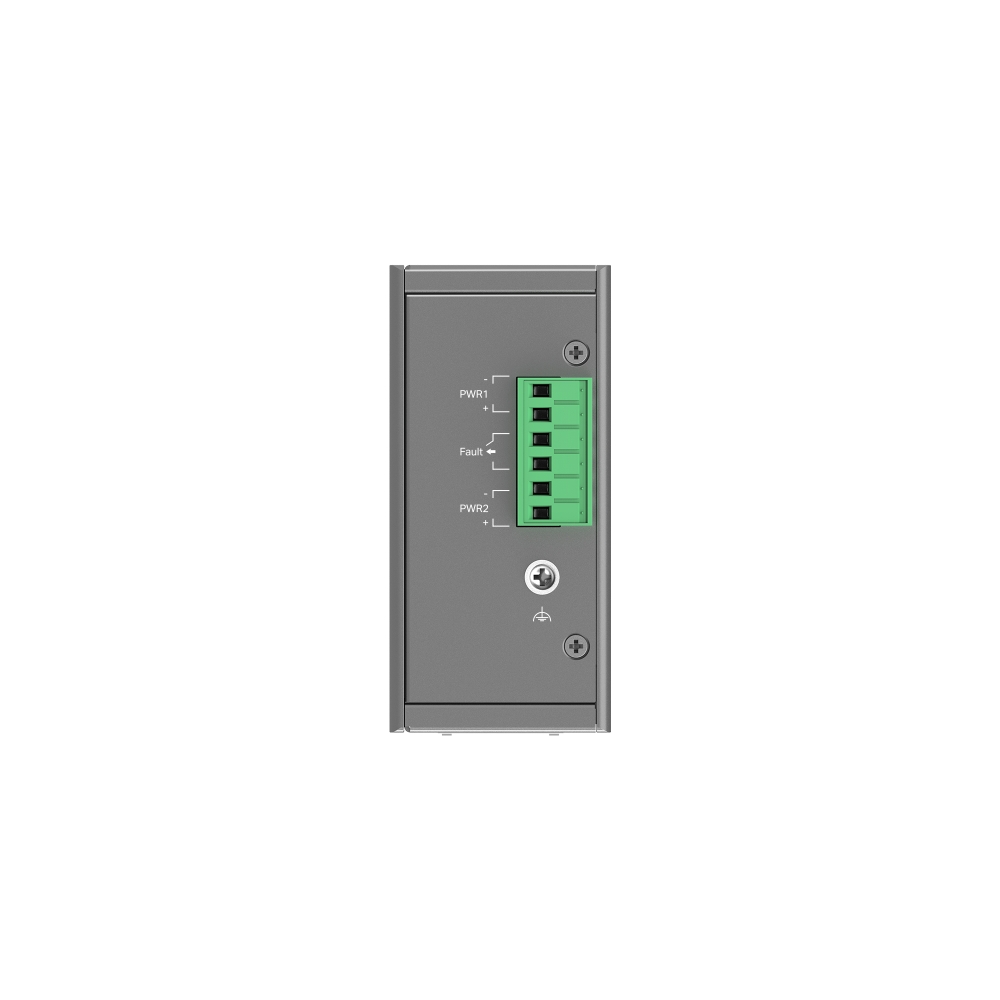

Equipped with dual power input ports and a wide 9.6-60V DC voltage range, ensuring continuous operation even if one power supply fails.
Power 1Power 2 -
Connected to an external alarm, the switch outputs an alarm signal promptly if a port is disconnected or power input is abnormal.
Fault Alarm
Easy Operation and
Maintenance with Omada’s
Free Cloud Management
Learn More -
Easy to Use with
Plug-and-Play Design
and Simple
Configuration -
Free and Easy
Centralized Cloud
Management via
Omada Central
Essentials -
Access Logs and
Receive Alert
Notifications at Any
Time -
Intelligent Network Monitoring for
Instant Topology
Views and Effortless
Troubleshooting

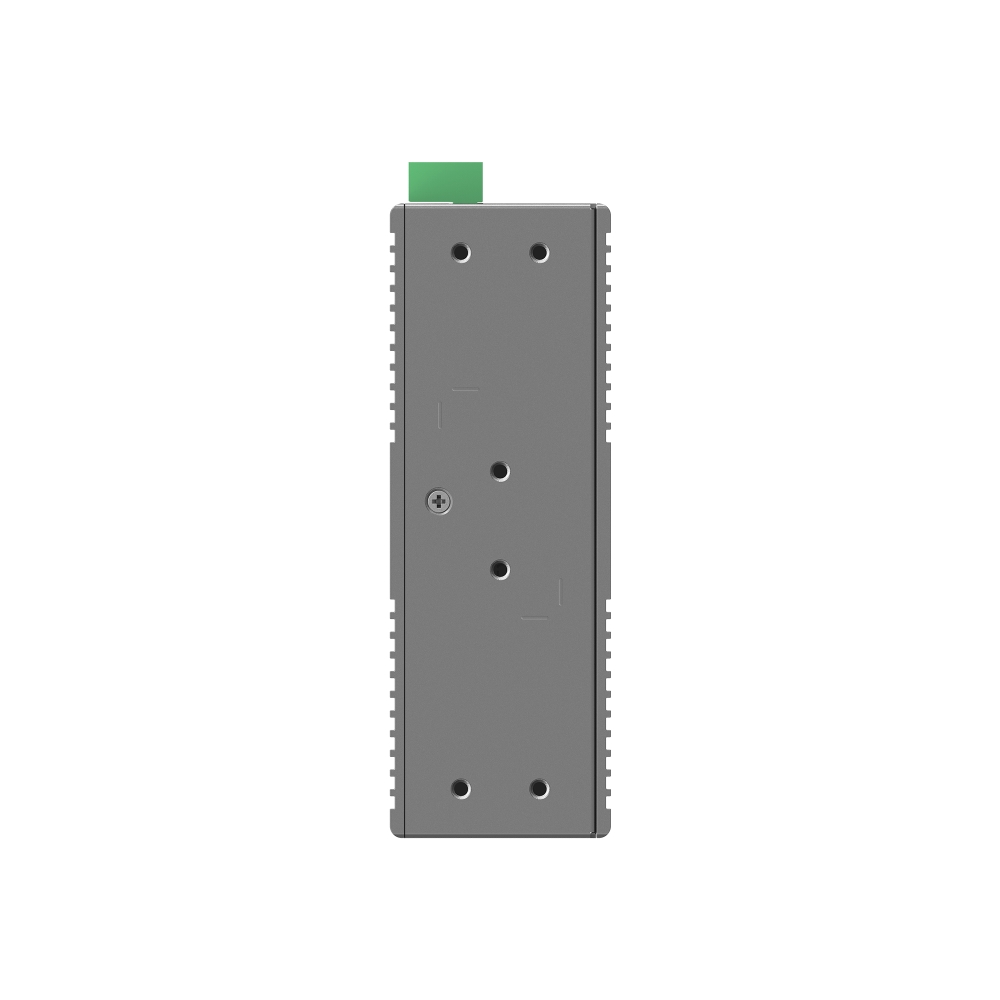

Flexible Deployment Options
DIN-rail
Wall-mount
Diverse Industry Applications
Surveillance
Industrial Automation
Energy
Smart Buildings
| CARATTERISTICHE HARDWARE | |
|---|---|
| Interfaccia | • 6× 10/100/1000 Mbps RJ45 Ports• 2× Gigabit SFP/RJ45 Combo Slots• Auto-Negotiation/Auto MDI/MDIX |
| Numero ventole | Fanless |
| Installation | • DIN-rail mounting• Wall mounting |
| Alimentazione | 9.6-60V 1+1 Redundant DC Power Input |
| Dimensioni ( L x P x A ) | 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm) |
| Surge Protection | • ±6 kV in common mode for Ethernet ports• ±4 kV in common mode for DC power input ports |
| PRESTAZIONI | |
|---|---|
| Capacità di switching | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| Tabella ARP | 8K |
| Buffer (pacchetti) | 4 Mbit |
| Jumbo frame | 15 KB |
| CARATTERISTICHE SOFTWARE | |
|---|---|
| QoS (Quality of Service) | • 802.1p DSCP Priority• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rate Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control |
| Funzionalità L2 | • Link Aggregation- Static Link Aggregation- Up to 2 aggregation groups and up to 4 ports per group• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP• Spanning Tree- STP (802.1d)- RSTP (802.1w) |
| L2 Multicast | • IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| VLAN | • MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Metodo di trasmissione | Store-And-Forward |
| GESTIONE | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI• DHCP Client• Cable Diagnostics• Digital Diagnostic Monitoring (DDM)• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration† |
| ALTRO | |
|---|---|
| Certificazione | FCC, CE, RoHS |

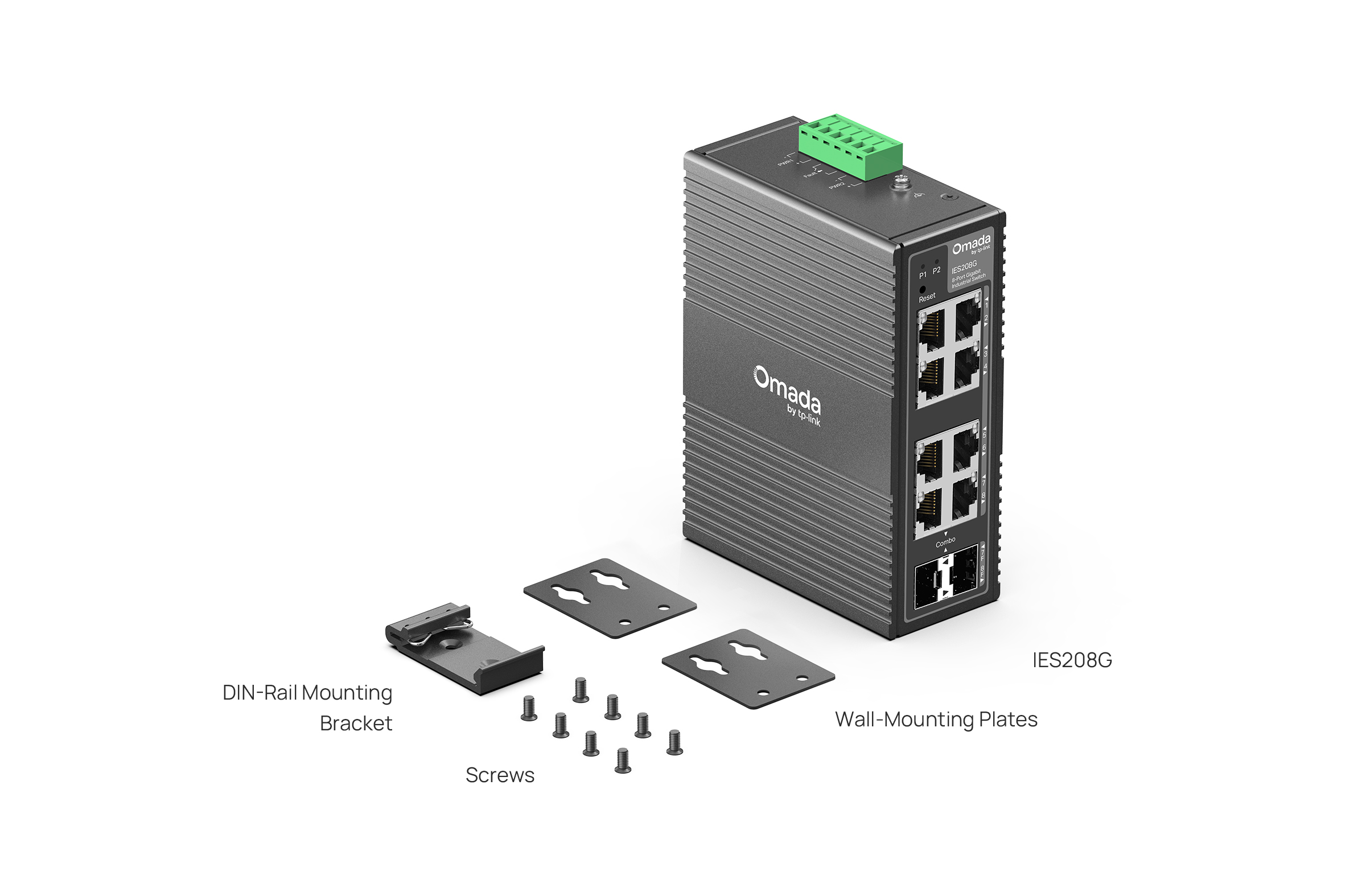

| Contenuto della confezione | • IES208G• DIN-Rail Mounting Bracket• Wall-Mounting Plates• Installation Guide |
| Ambiente | • Operating Temperature: -40℃~75℃ (-40℉~167℉)• Storage Temperature: -40℃~85℃ (-40℉~185℉)• Operating Humidity: 5%~95% non-condensing• Storage Humidity: 5%~95% non-condensing |
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials). Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.
