Omada Hardware Controller
- Centralized Cloud Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs.*
- Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
- On-Premises Management: Locally monitor and manage devices with the ultimate stability and complete privacy.

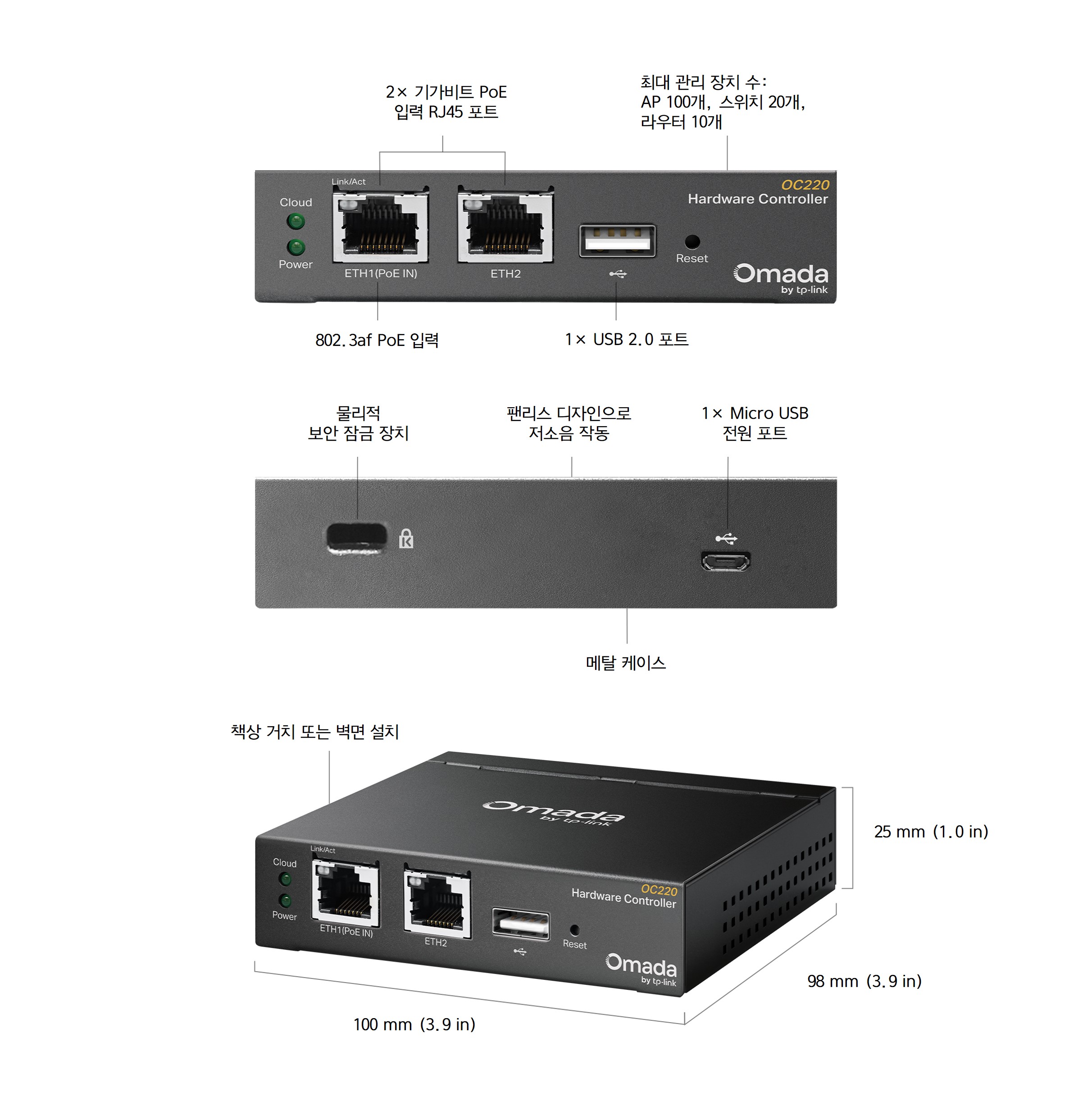

- Hardware Design for Businesses: Features a powerful chipset, durable metal casing, USB 2.0 port for data backup, and 2× Gigabit Ethernet ports.
- Flexible Deployment: Powerd via 802.3af/at PoE or Micro USB (DC 5 V / Minimum 1 A) with a compact desktop or wall mount installation.
| 하드웨어 사양 | |
|---|---|
| 프로세서 | Quad-Core A53 @ 2.0 GHz/Core |
| 인터페이스 및 주요 사양 | • 2× Gigabit Ethernet Ports• 1× USB 2.0 Port• 1× Micro-USB Port (only for power supply) |
| 물리적 보안 잠금 장치 | Kensington Lock |
| 버튼 | Reset Button |
| 전원 공급 | • 802.3af/at PoE• Micro-USB (DC 5 V / Minimum 1 A) |
| 전력 소모 | 11.2 W (powered by a PoE device, with USB 2.0 connected)3.5 W (powered via Micro-USB port, no USB 2.0 connected) |
| DRAM | 2 GB DDR4 |
| Storage | • 4MB Nor Flash• 8 GB eMMC |
| 무게 | 0.305 kg |
| 크기 ( 가로 x 세로 x 높이 ) | 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) |
| 관리 | |
|---|---|
| Omada 앱 | √ |
| 복구 및 백업 | √ |
| 중앙 집중식 관리 | • 100 Omada access points• 10 Omada gateways• A maximum of 20 Omada switches*• A maximum of two select DeltaStream GPON OLTs* |
| 클라우스 액세스 | √ |
| L3 관리 | √ |
| 멀티 사이트 관리 | √ |
| 관리 기능 | • Wired Network• Wireless Network• WLAN Optimization• Network Security (ACL/URL Fitering/Attack Defense)• Transmission (Routing/NAT/Session Limit/Bandwidth Control)• VPN (IPSec/L2TP/PPTP/OpenVPN/WireGuard VPN) • Portal (Voucher/Local User/SMS/RADIUS/External Portal Server)• 802.1x• RADIUS (Authentication/MAC Auth/Accounting) |
| 모니터링 | |
|---|---|
| 모니터링 | • DPI• IPS/IDS• Dashboard (Custom Dashboard)• Statistics (Performance/Switch Statistics)• Network topology• Network Map• Devices List (Custom Table)• Clients List (Custom Table)• Insights (Known Clients/Past Connections/Past Portal Authorizations/Rogue APs)• Logs (Alerts/Events/Custom Notifications) |
| 기타 | |
|---|---|
| 인증 | CE, FCC, RoHS |

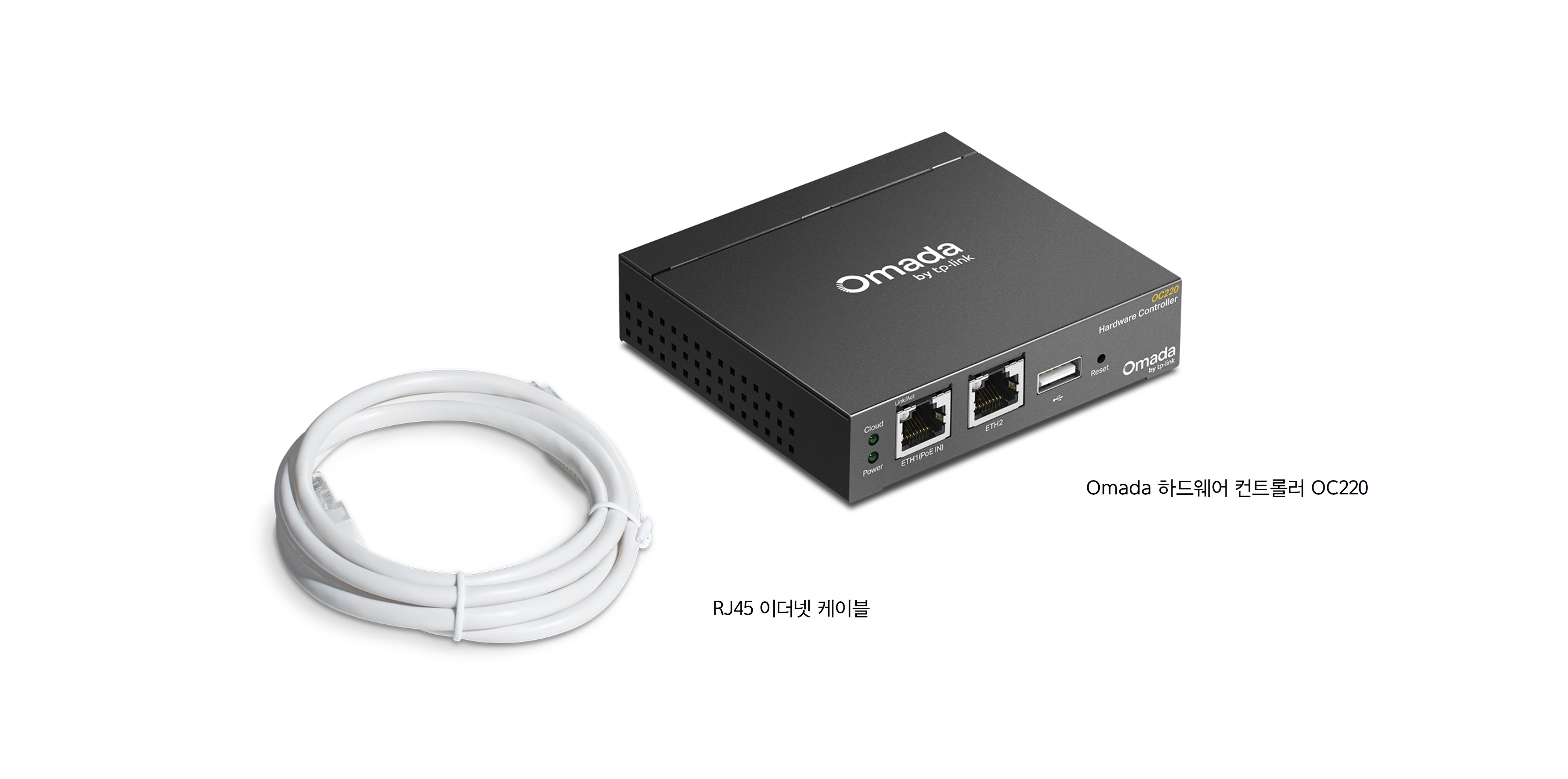

| 구성품 | • Omada Hardware Controller OC220• Quick Installation Guide • RJ45 Ethernet Cable |
| 운영 체제 | Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| 사용 환경 | • Operating Temperature: -5–50 ℃ (23–122 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
*The number of supported Omada switches decreases by five for each DeltaStream GPON OLT added. Refer to https://www.omadanetworks.com/omada-sdn/product-list/#sp-gpon to find all the DeltaStream GPON OLTs that are supported by the controller.
**Actual management scale of the Omada Software Controller depends on the PC/server's hardware specifications.
△The Wi-Fi Tab is only available on the Omada Cloud-Based Controller. Support for the On-Premises Controller is planned for Q1 2026.
