ES206XPP-M2
곧 출시Omada 8-Port 2.5G BASE-T Easy Managed Switch with 2 10GE SFP+ Slots
- 8× 2.5 Gbps RJ45 Ports
- 2× 10 Gbps SFP+ Slots
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design

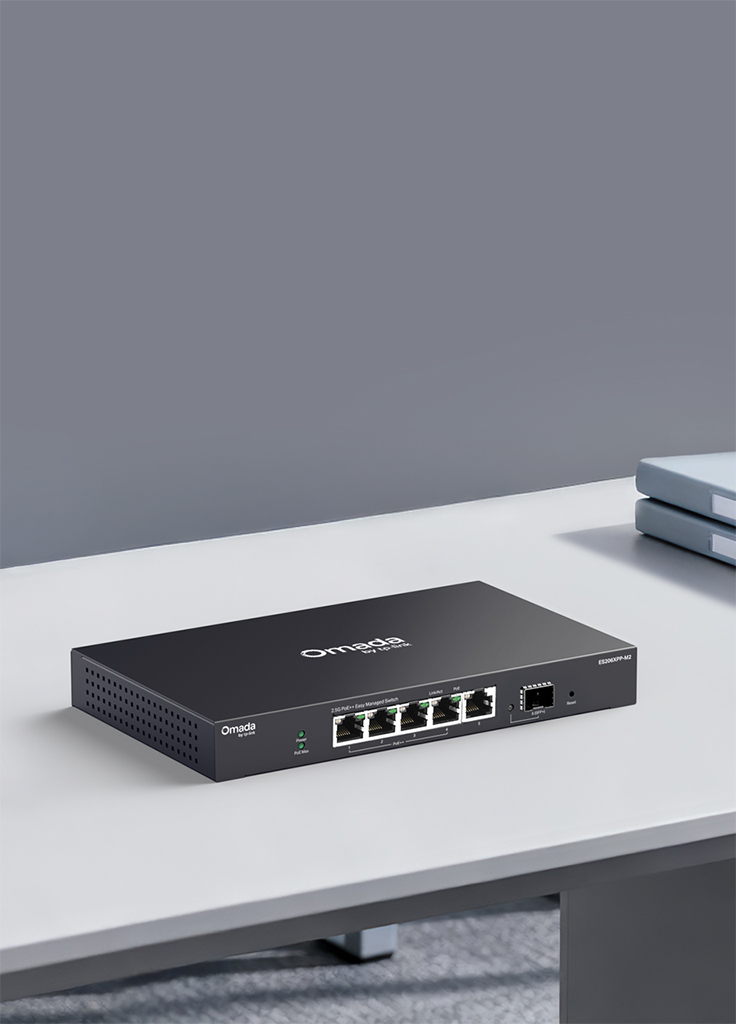

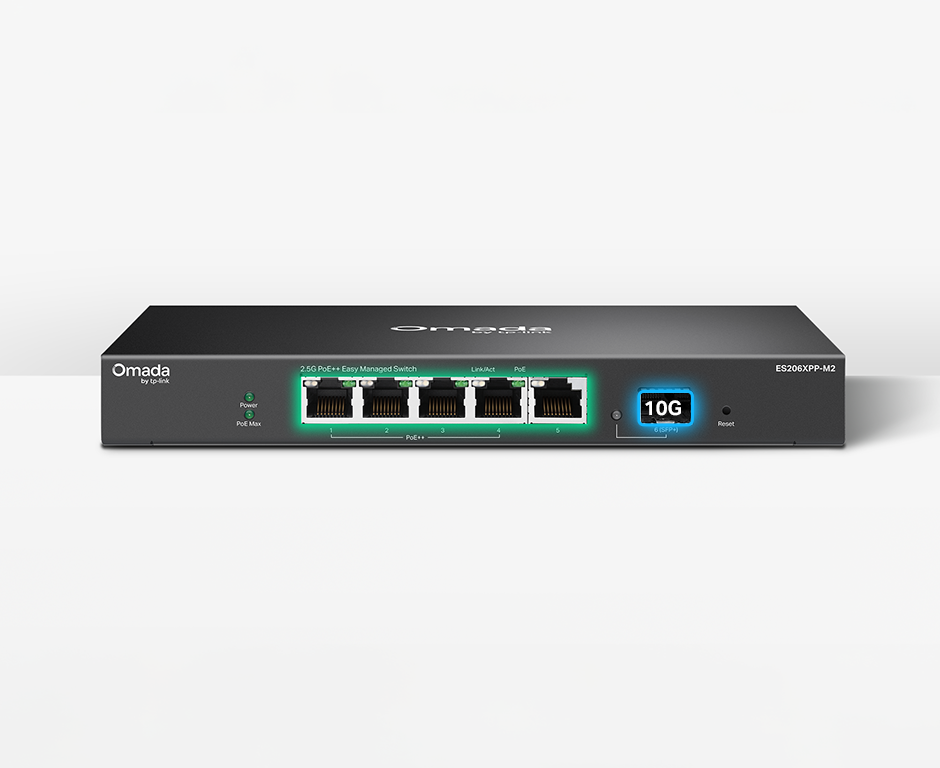

Omada 5-Port
2.5G+1-Port 10G
Easy
Managed Switch with
4-Port PoE++
5× 2.5G RJ45 Ports
1× SFP+ Slot
120W Total PoE Budget*
Fanless Design for Silent Operation
Easy Centralized Management†
Omada App†
Traffic
Separation
Traffic
Prioritization
Power over Ethernet, Flexible Network Deployment
Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.

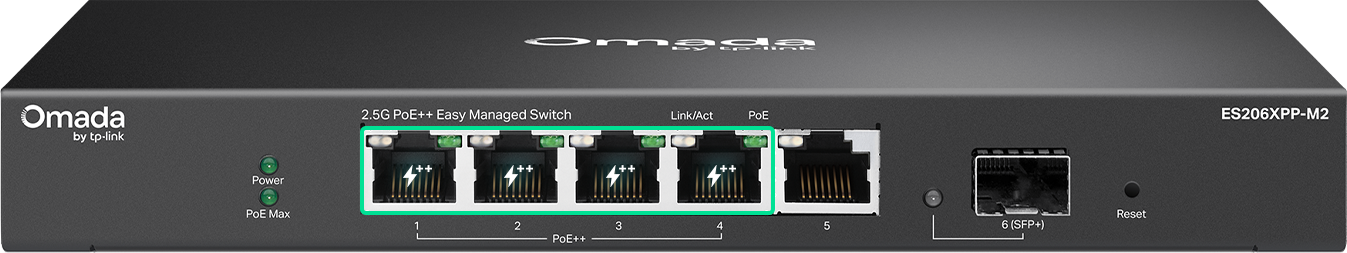

4× 2.5G
PoE++
RJ45 Ports
Up to
90W
per Port
Total
120W
PoE Budget
Compatible with
802.3af/at/bt
PoE and non-PoE devices
Compatible with
802.3af/at/bt
PoE and non-PoE devices
Access Point
Gaming Consoles
4K Video
Computer
Unlock the Highest
Performance of 2.5G
Multi-Gig Bandwidth and
Devices
2.5G WiFi7/6 APs
2.5G Gaming Computer
2.5G NAS/Server
PoE Lighting
Works with Omada Central Essentials
for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use centralized cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Cost-Performance Solution

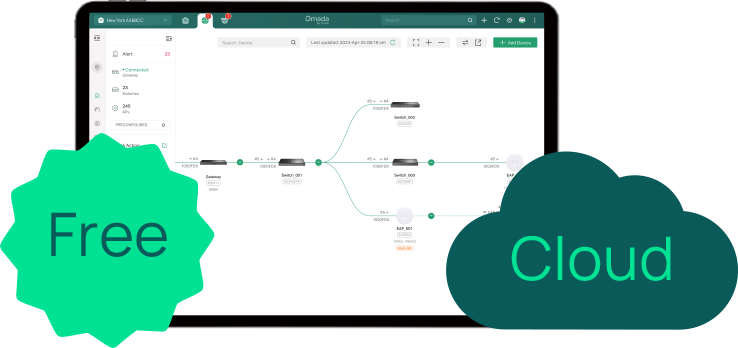

Looking for free, worry-free cloud management for life?
Omada Central Essentials
Lifetime Free Cloud Without Additional Fees

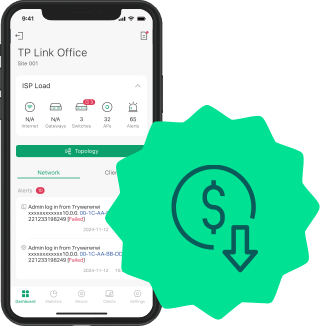

On-site work eating up time and resources?
Reduce Maintenance Costs
Manage and Maintain from Anywhere
Multiple Application Scenarios
Wi-Fi Coverage
Works with WiFi6/WiFi7
Access Points
LAN Party
Works with Gaming Consoles and TVs
Wired Connections
Works with Non-PoE Devices such as PCs
and Printers
| 하드웨어 사양 | |
|---|---|
| 인터페이스 및 주요 사양 | • 8× 2.5 Gbps RJ45 Ports• 2× 10 Gbps SFP+ Slots• Auto-Negotiation/Auto MDI/MDIX |
| 팬(Fan) 수량 | Fanless |
| 설치 | • Desktop• Wall Mount |
| 물리적 보안 잠금 장치 | √ |
| 전원 공급 | DC Power Adapter (Output: 12 VDC / 1.5 A) |
| 크기 ( 가로 x 세로 x 높이 ) | 8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm) |
| 서지 보호 | ±6 kV |
| 성능 | |
|---|---|
| 패킷 버퍼 메모리 | 640 KB |
| 점보 프레임 | 10 KB |
| 스위칭 용량 | 80 Gbps |
| 패킷 전달 속도 | 59.52 Mpps |
| MAC 주소 테이블 | 16K |
| 소프트웨어 기능 | |
|---|---|
| 서비스 품질(QoS) | • Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control△ |
| L2 기능 | • Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP |
| L2 멀티캐스트 | • IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| VLAN | • MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| 전송 방법 | Store-And-Forward |
| 관리 | |
|---|---|
| Omada 앱 | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| 중앙 집중식 관리 | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| 클라우스 액세스 | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| 제로 터치 프로비저닝 | Yes. Requires the use of Omada Cloud-Based Controller |
| 관리 기능 | • Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration† |
| 기타 | |
|---|---|
| 인증 | FCC, CE, RoHS |
| 구성품 | • ES210X-M2• Power Adapter• Rubber Feet• Installation Guide |
| 사용 환경 | • Operating Temperature: -5℃~40℃ (23℉~104℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing |
