Omada 24-Port Gigabit Unmanaged Rackmount Switch
- 24 10/100/1000Mbps RJ45 ports
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
- Plug and Play. No configuration or central management required.*
-
24× Gigabit RJ45 Ports
-
Isolation Mode for Security
-
Loop Prevention
-
Traffic Prioritization
-
Fanless Design for Silent Operation
-
Plug and Play
-
Green Technology
-
Durable Metal Casing
Instantaneous Multi-mode Toggles△
Traffic Separation for Security
Isolation Mode easily divides traffic for ports to avoid snooping/tampering and isolates broadcast storm for higher security.
Prevent Your Switches Network Loops
Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping.
-
Traffic Separation for Security
Isolation Mode easily divides traffic for ports to avoid snooping/tampering and isolates broadcast storm for higher security.
-
Prevent Your Switches Network Loops
Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping.
QoS for a Lag-Free Experience
QoS (Quality of Service) ensures smooth traffic for latency sensitive applications under limited bandwidth resources, such as voice and video.
Plug and Play
-
1. Connect to Power
-
2. Connect the Devices
Desktop
Printer
NAS
Internet
Router
-
3. Enjoy
| 하드웨어 사양 | |
|---|---|
| 표준 및 프로토콜 | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
| 인터페이스 및 주요 사양 | 24× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| 네트워크 미디어 | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
| 팬(Fan) 수량 | Fanless |
| 물리적 보안 잠금 장치 | Yes |
| 전원 공급 | 100-240VAC, 50/60Hz |

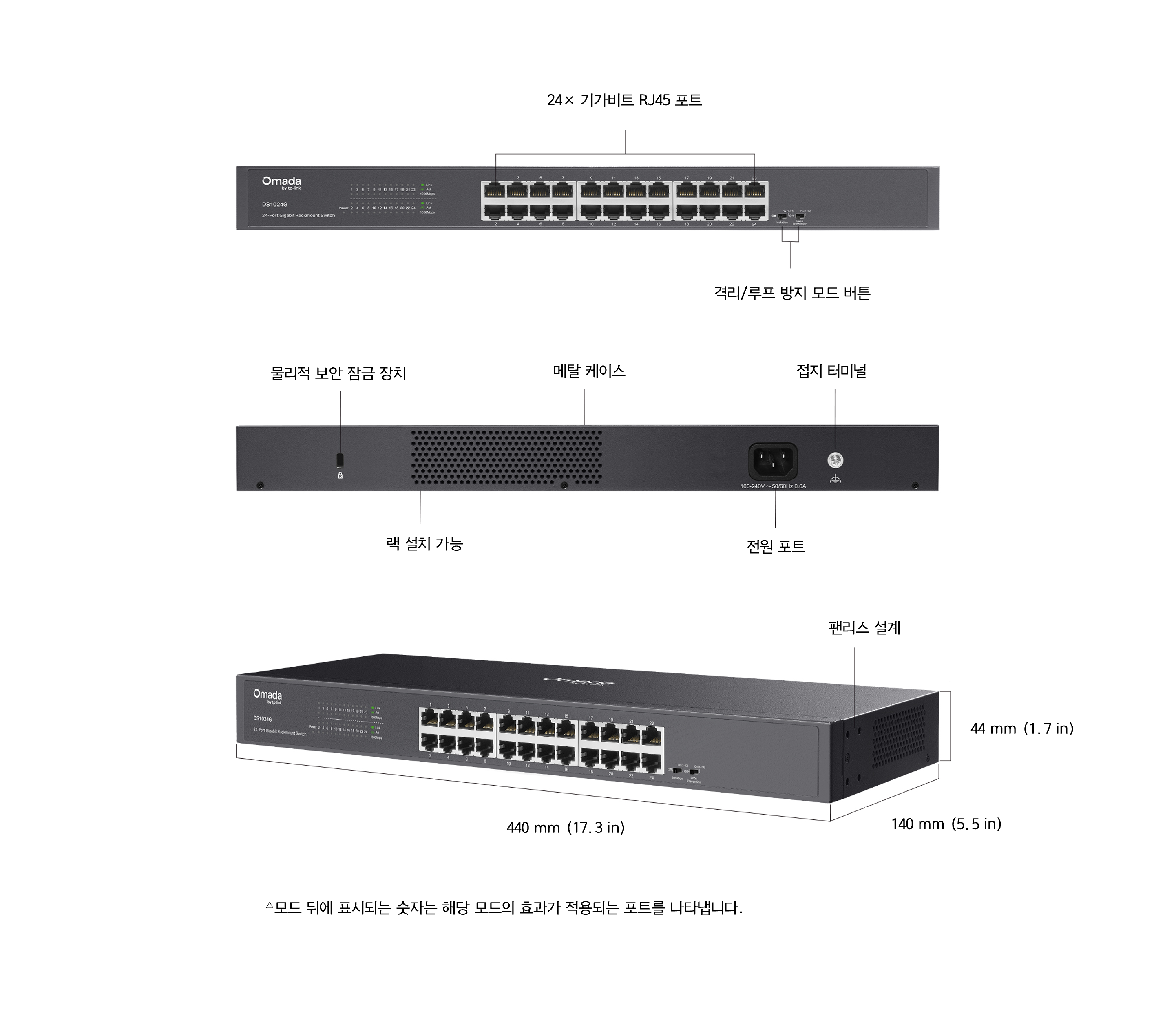

| 크기 ( 가로 x 세로 x 높이 ) | 17.3 × 5.5 × 1.7 in (440 × 140 × 44 mm) |
| 마운트 | Rack Mountable |
| 최대 전력 소모량 | 13.62W |
| 최대 방열수치 | 46.44BTU/h |
| 성능 | |
|---|---|
| 스위칭 용량 | 48Gbps |
| 패킷 전달 속도 | 35.7Mpps |
| MAC 주소 테이블 | 8K |
| 점보 프레임 | 10KB |
| 소프트웨어 기능 | |
|---|---|
| 고급 기능 | • Isolation Mode: Ports 1-22• Loop Prevention: Ports 1-24• 802.1P/DSCP QoS• Green Ethernet technology |
| 전송 방법 | Store and Forward |
| 기타 | |
|---|---|
| 인증 | FCC, CE, RoHS |

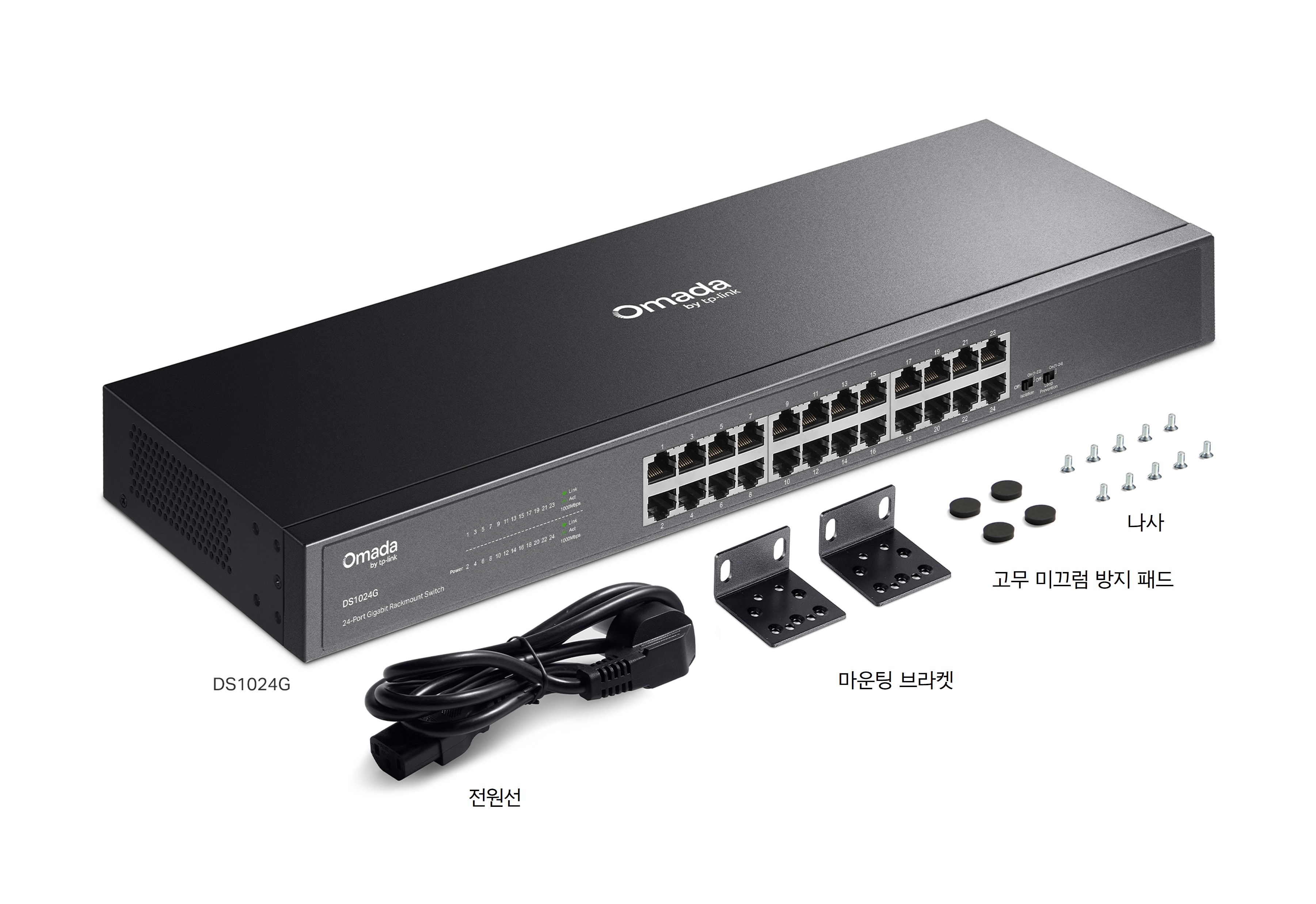

| 구성품 | • DS1024G• Power Cord• Installation Guide• Rackmount Kits• Rubber Feet |
| 사용 환경 | • Operating Temperature: 0℃~40℃ (32℉~104℉);• Storage Temperature: -40℃~70℃ (-40℉~158℉);• Operating Humidity: 10%~90% non-condensing;• Storage Humidity: 5%~90% non-condensing |
*Omada Unmanaged Switches do not support Omada SDN central management.
