EAP775-Wall
곧 출시BE9300 Wall Plate Wi-Fi 7 Access Point
- 6-Stream Tri-Band Wi-Fi 7: 5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.
- Flexible and Aesthetic Integration: Versatile mounting design with a paintable cover included for flexible integration.
- Multiple Ports with PoE Flexibility: 2× 2.5G Ports (1× PoE+/PoE++ In) + 3× Gigabit Ports (2× PoE Out or 1× PoE+ Out)
- Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Easy Setup, Easy to Use: Works with Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management, mesh, and seamless roaming.△
- Complete In-Room Wi-Fi with More Connections: Supports 380+ concurrent connections** and covers up to 1050 ft² (100 m²) * for reliable and extensive wireless connectivity.
Learn more about Omada Cloud SDN>
-v1/img/Highlights_web_EU_Updated_20251113082435r.jpg)
| 하드웨어 사양 | |
|---|---|
| 인터페이스 및 주요 사양 | • Uplink: 1× 2.5G Ethernet Port• Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports (Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.The PoE Out feature requires 802.3bt input.) |
| 물리적 보안 잠금 장치 | Yes |
| 버튼 | Reset |
| 전원 공급 | 802.3at/bt PoE |
| PoE Out | Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.The PoE Out feature requires 802.3bt input. |
| 전력 소모 | 43.35W（with 25W PoE Out) |
| 크기 ( 가로 x 세로 x 높이 ) | 6.8 × 3.6 × 1.6 in (172.9 × 91.2 × 41.3 mm) |
| 안테나 | 6× Internal Antennas• 2.4 GHz: 2× 5 dBi• 5 GHz: 2× 5.5 dBi• 6 GHz: 2× 5.5 dBi |
| 블루투스 | V5.2 |
| 마운트 | Wall Mounting (Kits included) |
| 무선 기능 | |
|---|---|
| 커버리지 | 1050 ft² (100 m²)* |
| 동시 접속 클라이언트 | 380+** |
| 무선 표준 | IEEE 802.11 a/b/g/n/ac/ax/be |
| 주파수 | 2.4 GHz, 5 GHz, and 6 GHz |
| 신호 속도 | • 6 GHz: Up to 5765 Mbps• 5 GHz: Up to 2882 Mbps• 2.4 GHz: Up to 688 Mbps |
| 무선 기능 | • MLO‡• 4K-QAM‡• Multi-RUs‡• 320 MHz Bandwidth‡• 24 SSIDs (Up to 8 SSIDs on each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• Seamless Roaming△• Beamforming• Rate Limit (Based on SSID/Client)• Load Balance• Airtime Fairness• Band Steering• Reboot Schedule• Wireless Schedule• RADIUS Accounting• MAC Authentication• Wireless Statistics• Static IP/Dynamic IP |
| 무선 보안 | • Captive Portal Authentication△• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| 전송 강도 | 6-20 dBm (2.4 GHz, ERIP)6-23 dBm (5 GHz, U-NII-1, U-NII-2A, ERIP)6-27.5 dBm (5 GHz, U-NII-2C, ERIP)6-23 dBm (6 GHz,ERIP) |
| 관리 | |
|---|---|
| Omada 앱 | Yes |
| 중앙 집중식 관리 | • Omada Hardware Controller • Omada Software Controller• Omada Cloud-Based Controller |
| 클라우스 액세스 | Yes. Requiring the use of an Omad Controller. |
| 이메일 경보 | Yes |
| LED 켜기/끄기 제어 | Yes |
| 관리 MAC 액세스 컨트롤 | Yes |
| SNMP | v1, v2c, v3 |
| 시스템 로깅 로컬/리모트 시스로그 | System Log |
| SSH | Yes |
| 웹기반 관리기능 | Yes |
| L3 관리 | Yes |
| 멀티 사이트 관리 | Yes |
| VLAN 관리 | Yes |
| 제로 터치 프로비저닝 | Yes. Requiring the use of Omada Cloud-Based Controller. |
| 기타 | |
|---|---|
| 인증 | CE, RoHS |

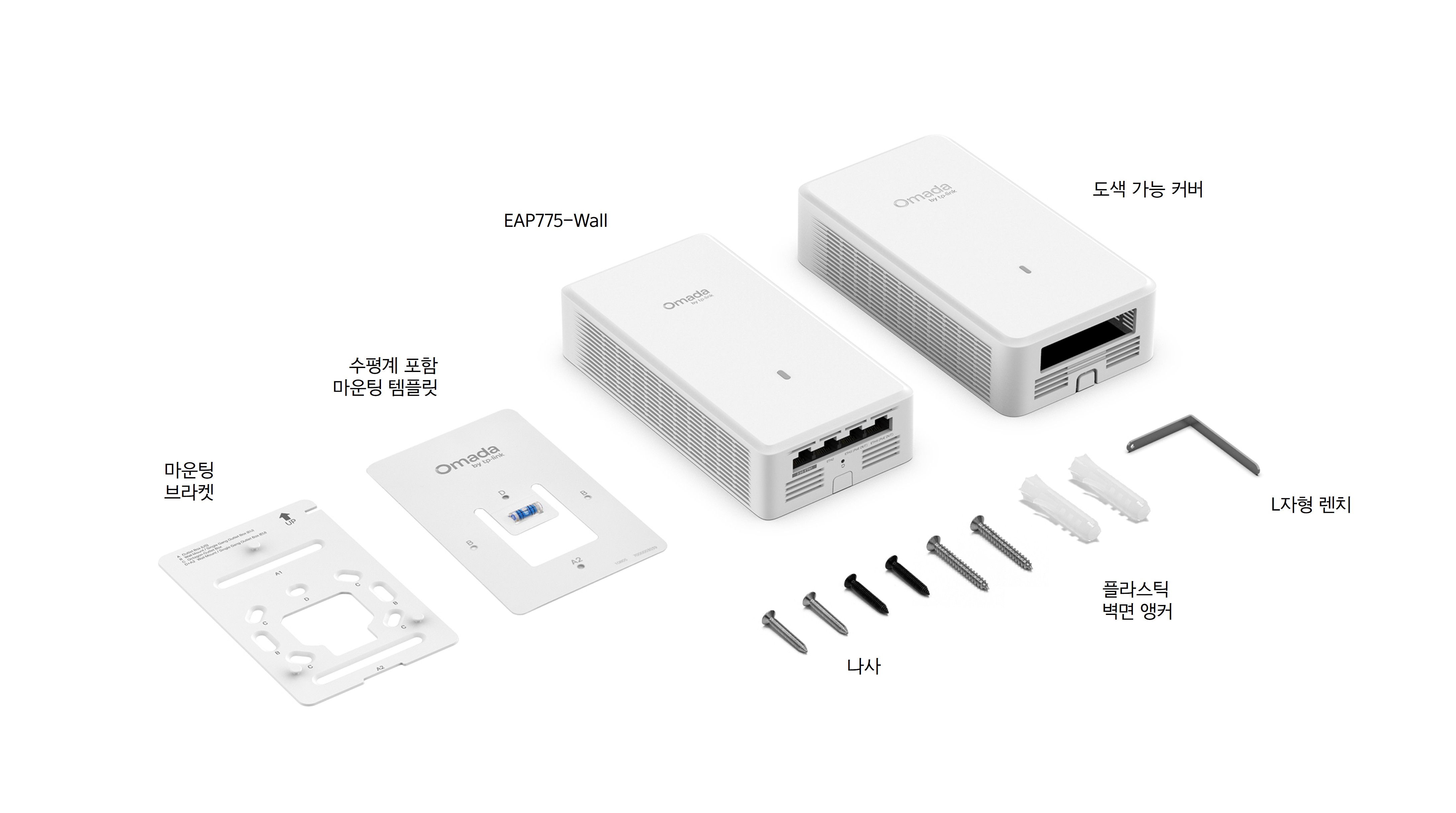

| 구성품 | • EAP775-Wall• Installation Guide• Mounting Kits |
| 운영 체제 | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| 사용 환경 | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput and coverage are not guaranteed and will vary.
‡Use of Wi-Fi 7 (802.11be) and features including 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△Omada mesh, seamless roaming, captive portal, and cloud access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
