OC220
Coming SoonOmada Hardware Controller
- Centralized Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs*
- Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
- On-Premises Management: Locally monitor and manage devices with the ultimate stability and complete privacy.

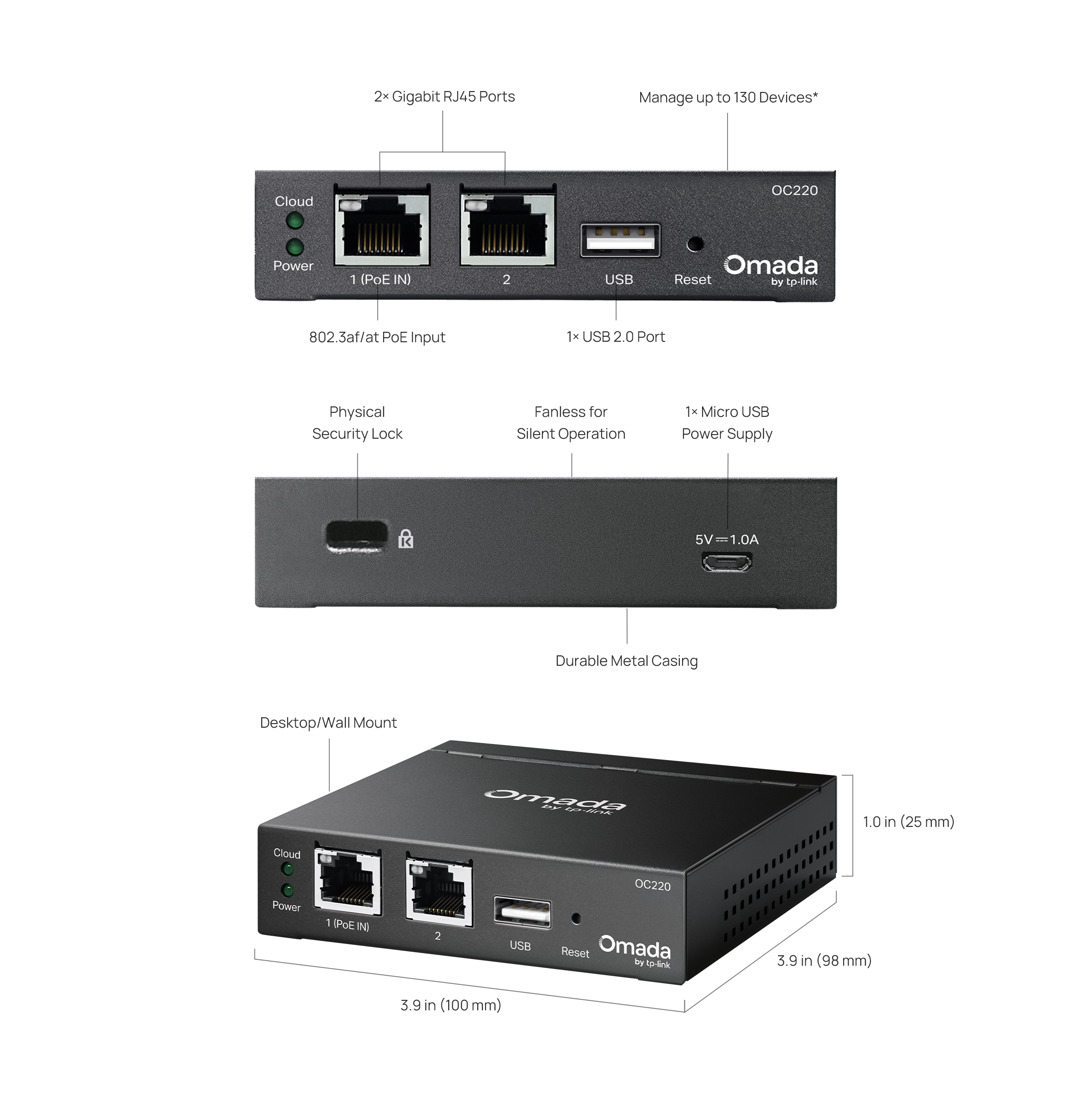

- Hardware Design for Businesses: A powerful chipset, durable metal casing, USB 2.0 port for data backup, and two Gigabit Ethernet ports.
- Flexible Deployment: 802.3af PoE or Micro USB (DC 5V/Minimum 1A) power supply and compact desktop or wall mount installation.
-
Manage up to 130
Devices* -
No Need for a Running PC/Server
-
Optional Cloud with No License Fees
-
Manage via
Omada App -
Flexible 802.3af PoE or Micro USB Power Supply
-
Durable Metal
Casing -
Fanless for Silent Operation
-
USB Port for Data Backup
Hybrid Cloud Management for Maximum Convenience
Remotely or locally manage up to 100 Omada access points, 10 gateways, 20 switches, and two DeltaStream GPON OLTs via the Omada App or Web UI.*
-
Free Cloud Access
Remotely control the whole network wherever you are in the world
-
On-Premises Management
Complete privacy
Web Browser
Omada App
Optional Free Cloud Access
Internet
Omada
VPN Gateway
VPN Gateway
Omada PoE Switch
Data and Power
Data Only
Omada
Hardware Controller
Hardware Controller
Omada
Ceiling Mount AP
Ceiling Mount AP
Omada
Wall Plate AP
Wall Plate AP
Omada
Outdoor AP
Outdoor AP
Choose the Right Controller for Your Business
| Types | On-Premises Controller (Hybrid Cloud) | Cloud-Based Controller (Omada Central) | ||
|---|---|---|---|---|
| Hardware | Software | Standard | Essentials | |
| Pricing | Hardware Costs | Free | Device License Fee | Free |
| Characteristics |
|
|
|
|
| Designed for |
|
|
|
|
| Management Scale |
|
|
|
|
| Cloud Access | √ (Free) | √ (Free) | √ | √ (Free) |
| Zero-Touch Provisioning | √ (Beginning Q2 2025) | √ (Beginning Q2 2025) | √ | √ |
| MSP Mode | - | √ | √ | - |
| DPI | √ | √ | √ | - |
| Other | PPSK, Open API,†ACL, IPS/IDS, Automatic WLAN Optimization | |||
| Essential Management Features | Multi-Site Management, Multi-User Privilege Assignment, VLAN, Port Management, Fast Roaming, Mesh | |||
| HARDWARE FEATURES | |
|---|---|
| Interface | • 2× Gigabit Ethernet Port• 1× USB 2.0 Port• 1× Micro USB Port |
| Power Supply | • 802.3af PoE• Micro USB（DC 5V/Minimum 1A） |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (100×98×25 mm) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • 100 Omada access points• 10 Omada gateways• A maximum of 20 Omada switches*• A maximum of 2 certain DeltaStream GPON OLTs*Note: Please refer to |
| Cloud Access | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management Features | • Automatic Device Discovery • Batch Configuration• Batch Firmware Upgrading • Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

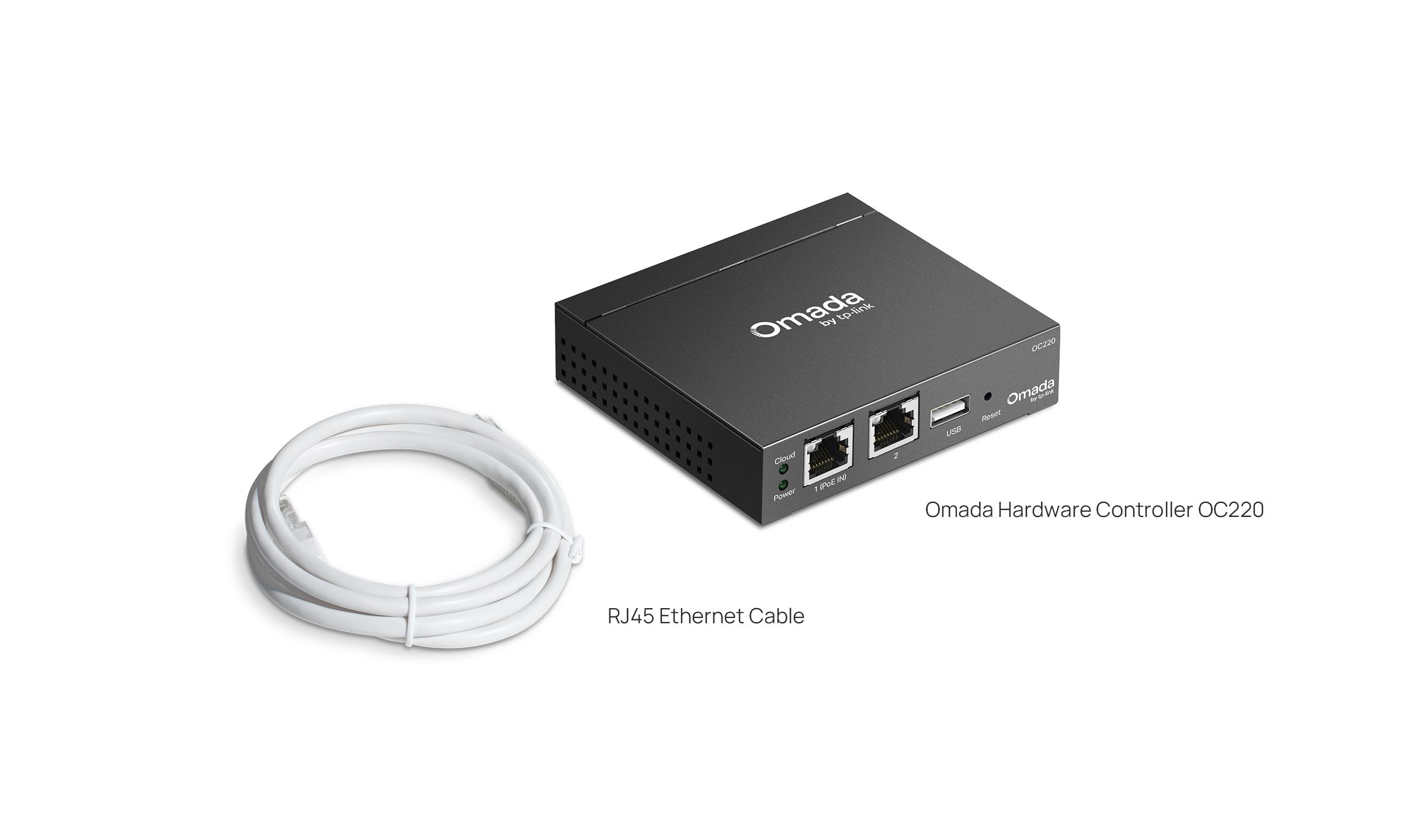

| Package Content | • Omada Hardware Controller OC220• Quick Installation Guide • RJ45 Ethernet Cable |
| System Requirements | Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment | • Operating Temperature: -5–50 ℃ (23–122 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
**The number of supported Omada switches decreases by 5 for each DeltaStream GPON OLT added. The DeltaStream GPON OLTs supported by the controller are DS-P7001-04 and DS-P7001-08.
**Actual management scale of the Omada Software Controller depends on the PC/server’s hardware specifications.
†Open API is not supported by OC200
