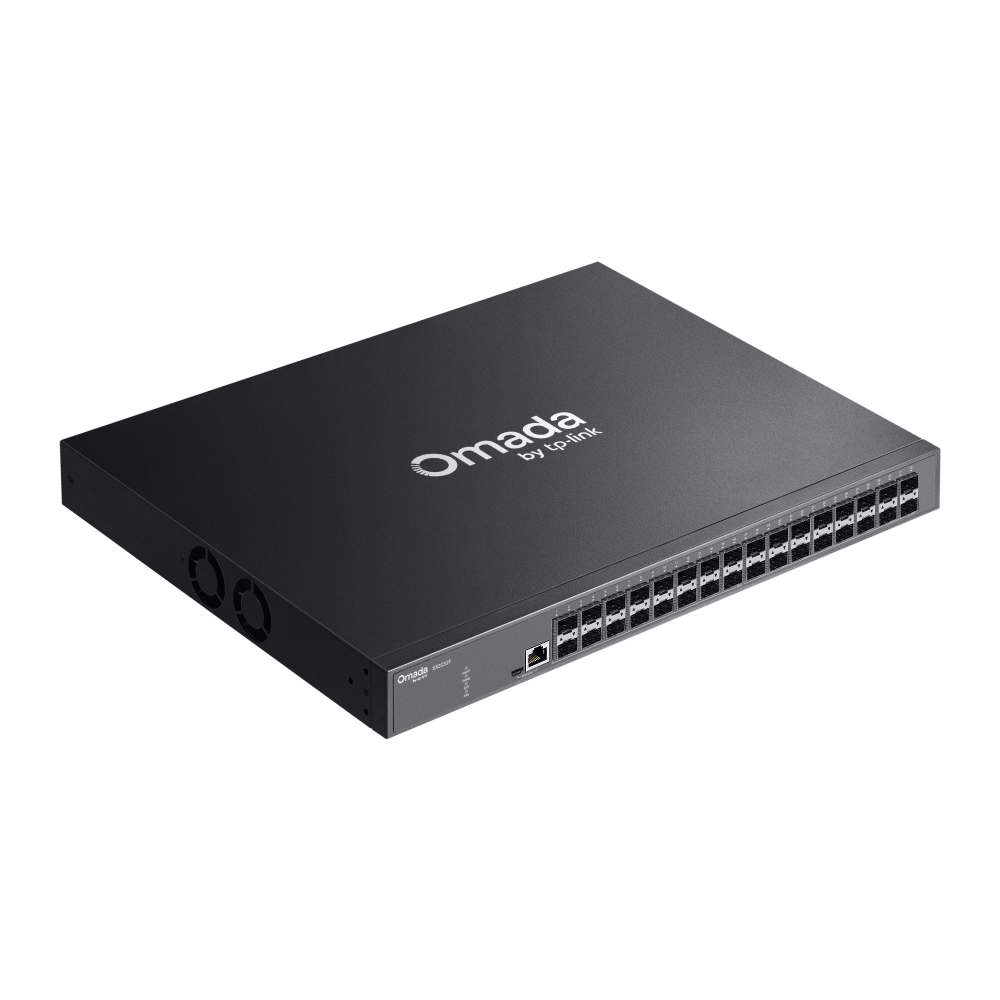

Omada Aggregation 32-Port 10GE SFP+ Switch
- 32× 10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Two internal fixed power supply modules back each other up
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Learn more about Omada Cloud SDN>
Learn more about Omada Multi-Gig technology >

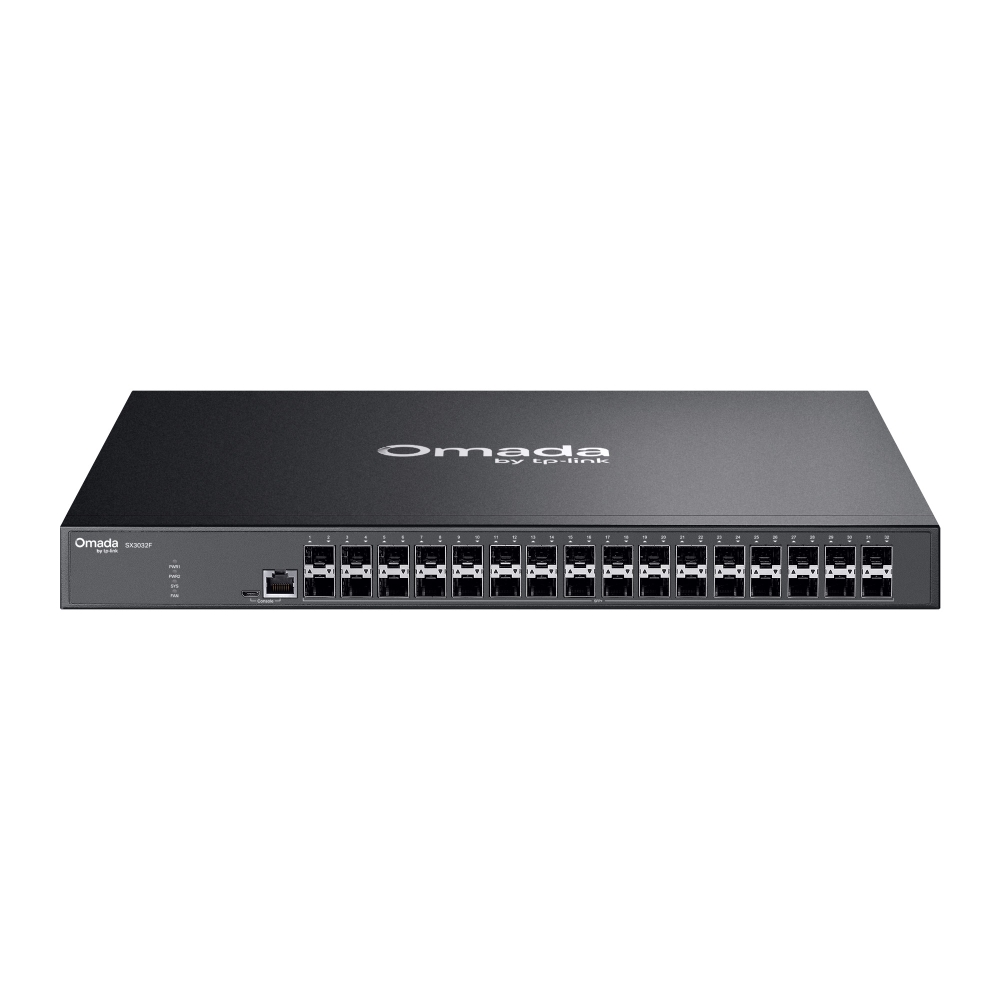

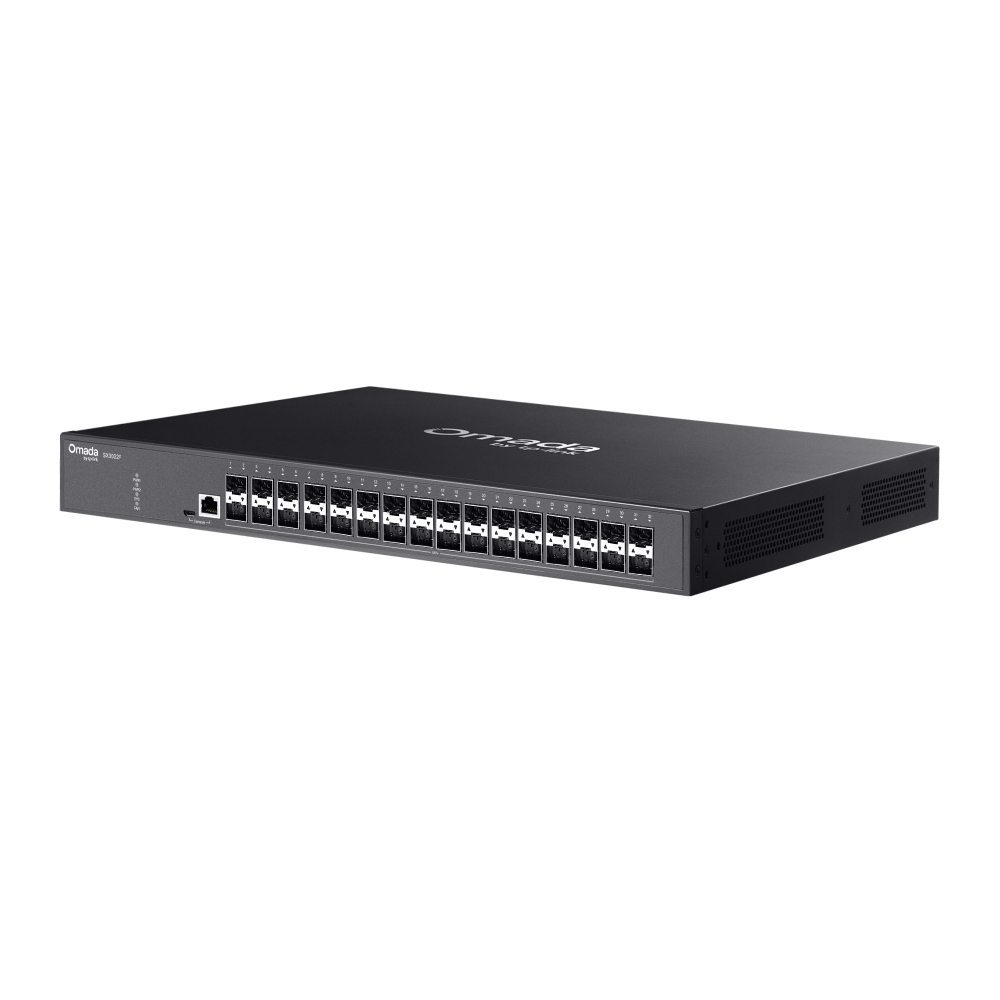

Omada Aggregation
32-Port 10GE SFP+ Switch
SX3032F
Ideal for Use in Aggregation Layer
32× 10 Gbps SFP+ Slots
1+1 Redundant
Power Supplies
Zero-Touch Provisioning†
Centralized Management†
Omada App†
Ethernet Ring Protection Switching
Static
Routing
Easily Build a Whole 10G
Multi-gigabit Network
Learn More > Switch
Gateway
10G Gateway
All Products >
AP
Wi-Fi 7/6 APs
with 10G/2.5G Ports
All Products >
Software Defined Networking (SDN) with
Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Learn More >
Cloud Access to Omada Controller
Web Browser
Omada App
Cloud-Based Controller
Standard Version or Essentials Version
or
On-Premises
Controllers
Software
or
Hardware
Internet
Omada Gateway
Omada
Aggregation Switch
Omada
PoE Switch
PoE
Omada
Access Points
| HARDWARE FEATURES | |
|---|---|

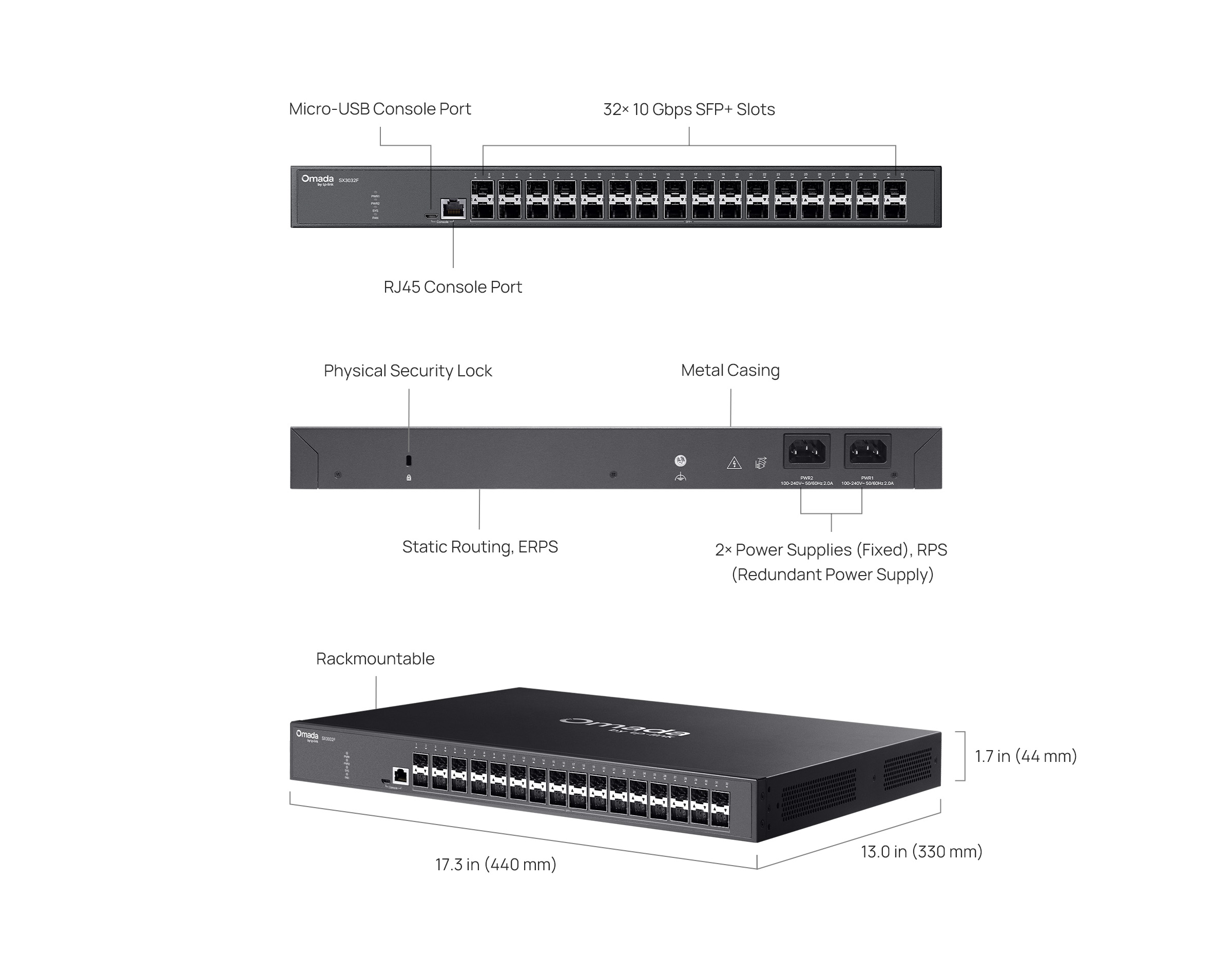

| Interface | • 32× 1/10Gbps SFP+ Slots• 1× RJ45 Console Port• 1× Micro-USB Console Port |
| Fan Quantity | 2 Internal Fixed Fans |
| Physical Security Lock | √ |

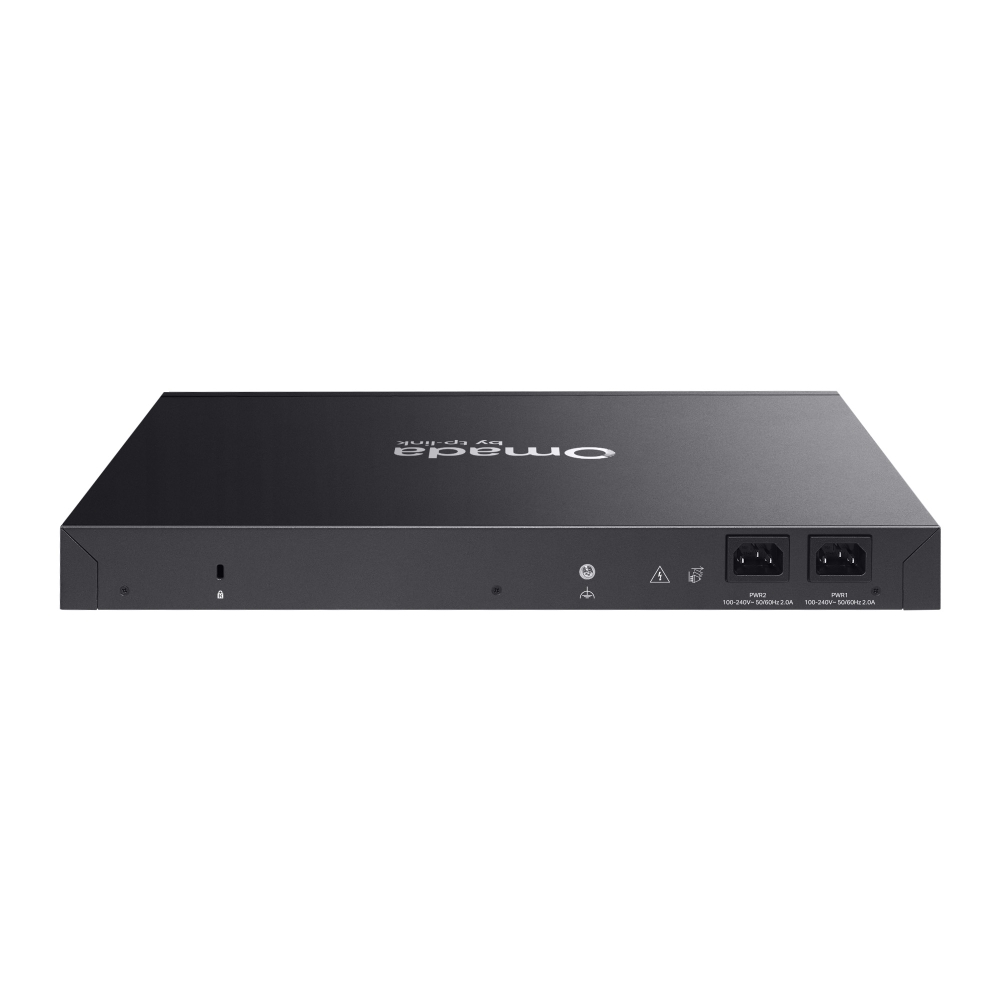

| Power Supply | • 1+1 Redundant Power Supply (Internal Fixed)• 100-240 V AC~50/60 Hz |
| Dimensions ( W x D x H ) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Mounting | Rack Mountable |
| Max. Power Consumption | 49.4 W (220 V / 50 Hz) |
| PERFORMANCE | |
|---|---|
| Packet Buffer Memory | 24 Mbit |
| Jumbo Frame | 9 KB |
| Switching Capacity | 640 Gbps |
| Packet Forwarding Rate | 240 Mpps |
| MAC Address Table | 32 K |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • 8 priority queues• 802.1p CoS/DSCP priority• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR• Bandwidth Control: Port/Flow-based Rating Limiting• Smoother Performance• Action for Flows: QoS remark (802.1P Remark, DSCP Remark) |
| L2 and L2+ Features | • 128 IP Interfaces: Support IPv4/IPv6 Interface• Static Routing: 48 IPv4/IPv6 Static Routes• Static ARP: 128 static entries• 510 ARP Entries• Proxy ARP• Gratuitous ARP• DHCP Server• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay• DHCP L2 Relay• Link Aggregation• Spanning Tree Protocol• Loopback Detection• 802.3x Flow Control• Mirroring |
| L2 Multicast | • Supports 4000 (IPv4, IPv6) IGMP groups• IGMP Snooping• IGMP Authentication• Multicast VLAN Registration (MVR)• MLD Snooping• Multicast Filtering: 256 profiles and 16 entries per profile |
| Advanced Features | • Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Unified Configuration†• Reboot Schedule†ISP Features*:• L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP)• PPPoE ID Insertion• ERPS• 802.3ah Ethernet Link OAM• DDM• sFlow |
| VLAN | • VLAN Group (802.1q VLAN): Max 4K VLAN Groups• 802.1Q Tagged VLAN• MAC VLAN: 30 Entries• Protocol VLAN• GVRP• VLAN VPN (QinQ): VLAN Mapping, VLAN Replace• Voice VLAN |
| Access Control List | • Time-based ACL• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS• Combined ACL• Packet Content ACL• IPv6 ACL• Policy: Mirroring, Redirect, Rate Limit, QoS Remark• ACL applies to Port/VLAN |
| Security | • IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard• IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard• DoS Defend• Static/Dynamic Port Security: Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode• 802.1X - Port base authentication - MAC-based authentication - VLAN Assignment - MAB - Guest VLAN - Radius authentication and accountability support• AAA (including TACACS+)• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC-based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6• Multicast Listener Discovery (MLD) Snooping• IPv6 ACL• IPv6 Interface• Static IPv6 Routing• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | • MIB II (RFC1213)• Interface MIB (RFC2233)• Ethernet Interface MIB (RFC1643)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• RMON MIB (RFC2819)• RMON2 MIB (RFC2021)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIB |
| Management Features | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)• Omada Hardware Controller (Requires built-in version 5.15.20 or later)• Omada Software Controller (Requires built-in version 5.15.20 or later) |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI• Command Line Interface (CLI) through the console port, telnet• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)• SDM Template• DHCP/BOOTP Client• 802.1ab LLDP/LLDP-MED• DHCP Auto Install• Dual Image, Dual Configuration• CPU Monitoring• Password Recovery• SNTP• System Log |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

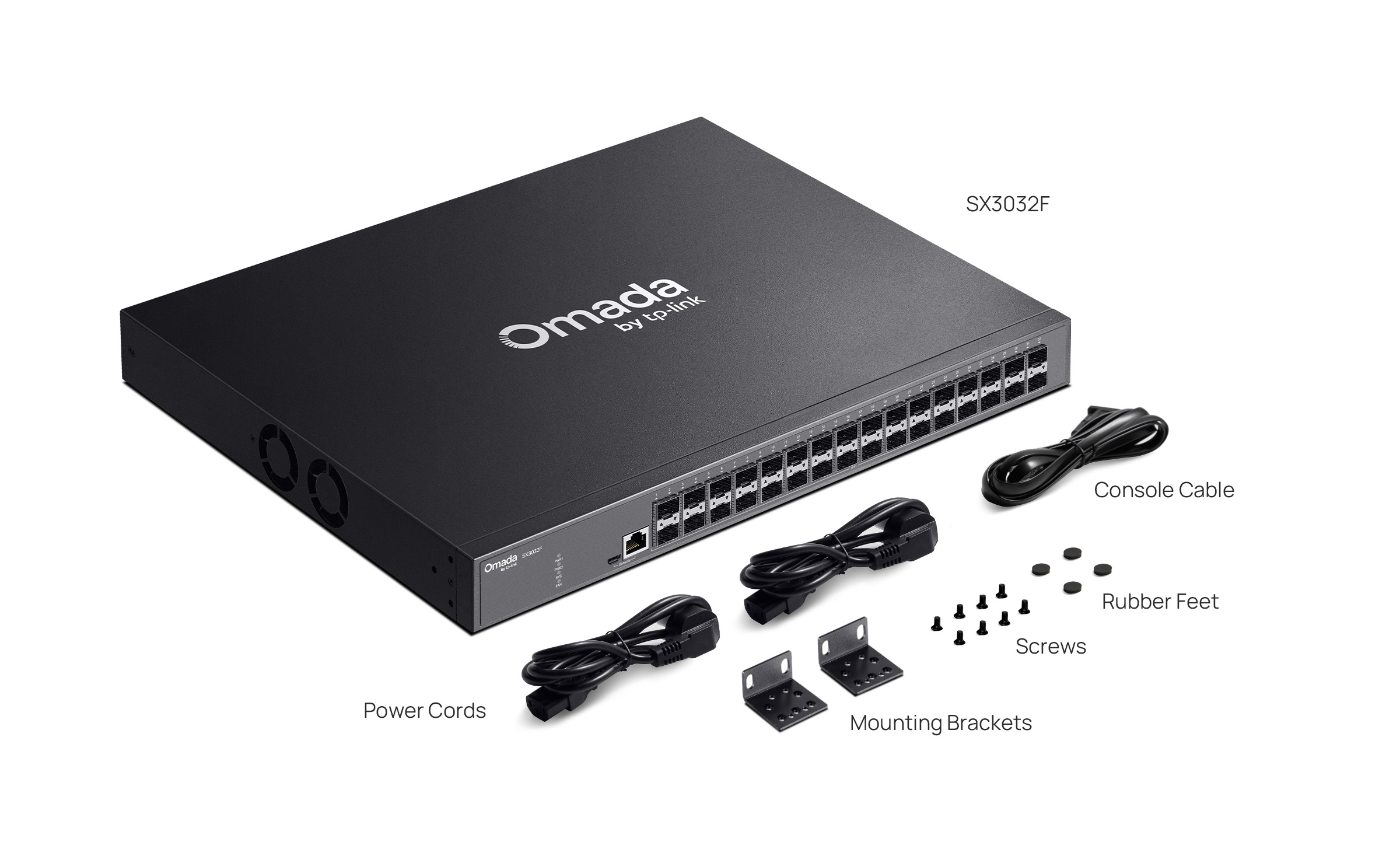

| Package Content | • SX3032F Switch• Power Cords• Console Cable• Rackmount Kit• Rubber Feet• Quick Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0 ℃ to 45 ℃ (32 ℉ to 113 ℉)• Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials). Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.
*ISP features can only be configured in standalone mode.
Note: It is recommended to use a maximum of 8 SM5310-T modules with the SX3032F, with one module used for every two sets of SFP+ slots.
