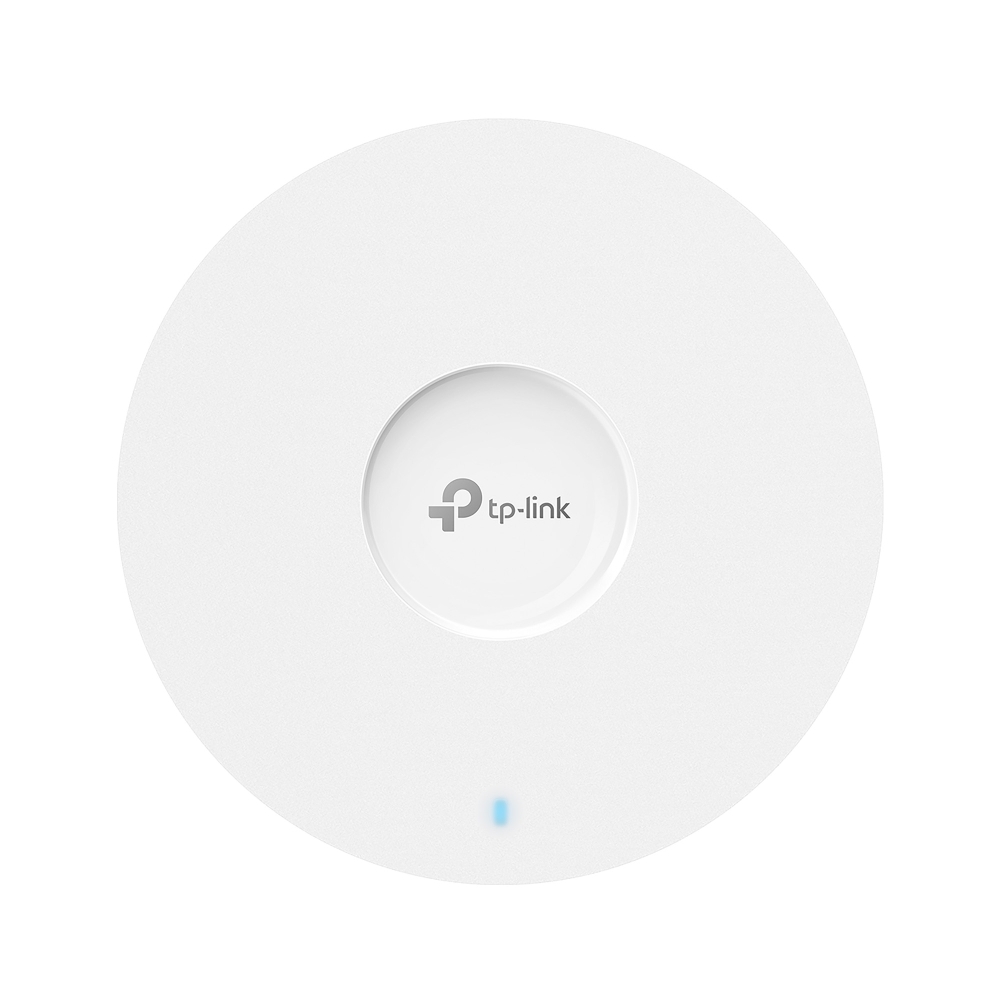

AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point
- Ultra-Fast Wi-Fi 6 Speeds (1148 Mbps on 2.4 GHz + 2402 Mbps on 5 GHz).†
- Up to1,000+ client capacity, best for high-density scenarios.***

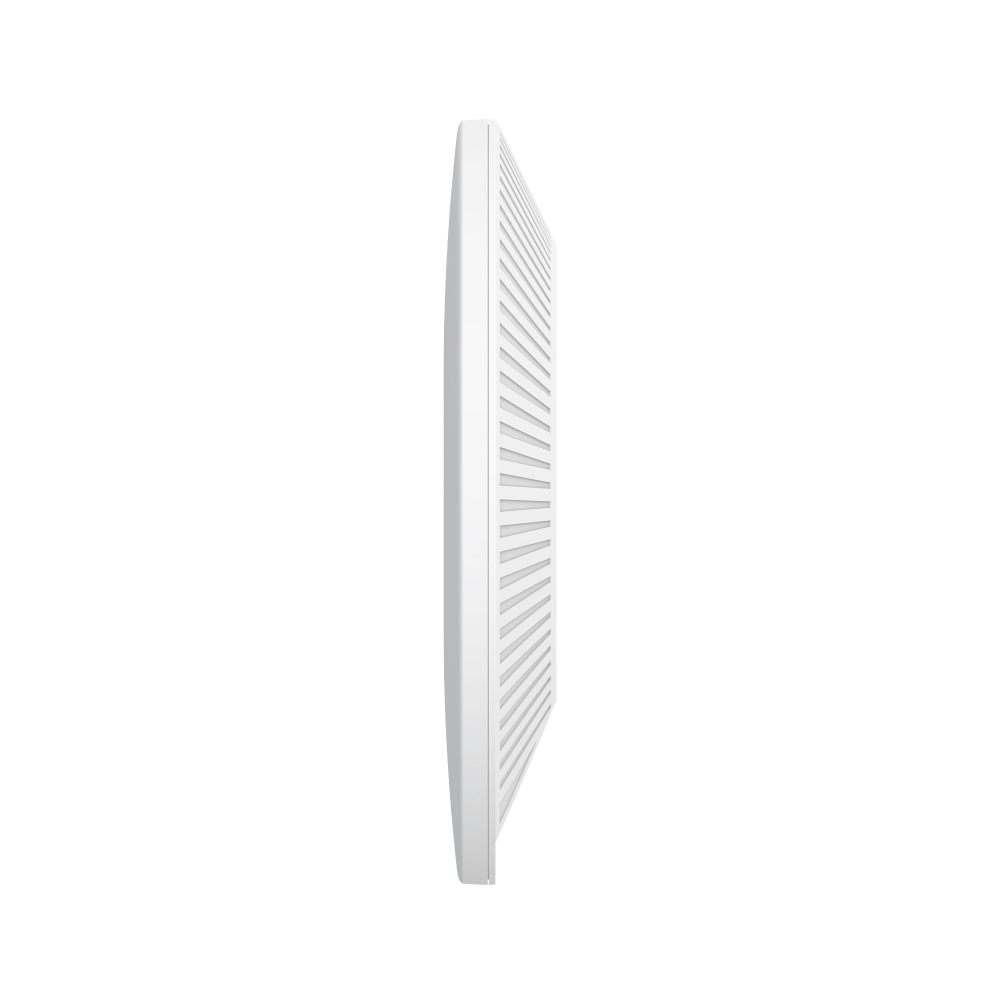

- The brand-new ultra-slim design (8.7 × 8.7 × 1.3 in)
- Integrated into Omada SDN, supporting centralized cloud Management, ZTP§, and more.
- The 2.5 Gbps Ethernet port boosts total internet throughput.
- Supports 802.3at PoE for convenient deployment and installation.
Learn more about Omada Wi-Fi 6>
Learn more about Omada Cloud SDN>
| CARACTERISTICI HARDWARE | |
|---|---|

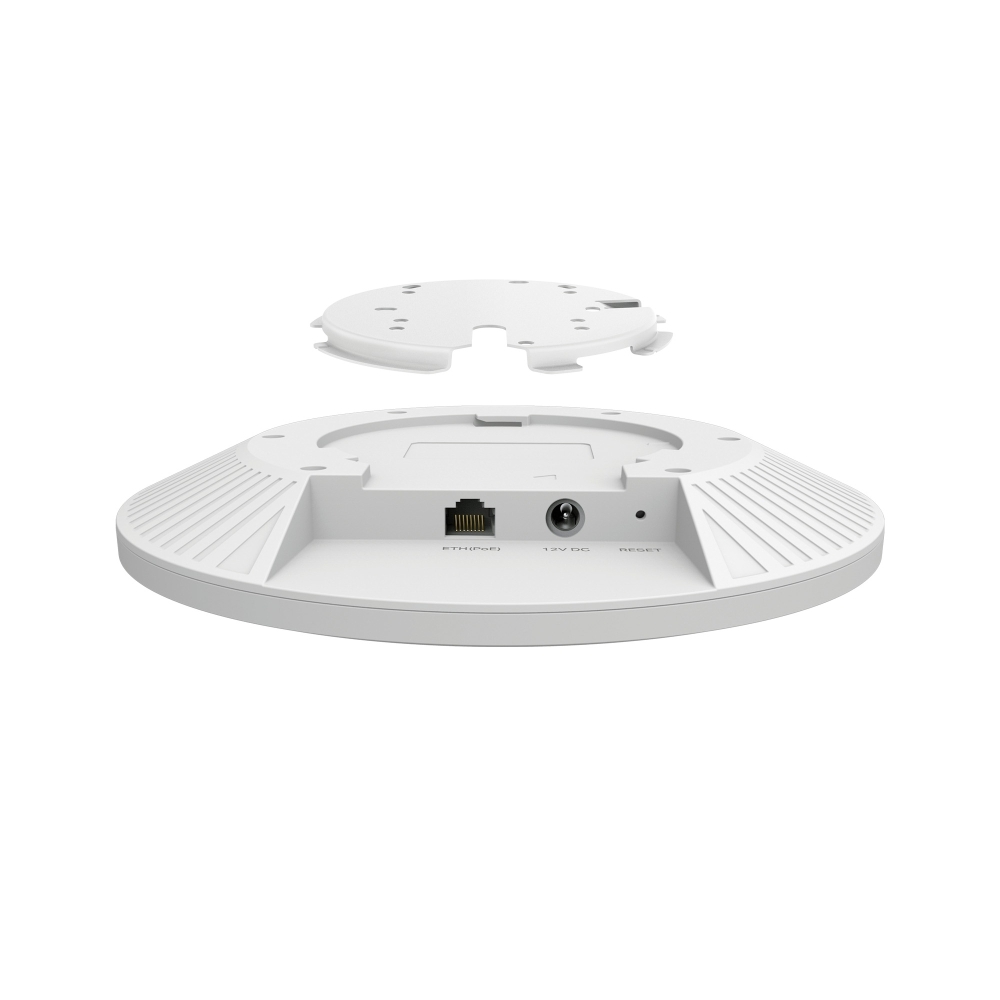

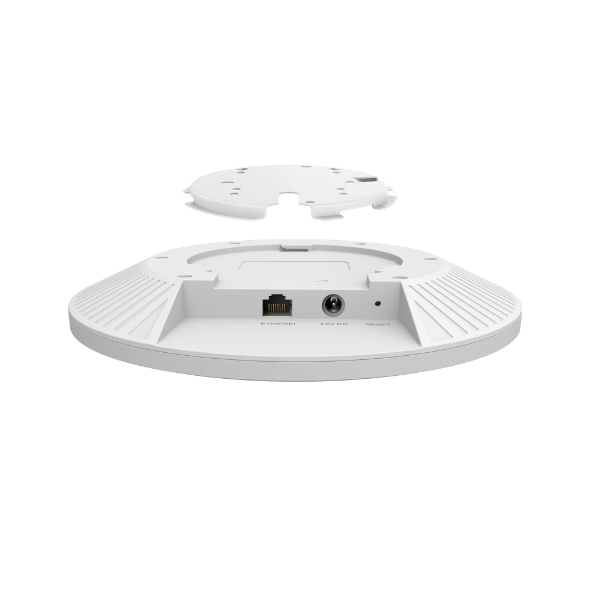

| Interfață | 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE) |
| Butoane | Reset |
| Alimentator | • 802.3at PoE• 12 V DC |
| Consum Energie | • EU: 25.5 W• US: 22.3 W |
| Dimensiuni (L x l x H) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenă | Internal Omni• 2.4 GHz: 4× 4 dBi• 5 GHz: 4× 5 dBi |
| Bluetooth | V5.2 |

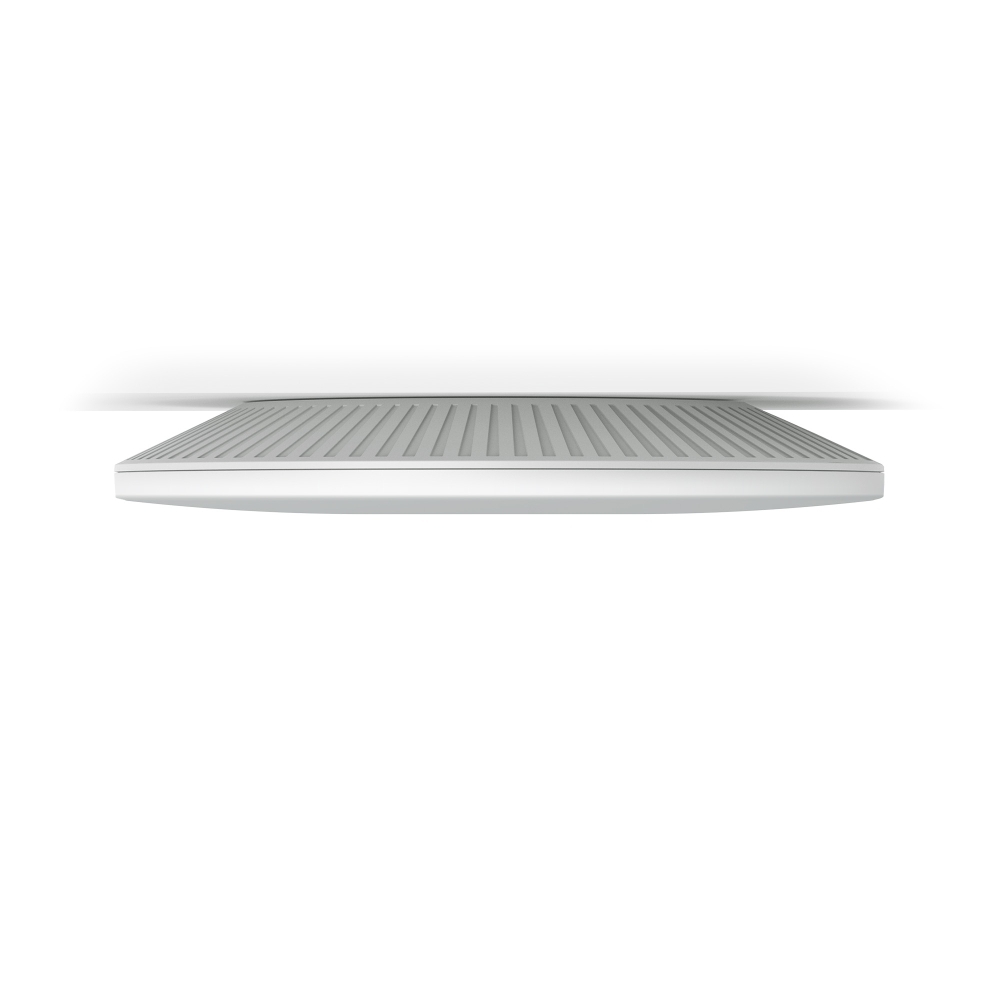

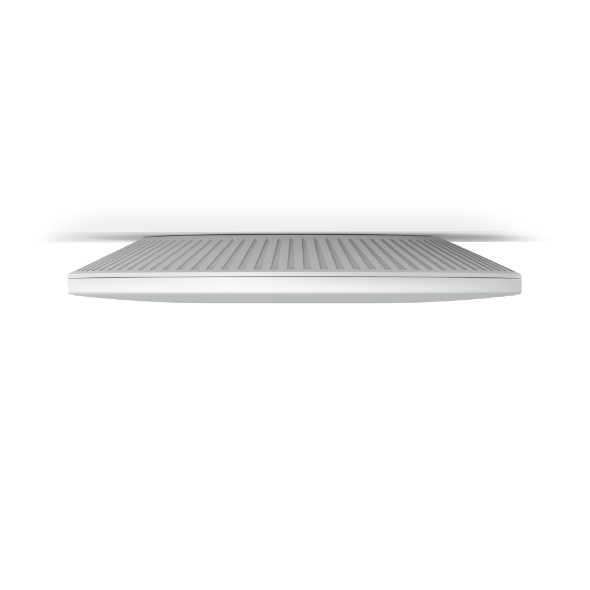

| Montare | Ceiling /Wall Mounting (Kits included) |
| Caracteristici Wireless | |
|---|---|
| Coverage | 200㎡(2150ft²)† |
| Concurrent Clients | 1,020+*** |
| Standarde Wireless | IEEE 802.11ax/ac/n/g/b/a |
| Frecvență | 2.4 GHz and 5 GHz |
| Rată de Semnal | • 5 GHz: Up to 2402 Mbps• 2.4 GHz: Up to 1148 Mbps |
| Funcții Wireless | • 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO (2G: 4x4 DL MU-MIMO; 5G: 4x4 DL MU-MIMO)• Seamless Roaming(802.11k/v/r)△• Omada Mesh△• Band Steering• Load Balance• Airtime Fairness • Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| Securitate Wireless | • Captive Portal Authentication△• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Putere de Emisie | • CE:<20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, Band1 & Band2，EIRP)<28 dBm(5 GHz, Band3，EIRP)• FCC:<26 dBm (2.4 GHz)<26 dBm (5 GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Alerte Email | Yes |
| Control LED Pornit/Oprit | Yes |
| Management Control Acces MAC | Yes |
| SNMP | v1, v2c, v3 |
| System log local/System Log la Distanță Local/la Distanță | Local/Remote Syslog |
| SSH | Yes |
| Management Web-based | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Altele | |
|---|---|
| Certificări | CE, FCC, RoHS |
| Conținut Pachet | • EAP660 HD• Power Adapter• Ceiling/Wall Mounting Kits• Installation Guide |
| Cerințe de sistem | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Mediu | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡4× Increased Capacity refers to increase in median throughput under dense environment compared to standard 4×4 11ac access point.
§Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to Omada Cloud-Based Controller Product List to find all the models supported by Omada Cloud-Based Controller.
△Omada mesh may require upgrading the firmware. Omada Mesh, Seamless Roaming, and Captive Portal require the use of an Omada SDN controller. Please go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
*Use of OFDMA requires clients to also support OFDMA.
**UL MU-MIMO features can be enabled by software updates.
***The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
†Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
