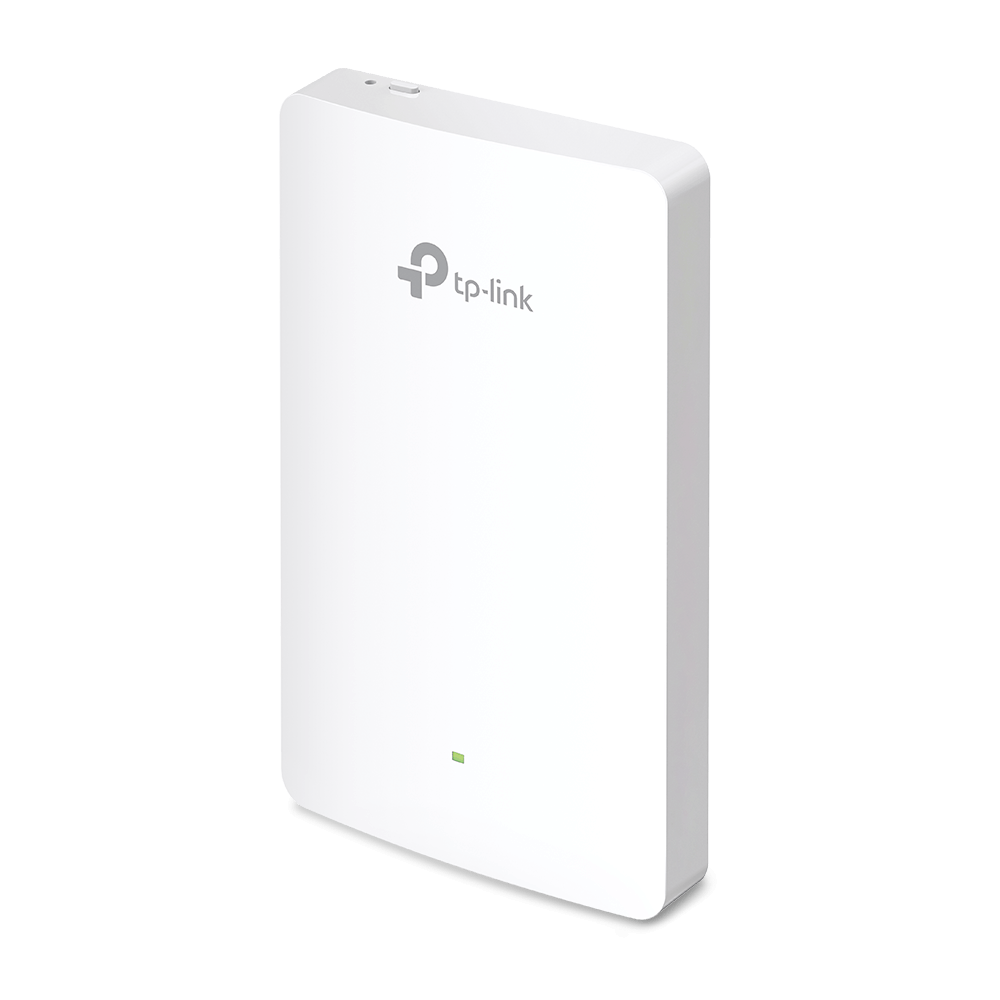

Wall Plate EAP615-Wall

EAP615-Wall

AX1800 Wall Plate WiFi 6 Access Point

Superior WiFi 6 Speeds - Delivers dual-band speeds of up to 18 Gbps powered by the latest WiFi 6 technology
Complete In-Room WiFi Coverage - Guarantees strong signals and corner-to-corner WiFi coverage in each room
Higher Network Efficiency - OFDMA and DL/UL MU-MIMO* deliver data to multiple devices simultaneously with less lag
Full Gigabit Ports - Connect multiple devices with four gigabit ports and one downlink port offering PoE pass-through
Centralized Cloud Management - Integrates into Omada SDN for cloud access and remote management

Overview

EAP615-Wall

Futureproof Your Network with WiFi 6 Connectivity

Connect more devices at the same time with WiFi 6 speeds of up to 1800 Mbps..
Corner-to-Corner Indoor WiFi Coverage

Guests can enjoy strong private networks that paint their entire space by installing EAP615-Walls in each guest room.

HARDWARE FEATURES
Interface	• Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
Physical Security Lock	Yes
Button	Reset
Power Supply	802.3af/at PoE
Max. Power Consumption	• EU: 10W (802.3at PoE, PoE Out off) • US: 11.5W (802.3at PoE, PoE Out off)
Dimensions ( W x D x H )	143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna	2 Dual-Band Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 4 dBi
Mounting	Wall Plate Mounting

WIRELESS FEATURES
Coverage	50㎡(600 ft²)^△
Concurrent Clients	120+^△
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps
Wireless Functions	• 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming^† • Beamforming • MU-MIMO • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP
Wireless Security	• Captive Portal Authentication^† • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, EIRP) • FCC: < 21 dBm (2.4 GHz) < 21 dBm (5 GHz)

Management Features
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification	CE, FCC, RoHS
Package Content	• AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall • Installation Guide • Mounting Kits
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

*Uplink MU-MIMO requires further firmware upgrades.

**Product is being developed and the pictures are design sketches for reference only.
