EAP725-Outdoor
เร็ว ๆ นี้Omada BE3600 Indoor/Outdoor WiFi 7 Access Point with Directional/Omnidirectional Antennas
•Directional and Omnidirectional Antennas: Freely switch between modes via software for optimal signal control.**
•Plug & Play Auto-Sensing Antennas: Automatically detects antenna changes and switches between internal and external antennas as needed.
•4-Stream Dual-Band Wi-Fi 7: Up to 3.6 Gbps.†
•1× 2.5G PoE Port: Flexible PoE deployment reduces costs by delivering power and data over a single Ethernet cable.
•Outdoor-Ready Durability: Features an IP66-rated weatherproof enclosure and 6kV lightning protection.
•Quick and Easy Setup: Features wall/pole mounting with Omada SDN for one-click setup.
•Advanced Features: Centralized management, mesh, and seamless roaming.Δ
| HARDWARE FEATURES | |
|---|---|

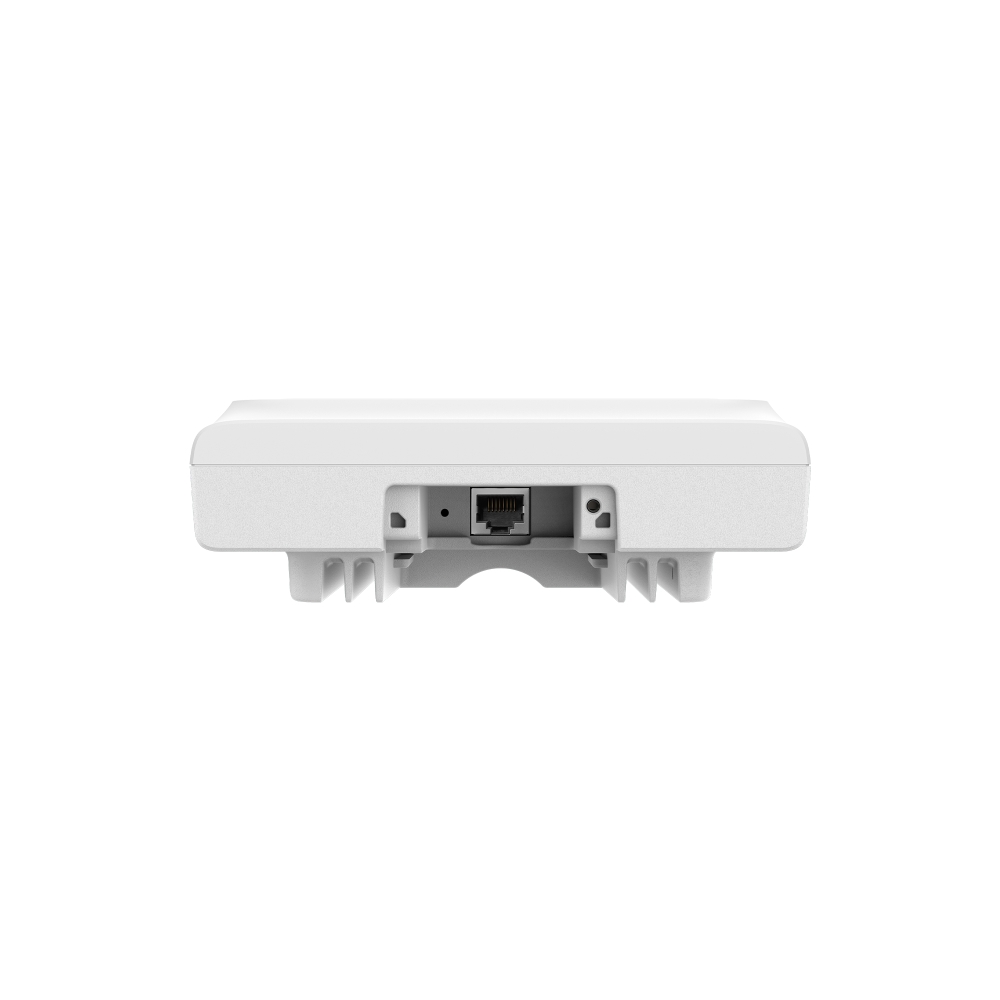

| Interface | 1 x 10M/100M/1000M/2.5Gbps Ethernet Port (RJ45) |
| Button | Reset |
| Power Supply | 802.3at PoE |
| Max. Power Consumption | 17.2W (for PoE+) |

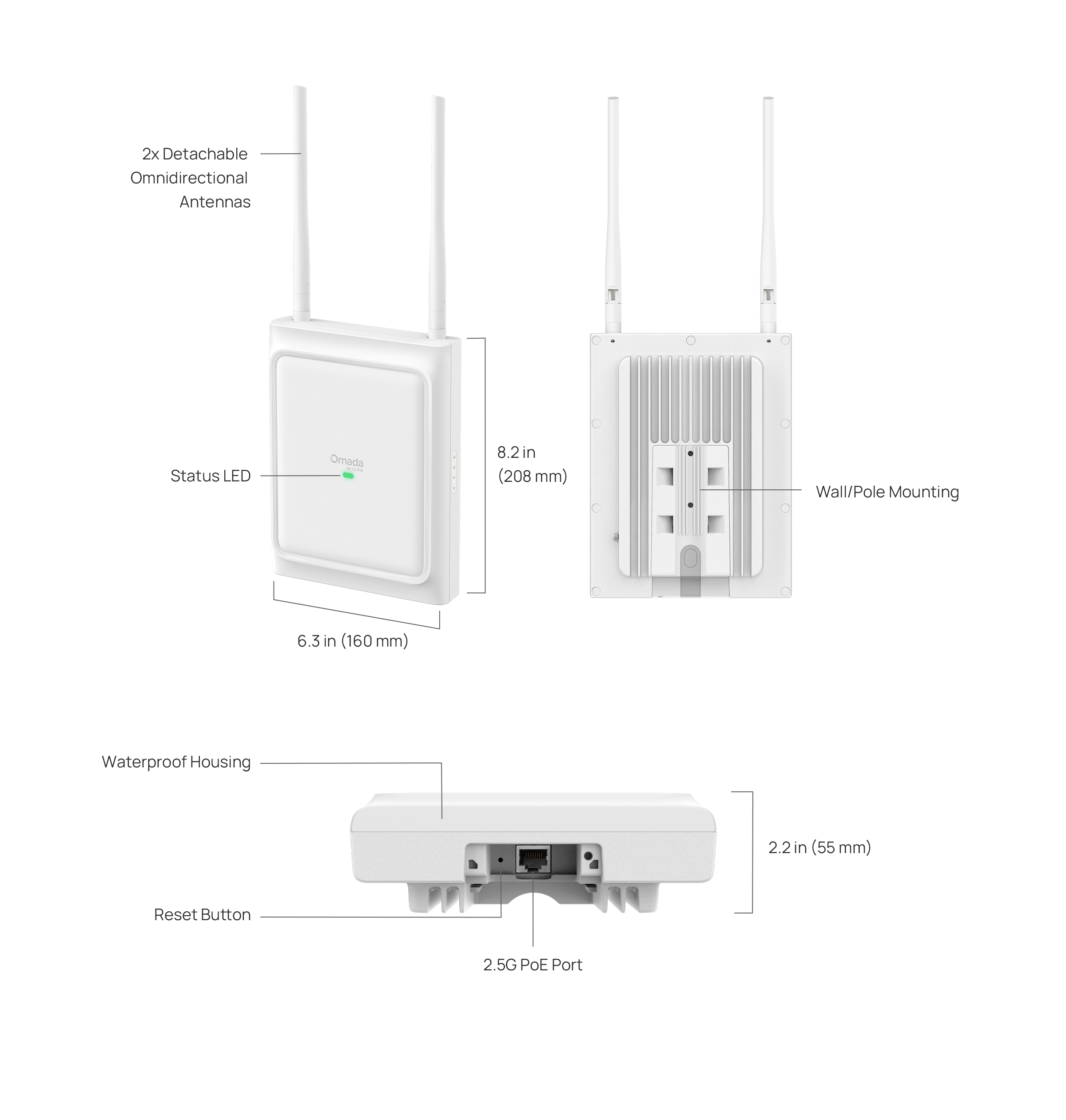

| Dimensions ( W x D x H ) | 8.19 x 6.3 x 2.17 in (208 × 160 × 55 mm) |

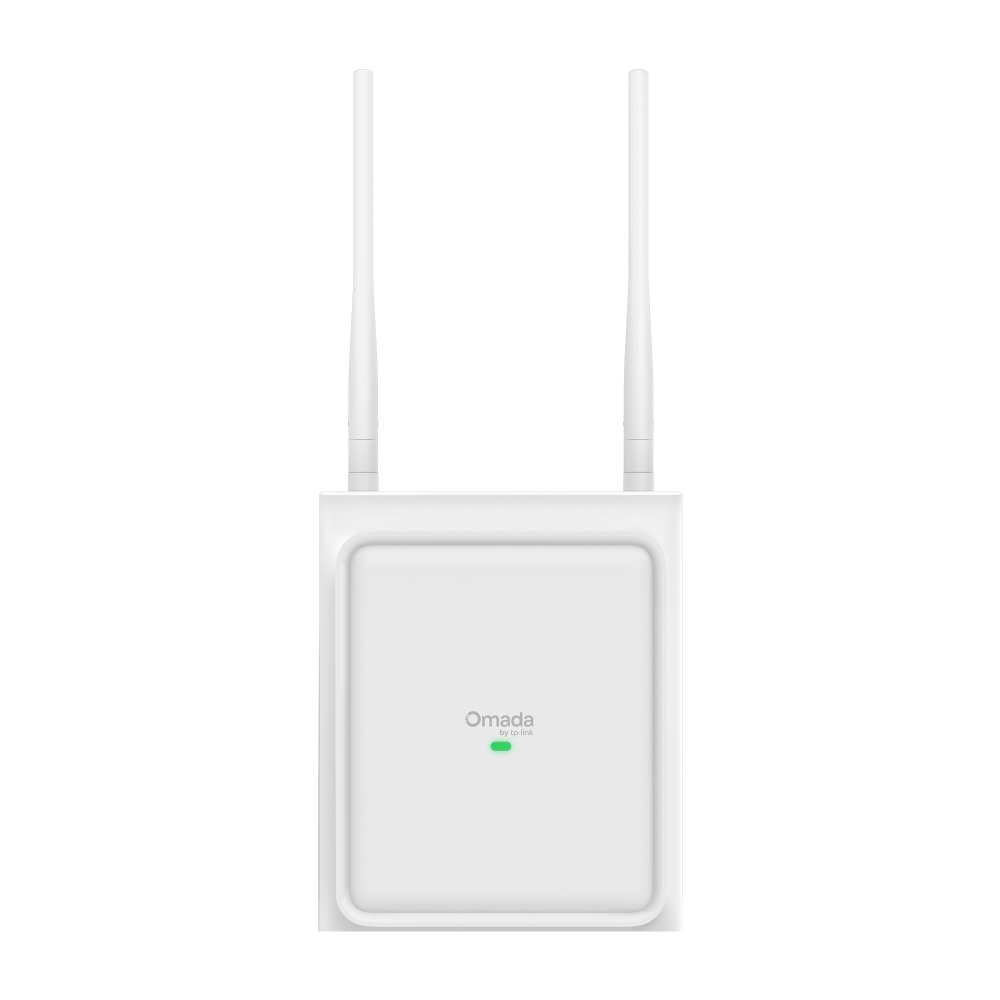

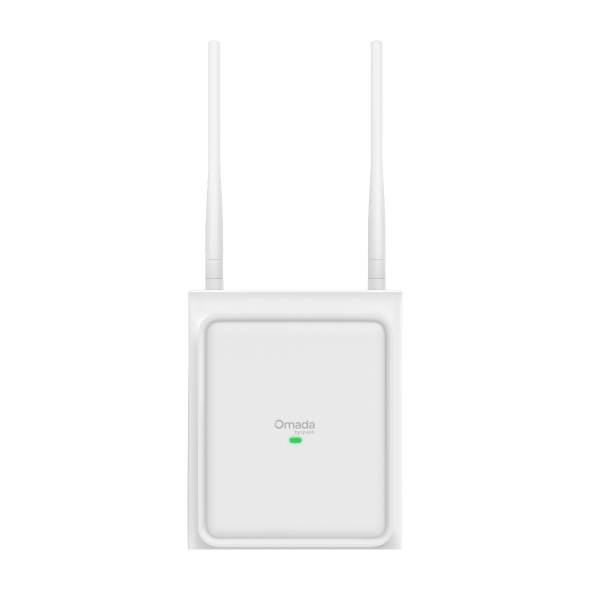

| Antenna | • 2.4 GHz:2 × 4.5 dBi, external omnidirectional antennas2 × 8.3 dBi, internal directional antennas (antenna beamwidth 90°) • 5 GHz: 2 × 5.3 dBi, external omnidirectional antennas2 × 13.2 dBi, internal directional antennas (antenna beamwidth 45°)Note: The gains above are the single-antenna peak gains. |
| Bluetooth | BLE 5.2 |
| Weatherproof Enclosure | IP66 |

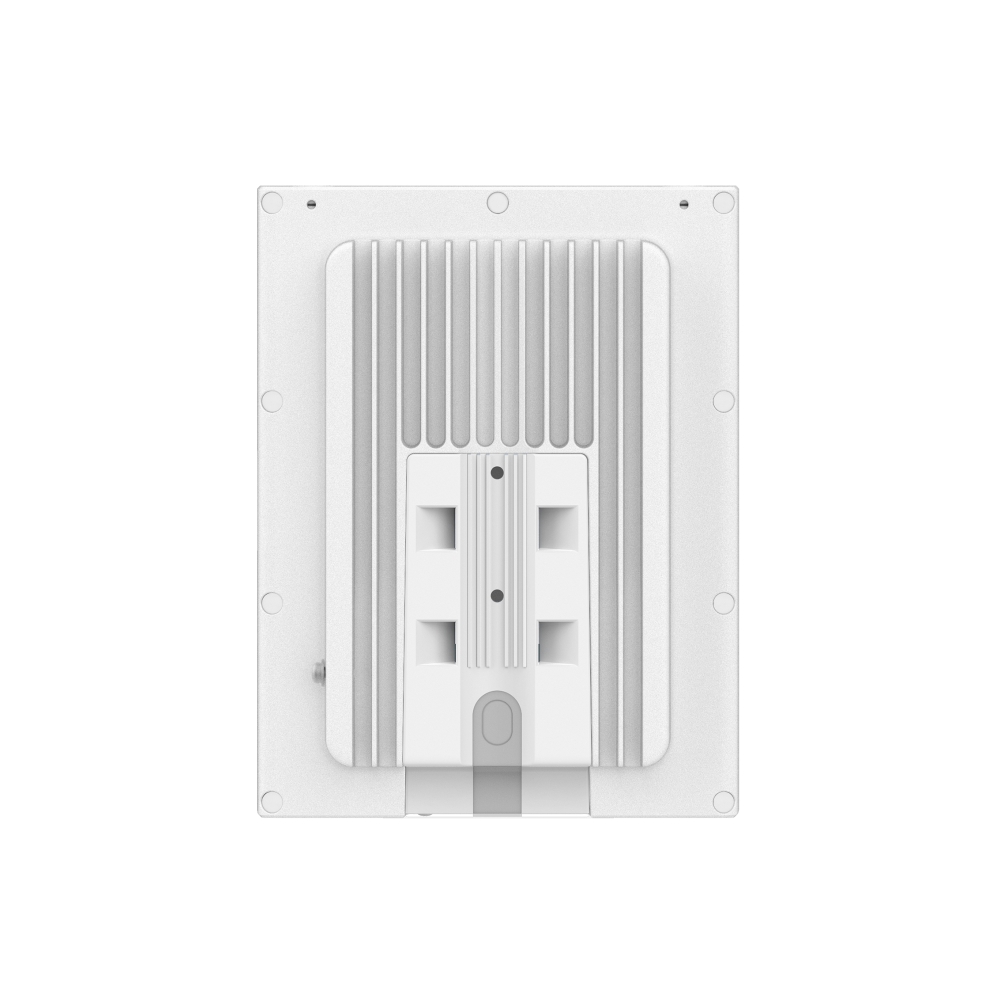

| Mounting | Pole/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/g/b/nac/ax/be |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) |
| Wireless Functions | • 4k-QAM• OFDMA• Multiple SSIDs: 24 (8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS (WMM)• MLO• Omada Mesh§• Seamless Roaming(802.11k/v/r)§• Band Steering• Load Balance• Airtime Fairness• Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client• Static IP/Dynamic lP |
| Wireless Security | • Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE |
| Transmission Power | • CE: (EIRP)2.4 GHz: 20 dBm 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 30 dBm in U-NII-2C• FCC: (Conducted Power)2.4 GHz: 25 dBm 5 GHz: 26 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 26 dBm in U-NII-3 |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC, NCC, VCCI, JRF, BSMI |
| Package Content | • Access Point EAP725-Outdoor• Waterproof Kit• Mounting Kit• Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: -30 to 70 ℃ (-22 to 158 ℉)• Storage Temperature: -40 to 70 ℃ (-40 to 158 ℉)• Operating Humidity: 10 to 90% RH non-condensing• Storage Humidity: 5 to 90% RH non-condensing |
| Weight | Main Unit: 1.33 kg |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller. Please refer to the User Guides of Omada controllers for configuration methods.
*Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features, including Multi-Link Operation (MLO), 240 MHz Bandwidth, 160 MHz Bandwidth, 4K-QAM, Multi-RUs, and OFDMA, requires clients to also support the corresponding features.
**Switching antenna modes via an Omada Controller requires version 6.1 or above.
