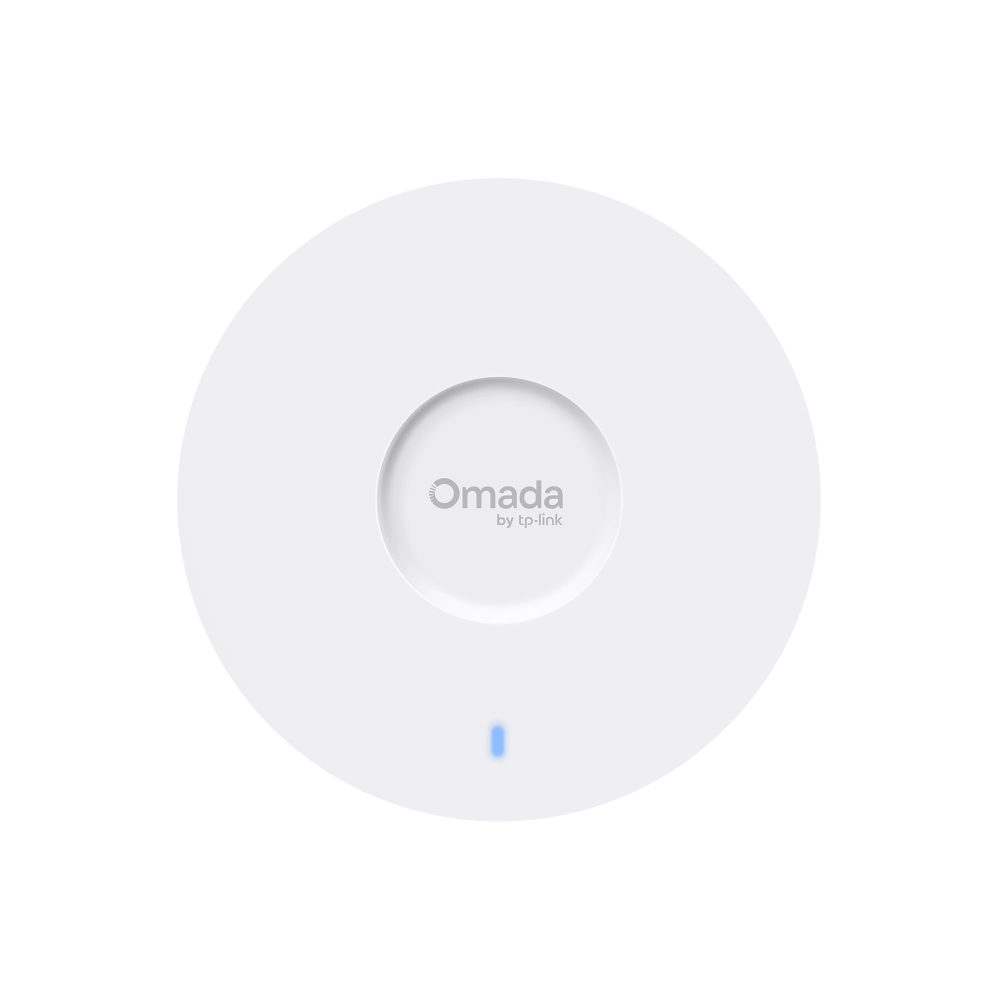

AX3000 Ceiling Mount WiFi 6 Access Point
- Dual-Band Wi-Fi 6: 2,402 Mbps on 5 GHz, and 574 Mbps on 2.4 GHz†
- 1× Gigabit Port: Ensures fast connectivity throughout the network.
- Low Latency and Interference: MU-MIMO, OFDMA, and 1024-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation. Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management, Mesh, and Seamless Roaming.△
- More Connections and Wider Coverage: Supports 250+ concurrent clients** and covers up to 1500 ft² (140 ㎡)* for reliable and extensive wireless connectivity.
Learn more about Omada Cloud SDN>
| DONANIM ÖZELLİKLERİ | |
|---|---|
| Arabirim | 1× Gigabit Ethernet Port |

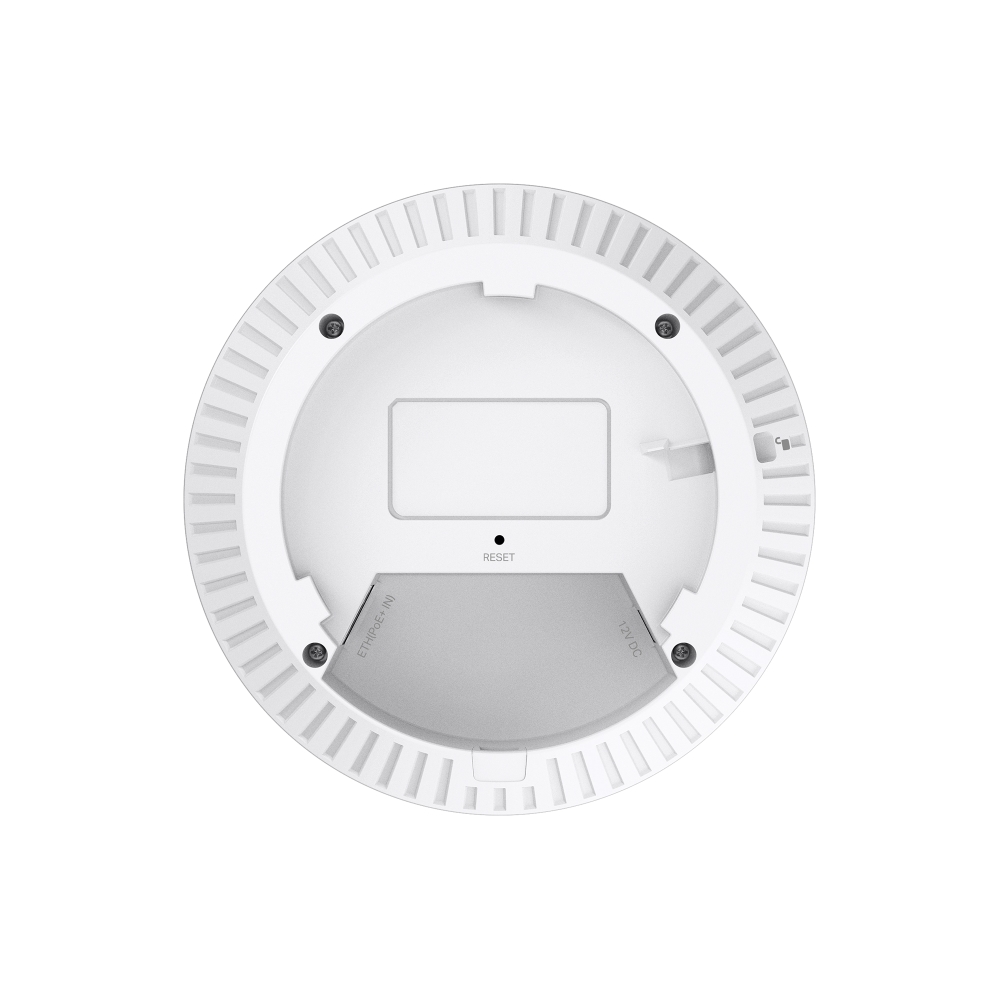

| Buton | Reset |
| Güç Kaynağı | • 802.3at PoE• 12V DC (Power Adapter included)(EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC)• 48V Passive PoE |
| Güç Tüketimi | • EU: 13.7 W• US: 15.5 W |
| Ağırlık | • Main Unit: 0.38 kg (0.838 lb)• Mounting Bracket: 0.054 kg (0.119 lb)• Shipping Unit: 0.85kg(1.87lbs) |

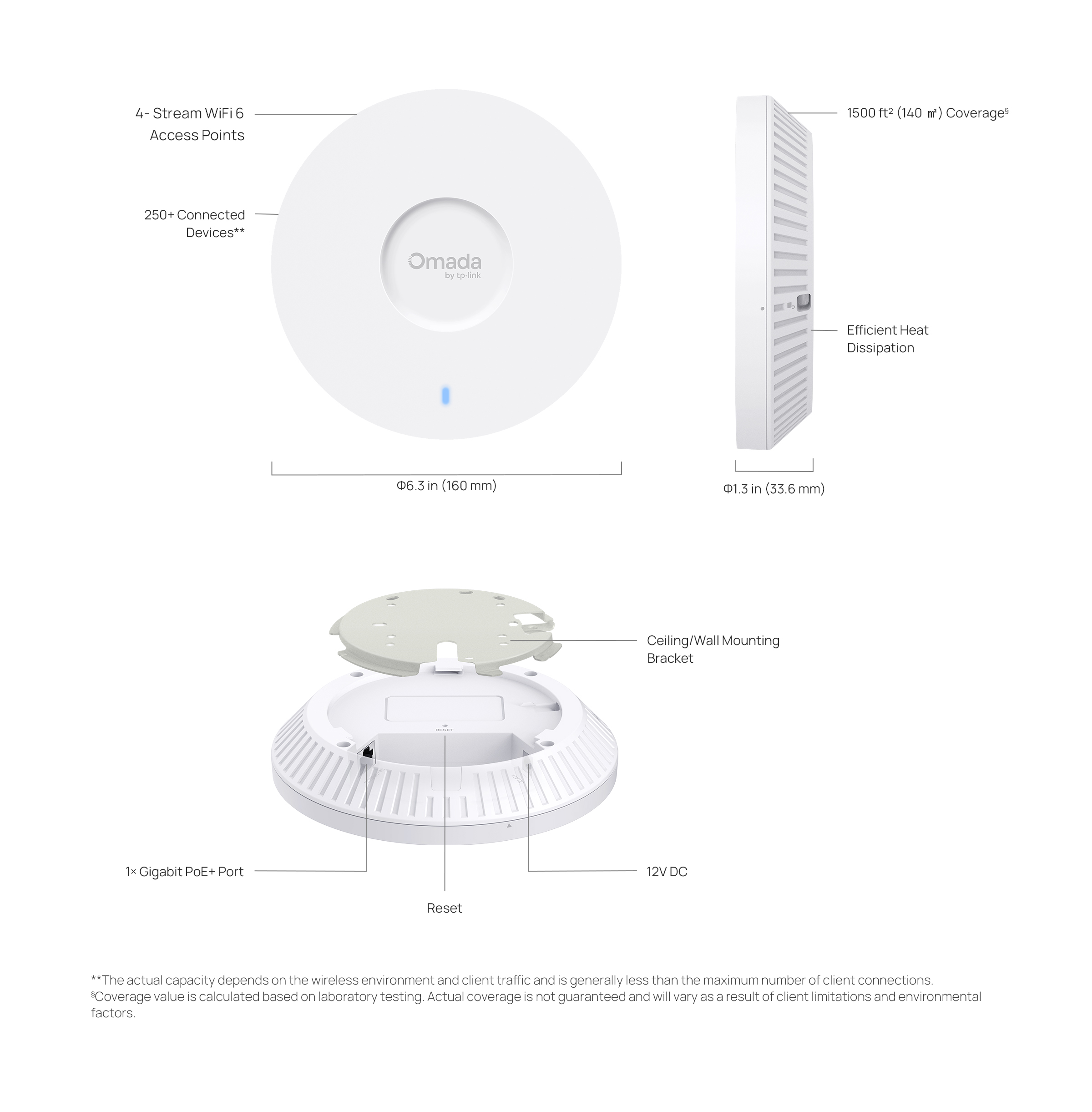

| Boyutlar ( W X D X H ) | • Main Unit: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)• Shipping Unit: 9.7 × 9.0 × 2.6 in (245 × 228 × 65 mm) |
| Anten | Internal Dual-Band Antennas• 2.4 GHz: 2× 4 dBi• 5 GHz: 2× 5 dBi |

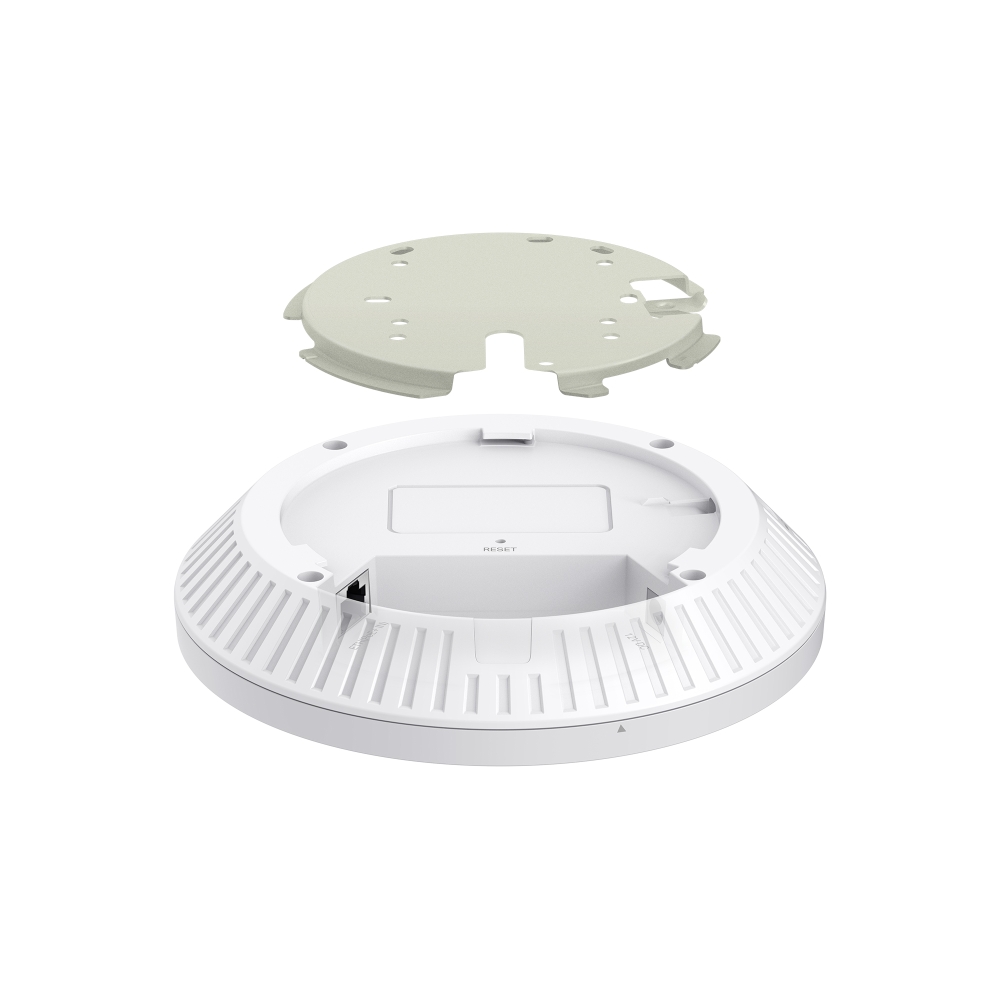

| Montaj | • Ceiling / Wall Mounting (Kits included)• Junction Box Mounting (Kits included)• T-Bar Mounting (Kits included) |
| KABLOSUZ ÖZELLİKLERİ | |
|---|---|
| Kablosuz Standartlar | IEEE 802.11ax/ac/n/g/b/a |
| Frekans | 2.4 GHz and 5 GHz |
| Bağlantı Hızı | • 5 GHz: Up to 2402 Mbps• 2.4 GHz: Up to 574 Mbps |
| Kablosuz Fonksiyonlar | • 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO • HE160 (160 MHz Bandwidth)‡• Seamless Roaming △• Omada Mesh△• Band Steering• Load Balance• Airtime Fairness • Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| Kablosuz Güvenlik | • Captive Portal Authentication△• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| İletim Gücü | • CE:7-20 dBm(2.4 GHz, EIRP)6-22 dBm5 GHz, U-NII-1, U-NII-2A, EIRP)6-27 dBm(5 GHz, U-NII-2C, EIRP)• FCC:4-26 dBm (2.4 GHz)4-24 dBm (5 GHz, U-NII-1)4-25 dBm (5 GHz, U-NII-2A, U-NII-2C, U-NII-3) |
| YÖNETİM | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Eposta Uyarı | Yes |
| LED Açık/Kapalı Kontrolü | Yes |
| MAC Erişim Kontrolü Yönetimi | Yes |
| SNMP | v1, v2c, v3 |
| Yerel/Uzak Sistem Günlüğü Kaydı | Local/Remote Syslog |
| SSH | Yes |
| Web-tabanlı Yönetim | HTTP/HTTPS |
| L3 Yönetim | Yes |
| Multi-site Yönetim | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| DİĞERLERİ | |
|---|---|
| Sertifika | CE, FCC, RoHS |
| Paket İçeriği | • EAP650• Power Adapter• Ceiling/Wall Mounting Kits• Installation Guide |
| Sistem Gereksinimleri | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Ortam | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax), and features including OFDMA, MU-MIMO, and 1024-QAM requires clients to also support the corresponding features. The 160 MHz bandwidth is only available on 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△These features require the use of an Omada controller.
