EAP725-Outdoor
Omada BE5000 Indoor/Outdoor WiFi 7 Access Point with Directional/Omnidirectional Antennas
•Directional and Omnidirectional Antennas: Freely switch between modes via software for optimal signal control.**
•Plug & Play Auto-Sensing Antennas: Automatically detects antenna changes and switches between internal and external antennas as needed.
•4-Stream Dual-Band Wi-Fi 7: Up to 5.0 Gbps.†
•1× 2.5G PoE Port: Flexible PoE deployment reduces costs by delivering power and data over a single Ethernet cable.
•Outdoor-Ready Durability: Features an IP66-rated weatherproof enclosure and 6kV lightning protection.
•Quick and Easy Setup: Features wall/pole mounting with Omada SDN for one-click setup.
•Advanced Features: Centralized management, mesh, and seamless roaming.Δ
-
Up to 3.6 Gbps Wi-Fi 7 Speeds†
-
Built-in Directional & Detachable Omni
Antennas -
Plug & Play
Auto‑Sensing External
Omni Antennas -
1× 2.5Gbps
RJ45 Port -
IP66
Weatherproof -
802.3at
PoE -
Omada Mesh &
Seamless RoamingΔ -
Centralized Cloud Management
Wi-Fi 7: Swifter, Smoother, Stronger
Dual-Band WiFi 7 Throughput
-
5 GHz 2882 Mbps
-
2.4 GHz 688 Mbps
-
Higher Efficiency with 4K-QAM
Wi-Fi 7 12 bits/symbol
20% more data transmissionWi-Fi 6 10 bits/symbol -
Higher Reliability and Speeds
with MLO5 GHz2.4 GHzMulti-Link Operation
Versatile Antennas
Deployment
Adapt to any environment effortlessly by selecting the antenna type that suits your needs. Whether you require long-distance connectivity or need to cover multiple endpoints, easily switch between external omni, internal directional, or custom antenna configurations with just a few clicks in the software.*
Auto-Sensing Plug & Play—No Expertise Needed
Automatically detects the attachment and removal of antennas (included) in auto mode and seamlessly switches between the internal and external antennas with zero configuration.
Tailored Coverage with Different Antenna Modes

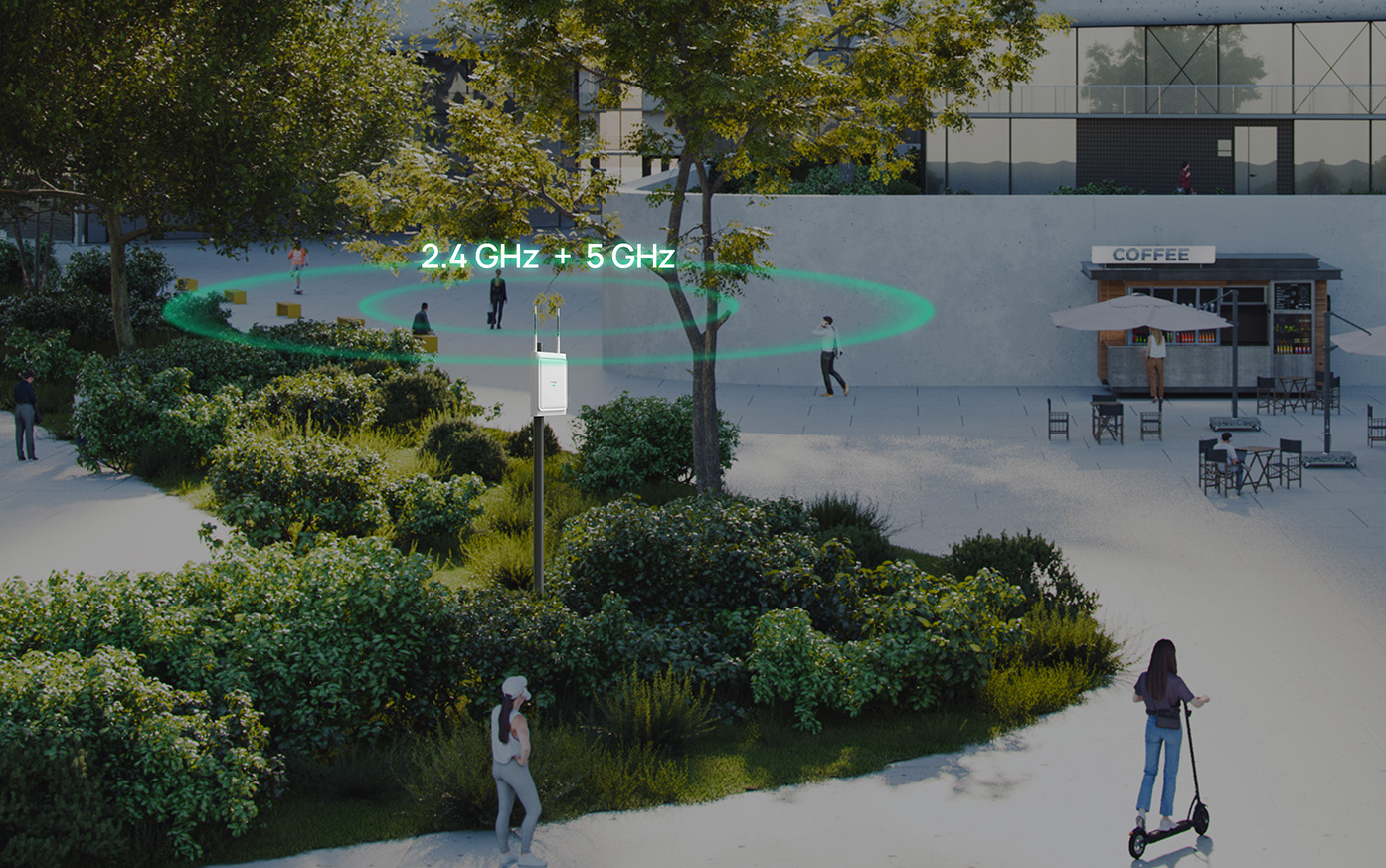

Center Mount for Omni Coverage
Deploy the AP centrally to provide 360° outdoor Wi-Fi 7 coverage.

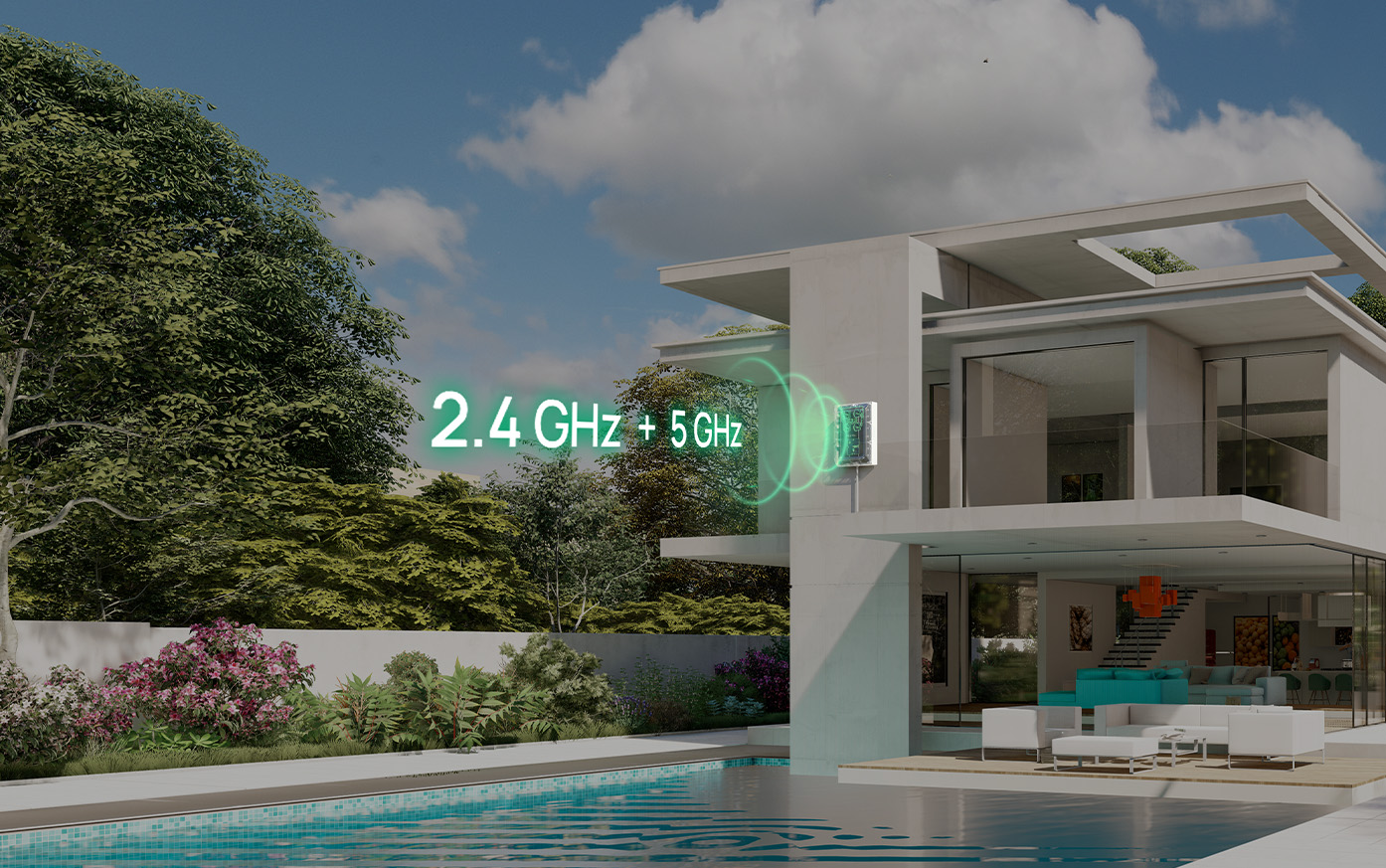

Edge Mount for Directional Coverage
Deploy the AP along the edge of the space to deliver focused directional Wi-Fi 7 coverage.

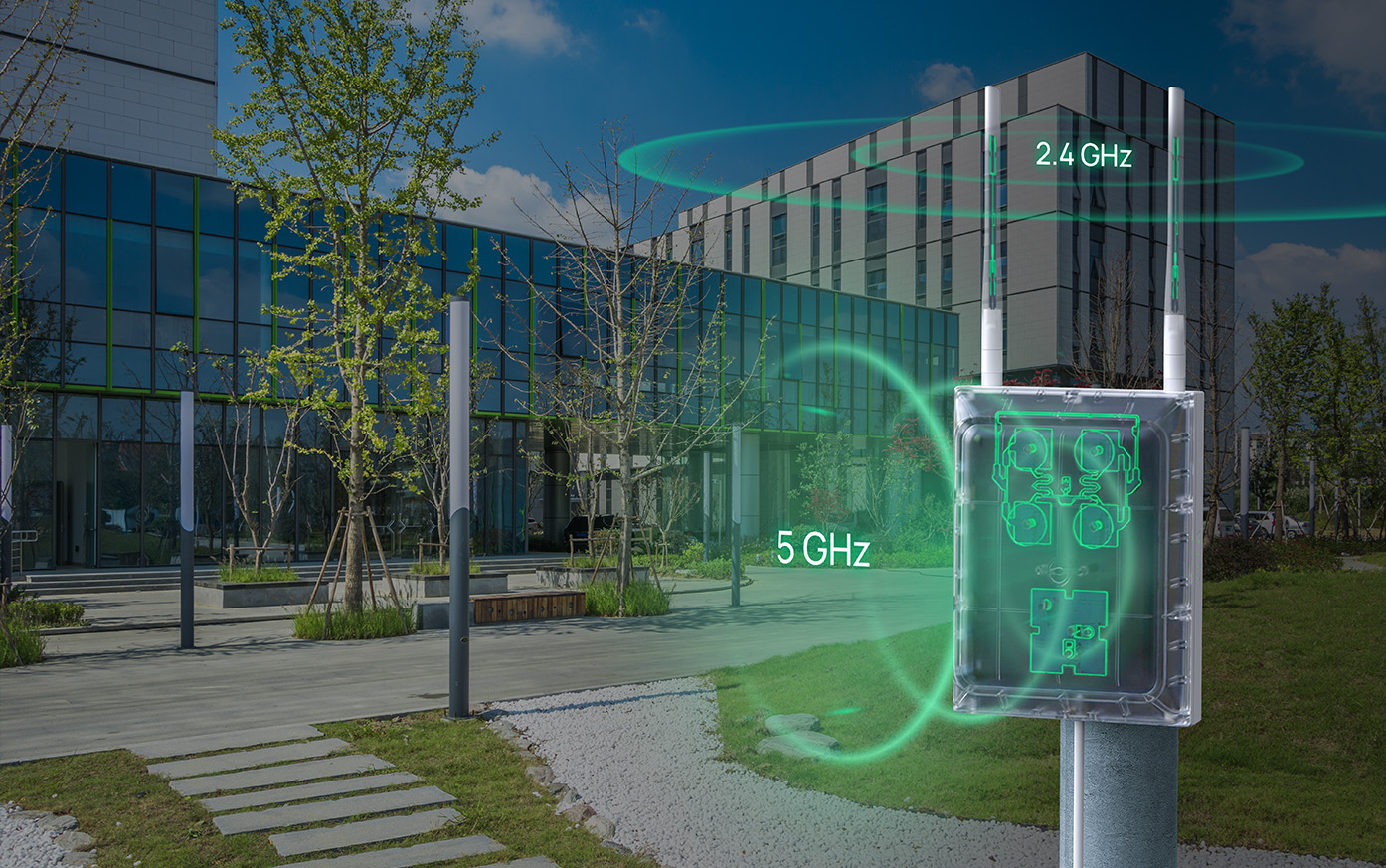

Customized Scenario (Omni + Directional)
Customize coverage by zone with omni and directional coverage as needed.

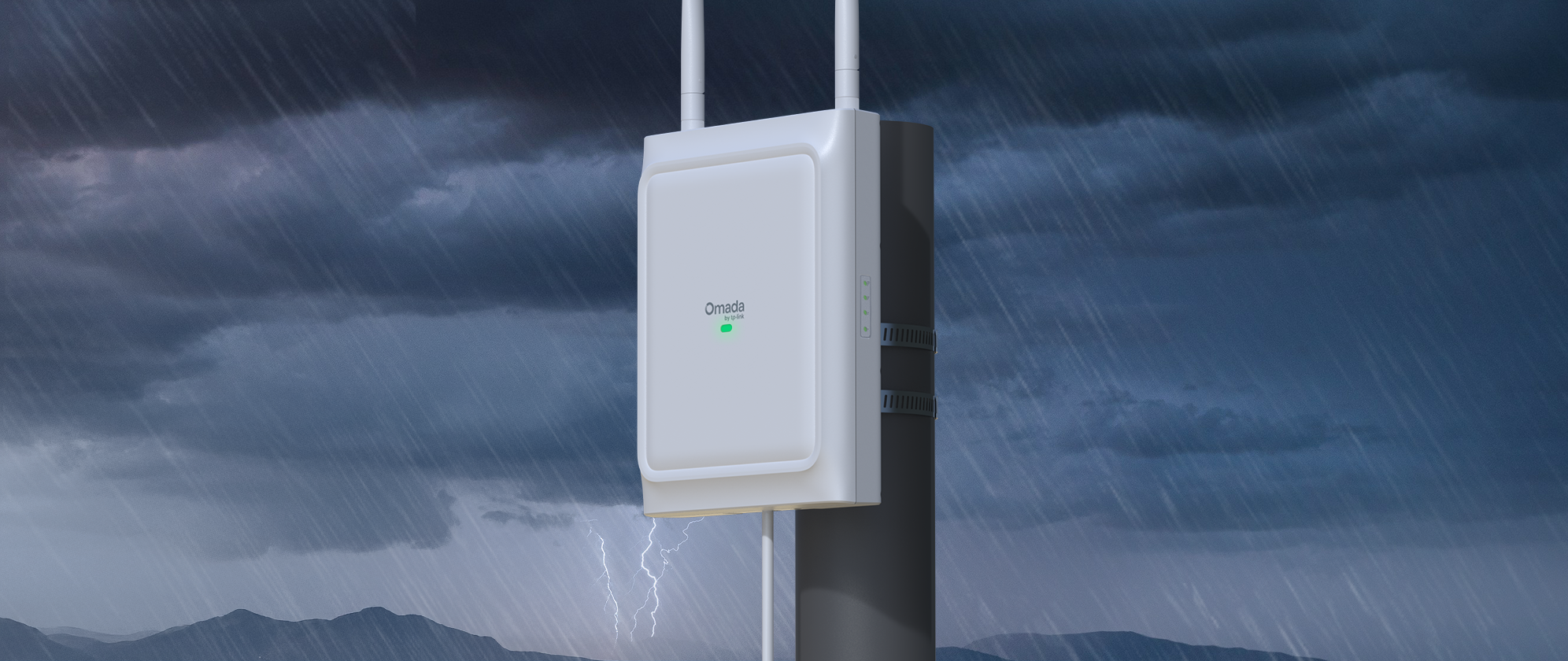

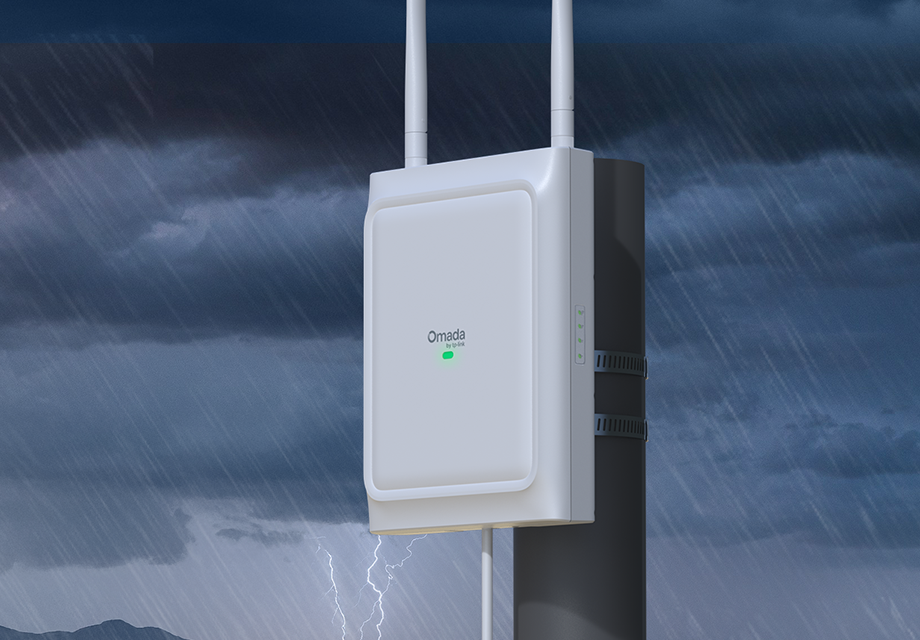

Outdoor-Ready IP66 Weatherproof Design
The EAP725-Outdoor features an IP66 weatherproof rating, ensuring reliable protection against heavy rain, dust, and harsh weather conditions.
-
IP66 Weatherproof Enclosure
-
6kV Lightning Protection
-
-30 °C to 70 °C Working Range
Easy Installation and Deployment

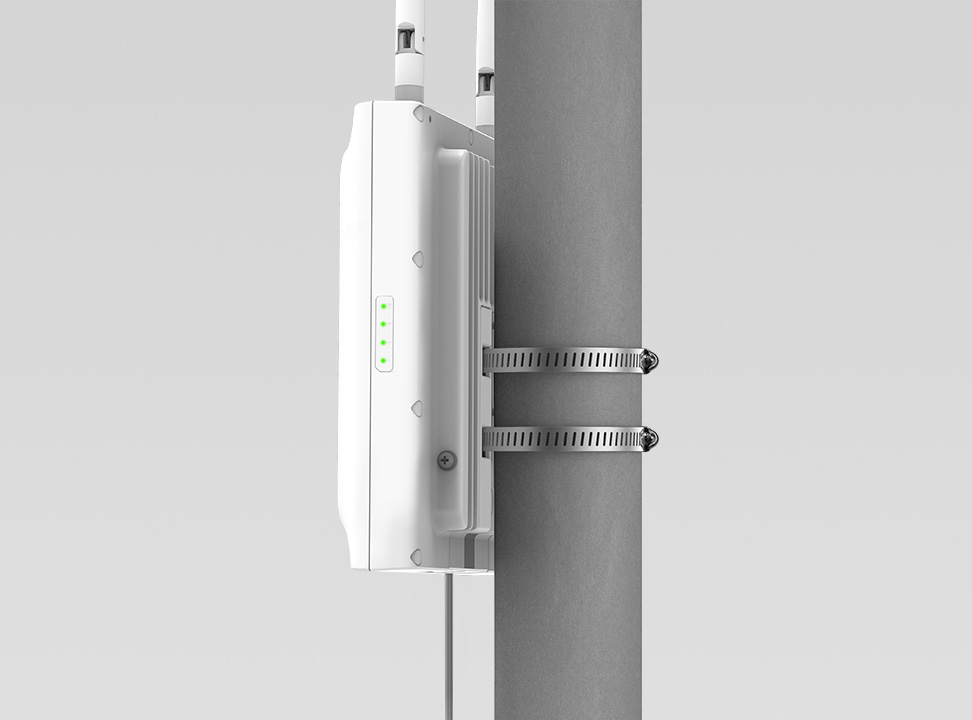

Pole Mounting

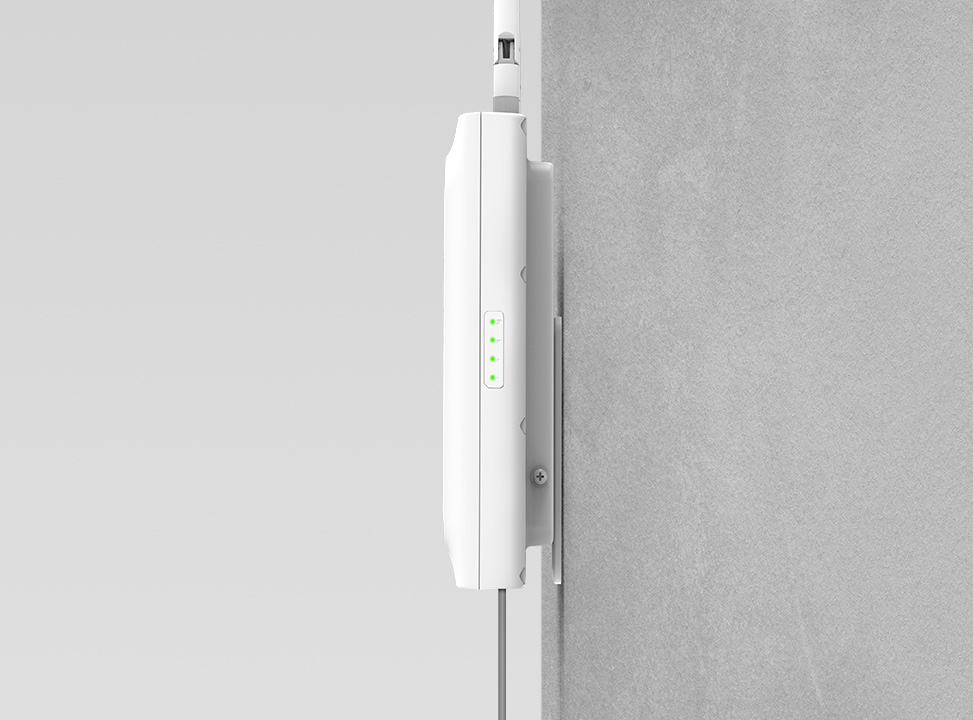

Wall Mounting
2.5G PoE Port
Omada
PoE Switch
PoE Support
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
PoE+
Omada PoE+ Switch

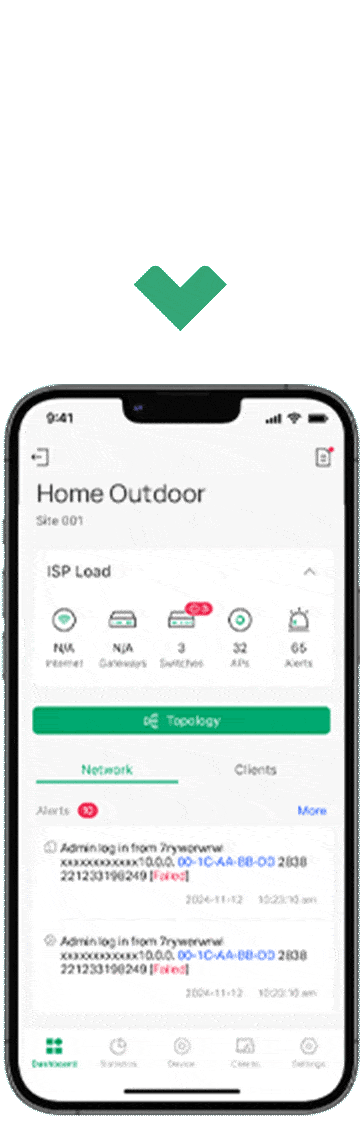

Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP725-Outdoor through automatic device identification and one‑click adoption.
Empowering Businesses
with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
Ceiling Mount
Wi-Fi 7 AP
Wall Plate
Wi-Fi 7 AP
Outdoor Wi-Fi 7 AP
EAP725-Outdoor
PoE Switch
VPN Gateway
Controllers
Controller
| 硬體規格 | |
|---|---|
| 連接介面 | 1 x 10M/100M/1000M/2.5Gbps Ethernet Port (RJ45) |
| 按鈕 | Reset |
| 電源供應 | 802.3at PoE |
| 功耗 | 18.4W (for PoE+) |
| 尺寸(長 x 寬 x 高) | 8.19 x 6.3 x 2.17 in (208 × 160 × 55 mm) |
| 天線 | • 2.4 GHz:2 × 4.5 dBi, external omnidirectional antennas2 × 8.3 dBi, internal directional antennas (antenna beamwidth 90°) • 5 GHz: 2 × 5.3 dBi, external omnidirectional antennas2 × 13.2 dBi, internal directional antennas (antenna beamwidth 45°)Note: The gains above are the single-antenna peak gains. |
| 藍牙 | BLE 5.2 |
| 防風雨外殼 | IP66 |
| 安裝 | Pole/Wall Mounting (Kits included) |
| 無線網路規格 | |
|---|---|
| 無線網路標準 | IEEE 802.11a/g/b/n/ac/ax/be |
| 無線網路頻率 | 2.4 GHz, 5 GHz |
| 訊號速率 | 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) |
| 無線網路功能 | • 4k-QAM• OFDMA• Multiple SSIDs: 16 (8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS (WMM)• MLO• Omada Mesh§• Seamless Roaming(802.11k/v/r)§• Band Steering• Load Balance• Airtime Fairness• Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client• Static IP/Dynamic lP |
| 無線網路安全性 | • Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE |
| 傳輸功率 | • CE: (EIRP)2.4 GHz: 20 dBm 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 30 dBm in U-NII-2C• FCC: (Conducted Power)2.4 GHz: 25 dBm 5 GHz: 26 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 26 dBm in U-NII-3 |
| 管理功能 | |
|---|---|
| Omada App | Yes |
| 集中化管理 | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| 雲端存取 | Yes. Require the use of an Omada controller. |
| E-mail警示 | Yes |
| 管理MAC存取控制 | Yes |
| SNMP | v1, v2c, v3 |
| 系統登入本地/遠端系統日誌 | Yes |
| SSH | Yes |
| Web管理介面 | Yes |
| L3 管理 | Yes |
| 多站點管理 | Yes |
| 管理VLAN | Yes |
| 零接觸監管 | Yes. Requiring the use of Omada Cloud-Based Controller |
| 其他規格 | |
|---|---|
| 認證 | CE, FCC, RoHS, IC, NCC, VCCI, JRF, BSMI |
| 包裝內容 | • Access Point EAP725-Outdoor• Waterproof Kit• Mounting Kit• Installation Guide |
| 系統需求 | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| 環境 | • Operating Temperature: -30 to 70 ℃ (-22 to 158 ℉)• Storage Temperature: -40 to 70 ℃ (-40 to 158 ℉)• Operating Humidity: 10 to 90% RH non-condensing• Storage Humidity: 5 to 90% RH non-condensing |
| 重量 | Main Unit: 1.33 kg |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller. Please refer to the User Guides of Omada controllers for configuration methods.
*Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features, including Multi-Link Operation (MLO), 240 MHz Bandwidth, 160 MHz Bandwidth, 4K-QAM, Multi-RUs, and OFDMA, requires clients to also support the corresponding features.
**Switching antenna modes via an Omada Controller requires version 6.1 or above.
