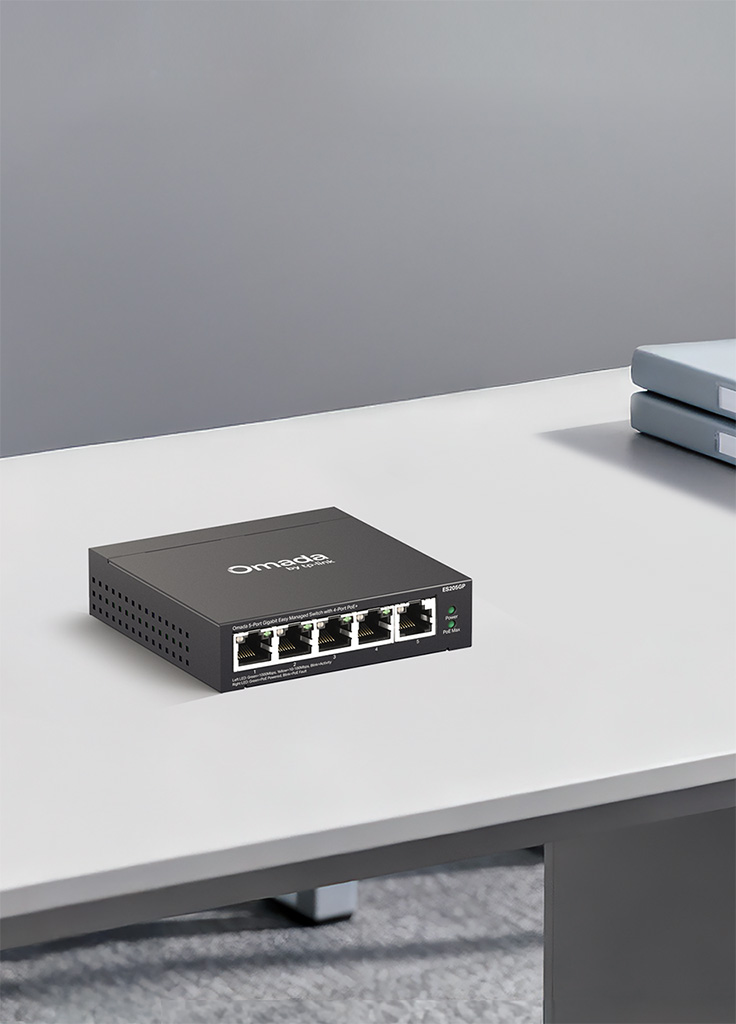

Omada 5-Port Gigabit Easy Managed Switch
- 5× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Easy Managed Switch
Managed PoE+
Switch
5x Gigabit RJ45 Ports
Fanless Design for Silent Operation
Compact Metal Casing
Easy Centralised
Management†

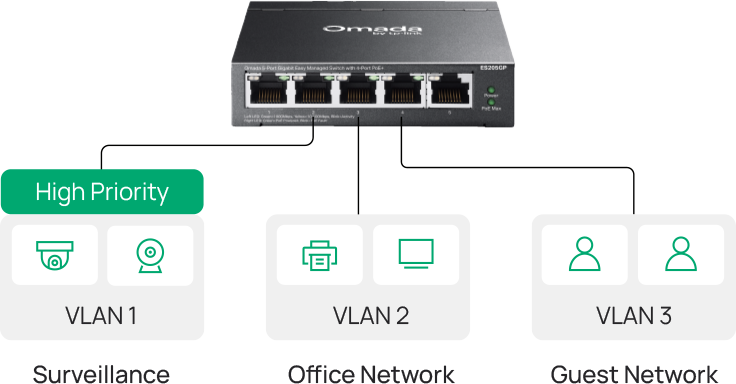

Traffic Separation
Traffic
Prioritisation△
Automatic Loop Prevention
Cable Test△

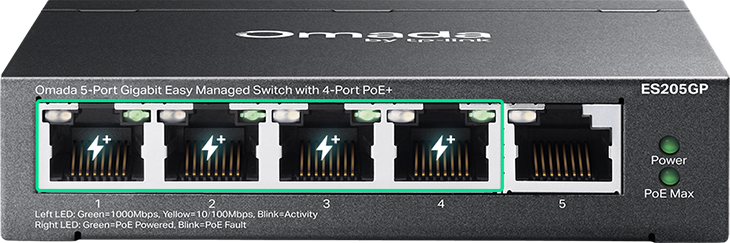

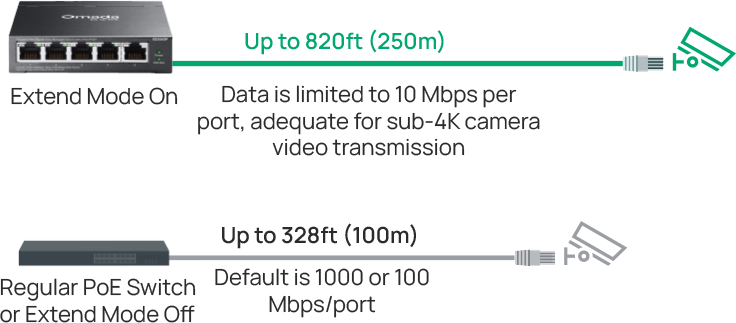

Power over Ethernet,
Flexible Network
Deployment
Transmit both data and power via a single cable to other 802.3af PoE or 802.3at PoE+ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled device
4x Gigabit
PoE+
RJ45 Ports
Up to
30W
PoE per Port
Total
65W
PoE Power
Compatible with
802.3af/at
PoE and non-PoE devices
Access Point
IP Phone
IP Camera
4K Video
Computer

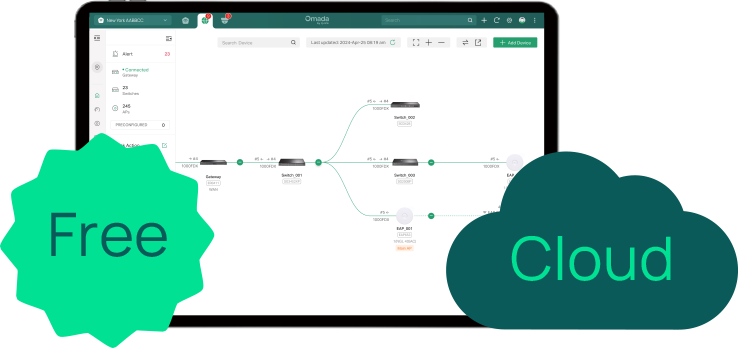

Works with Omada Central Essentials
for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use cloud centralised management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Deployment and Setup
Surveillance Networking
Cost-Performance Solution
Looking for free, worry-free cloud management for life?
Omada Central Essentials
Lifetime Free Cloud without Additional Fees

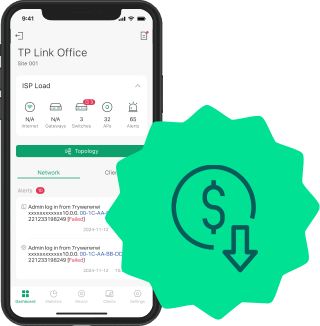

On-site work eating up time and resources?
Reduce Maintenance Costs
Manage and Maintain from Anywhere
Multiple Application Scenarios

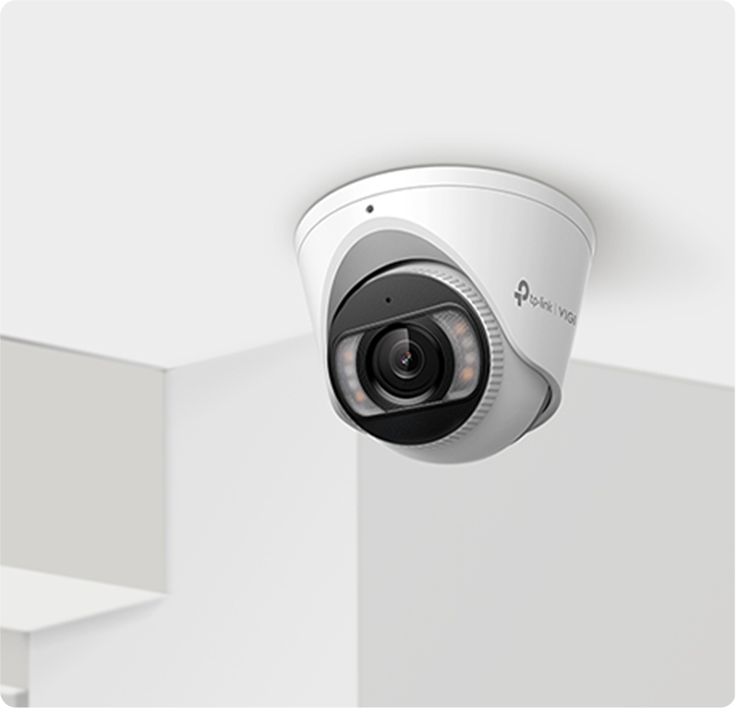

Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Conference Calls
Works with IP Phones
Wired Connections
Works with Non-PoE Devices such as PCs and Printers

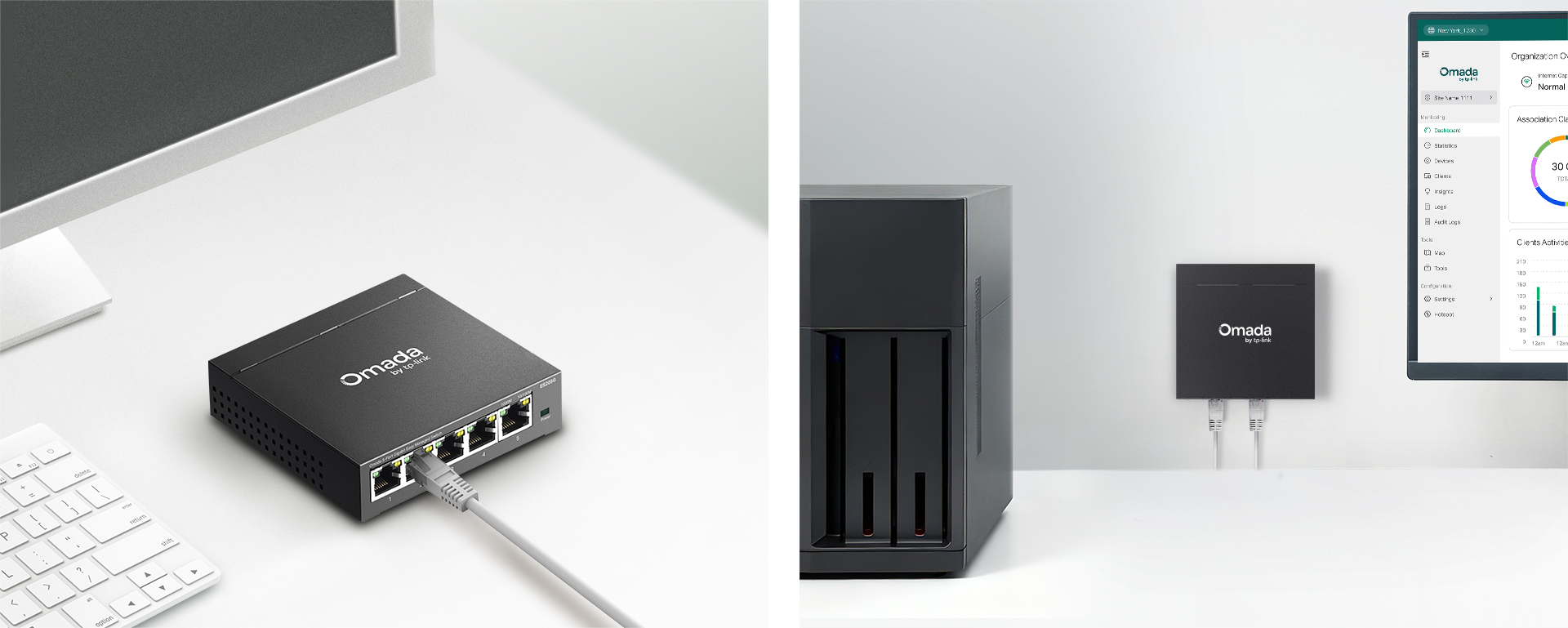

Compact and Durable Metal Casing, Featuring
Desktop/Wall Mounting and a Fanless Design
| HARDWARE FEATURES | |
|---|---|
| Interface | • 5× 10/100/1000 Mbps RJ45 Ports• AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop• Wall Mount |
| Physical Security Lock | √ |
| Power Supply | External DC Power Adapter (Output: 5V DC / 0.6A) |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) |
| Surge Protection | ±6kV |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 8 K |
| Packet Buffer Memory | 4 Mbits |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control△ |
| L2 Features | • Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| VLAN | • MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration† |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • ES205G• Power Adapter• Installation Guide• Rubber Feet |
| Environment | • Operating Temperature: 0℃~40℃ (32℉~104℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing |
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
△QoS is supported under Standalone Mode.
