Deco BE85_Datasheet

BE22000 Whole Home Mesh Wi-Fi 7 System

Highlights

Unprecedented 10 Gig Experience, Wired or Wireless

With 2× 10 Gbps WAN/LAN autosensing ports, Deco BE85 matches 10 Gbps ISP network speeds. The second 10G port can serve as a wired backhaul between Deco units or be used as a LAN connection.§ Get the ultimate 10 Gbps experience whether wired or wireless to enjoy immersive real-time AR/VR gaming.^†

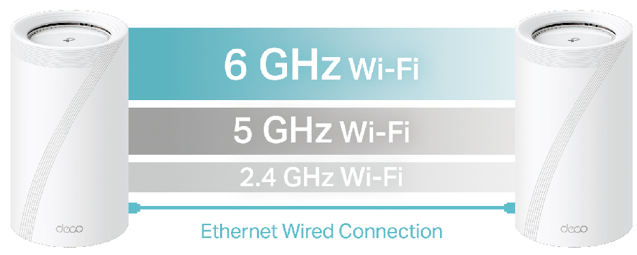

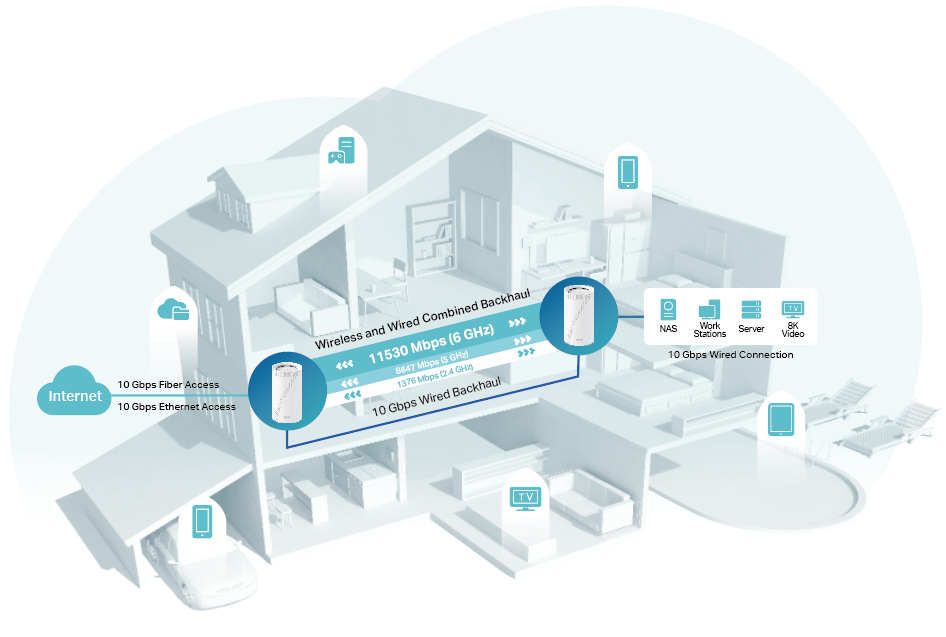

Wireless and Wired Combined Backhaul

Deco BE85 can connect a wireless and wired backhaul with each unit simultaneously. With MLO, it greatly improves overall throughput and reduces latency, delivering broader coverage with more stable and reliable connections.

	Multi-Link Operation (MLO)△		Greatly Reduced Lag for Smooth Wi-Fi
	Stable and Reliable Broader Coverage		More Device Connections for Higher Capacity

Seamless AI-Driven Mesh

Deco Mesh forms a unified network with a single network name. With built-in AI-Roaming technology, it creates the ideal Wi-Fi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds.^‡

	Seamless Roaming with One Wi-Fi Name		Self-Learning Capability
	Sophisticated Algorithms		Customized Wi-Fi

Enhanced Security – HomeShield

Manage online time and block inappropriate content to keep your family safe online with Parental Controls. Network Protection further keeps your home network safe by preventing potential threats and security issues.^*

	Network Protection		IoT Protection
	Parental Controls		Quality of Service (QoS)

Features

Wi-Fi Speed
Faster Wi-Fi speed with stronger whole home Wi-Fi generated from Wi-Fi 7

· Superior Wireless Speed – Combines wireless speeds up to 11530 Mbps over 6 GHz, 8647 Mbps over 5 GHz, and 1376 Mbps over 2.4 GHz^†
· OFDMA – Provides 4× greater capacity for more simultaneous connections
· More Devices Connected – Connects over 200 Devices^†

TP-Link HomeShield
TP-Link’s premium security services keep your home network safe with cutting-edge features for network and IoT protection.^§

· Network Protection – Detects cyber threats to keep your privacy and connected devices well protected
· Parental Controls – Manages online time and blocks inappropriate content to keep families healthy online
· Quality of Service (QoS) – Prioritizes your bandwidth needs to get a faster networking experience
· Comprehensive Reports– Gains full statistics and insights to help you know your home network better
Note: HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.

Easy Setup by Deco App
Easily set up Decos and find the ideal spot to place each unit

· Auto Connection Test – Tests the internet connection of your Decos and helps to identify a suitable location for them
· Remote Management – Manages your Deco network from a smartphone or tablet via the app, no matter where you find yourself
· Online Upgrade – Keeps informed of the latest firmware updates

Security
Safeguard your home network with a firewall and wireless encryption

· Encryption for Secure Network – WPA/WPA2/WPA3 encryptions provide active protection against security threats
· Firewall – Protects your network devices from malicious attacks
· Blocklist – Add specific devices to blocklist to protect your network from unauthorized users

Two Modes in One
Choose the Wi-Fi Router mode or Access Point mode for your network needs

· Wi-Fi Router Mode – Creates an instant private wireless network
· Access Point Mode – Creates Wi-Fi access for any existing wired network

Work with All Deco Models
Form a Mesh network with your desired Deco models

· Compatible with All Deco Models – All Deco models can work together. Just expand Mesh Wi-Fi coverage anytime by adding more Decos
· Deco Mesh Technology – Eliminates dead zones and provides uninterrupted WiFi throughout your home

Specifications

Hardware

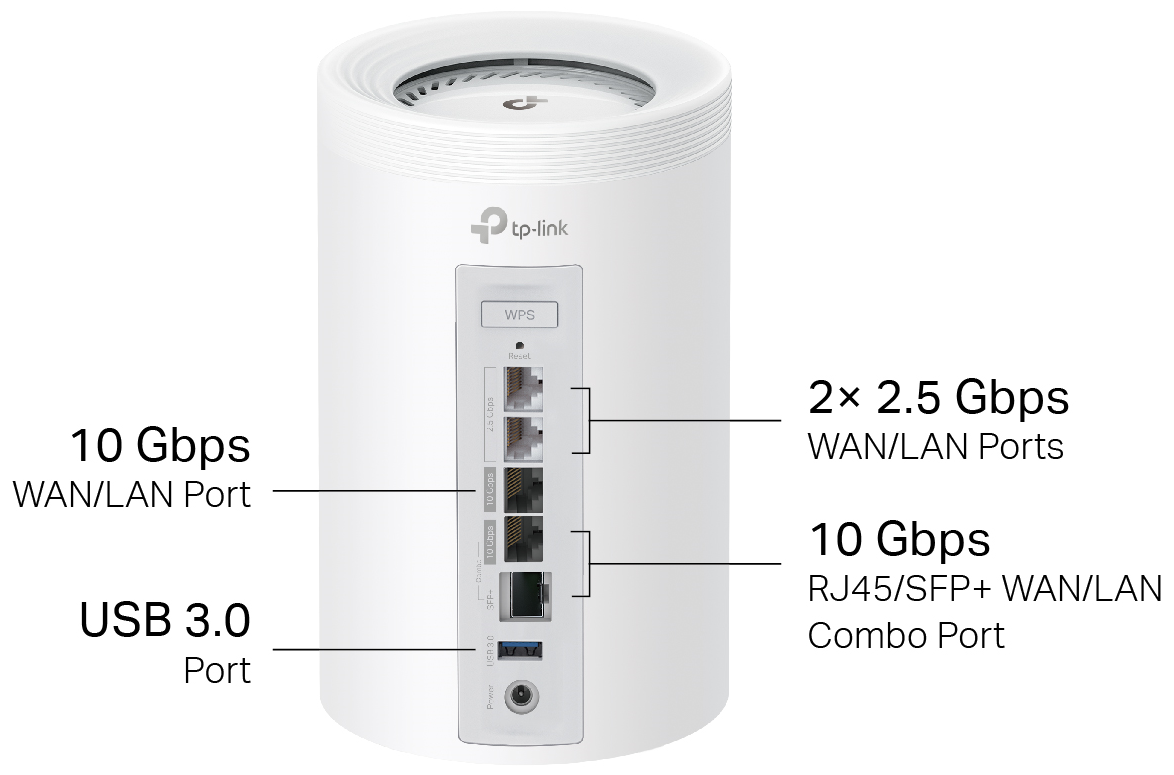

· Ethernet Port: 1× 10 Gbps RJ45/SFP+ Combo port + 1× 10 Gbps port + 2× 2.5 Gbps ports per unit (WAN/LAN auto-sensing)^§
· Button: 1 RESET button and 1 WPS button on the back
· Port: 1× USB 3.0 Port
· Power Consumption (without power adapter): 51 W max
· Dimensions (W × D × H): 4.65 × 4.65 × 7.80 in (118.0 × 118.0 × 198.0 mm)
· Power Adapter Input: 100-240V~50/60Hz 2A
· Power Adapter Output: 15V 5A

Wireless

· Wireless Standards: IEEE 802.11b/g/n/ax/be 2.4 GHz, IEEE 802.11a/n/ac/ax/be 5 GHz, IEEE 802.11ax/be 6 GHz
· Mesh protocol: 802.11 k/v/r^‡
· Frequency: 2.4 GHz, 5 GHz, 6 GHz
· Signal Rate: 11530 Mbps (6 GHz) + 8647 Mbps (5 GHz) + 1376 Mbps (2.4 GHz)^†, 12 Streams
· Transmit Power: FCC: <30 dBm(2.4 GHz), <30 dBm(5 GHz), <30 dBm(6 GHz)
· Wireless Security: WPA/WPA2-PSK/WPA3◊ encryptions; TP-Link HomeShield*

Software

· Working Mode: Router, Access Point
· WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
· DHCP: Server
· Protocols: Supports IPv4 and IPv6
· Guest Network: 2.4 GHz Guest Network×1, 5 GHz Guest Network×1, 6 GHz Guest Network ×1
· IoT Network: IoT Network×1
· MLO Network: MLO Network×1
· Features: TP-Link HomeShield*, Multi-Link Operation (MLO)^△, 320 MHz Bandwidth^△, 4K-QAM^△, Multi-RU^△, MU-MIMO^△, OFDMA^△, BSS Color^△
· Management: Local Management; Remote Management; Multi-Managers

Others

· Certification: FCC, RoHS
· Environment:
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH
· Package Contents for Deco BE85(1-pack):
1 Deco BE85 unit
1 RJ45 Ethernet cable
1 Power adapter
1 Quick Installation Guide
· Package Contents for Deco BE85(2-pack):
2 Deco BE85 units
1 RJ45 Ethernet cable
2 Power adapters
1 Quick Installation Guide
· Package Contents for Deco BE85(3-pack):
3 Deco BE85 units
1 RJ45 Ethernet cable
3 Power adapters
1 Quick Installation Guide

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Specifications are subject to change without notice. Google, Google Home, and Google Play are trademarks of Google LLC. Other brands and product names are trademarks or registered trademarks of their respective holders.
^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to over 200 devices is based on laboratory test data, which analyzed the connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
^‡Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.
△Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 mesh.
^§10 Gbps and 2.5 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.
^◊Use of WPA3 requires clients to also support the corresponding feature.
^*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.
^**Wi-Fi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. All devices need to support 802.11 Wi-Fi protocols.
Users may require an extra modem device that is compatible with their internet service provider to gain internet access.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
This Deco may not support all the mandatory features as ratified in the IEEE 802.11be specification.
Further software upgrades for feature availability may be required.
