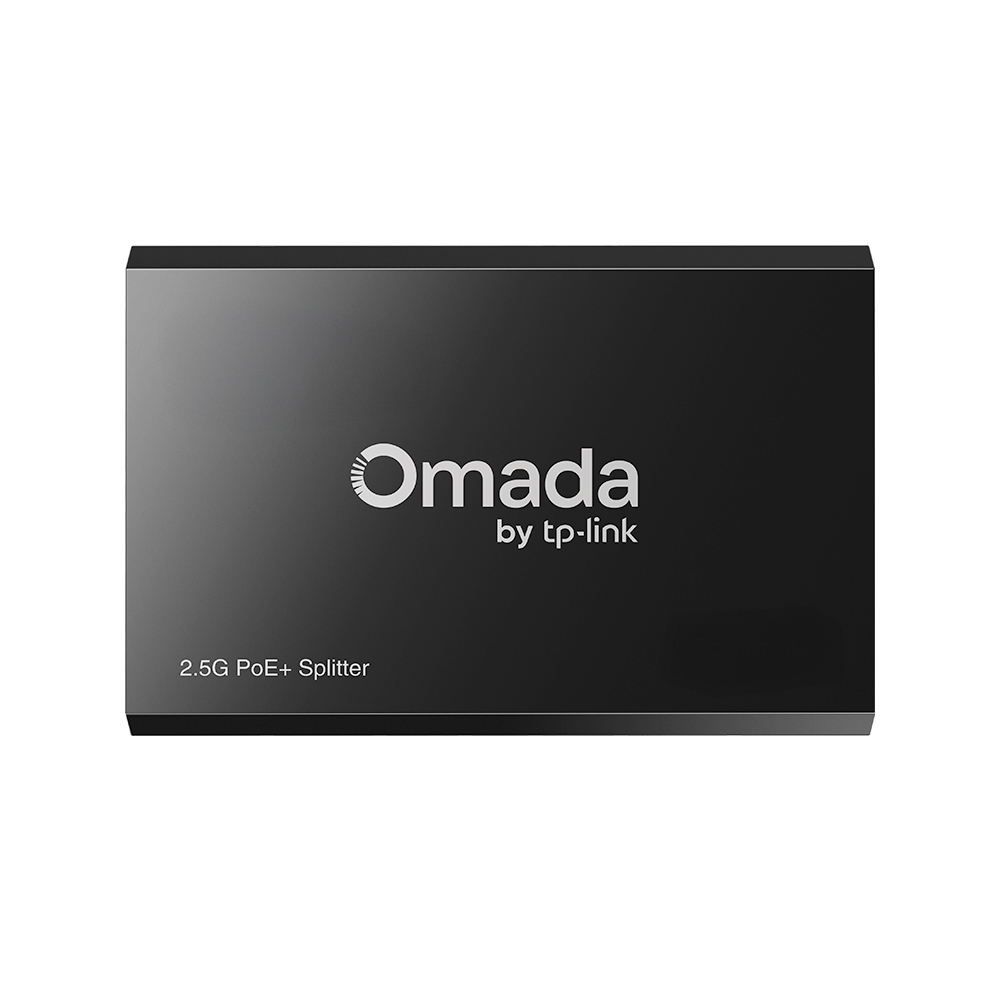

POE260R
Omada PoE+ Splitter
- IEEE 802.3af compliant
- Selectable power output
- Gigabit speed support
- Plug-and-Play, no configuration required
What This Product Does
The POE260R is a 2.5 Gigabit PoE+ splitter that delivers high-speed data and converts standard PoE+ input into a flexible 12V/9V/5V DC output, powering various devices over existing network cables without requiring a separate power adapter.
| HARDWARE FEATURES | |
|---|---|

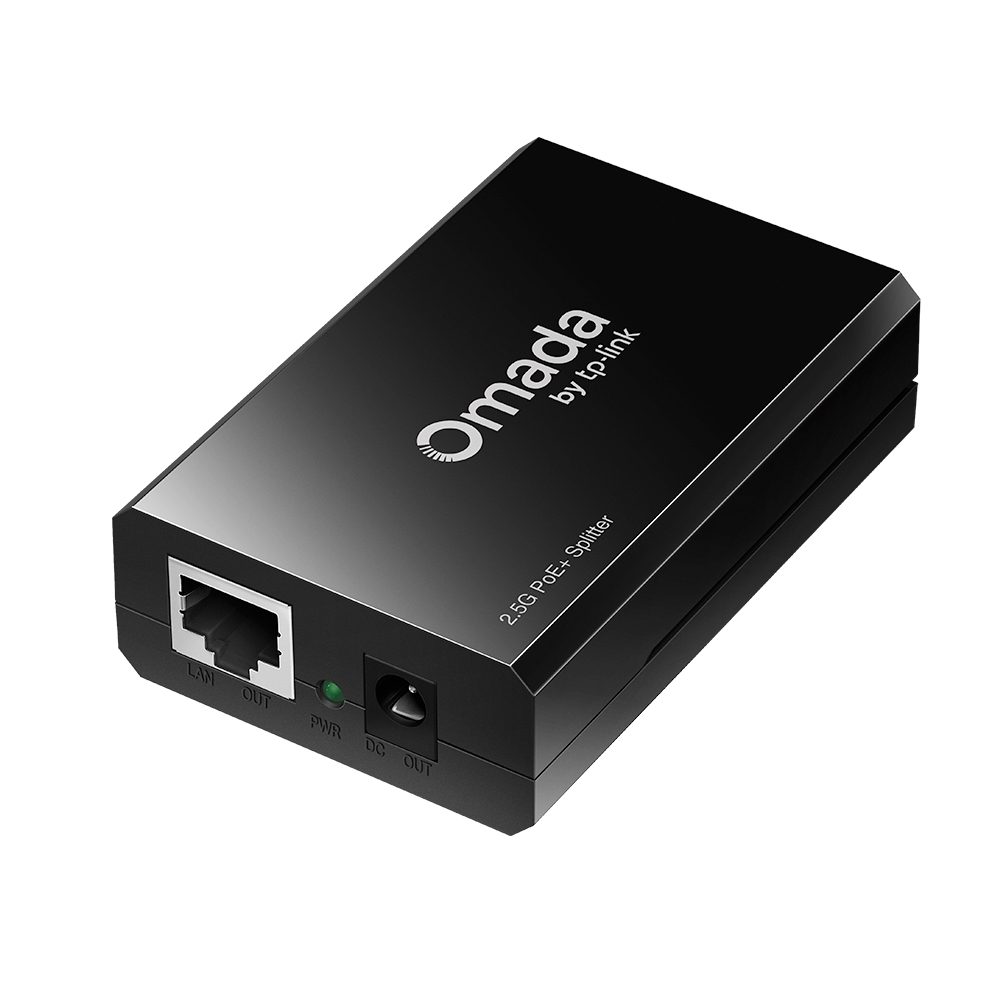

| Interface | • 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45POWER+DATA IN Port• 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45LAN OUT Port• 12V / 9V / 5V DC OUT Power Output Port |
| Network Media | • 10BASE-T:2-pair UTP/STP of Cat. 3,4,5 (maximum 100 m)• 100BASE-TX:2-pair UTP/STP of Cat. 5 or above (maximum 100 m)• 1000BASE-T:4-pair UTP/STP of Cat. 5e or above (maximum 100 m)• 2.5GBASE-T:4-pair UTP/STP of Cat. 5e or above (maximum 100 m) |
| Power Supply | 5VDC/2A,9VDC/2A or 12VDC/2A |
| Basic Function | • Compatible With IEEE 802.3af/at Compliant PSEs• Delivers Power Up To 100 Meters• Optional 12VDC, 9VDC or 5VDC Power Output |
| LED | PWR |
| Dimensions ( W x D x H ) | 3.2×2.1×0.9 in. (80.8×54×24 mm) |
| SOFTWARE FEATURES | |
|---|---|
| Basic Function | • Compatible With IEEE 802.3af Compliant PSEs• Delivers Power Up To 100 Meters• Optional 12VDC, 9VDC or 5VDC Power Supply |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • POE260R• Power Cord• Installation Guide |
| Environment | • Operating Temperature:-5˚C to 45˚C (23˚F to 113˚F) • Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing |
