Upgraded Connectivity, Effortless Setup

Omada Outdoor Long-Range Wireless PtP & PtMP Bridge Solution

  • Up to 3.1 Miles Range

    Up to 3.1mi (5km) Distance

    Ideal for setting up networks in remote locations.

    *EAP215-Bridge Kit &
    EAP115-Bridge Kit: 3.1mi (5km);
    EAP211-Bridge Kit: 0.62mi (1km)

  • Up to 70° Beamwidth for Wider Deployment

    Upgraded High-Gain Antennas

    Boasts up to 14 dBi for stronger, more reliable signal strength.

    *EAP211-Bridge: 60° × 30° beamwidth; EAP215-Bridge & EAP115-Bridge: 43° × 18°

  • Three Ports for More Devices

    Enhanced Bandwidth Performance

    Delivers up to 300 Mbps with enhanced bandwidth within a 3.1 mi (5 km) range using EAP215-Bridge.*

  • IP65 Weatherproof for Outdoor Use

    Three Ports for More Devices

    Connect more cameras and devices without an extra switch.

  • Standalone or Omada SDN Mode

    IP65 Weatherproof for Outdoor Use

    Durable performance with IP65 rating and operating range of -40°F to 158°F (-40°C to 70°C).

Omada SmartBridging—The Most Effortless Bridge Setup Ever

Plug-and-Play Effortless Installation

  • Warehouse Shelving Areas Warehouse Shelving Areas

    Auto-Pairing

    LED Signal Indicators

    Auto-Pairing with Preconfigured Kit

    Seamlessly connects with preconfigured devices for quick and hassle-free setup.

  • Storehouses Warehouse Shelving Areas

    Main AP

    Client AP

    Auto-Pairing

    Auto-Pairing

    Additional Client AP

    Client AP

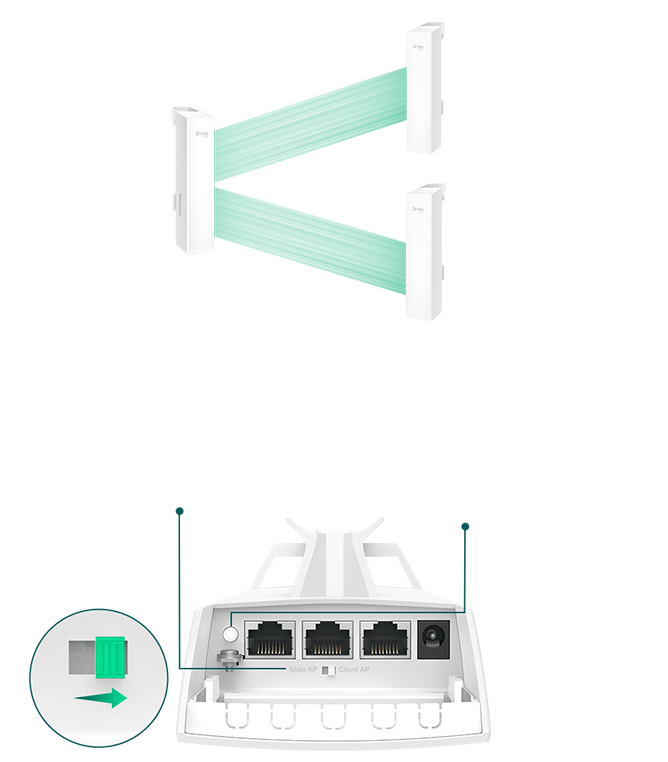

    Multiple bridges auto-pairing:

    Step 1:
    Switch to Client AP Mode

    Step 2:
    Press the pair button to initiate auto pairing with the main AP

    Additional Client AP

    PtMP Auto-Pairing Switch

    Auto-pairs additional bridges with zero setup or logins for seamless PtMP connections.

App-Guided Alignment for Optimal Performance

  • Storehouses

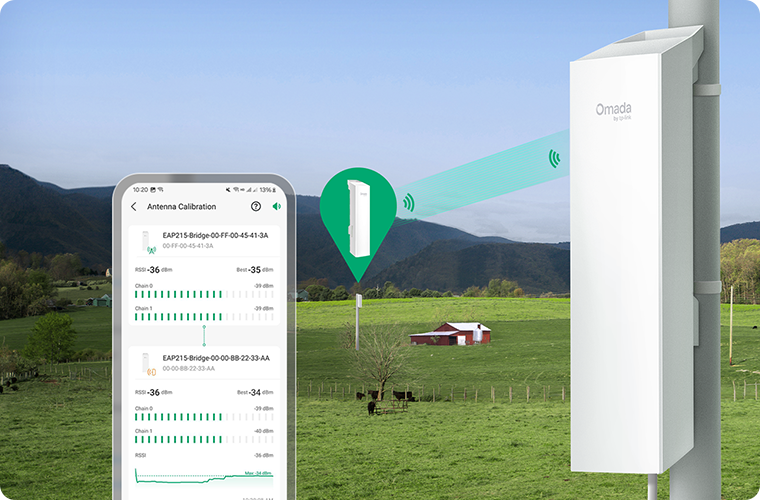

  • App-Guided Alignment for Long-Distance Setups

    Simplify bridge alignment with real-time signal strength visualization on the Omada app. Perfect for installations where bridges are far apart, this feature ensures optimal alignment and connectivity.

  • Instant Speed Testing for Installation Verification at Your Fingertips

    The Omada app allows users to easily verify installations, test transmission speeds, and troubleshoot connections for optimal performance.

  • Storehouses

Versatile Power & Connectivity for Expanded Surveillance

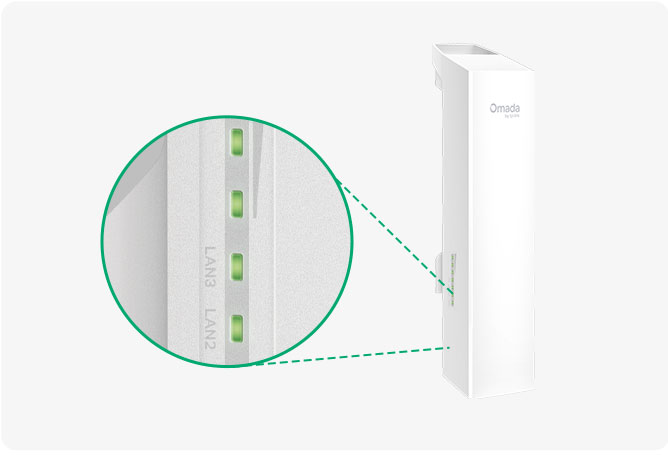

  • LED Signal Indicators

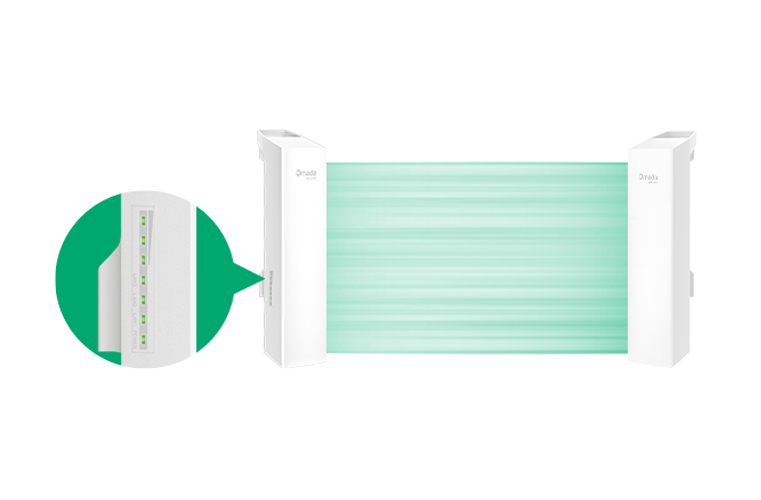

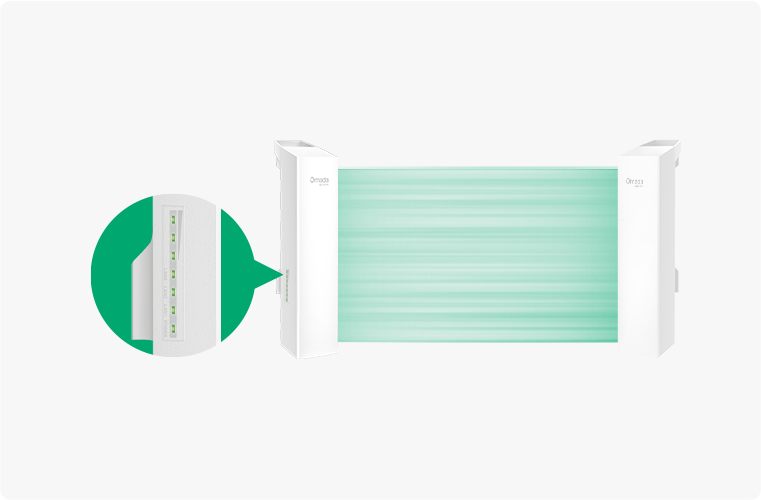

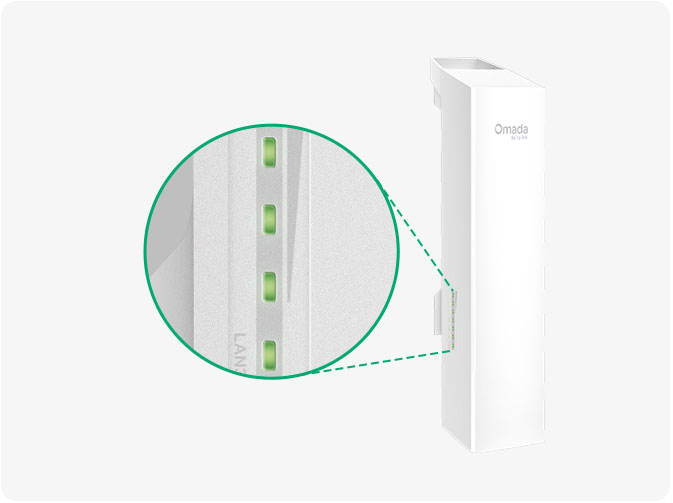

    LED Signal Indicators

    Adjust position and angle using LED signal strength displays for optimal reception.

  • 3× Ethernet LAN Ports

    Flexible Mode
    Switching Design

    PoE

    PoE Switch

    or

    PoE Injector

    PoE In

    DC Power

    or

    Solar Power System

    DC Power
    (Compatible with Solar Power System)

    Versatile Power Options

    Supports 802.3af PoE, 24V Passive PoE, and 12V DC for flexible deployment in any environment.

Point-to-Point (PtP) Network Expansion or
Remote Camera Monitoring

Up to 5 km/3.1 mi
Main Site
Remote Site

Omada App

OR

Web Portal

Versatile Power
(PoE Switch, Passive PoE, DC12V supported)
PoE (Power over Ethernet)
Data
Versatile Power
(PoE Switch, Passive PoE, DC12V supported)
Internet
Power
Power
IP Camera
IP Camera
EAP215-Bridge Kit &
EAP115-Bridge Kit: 3.1 mi (5 km);

EAP211-Bridge Kit: 0.62 mi (5 km)

Outdoor PtP (Point-to-Point) Wi-Fi Connection

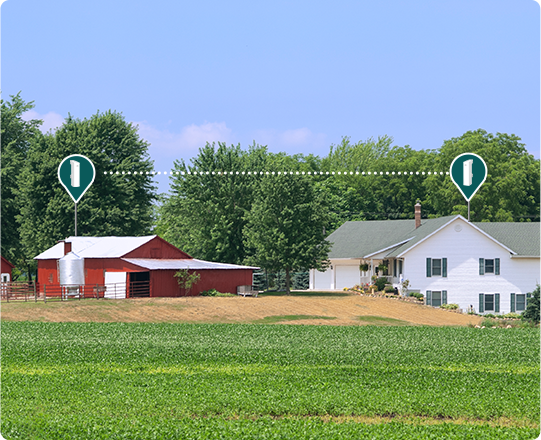

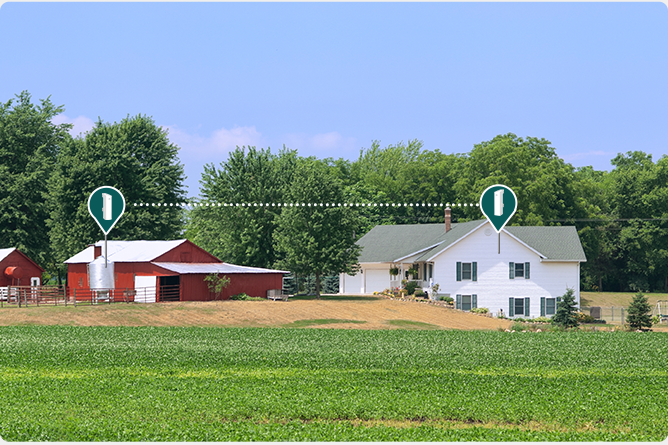

  • Extend Wi-Fi to Additional Buildings

    Extend your home network or Wi-Fi to your shop, barn, garage, farm, storehouse, guesthouse, or RV.

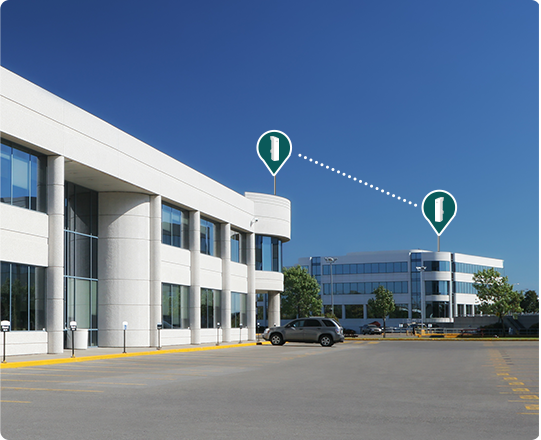

  • Extend Wi-Fi to Additional Offices

    Provide 550 Mbps bandwidth within a 328 ft (100 m) range using the EAP215-Bridge KIT or EAP211-Bridge KIT.*

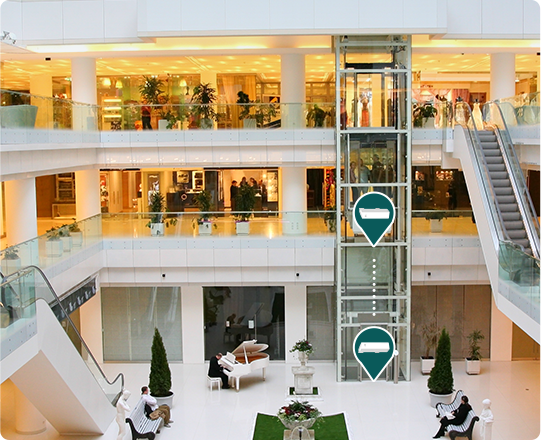

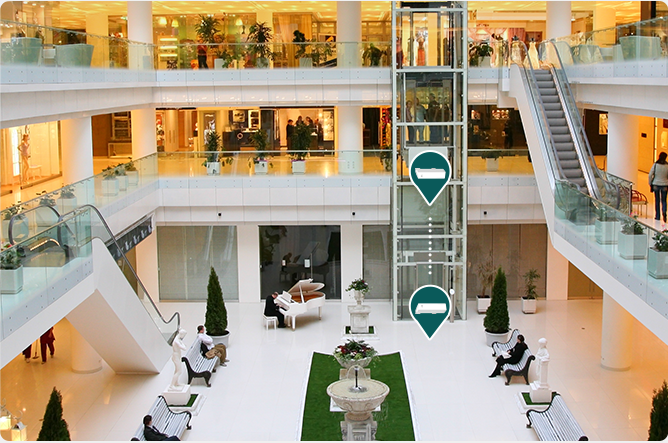

  • Elevator PtP Wi-Fi for Surveillance

    Record real-time video to an NVR with virtually no hardwiring required

*Tested in an open area without obstacles on a sunny day. Actual range and throughput depend on the transmission power and environmental factors such as wireless interference, obstacles, weather, etc.

Point-to-Multipoint (PtMP) Connections with Higher
Beamwidth for Distributed Cameras

EAP211-Bridge: 60° and up to 1km distance
EAP215-Bridge & EAP115-Bridge: 43° and up to 5km distance
Distance < 1km / 0.62mi
Up to 70°

Omada App

OR

Web Portal

Versatile Power
(PoE Switch, Passive PoE, 12 V DC supported)
PoE (Power over Ethernet)
Data
Internet

Outdoor PtMP (Point-to-Multipoint) Wi-Fi for Surveillance

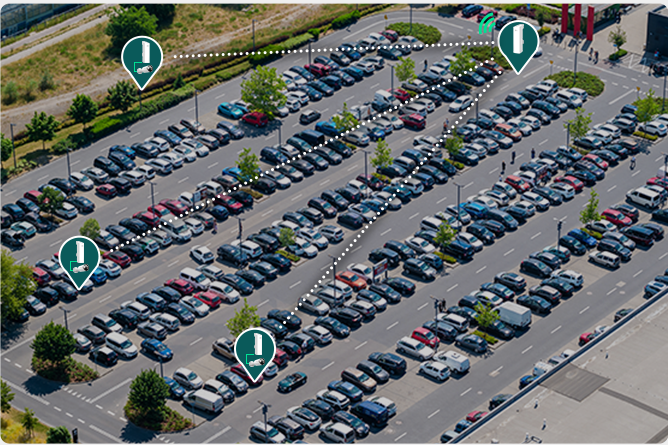

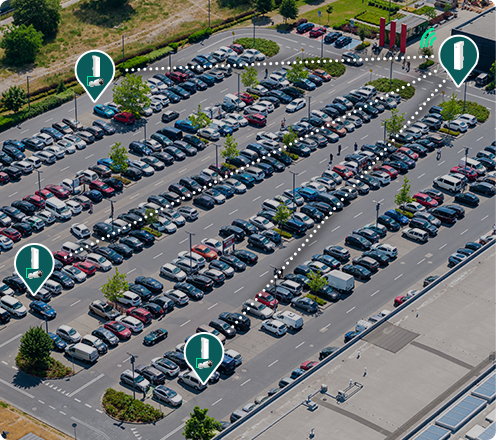

  • Parking Lots

    Remotely connect cameras to reduce crime and accidents

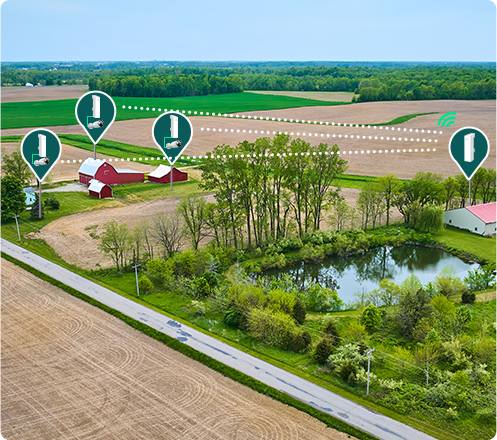

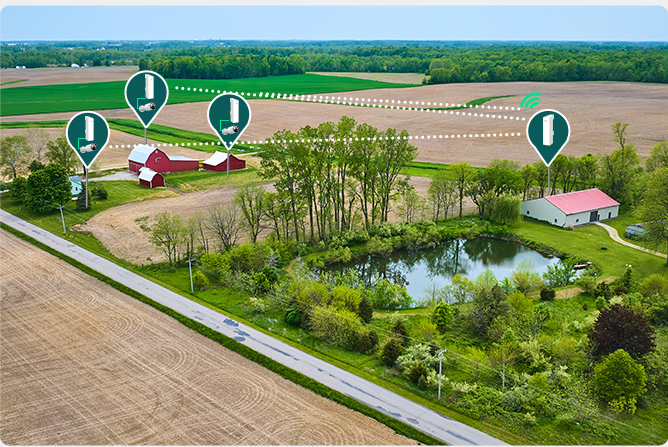

  • Farms / Orchards

    Remotely connect cameras to protect your property

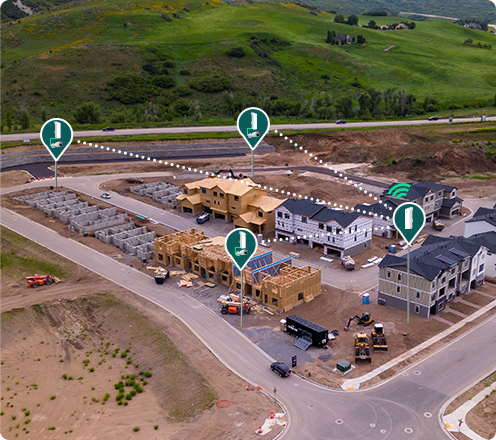

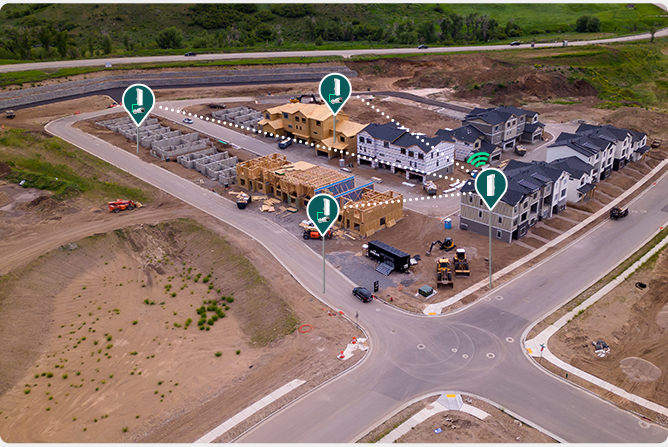

  • Construction Sites

    Rapidly deploy wireless networks to remotely monitor construction progress in real time or manage logistics.

Dual Control Modes

Standalone Simplicity or Omada SDN for Batch Deployment and Remote Management

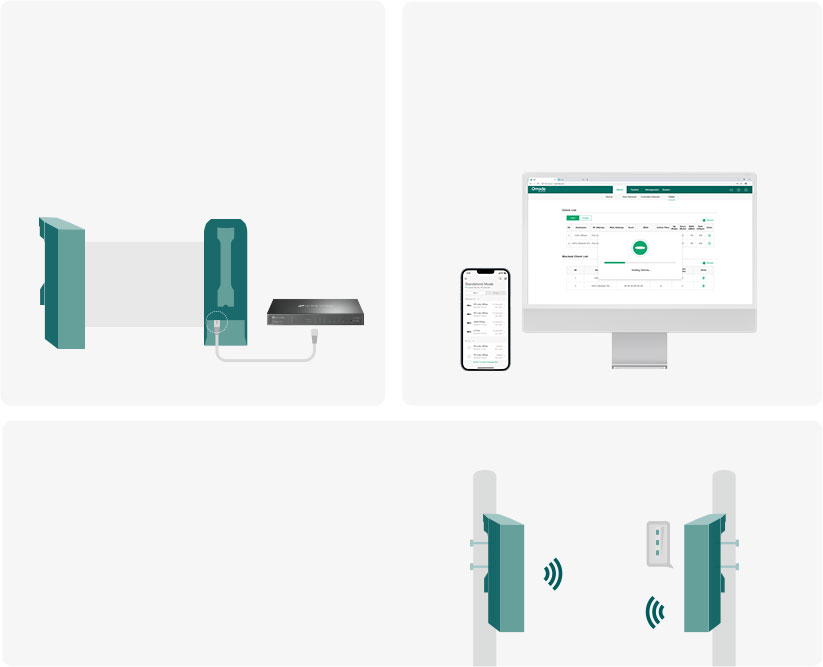

  • Standalone Mode

    Simple Setup for Individual Scenarios

    1. Power on both bridges and connect one to the network via cable to make it the main bridge. 2. Set up the main bridge using the Omada app or Web UI, then configure the sub-bridge step by step. 3. Deploy the sub-bridge at the remote location, align it using the LED Signal Indicators, and optimize with the app if needed. Sub-bridge Main Bridge Auto-Pairing LAN1 (POE IN) PoE Main Bridge Sub-bridge

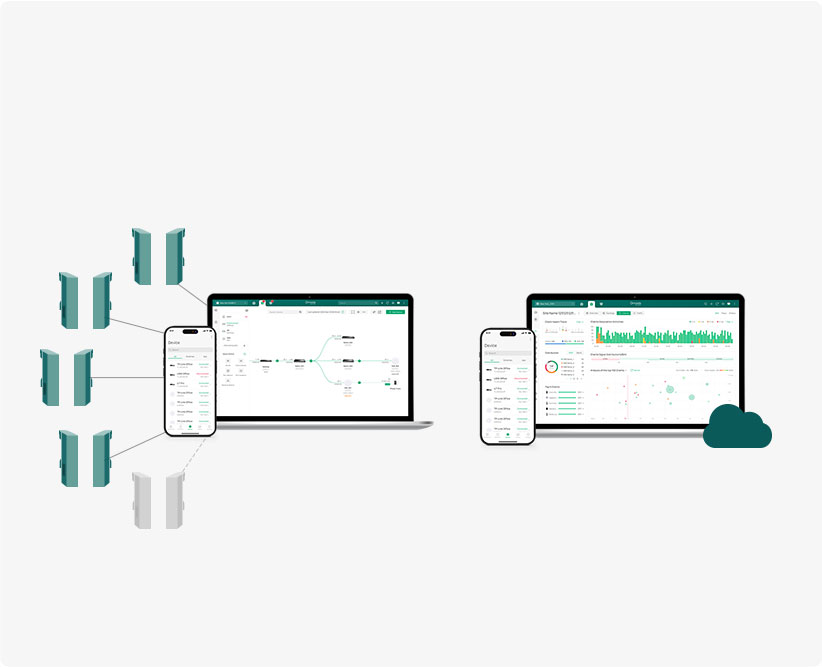

  • Works with Omada SDN

    Faster Batch Deployment and Remote Management

    and more Omada bridges integrate with Omada SDN for centralized management and remote access, enabling faster batch deployment of multiple bridge pairs, using batch provisioning. *Omada SDN centralized and remote management requires the use of Omada SDN controller. Batch Provisioning Centralized and Remote Management Cloud

Robust Outdoor Design for Long-Lasting Reliability

  • IP65 Weatherproof

    IP65
    Weatherproof

  • 6kV Lightning Protection

    6kV Lightning
    Protection

  • -40 °C-70 °C Working Range

    -40 °C-70 °C
    (-40 °F-158 °C)
    Working Range

  • Wind Resistance

    Wind
    Resistance

  EAP215-Bridge KIT EAP211-Bridge KIT EAP115-Bridge KIT EAP100-Bridge KIT

Omada Model

EAP215-Bridge KIT

EAP211-Bridge KIT

EAP115-Bridge KIT

EAP100-Bridge KIT

Max Wireless Speed*

Wi-Fi 5 AC867

Wi-Fi 5 AC867

Wi-Fi 4 N300

Wi-Fi 4 N300

Max Transmission Distance*

3.1 mi / 5 km

0.62 mi / 1 km

3.1 mi / 5 km

0.31 mi / 500 m

Beamwidth

Horizontal: 43°,
Vertical: 18°

Horizontal: 60°,
Vertical: 30°

Horizontal: 43°,
Vertical: 18°

Horizontal: 70°,
Vertical: 70°

Antenna Gain

5 GHz: 14.0 dBi

5 GHz: 10.0 dBi

5 GHz: 14.0 dBi

2.4 GHz: 8.0 dBi

Ethernet Ports

3× Gigabit

3× Gigabit

3× 10/100 Mbps

3× 10/100 Mbps

Power Supply

1. Support 802.3at PoE 2. Passive PoE 3. 12V DC (Compatiblewith TP-Link Solar Power Supply System)

PtMP & PtP Auto-Pairing

Yes

Mount

Pole Mounting (Accessories included)
Wall Mounting (Optional)

Weatherproof Enclosure

IP65

Wind Resistance

Yes

Lightning Protection

6kV

Operating Temperature

-40℃~70℃ (-40℉~158℉)

Standalone Management

Omada App, Local Management Web UI

Centralized Cloud Management

Omada App, Omada Cloud

Dimensions

3.1 × 2.4 × 10.9 in
(79 × 60 × 276 mm)

3.1 × 2.4 × 8.8 in
(79 × 60 × 224 mm)

3.1 × 2.4 × 10.9 in
(79 × 60 × 276 mm)

3.1 × 2.4 × 8.8 in
(79 × 60 × 224 mm)

  EAP215-Bridge KIT EAP211-Bridge KIT EAP115-Bridge KIT EAP100-Bridge KIT

Omada Model

EAP215-Bridge KIT

EAP211-Bridge KIT

EAP115-Bridge KIT

EAP100-Bridge KIT

Max Wireless Speed*

Wi-Fi 5 AC867

Wi-Fi 5 AC867

Wi-Fi 4 N300

Wi-Fi 4 N300

Max Transmission Distance*

3.1 mi / 5 km

0.62 mi / 1 km

3.1 mi / 5 km

0.31 mi / 500 m

Beamwidth

Horizontal: 43°,
Vertical: 18°

Horizontal: 60°,
Vertical: 30°

Horizontal: 43°,
Vertical: 18°

Horizontal: 70°,
Vertical: 70°

Antenna Gain

5 GHz: 14.0 dBi

5 GHz: 10.0 dBi

5 GHz: 14.0 dBi

2.4 GHz: 8.0 dBi

Ethernet Ports

3× Gigabit

3× Gigabit

3× 10/100 Mbps

3× 10/100 Mbps

Power Supply

1. Support 802.3at PoE 2. Passive PoE 3. 12V DC (Compatiblewith TP-Link Solar Power Supply System)

1. Support 802.3at PoE 2. Passive PoE 3. 12V DC (Compatiblewith TP-Link Solar Power Supply System)

1. Support 802.3at PoE 2. Passive PoE 3. 12V DC (Compatiblewith TP-Link Solar Power Supply System)

1. Support 802.3at PoE 2. Passive PoE 3. 12V DC (Compatiblewith TP-Link Solar Power Supply System)

PtMP & PtP Auto-Pairing

Yes

Yes

Yes

Yes

Mount

Pole Mounting (Accessories included)
Wall Mounting (Optional)

Pole Mounting (Accessories included)
Wall Mounting (Optional)

Pole Mounting (Accessories included)
Wall Mounting (Optional)

Pole Mounting (Accessories included)
Wall Mounting (Optional)

Weatherproof Enclosure

IP65

IP65

IP65

Wind Resistance

Yes

Yes

Yes

Yes

Lightning Protection

6kV

6kV

6kV

6kV

Operating Temperature

-40℃~70℃ (-40℉~158℉)

-40℃~70℃ (-40℉~158℉)

-40℃~70℃ (-40℉~158℉)

-40℃~70℃ (-40℉~158℉)

Standalone Management

Omada App, Local Management Web UI

Omada App, Local Management Web UI

Omada App, Local Management Web UI

Omada App, Local Management Web UI

Centralized Cloud Management

Omada App, Omada Cloud

Omada App, Omada Cloud

Omada App, Omada Cloud

Omada App, Omada Cloud

Dimensions

3.1 × 2.4 × 10.9 in
(79 × 60 × 276 mm)

3.1 × 2.4 × 8.8 in
(79 × 60 × 224 mm)

3.1 × 2.4 × 10.9 in
(79 × 60 × 276 mm)

3.1 × 2.4 × 8.8 in
(79 × 60 × 224 mm)
