Omada 5 GHz 300 Mbps Long-Range Indoor/Outdoor Wireless Bridge
-
Up to 5 km Transmission Distance: Ideal for long-range wireless transmission.*
-
Plug-and-Play Setup: Supports auto-pairing and agile LEDs
-
Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC
-
3× Fast Ethernet Ports: Provides high-speed connections to more lP cameras.△
-
Ideal for Outdoor Scenarios: IP65 weatherproof enclosure and 6kV lightning protection, with a reliable operating range of -40 °C to +70 °C.**
-
Efficient Management: Supports Omada SDN for remote and centralized management via Web or App.§
| HARDWARE FEATURES | |
|---|---|
| Interface | 3x 10/100 Mbps Ethernet Ports*6 |
| Button | Reset |
| Power Supply | 12V DC / 24V Passive PoE (Passive PoE adapter included.) |
| Max. Power Consumption | 6.5W |

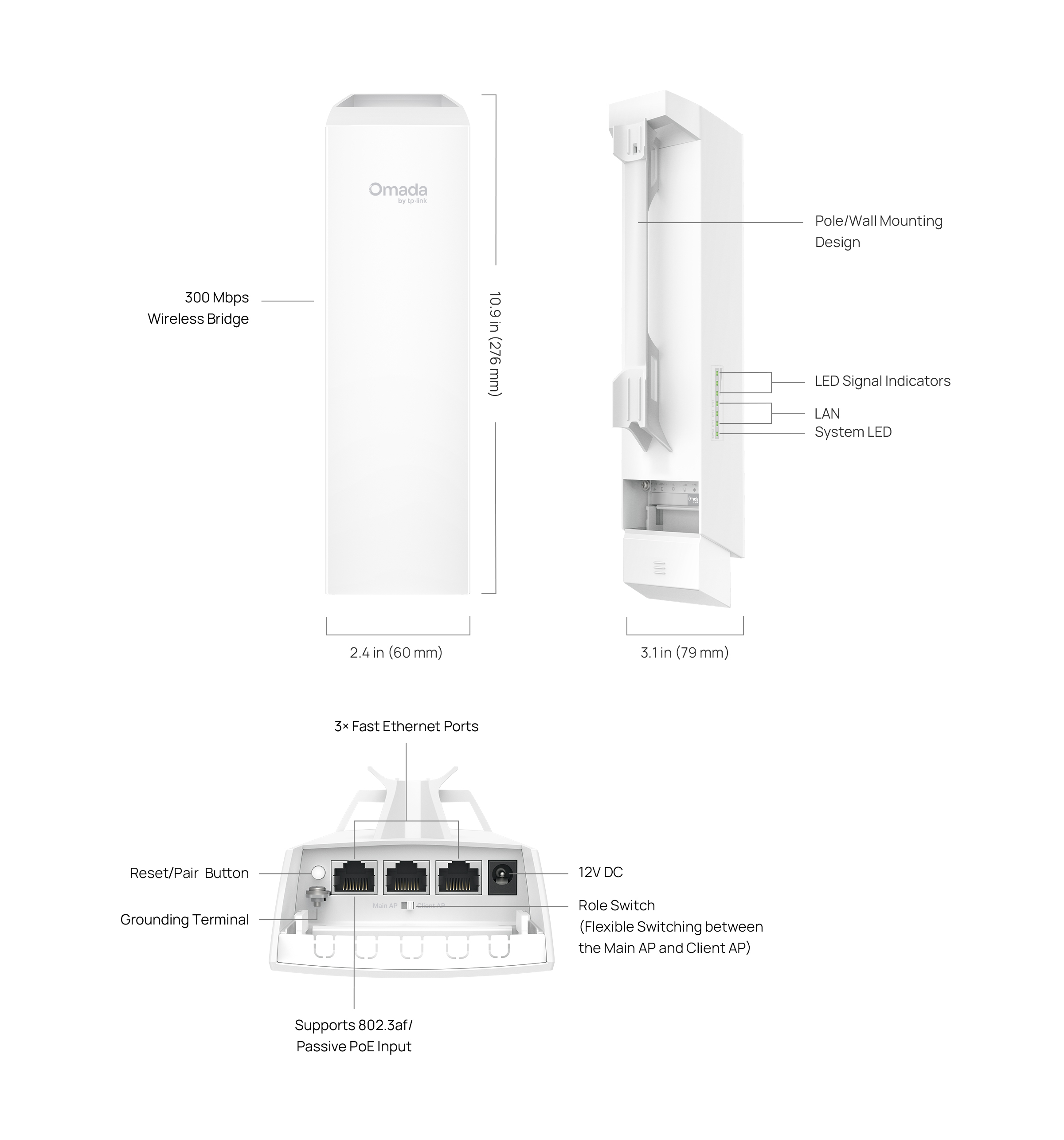

| Dimensions ( W x D x H ) | 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) |
| Antenna | Internal 2×2 Dual-polarized directional MIMO antennas5 GHz: 11.0 dBiHorizontal:35°, Vertical: 35° |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole mounting (Accessories included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 5000m(16400ft)5 |
| Wireless Standards | IEEE 802.11 a/b/g/n |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 300 Mbps |
| Wireless Functions | • Mesh*4• Load Balance• Beamforming• Airtime Fairness• Multiple SSIDs:8 • Wireless Statistics• Wireless Schedule• Reboot Schedule• RADIUS Accounting• MAC Authentication• Static IP/Dynamic IP |
| Wireless Security | • VLAN• Access Control• Rogue AP Detection• Captive Portal Authentication*4• Maximum number of MAC Filter: 4,000• WPA-Personal/Enterprise, WPA2-Personal/Enterprise |
| Transmission Power | • CE: <23dBm (5 GHz, band 1/2, EIRP);<30dBm (5 GHz band3, EIRP);• FCC: <22dBm (5 GHz band1/4) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP115-Bridge KIT• Passive PoE Adapter• Power Cord• Installation Guide• Mounting Kit |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
*The advertised coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.
**Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding, and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
△Non-Omada devices connected to the wired LAN ports will not be recognized by the Omada controllers, preventing users from viewing their connection status. To address this issue, connect those non-Omada devices to an Omada switch that links to the bridge's wired LAN ports.
§This functions require the use of an Omada controller.
