DR3650v-4G V1.2

Coming Soon

Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway

AX3000 Wi-Fi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*¹
4G+ Cat6 up to 300Mbps*²
3× RJ11 Ports (2× FXS, 1× DSL) & 5× RJ45 Gigabit Ports & 1× USB 3.0 Port
2× Nano SIM for 4G/LTE Failover
VDSL2 35b: Supports 350Mbps DSL Access*³
VDSL2/ADSL2+/ADSL2/ADSL Compatibility
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE*⁵/SSL VPN
Load Balancing Across DSL, 4G, and Ethernet WAN for Optimized Connectivity
Centralized Cloud Management via Omada App or Web
Desktop/Wall/Rack Mounting (Purchase Rackmount Kit-D226 Separately)

Omada DSL Gateway

4G
Network Type	LTE Band of EU: • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/ 900/800/700/1450 MHz • 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) • 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) Carrier Aggregation of EU: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41
SIM Type	Dual-SIM Nano SIM Slot (4G+ Cat6)
Frequency	• Downlink: 300 Mbps; • Uplink: 50 Mbps

SECURITY
DPI	• Deep Packet Inspection • Support 2421 type Applications • Max Throughput (Upload / Download) 942.7Mbps/937.3Mbps
Access Control	• Source/Destination IP Based ACL Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN
DNS Proxy	DNSSEC, DoH, and DoT
Filtering	• Web Group Filtering⁵ • URL Categories and URLs Filtering • Web Security⁵
ARP Inspection	• Sending GARP Packets • ARP Scanning*⁵ • IP-MAC Binding • ARP Detection
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

HARDWARE FEATURES

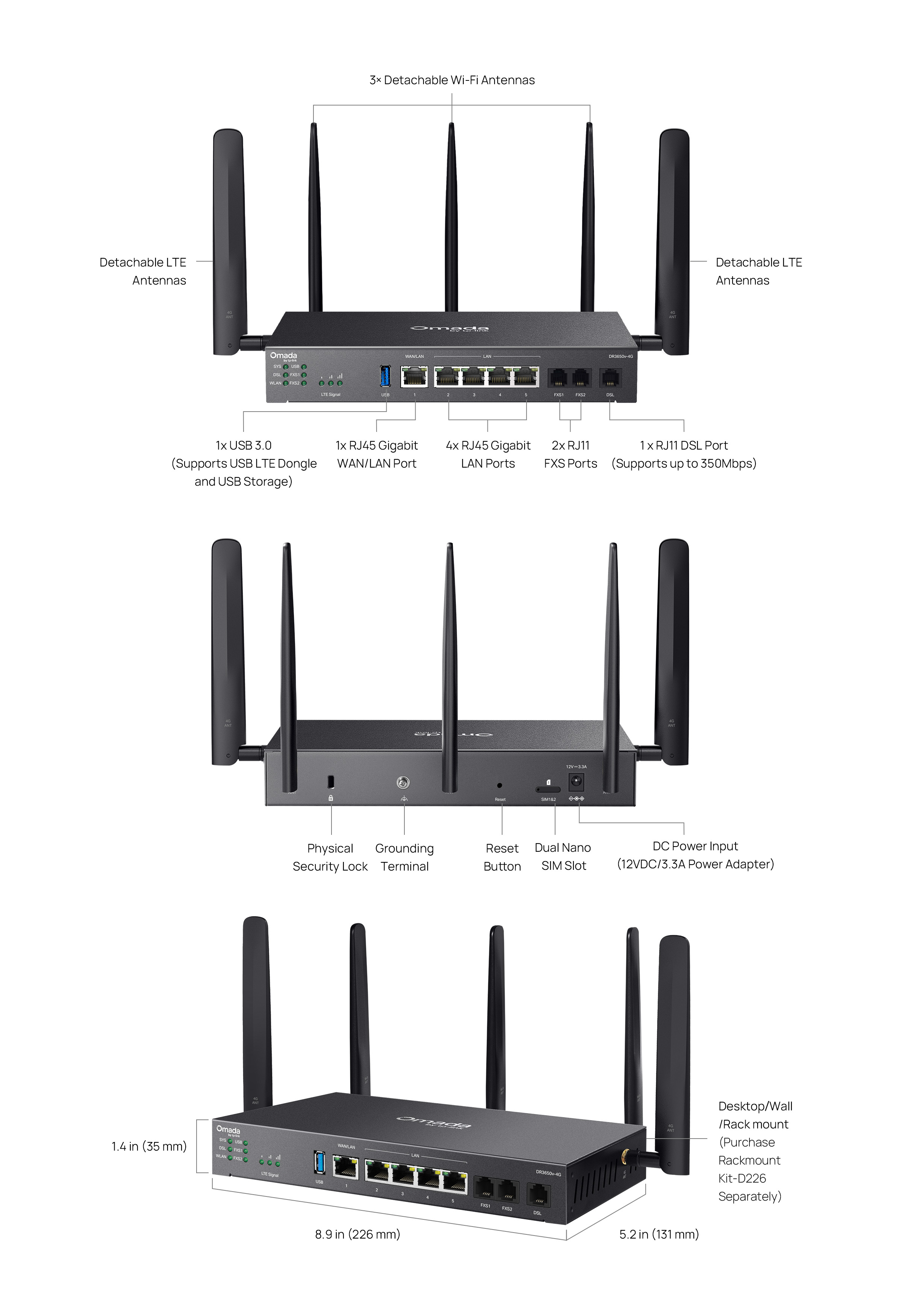

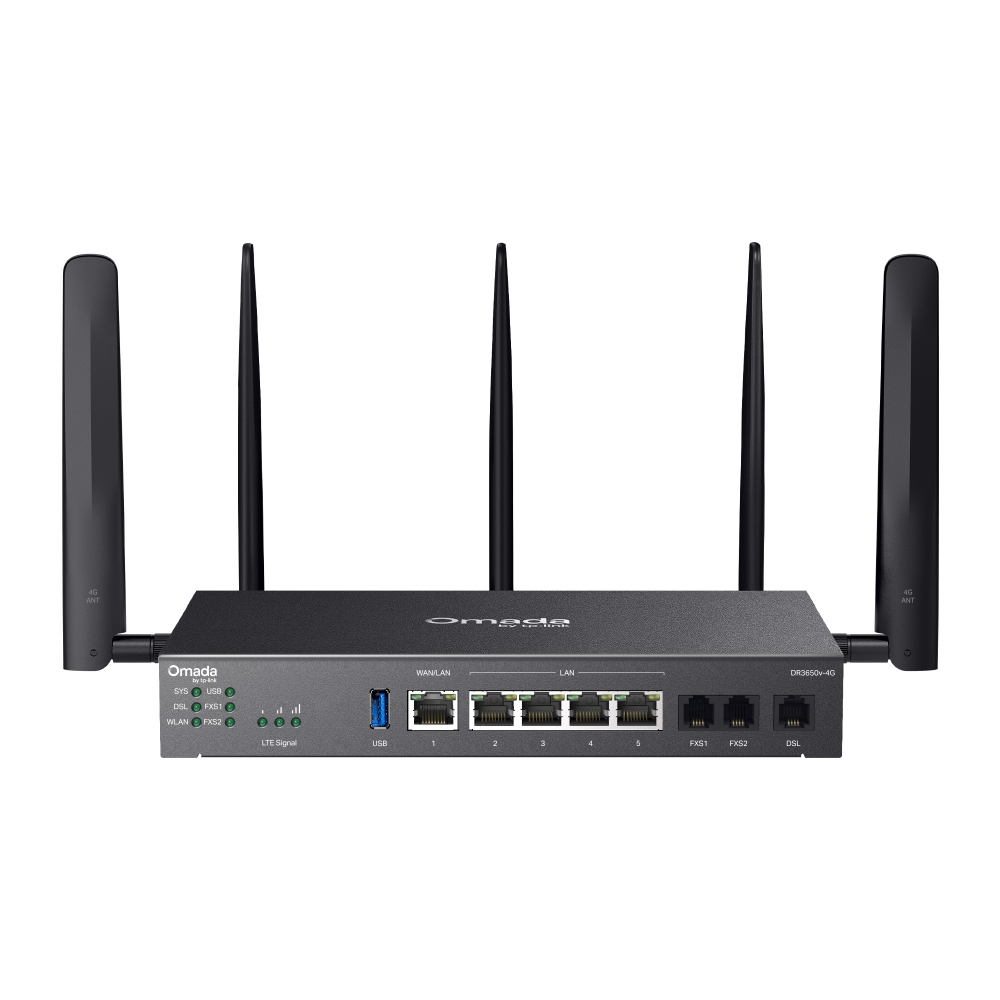

Interface	• 1× Gigabit WAN/LAN Port • 4× Gigabit LAN Ports • 1× DSL Port • 2× FXS Ports • 1× USB 3.0 (supports USB LTE dongle and USB Storage) • Dual-SIM Nano SIM Slot (4G+ Cat6)
Button	Reset Button
Power Supply	12V DC / 3.3A Power Adapter
Wi-Fi Frequency & Signal Rate	• 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160)
Flash	256 MB NAND
DRAM	512 MB DDR4
Dimensions ( W x D x H )	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)
Antenna	• Wi-Fi: 3× 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable antennas • LTE: 2× 4.0dBi omnidirectional detachable antennas

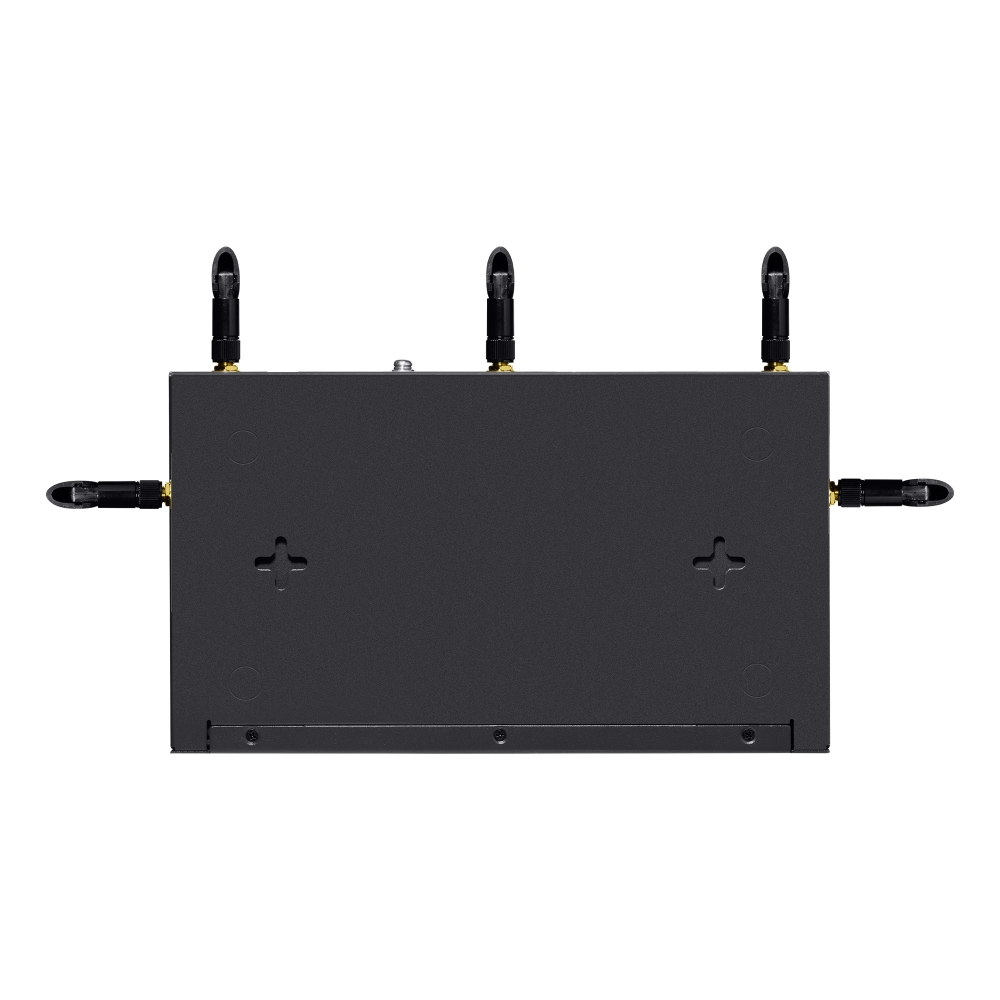

Mounting	Desktop / Wall / Rack mount (Purchase Rackmount Kit-D226 Separately)
Max. Power Consumption	Power adapter not included: 28.482 W (Full load + USB) Power adapter included: 31.42 W (Full load + USB)

PERFORMANCE
GRE	• Unencrypted: 541.8Mbp • Encrypted: 289.2Mbps
WireGuard VPN	311.6Mbps
Concurrent Session	150,000
New Sessions /Second	3,800
NAT (Static IP)	• Upload: 937.2 Mbps • Download: 936.1Mbps
NAT(DHCP)	• Upload: 945.8 Mbps • Download: 940.6Mbps
NAT(PPPoE)	• Upload: 942.9 Mbps • Download: 942.9Mbps
NAT (L2TP)	• Upload: 837.4 Mbps • Download:881.5Mbps
NAT (PPTP)	• Upload: 803.0 Mbps • Download: 910.5 Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 569.9Mbps • ESP-SHA256-AES256: 543.3Mbps • ESP-SHA384-AES256: 549.0Mbps • ESP-SHA512-AES256: 539.3Mbps
OpenVPN	129.3Mbps
L2TP VPN Throughput	• Unencrypted: 909.4 Mbps • Encrypted: 494.9Mbps
PPTP VPN Throughput	• Unencrypted: 897.5 Mbps • Encrypted: 190.8 Mbps
SSL VPN Throughput	126.7Mbps
66 Byte Packet Forwarding Rate	1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate	81,274 pps / 91,275 pps

WIRELESS FEATURES
Advanced Features	• Seamless Roaming • Mesh (with EAP that supports Mesh)*⁴ • OFDMA • Beamforming • Enable/Disable SSID Broadcast • Enable/Disable Wireless Radio • MU-MIMO • Load Balance • Automatic Channel Selection Algorithm • Airtime Fairness • Rate Limit: Based on SSID/Client • Transmit Power Control: Adjust transmit Power on dBm • Multiple SSIDs: 16 in total (8 per radio) • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise • Band Steering • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule • Guest Network

WIRELESS FEATURES

Advanced Features

• Seamless Roaming
• Mesh (with EAP that supports Mesh)*⁴
• OFDMA
• Beamforming
• Enable/Disable SSID Broadcast
• Enable/Disable Wireless Radio
• MU-MIMO
• Load Balance
• Automatic Channel Selection Algorithm
• Airtime Fairness
• Rate Limit: Based on SSID/Client
• Transmit Power Control: Adjust transmit Power on dBm
• Multiple SSIDs: 16 in total (8 per radio)
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Band Steering
• RADIUS Accounting
• MAC Authentication
• Reboot Schedule
• Wireless Schedule
• Guest Network

BASIC FUNCTIONS
WAN Connection Type	• Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP
MAC Clone	Modify WAN Address
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60
Stateful ACL	√
Quality of Service	√
Bridge VLAN	√
mDNS Repeater	√
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features
Advanced Routing	• Static Routing • Policy Routing • RIP⁵ • OSPF⁵
Bandwidth Control	IP-Based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection
NAT	• One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering*⁵ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP • Disable NAT
Session Limit	IP-Based Session Limit

VPN
GRE	√ (Only in Standalone Mode)
SD-WAN	√ (Only in Controller Mode)
SSL VPN	50 Tunnels
IPsec VPN	• 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10)*⁷ • 50 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10)*⁷ • 50 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (5)*⁷ • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode
WireGuard VPN	√

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password⁶ • Hotspot (Local User / Voucher⁶ / SMS⁶ / Radius⁶) • External Radius Sever • External Portal Sever*⁶ • LDAP

Management Features
Omada App	Yes
Centralized Management	• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of an Omada Controller.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize*⁵ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support • TR-069 (data models of TR-098 and TR181 are supported)
Zero-Touch Provisioning	Yes. Require the use of an Omada Controller.
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP _____________________________________________________ TDP Server Device discovery • Port: 20003 Protocol: UDP _____________________________________________________ VOIP Server Monitor SIP messages • Port: 5060 Protocol: UDP _____________________________________________________ DHCP Server Handle DHCP packets • Port: 67 Protocol: UDP _____________________________________________________ DNS Handle DNS packets • Port: 53 Protocol: TCP/UDP
Certification	CE, RoHS
Package Content	• DR3650v-4G • Power Adapter • Ethernet Cable • Phone Cable • Rubber Feet • SIM Card Eject Pin • Quick Installation Guide
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing

For additional version information, please go to the support page.

*¹Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and coverage are not guaranteed and will vary.

*²Actual 4G downlink speeds vary between buildings. Factors affecting 4G speeds include the internet service plan, real-time network capacity, equipment and client limitations, and environmental factors.

*³Maximum wired signal rates are the physical rates. Actual data throughput is not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors.

*⁴Omada Mesh Technology requires the use of EAPs that support mesh functionality. Please refer to https://www.omadanetworks.com/omada-mesh/product-list/ to confirm which Omada EAPs are compatible with Omada Mesh. Additionally, ER706W also supports standalone Mesh. Please refer to https://www.omadanetworks.com /standalonemesh/product-list/ to confirm the models that support standalone Mesh.

*⁵Supported only in Standalone Mode.

*⁶Supported only in Controller Mode.

*⁷For PPTP VPN and L2TP VPN, DR3650v-4G can connect with up to 10 VPN servers. For OpenVPN, DR3650v-4G can connect with up to 5 VPN servers
