Fusion 2.5G

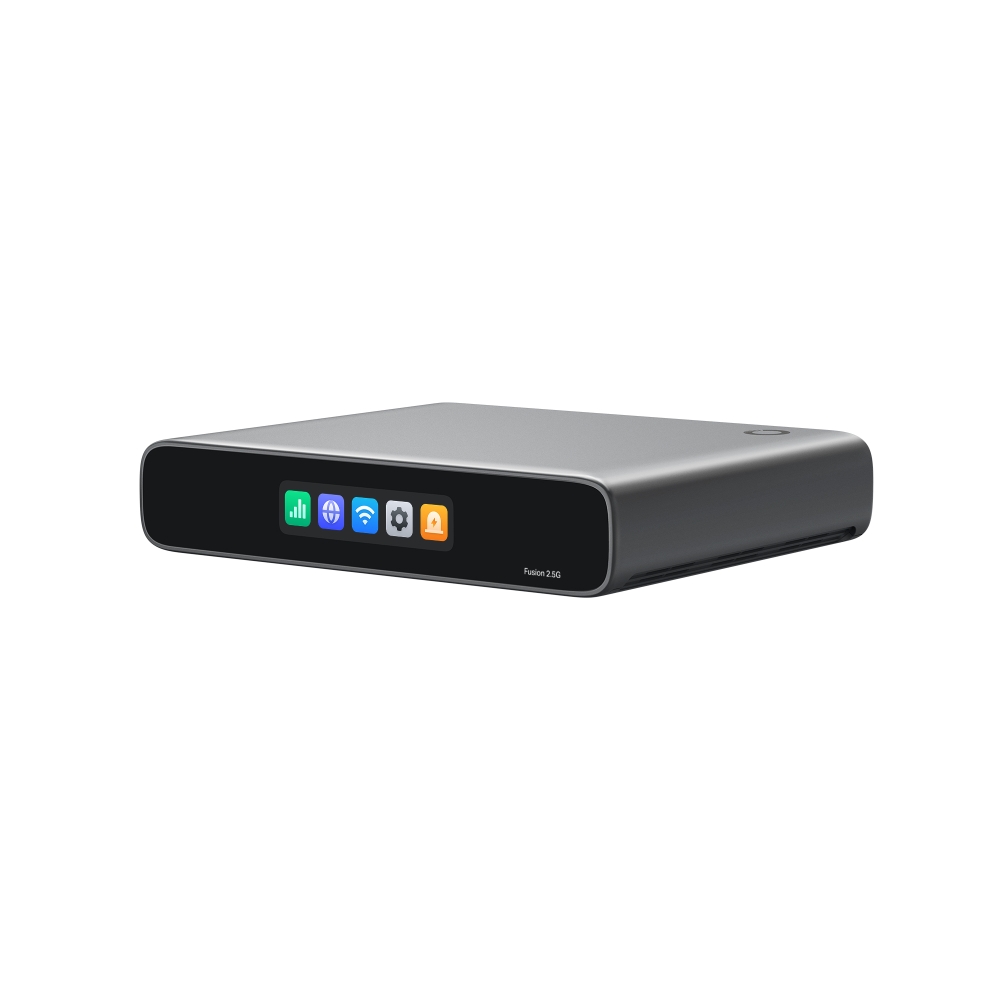

Coming SoonOmada Fusion 2.5G Gateway
- License‑Free Cloud Management for Multi‑Site Work
- Simplified Setup with App-Guided Onboarding via Bluetooth and One-Tap Bulk Device Adoption
- Enterprise‑Grade Performance: Quad-Core CPU, 5× 2.5G Ports, Up to 4‑WAN Load Balancing with Auto Failover, 2.1 Gbps-Class IDS/IPS Throughput*
- Quick Troubleshooting via Touchscreen for Less On-Site Work
- Secure Remote Network Access in One Click Away with Omada LightLink VPN
- Advanced Software Capabilities: App‑Based ACL, Auto QoS, Full Mesh SD-WAN, Content Filtering & Ad Blocking, DPI
- Flexible Mounting Options: Desktop, Wall-Mountable**, Rack-Mountable**
-
Gateway &
Controller in One -
License-Free Cloud
Management -
Simplified Setup with
Bluetooth -
High-Performance
Quad-Core CPU -

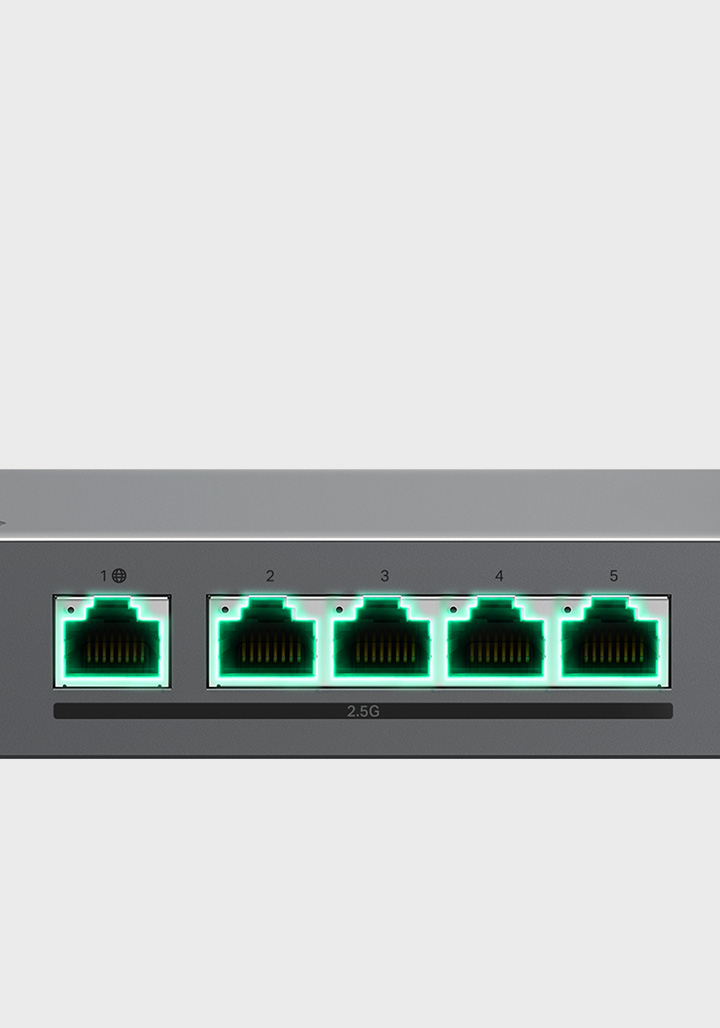

5× 2.5G
Ethernet
Ports -
Fast Troubleshooting
via Touchscreen -

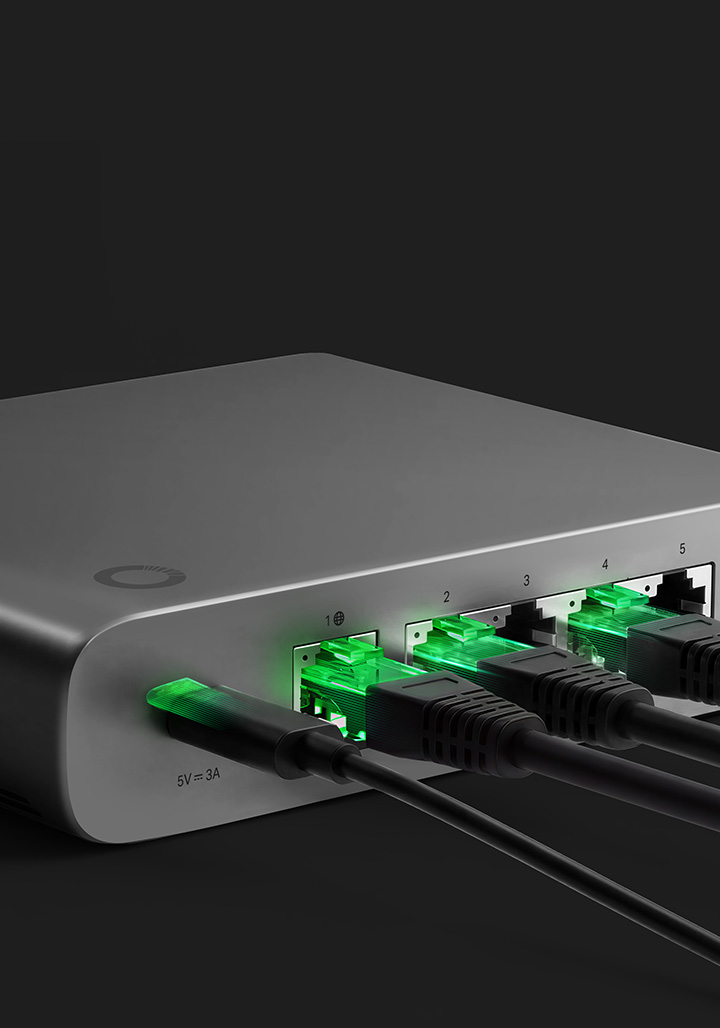

IPS/IDS Throughput
at 2.1 Gbps* -
One‑Click Secure
Remote Access -
App-Based
Access
Control -
One-Click
Auto QoS
Built‑In Controller at the Center of the Omada Networking Ecosystem
Gateway and controller integrated into a single device, delivering a unified solution that combines networking and centralized management at the core of the Omada networking ecosystem—ideal for single‑ and multi‑site small businesses.
License-Free Cloud Management, Lower Ongoing Costs
-
Built-in Controller
No Device License -
Centralized
Multi-Site
Management -
Remote Cloud
Control
via Web/App
Simplified Setup for Faster Deployment, Boosting Efficiency
Easily set up the Fusion 2.5G via Bluetooth using the Omada App. Automatically discover and batch adopt all other Omada networking devices at once, saving time and simplifying IT deployment.
Enterprise-Grade Performance for Fast and Reliable Operations
Quick Troubleshooting via Touchscreen,
Reducing On-Site Work
With an innovative 2.51" touchscreen, enjoy quick troubleshooting — all at your fingertips. Reduce on‑site work and save time with direct, on‑device monitoring.
Secure Remote Network Access, One Click Away
With Omada LightLink VPN, you can securely access your network with one click. Powered by Smart Split Tunneling, only essential traffic goes through the VPN, reducing unnecessary VPN load and preserving a smooth user experience.
Advanced Software Capabilities for Secure and Intelligent Management
One-Click Auto QoS
Ensure critical traffic always gets priority, with one-click presets or full customization.
Content Filtering & Ad Blocking
Blocks unwanted sites and intrusive ads for a safer, cleaner experience.
App-Based Access Control
Easily manage access by app and category. Control access intuitively with simple, clearly defined policies.
Full-Mesh SD-WAN in Minutes
Connect up to 20 sites with direct inter-site links—simpler to deploy, smoother for multi-site networking.
Flexible Mounting for Diverse Business Environments

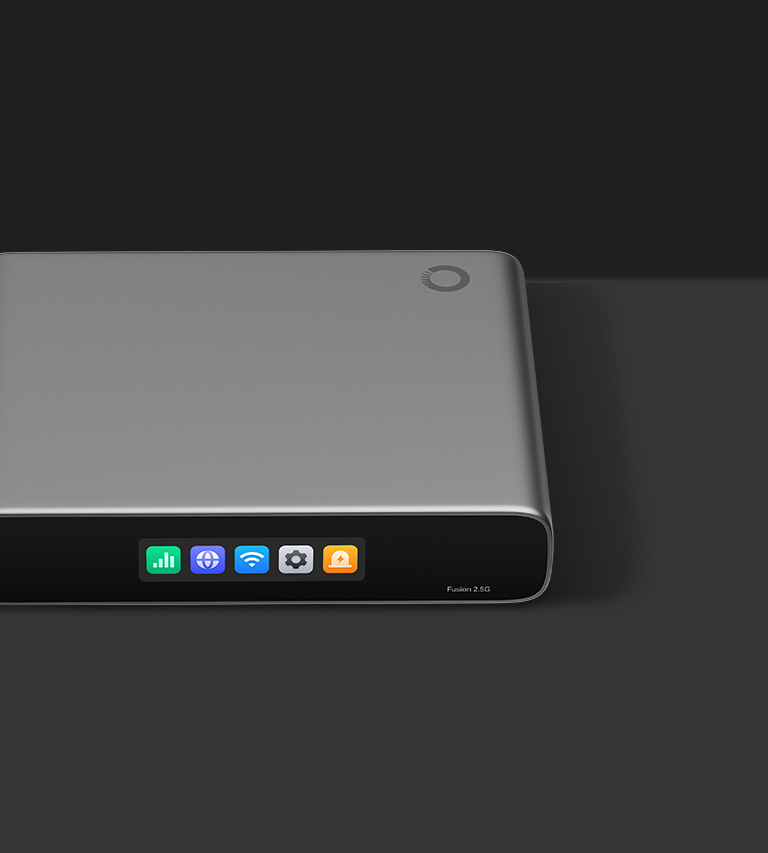

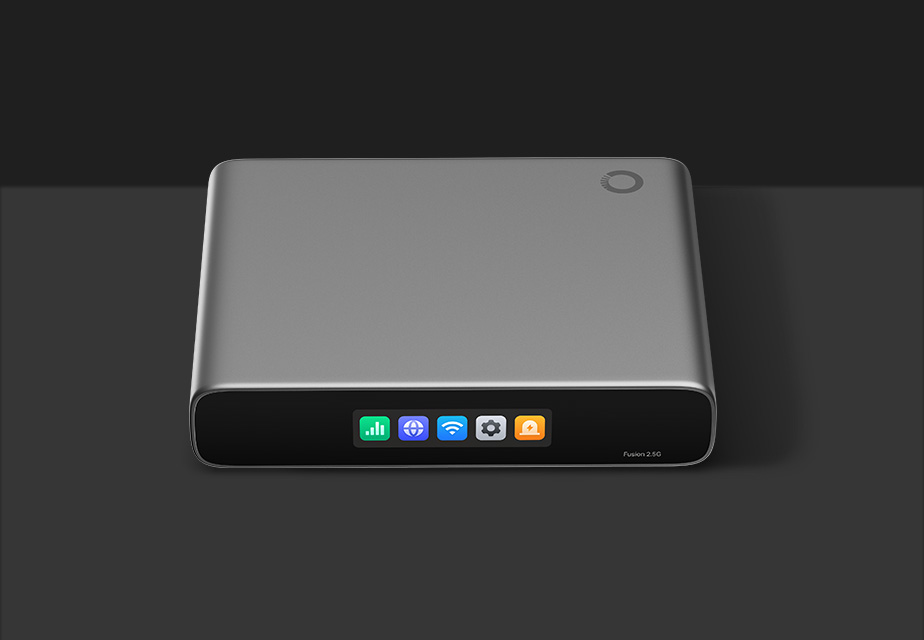

Desktop
No Additional Installation Needed

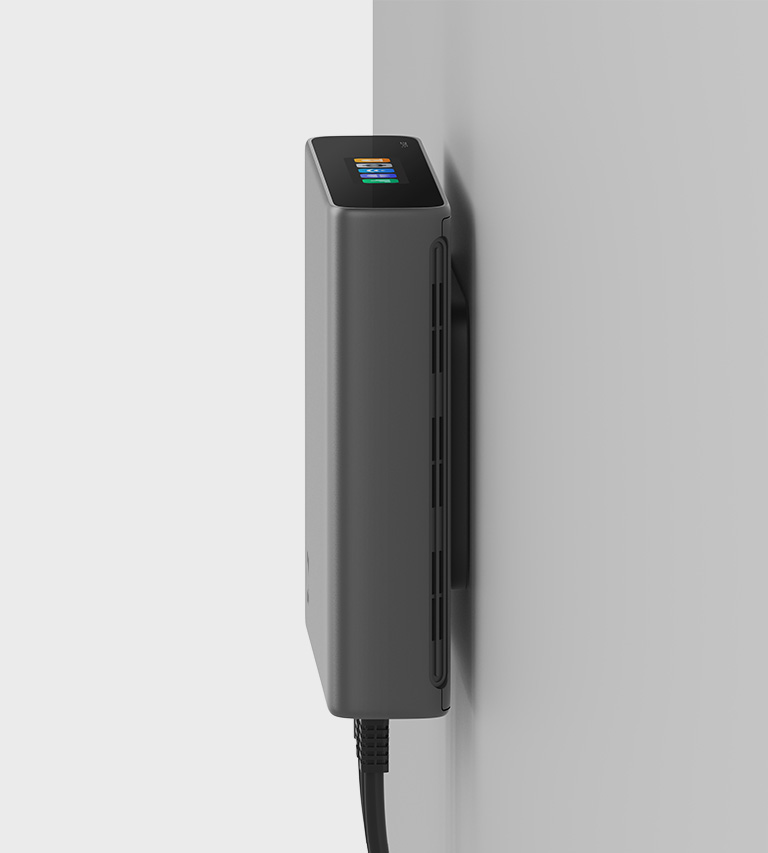

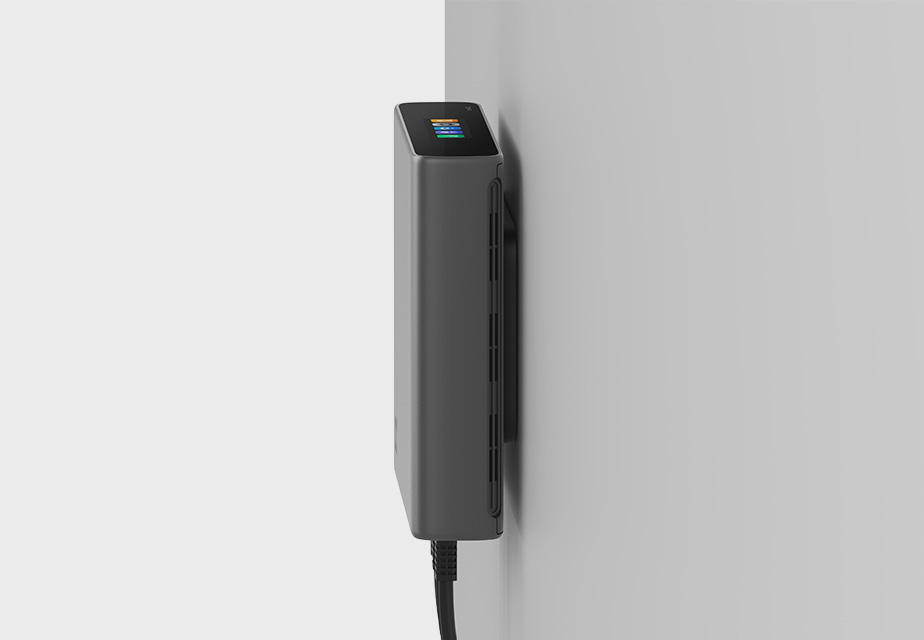

Wall-Mountable
Magnetic-Mount Plate Needed**

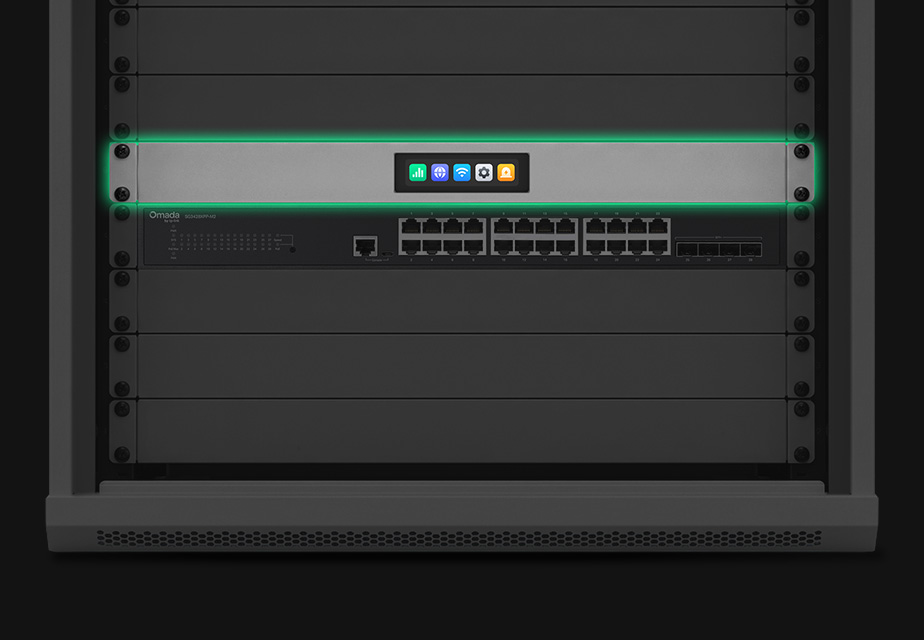

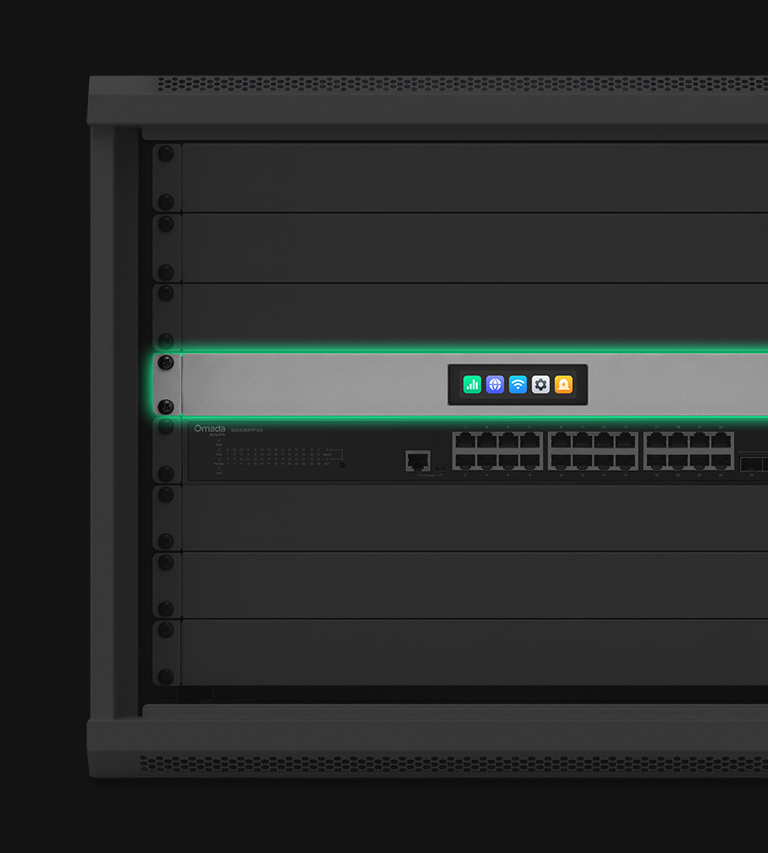

Rack-Mountable
Rack‑Mount Kit Needed**
Works for Single and Multi-Site Small Businesses
| Overview | |
|---|---|
| Built-In Omada OS Applications | Network Application |
| Managed Omada Devices | Recommended for up to 30 devices |
| Client Capacity | Recommended for up to 300 connected clients |

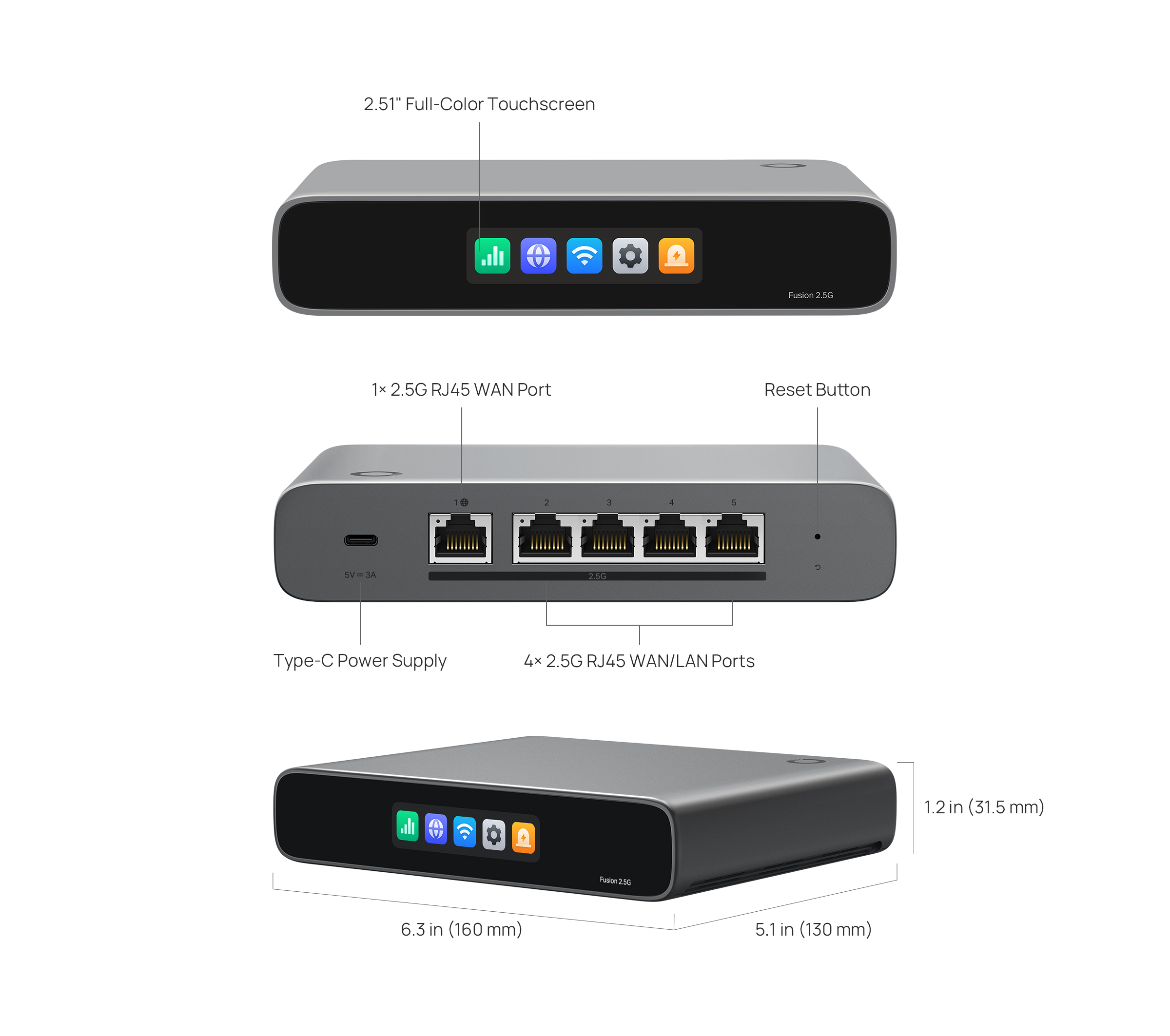

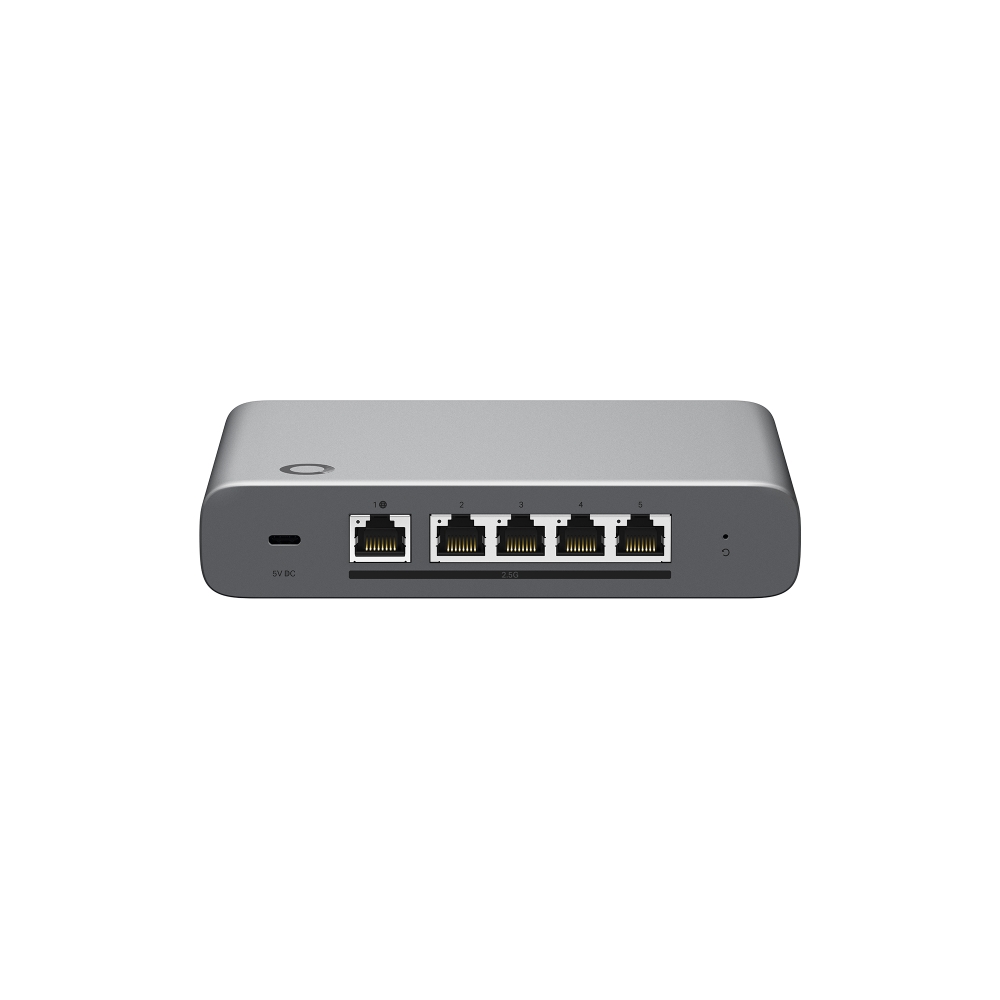

| Interface | • 1× 2.5G RJ45 WAN port• 4× 2.5G RJ45 LAN/WAN ports• Up to 4 simultaneous WAN ports |
| IPS Throughput | 2,183 Mbps |
| Site-to-Site VPN Throughput | 1,023 Mbps† |
| VPN Throughput | |
| Management | Cloud, local, and Omada App management |
| Mounting | • Desktop• Wall-mount (magnetic-mount plate sold separately)• Rack-mount (rackmount kit sold separately) |
| Dimensions | 6.3 × 5.12 × 1.24 in (160 × 130 × 31.5 mm) |
| Built-in Omada Controller§ | |
|---|---|
| Cloud Access | √ |
| Local Management | √ |
| Omada App | √ |
| Multi-Site Management | Via the Omada Cloud Management Platform |
| Restore & Backup | √ |
| Automatic Device Discovery | √ |
| Network Topology | √ |
| Dashboard | √ |
| Device List / Client List | √ |
| Logs / Alerts / Events | √ |
| Batch Firmware Upgrade | √ |
| Health Monitoring | √ |
| Internet Activity | √ |
| Captive Portal | √ |
| RADIUS / LDAP Authentication | √ |
| 802.1X Authentication | √ |
| OUI-Based VLAN | √ |
| Diagnostics Tools | Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring |
| SNMP | v1/v2c/v3 |
| SECURITY | |
|---|---|
| IDS/IPS | √ |
| DPI | √ |
| Application-Based ACL | √ |
| Content Filtering | √ |
| Ad Blocker | √ |
| Safe Search | √ |
| DNS Security | √ |
| Firewall | √ |
| Attack Defense | √ |
| ARP Inspection | √ |
| VPN & SD-WAN | |
|---|---|
| Omada LightLink VPN | √ |
| Site-to-Site VPN | WireGuard VPN / IPsec VPN |
| VPN Server | WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN |
| VPN Client | WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN |
| SD-WAN | Full Mesh Mode |
| VPN Throughput | • Omada LightLink VPN: 527 Mbps• IPsec VPN: 1,023 Mbps• WireGuard VPN: 605 Mbps• OpenVPN: 223 Mbps• L2TP VPN: 892 Mbps• PPTP VPN: 193 Mbps• SSL VPN: 250 Mbps |
| Networking | |
|---|---|
| WAN Connection | Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite |
| Multi-WAN Failover & Load Balancing | √ |
| DHCP Server | √ |
| VLAN Segmentation | √ |
| Bandwidth Control | √ |
| QoS | √ |
| Static Routing | √ |
| Policy Routing | √ |
| NAT | Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT |
| Dynamic DNS | TP-Link DDNS, 3rd-party DDNS, custom DDNS |
| IPv6 | Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode |
| Bonjour / mDNS | √ |
| IGMP v2/v3 Proxy | √ |
| HARDWARE | |
|---|---|
| Touchscreen | 2.51-inch color LCM touchscreen |
| Button | Reset button |
| CPU | Quad-core ARM Cortex-A53 @ 2.0 GHz |
| Memory | 2 GB DDR4 |
| Storage | 64 Mbit NOR flash + 16 GB eMMC |
| Power Supply | USB-C power adapter, 100–240 V AC, 50/60 Hz input, 5 V DC / 3 A output |
| Max Power Consumption | 8.18 W, with power adapter |
| Enclosure | Polycarbonate |
| LED | Ethernet |
| Fan | Fanless |
| Net Weight | 1.12 lb (510 g) |
| Surge Protection | 4 kV surge protection |
| ESD Protection | ±8 kV (Air), ±4 kV (Contact) |
| Onboarding | Bluetooth or Ethernet |
| Certifications | CE, FCC, RoHS |
| Environment | • Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C)• Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)• Operating Humidity: 10% to 90% RH, non-condensing• Storage Humidity: 5% to 90% RH, non-condensing |
*Actual throughput may vary depending on traffic conditions, enabled features, and network environment.
**Magnetic‑mount plate and rack‑mount kit are sold separately.
§Controller and management features may vary depending on connected Omada devices, software versions, and deployment modes.
† Performance data is based on IPsec VPN.
