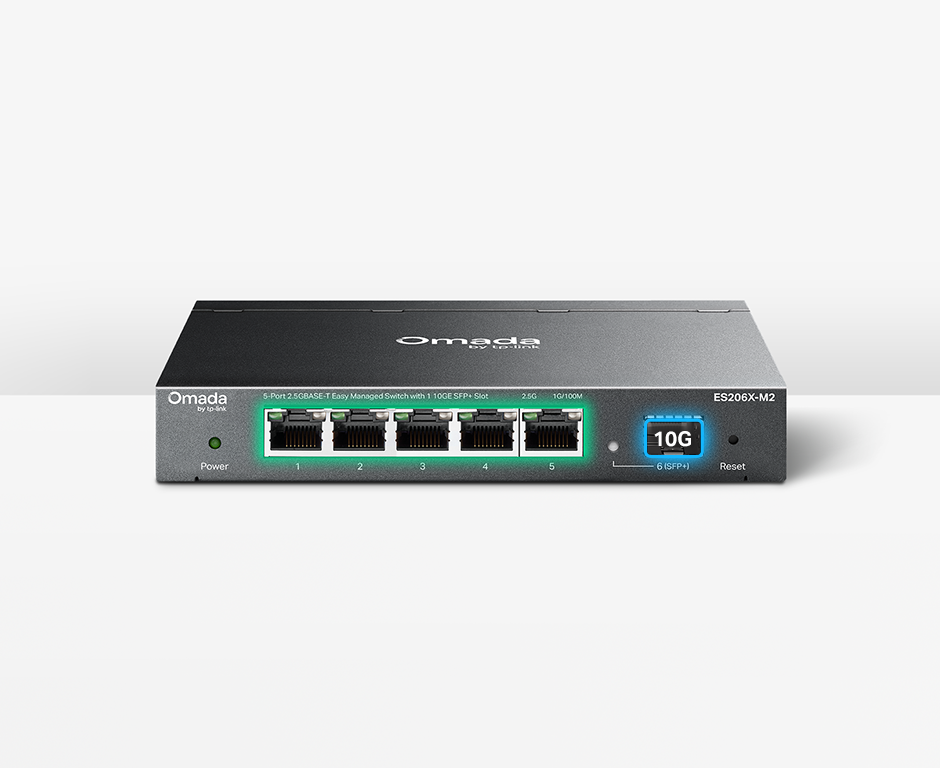

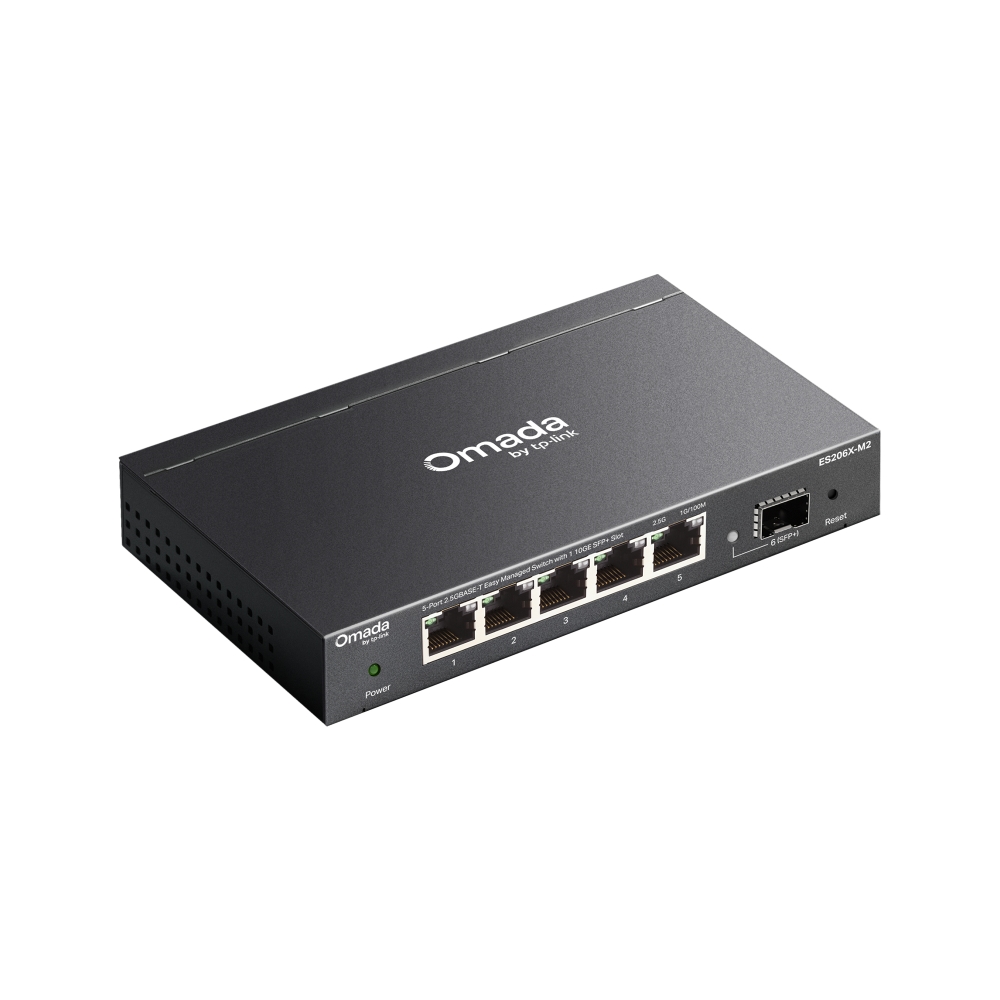

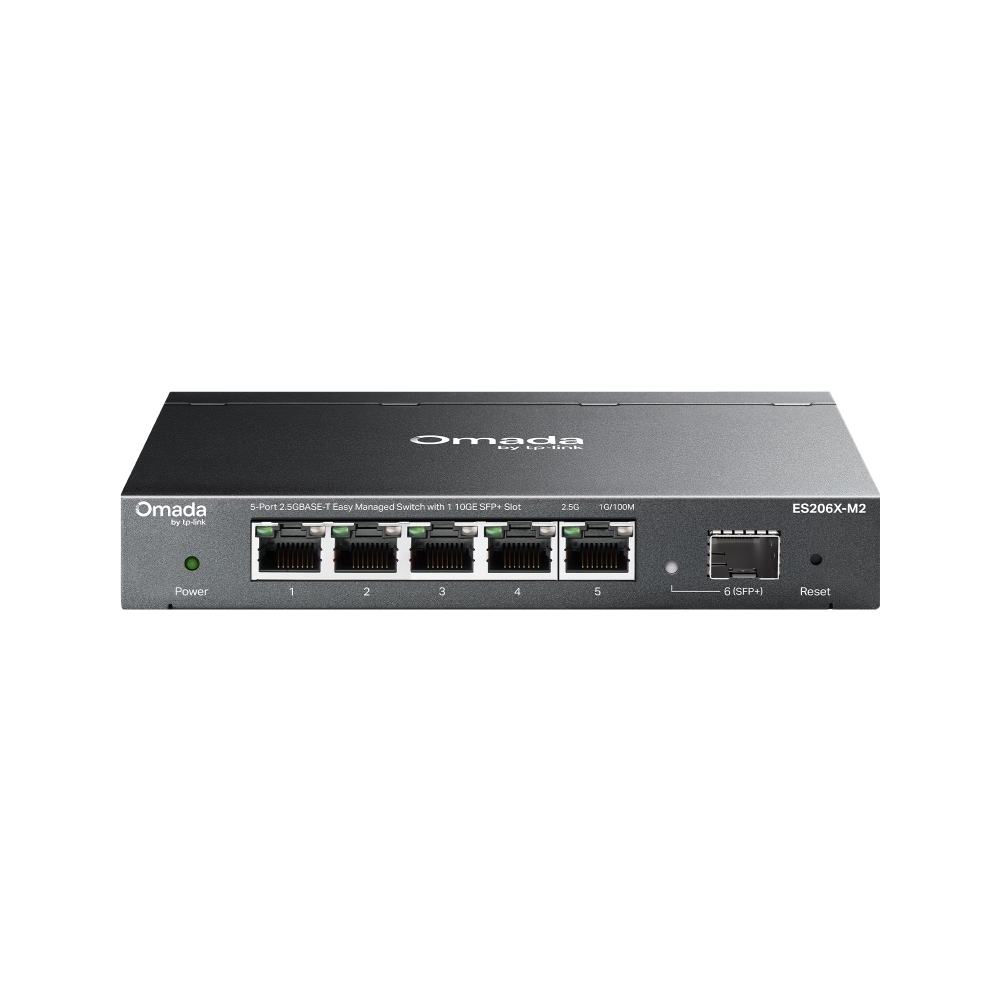

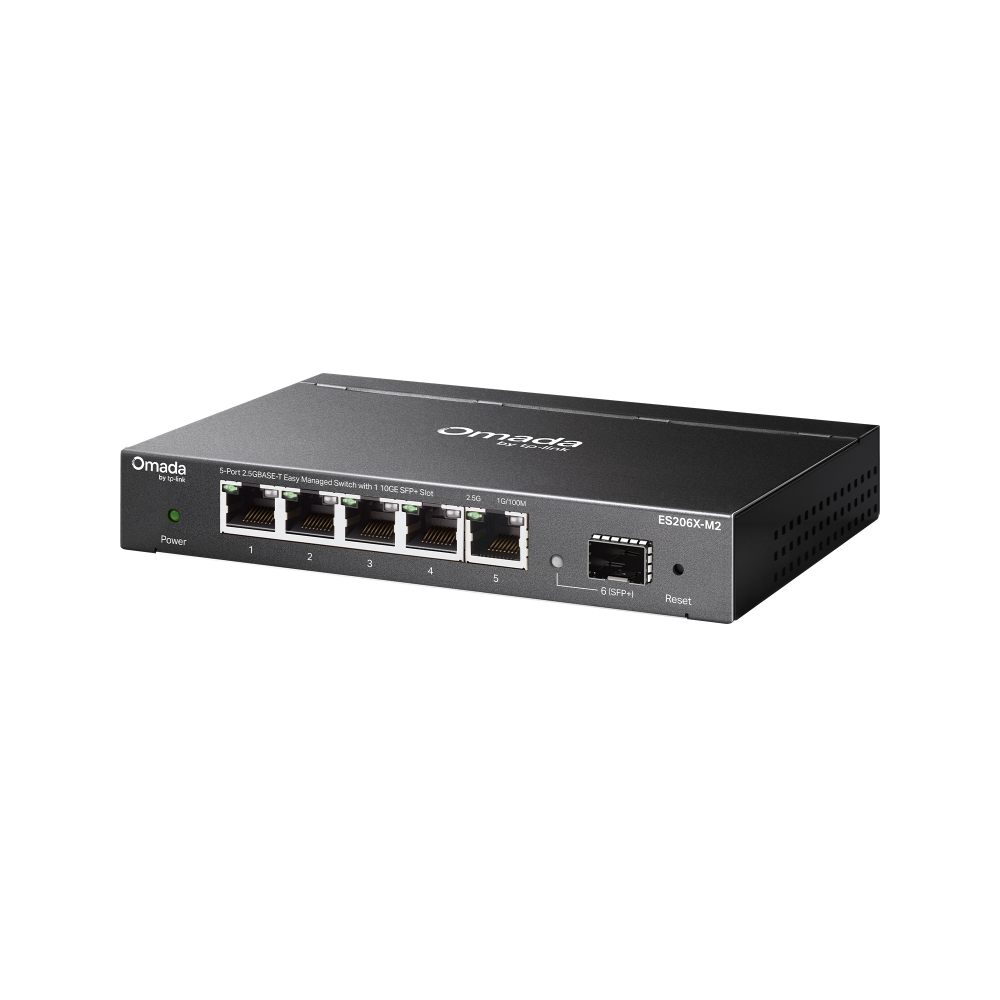

ES206X-M2
Omada 5-Port 2.5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot
- 5× 2.5 Gbps RJ45 Ports
- 1× 10 Gbps SFP+ Slot
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Omada 5-Port 2.5G
Easy Managed
Switch
with 1× 10G SFP+ Slot
5 × 2.5 Gbps RJ45 Ports
1 × 10 Gbps SFP+ Port
Fanless Design for Silent Operation
Easy Centralized Management†
Omada App
Traffic Separation
Traffic Prioritization
Automatic Loop Prevention
Unlock the Highest
Performance of 2.5G
Multi-Gig Bandwidth and
Devices
2.5G WiFi7/6 APs
2.5G Gaming Computer
2.5G NAS/Server
4K Video
Cost-Performance Solution
Looking for free, worry-free cloud management for life?
Omada Central Essentials
Lifetime Free Cloud without Additional Fees

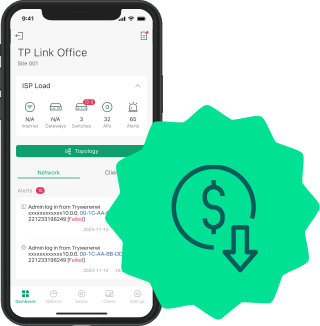

On-site work eating up time and resources?
Reduce Maintenance Costs
Manage and Maintain from Anywhere

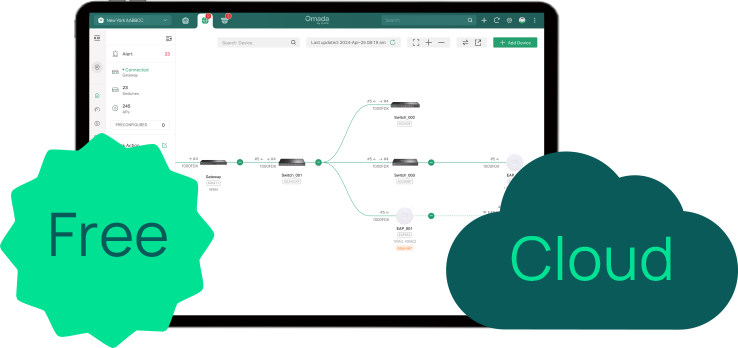

Works with Omada Central Essentials
for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use cloud centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

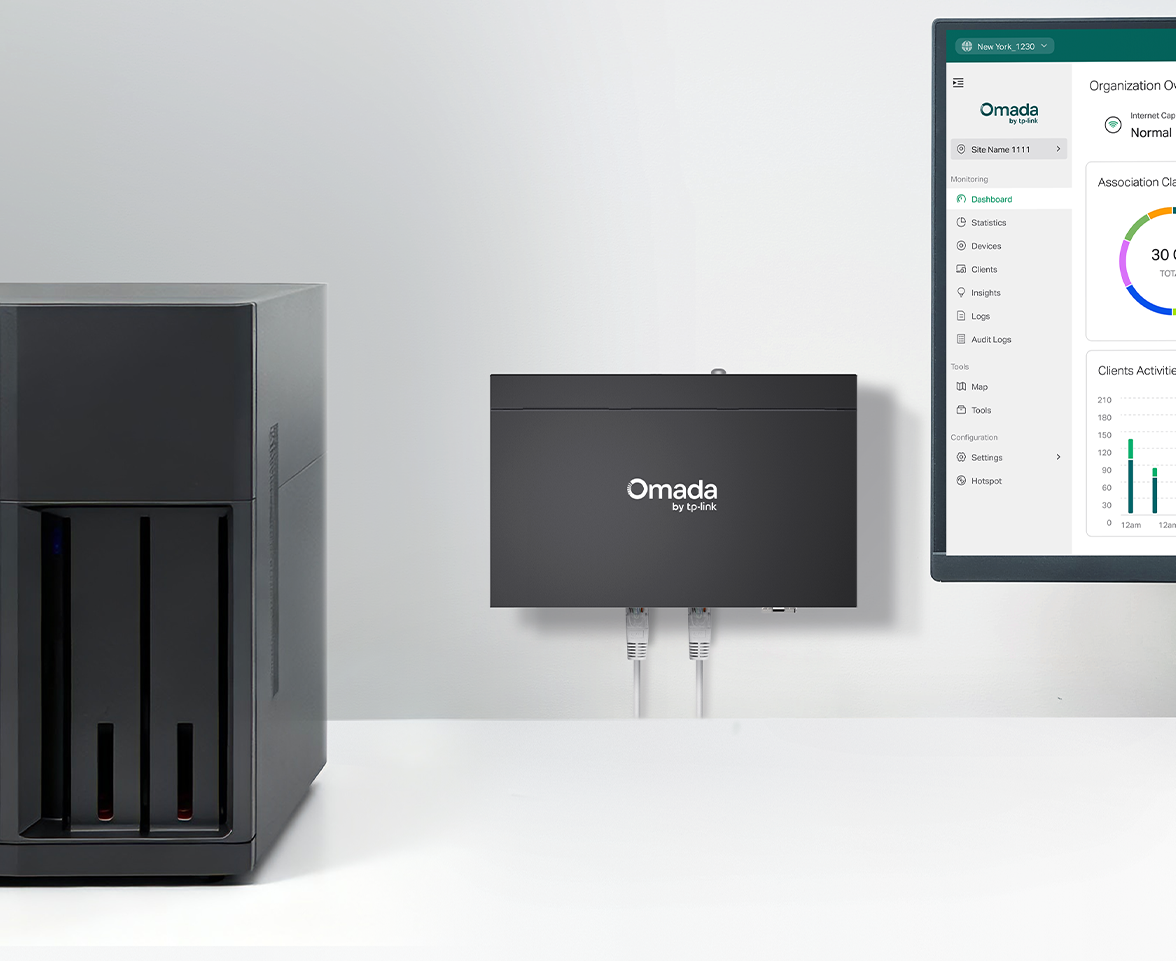

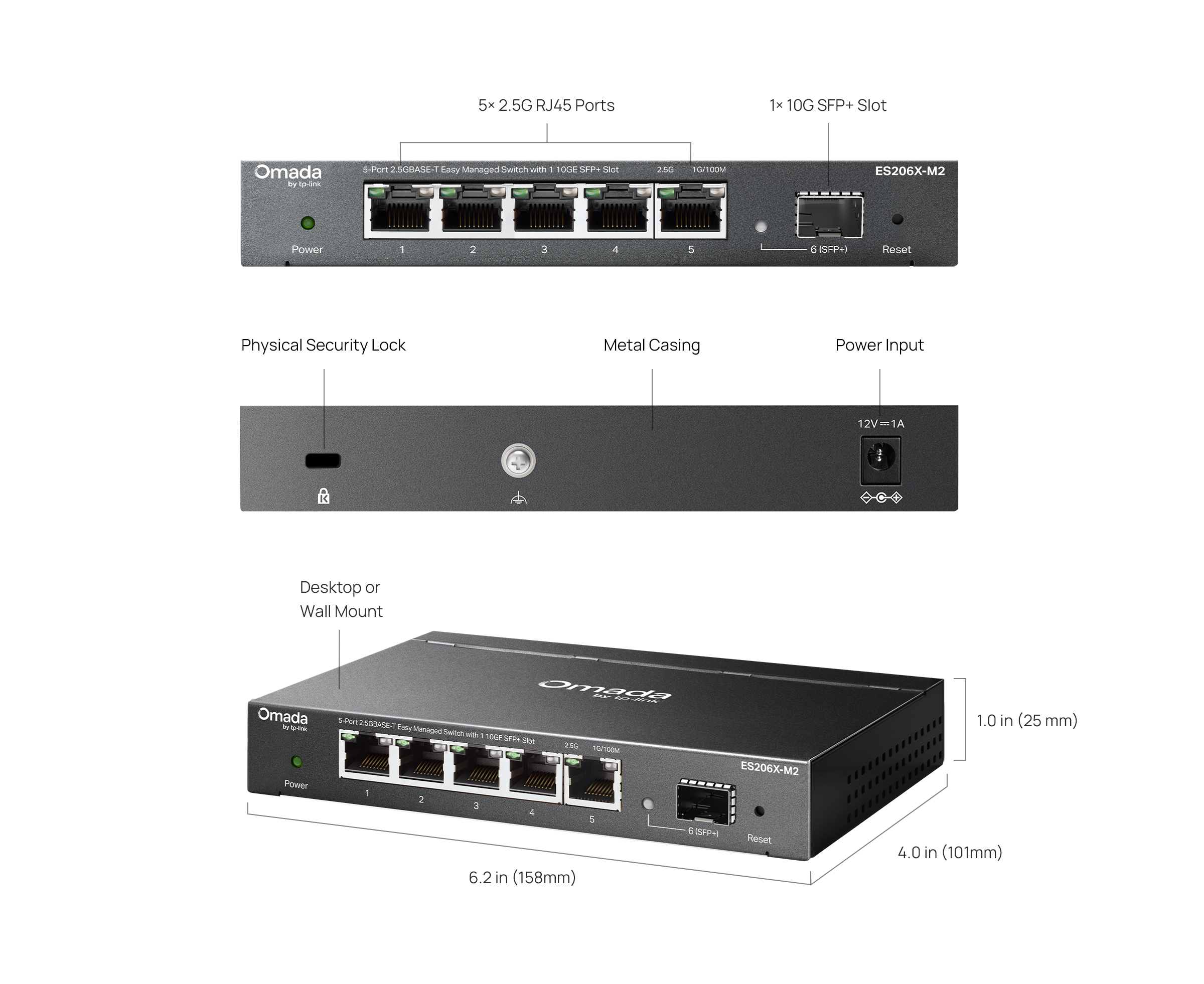

Compact and Durable Metal
Casing, Featuring
Desktop/Wall Mounting
and a Fanless Design
| HARDWARE FEATURES | |
|---|---|
| Interface | • 5× 2.5 Gbps RJ45 Ports• 1× 10 Gbps SFP+ Slot• Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |

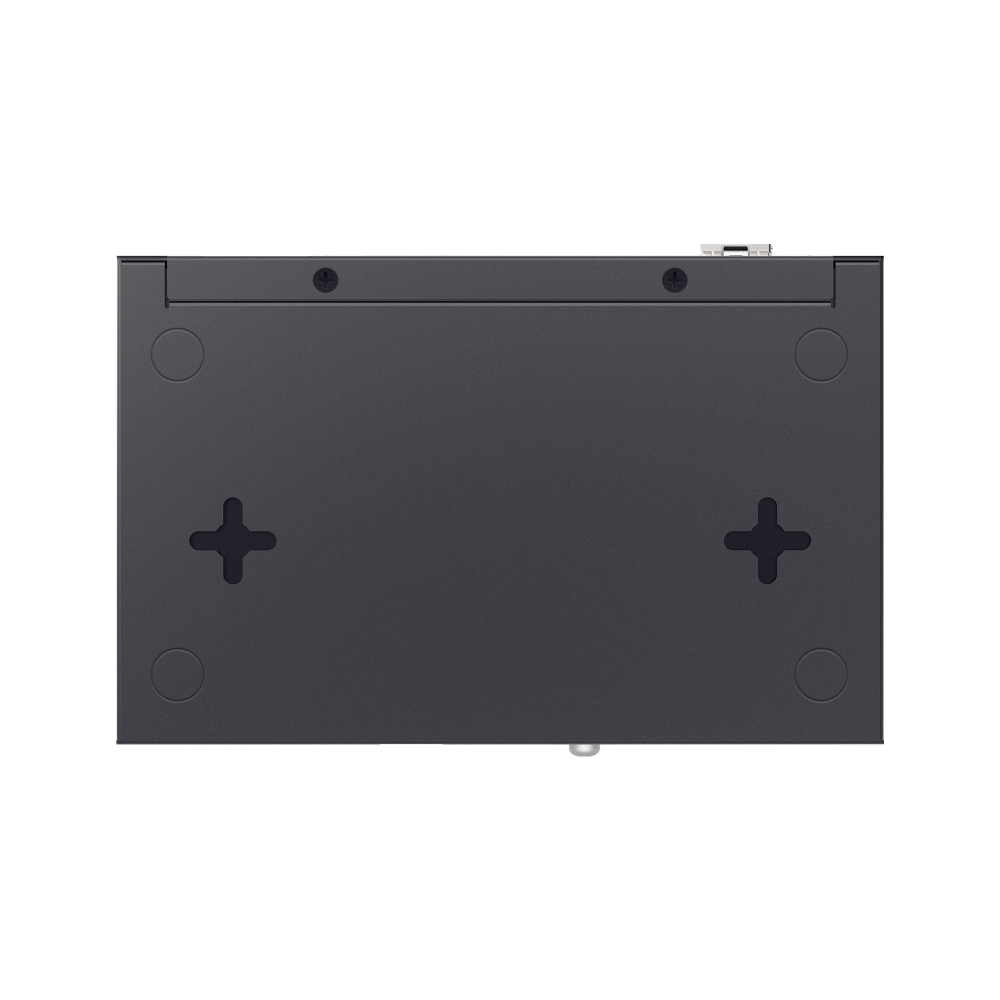

| Installation | • Desktop• Wall Mount |
| Physical Security Lock | √ |

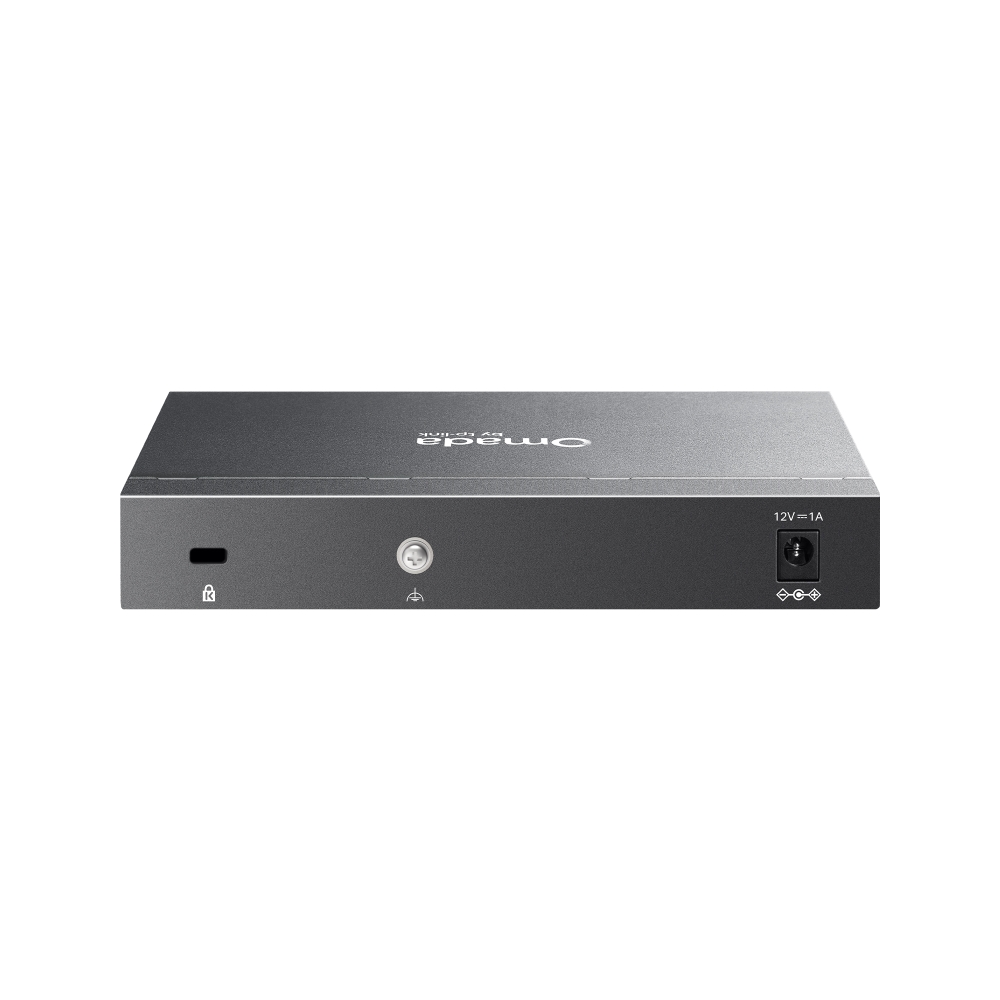

| Power Supply | DC Power Adapter (Output: 12 VDC / 1 A) |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm) |
| Surge Protection | ±6kV for Ethernet Ports |
| PERFORMANCE | |
|---|---|
| Packet Buffer Memory | 640 KB |
| Jumbo Frame | 10 KB |
| Switching Capacity | 45 Gbps |
| Packet Forwarding Rate | 33.48 Mpps |
| MAC Address Table | 16K |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • Port-based/802.1p/DSCP QoS△• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| VLAN | • MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration† |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |

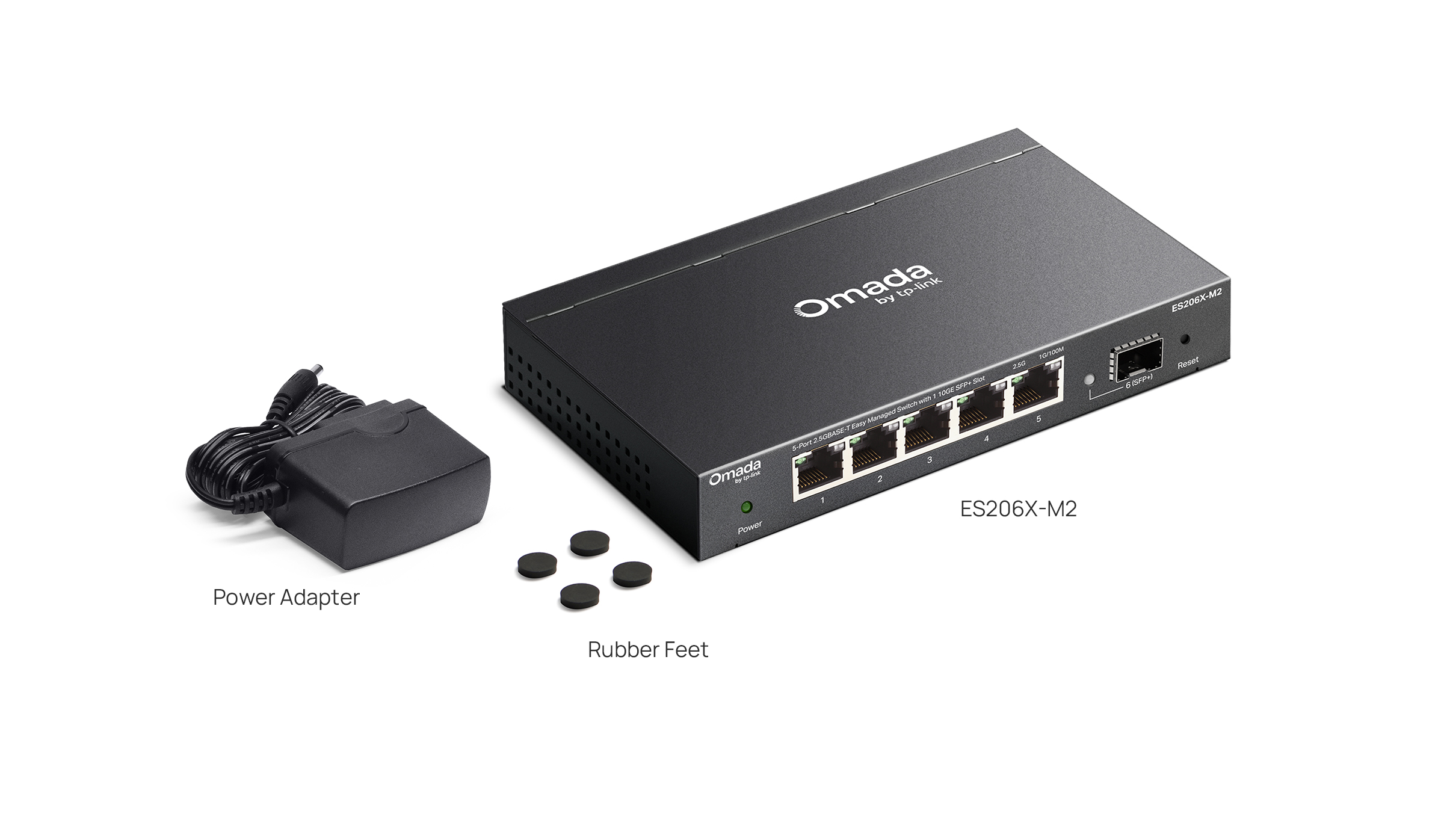

| Package Content | • ES206X-M2• Power Adapter• Rubber Feet• Installation Guide |
| Environment | • Operating Temperature: -5℃~40℃ (23℉~104℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing |
†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
△Port-based/802.1p/DSCP QoS are supported under Standalone Mode.
.
