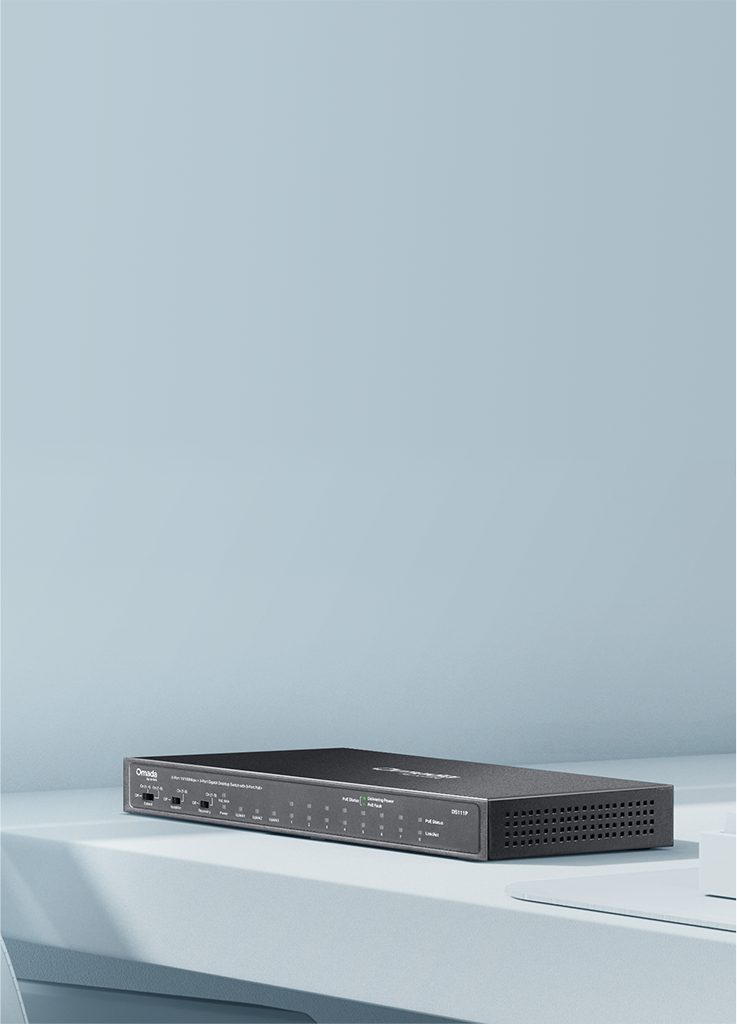

Omada 8-Port 10/100Mbps + 3-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE+
- 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
- 8× PoE+ Ports, transfer data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for 8 PoE ports*
- Up to 250 m (802 ft) data and power transmitting range under Extend Mode**

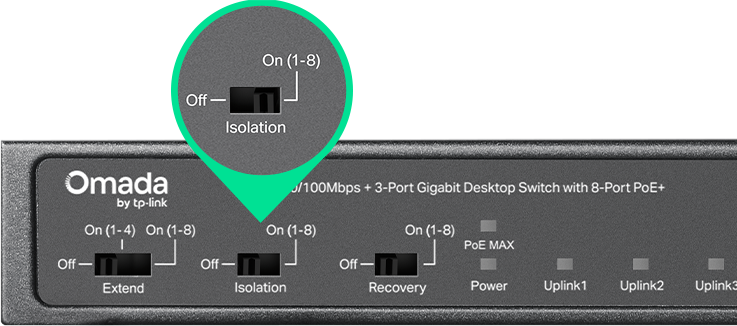

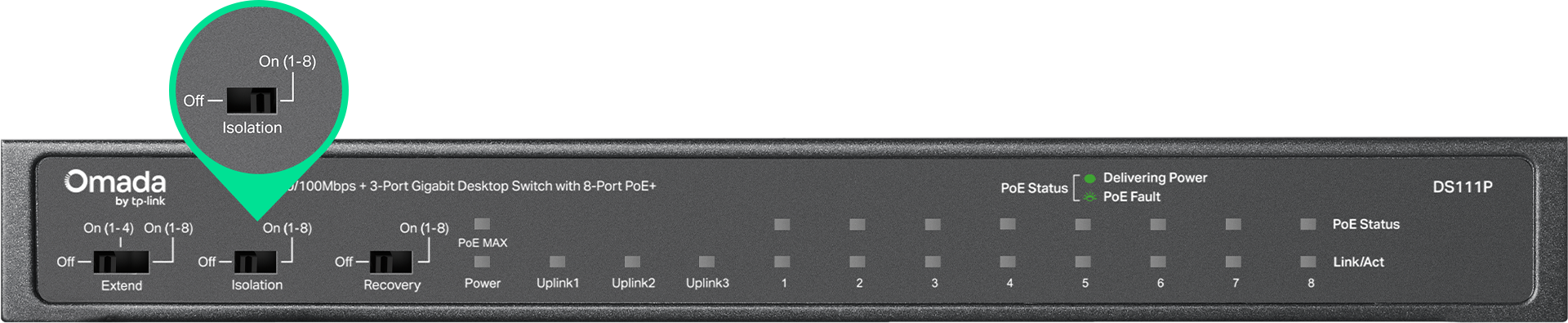

- Isolation Mode allows one-click client traffic separation for higher security and performance

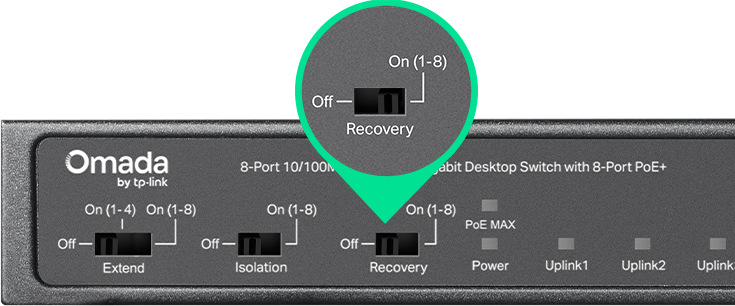

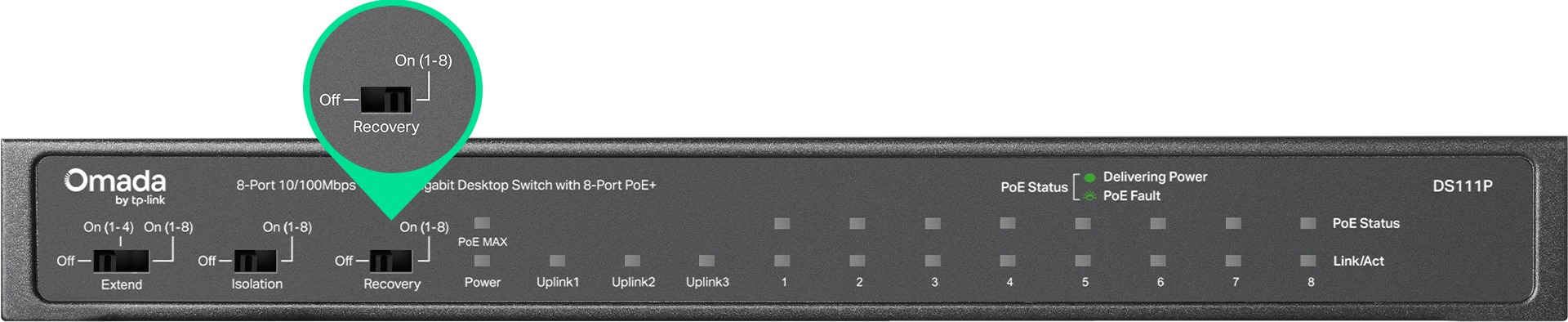

- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and Play. No configuration or central management required.‡
Omada
8-Port 10/100Mbps + 3-Port Gigabit
Unmanaged Desktop Switch
with 8-Port PoE+
65 W PoE
Budget*
Long-Range PoE+
(250m**)
Isolation Mode
for Security
PoE Auto
Recovery
Desktop or
Wall-Mounting
Plug
and Play
Silent
Operation
Durable Metal
Casing

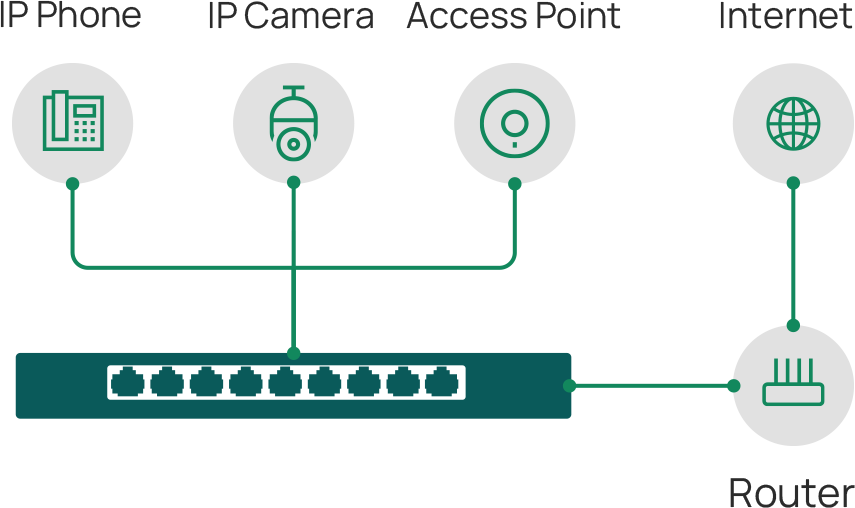

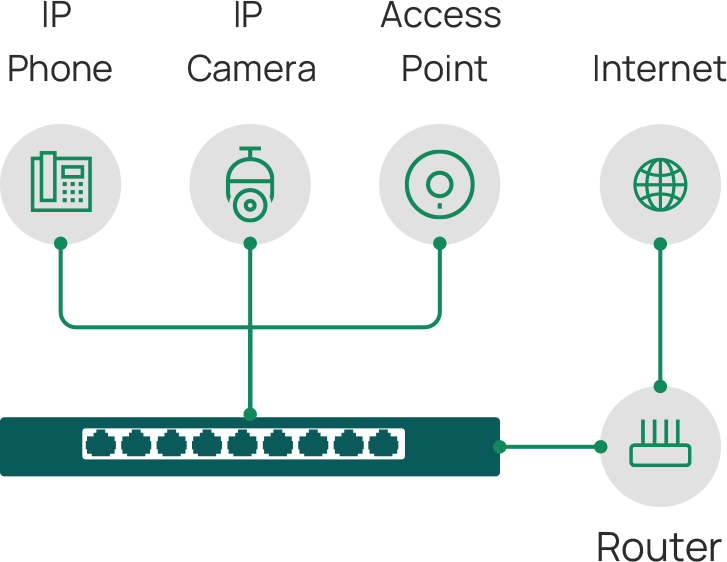

Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 65 W with 30 W max per PoE+ port. When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.
Access
Point
IP
Phone
IP
Camera
Network
Video Recorder
Computer
Network
Video Recorder
Computer
Instantaneous Multi-mode Toggles△

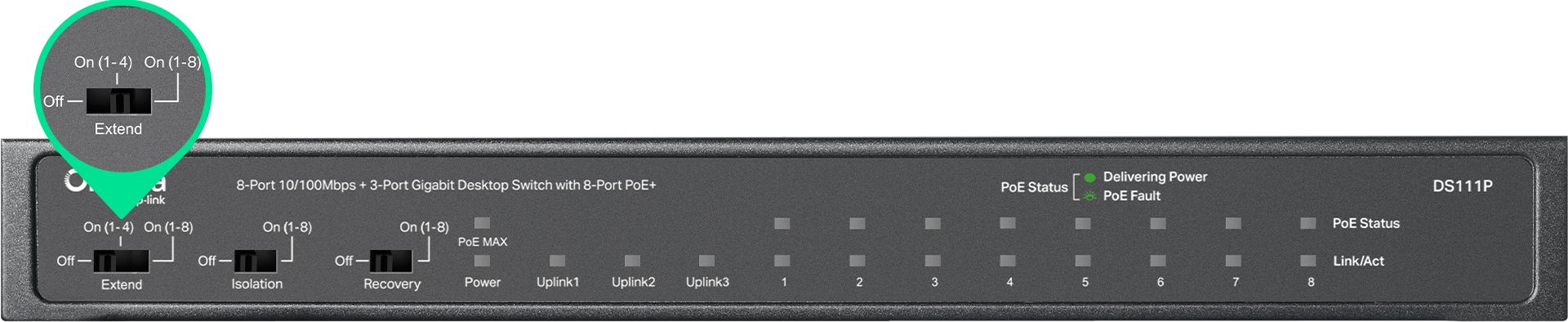

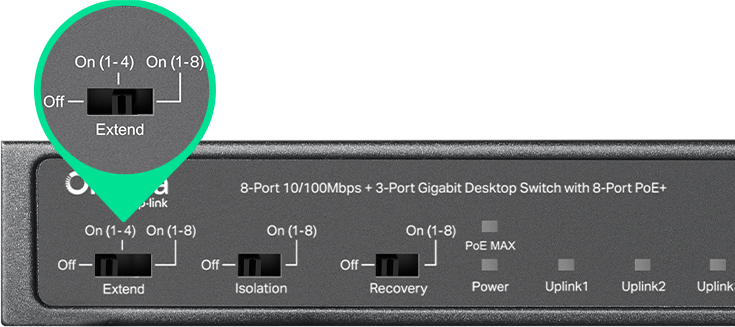

Up to 250m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**
—perfect for IP Camera deployment in large areas.
Plug and Play

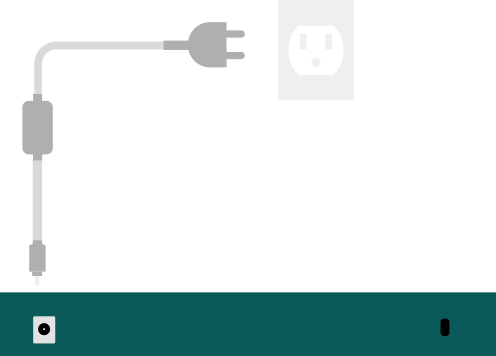

1. Connect to Power
2. Connect the Devices
3. Enjoy
| HARDWARE FEATURES | |
|---|---|

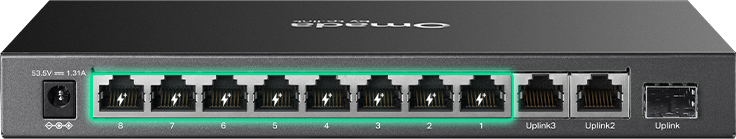

| Interface | • 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port• AUTO Negotiation• AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Packet Forwarding Rate | 5.6544 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8• Power Supply: 65 W |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 7.6 Gbps |
| Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Max. Power Consumption | • 5.61 W (220 V/50 Hz. no PD connected)• 77.32 W (110 V/50 Hz. with 65 W PD connected) |
| Max Heat Dissipation | • 19.13 BTU/h (no PD connected)• 263.7 BTU/h (with 65 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode: Ports 1–4/1–8**• Isolation Mode: Ports 1–8• PoE Auto Recovery: Ports 1–8• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • DS111P• Power Adapter• Installation Guide• Rubber Feet |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
△Numbers after different modes represent the effective ports for that mode.
‡Omada Unmanaged Switches do not support Omada SDN central management.
