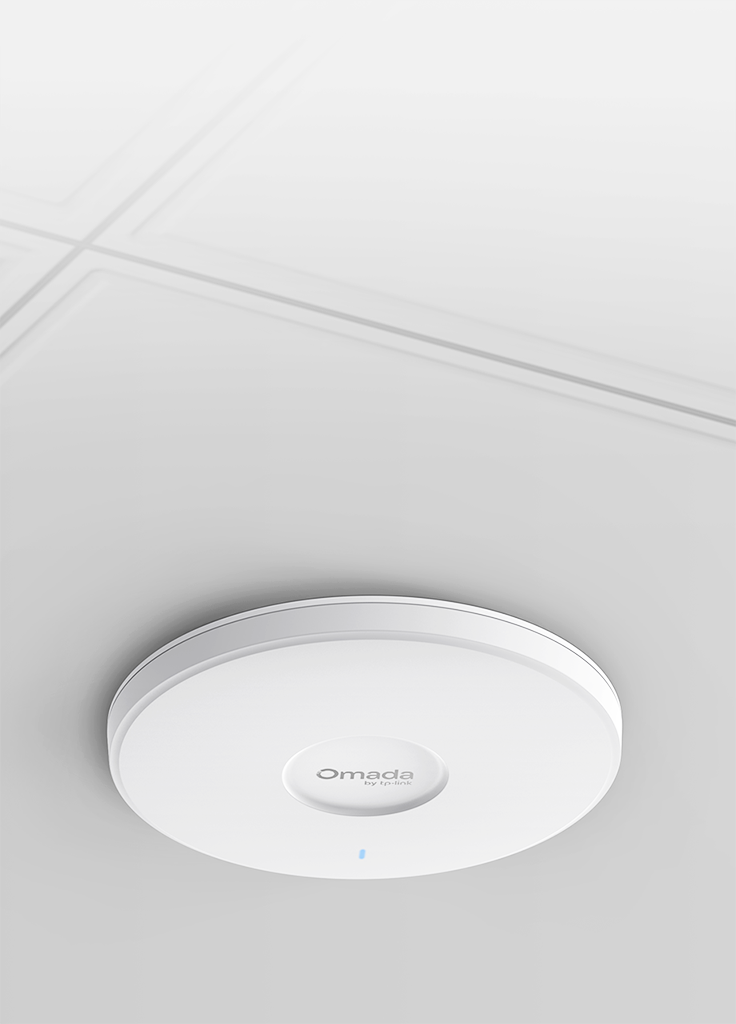

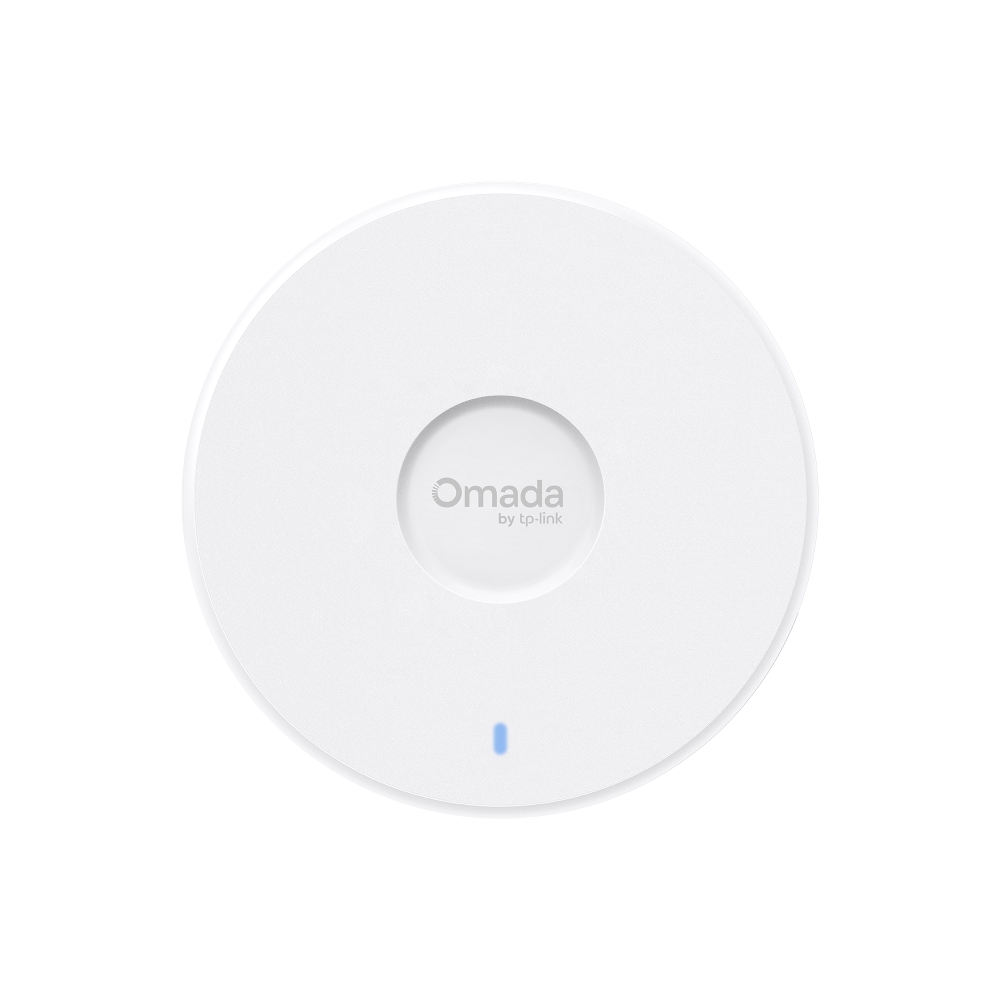

BE5000 Ceiling Mount Wi-Fi 7 Access Point
- 5-Stream Wi-Fi 7: 4,324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz.†
- 1× 2.5G PoE+ Port: Ensures high-speed connectivity throughout the network.
- Low Latency and Interference: 160 MHz bandwidth, Multi-Link Operation, Multi-Rus, and 4K-QAM ensure high performance for your connectivity.‡
- Flexible Deployment and Easy Setup: Supports 802.3at PoE or DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management, PPSK, multiple portals, mesh, and seamless roaming. §
- More Connections and Wider Coverage: Supports 510+ concurrent connections** and covers up to 2,000 ft² (185 m²)* for reliable and extensive wireless connectivity.
Omada 5-Stream
BE5000 Ceiling
Mount
Wi-Fi 7 Access Point
5-Stream Wi-Fi 7
Wi-Fi Speeds up to
5.0 Gbps†
1 × 2.5GbE Port
802.3at PoE
Omada Mesh &
Seamless Roaming§
Centralized Cloud Management
Enhanced Security
Easy Installation
Wi-Fi 7: Swifter,
Smoother, Stronger

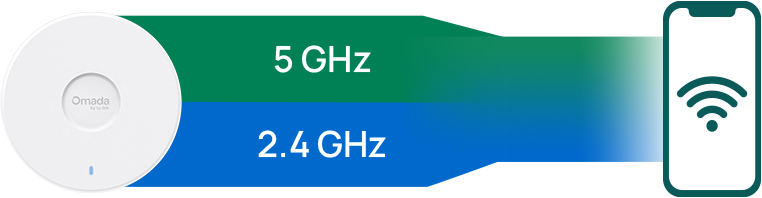

Dual-Band Wi-Fi 7 Throughput‡
5 GHz
4,324 Mbps
2.4 GHz
688 Mbps

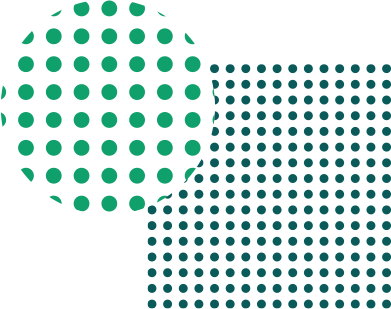

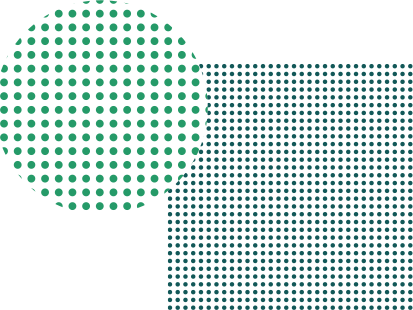

Higher Efficiency with 4K-QAM
Wi-Fi 7 12 bits/symbol
20% more data transmission
Wi-Fi 6 10 bits/symbol
Higher Reliability and Speeds with MLO
Multi-Link Operation

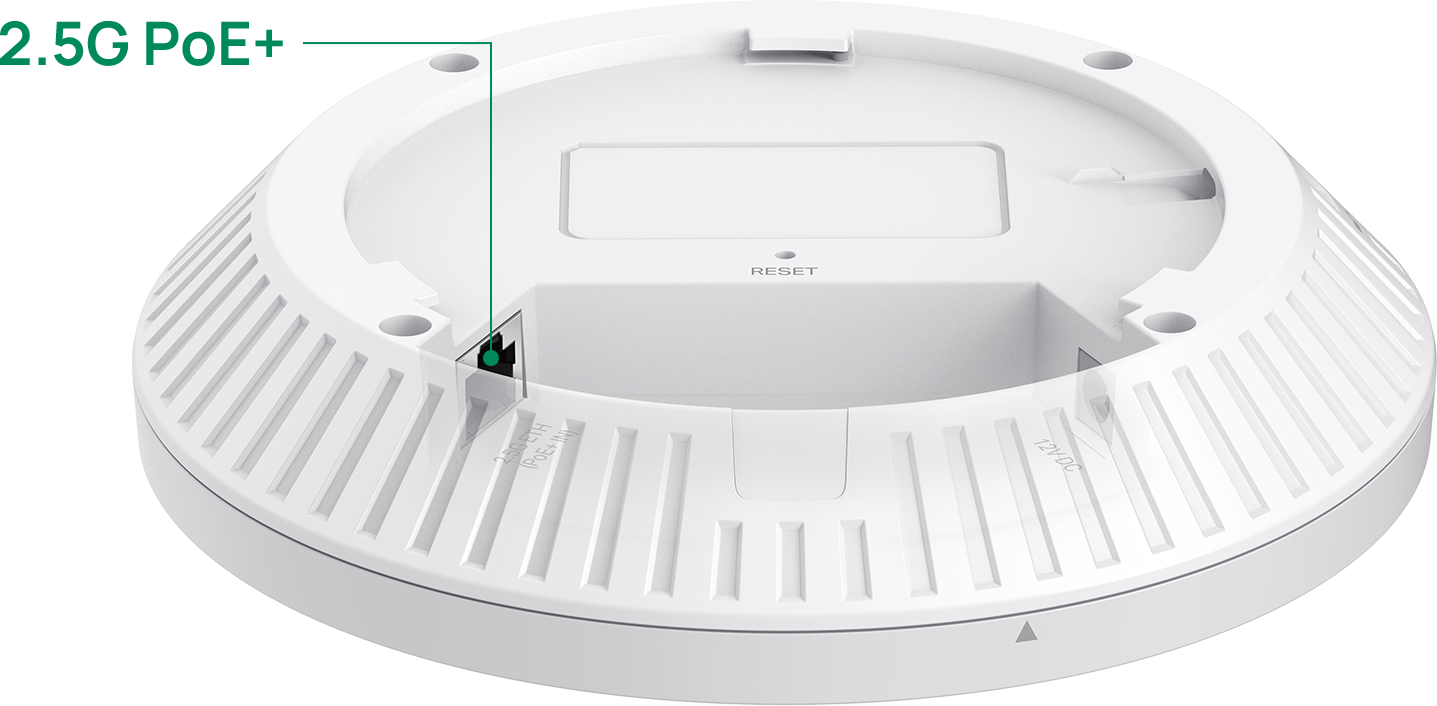

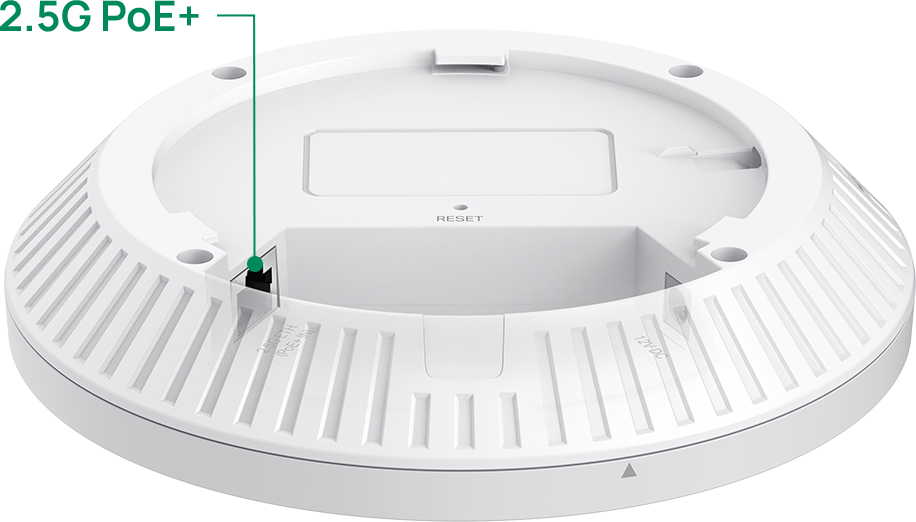

Optimized Wired Performance with 2.5G PoE+ Port
With a 2.5 Gigabit Ethernet Port, EAP727 delivers remarkable multi-gigabit performance for higher bandwidth and faster Wi-Fi. Compatibility with 802.3at PoE is ideal for flexible deployment.
Boosted Network Security
Secure Guest Network
with up to 16 SSIDs
Boost Your Business
with SMS Login
WPA3 for Worry-Free
Open Public Networks
Rogue AP Detection
Seamless Integration
into Omada SDN
Mount Wi-Fi 7 AP
EAP727
Wall Plate
Wi-Fi 7 AP
Outdoor
Wi-Fi 7 AP
PoE Switch
VPN Gateway
Access
Controllers
(Cloud-Based)

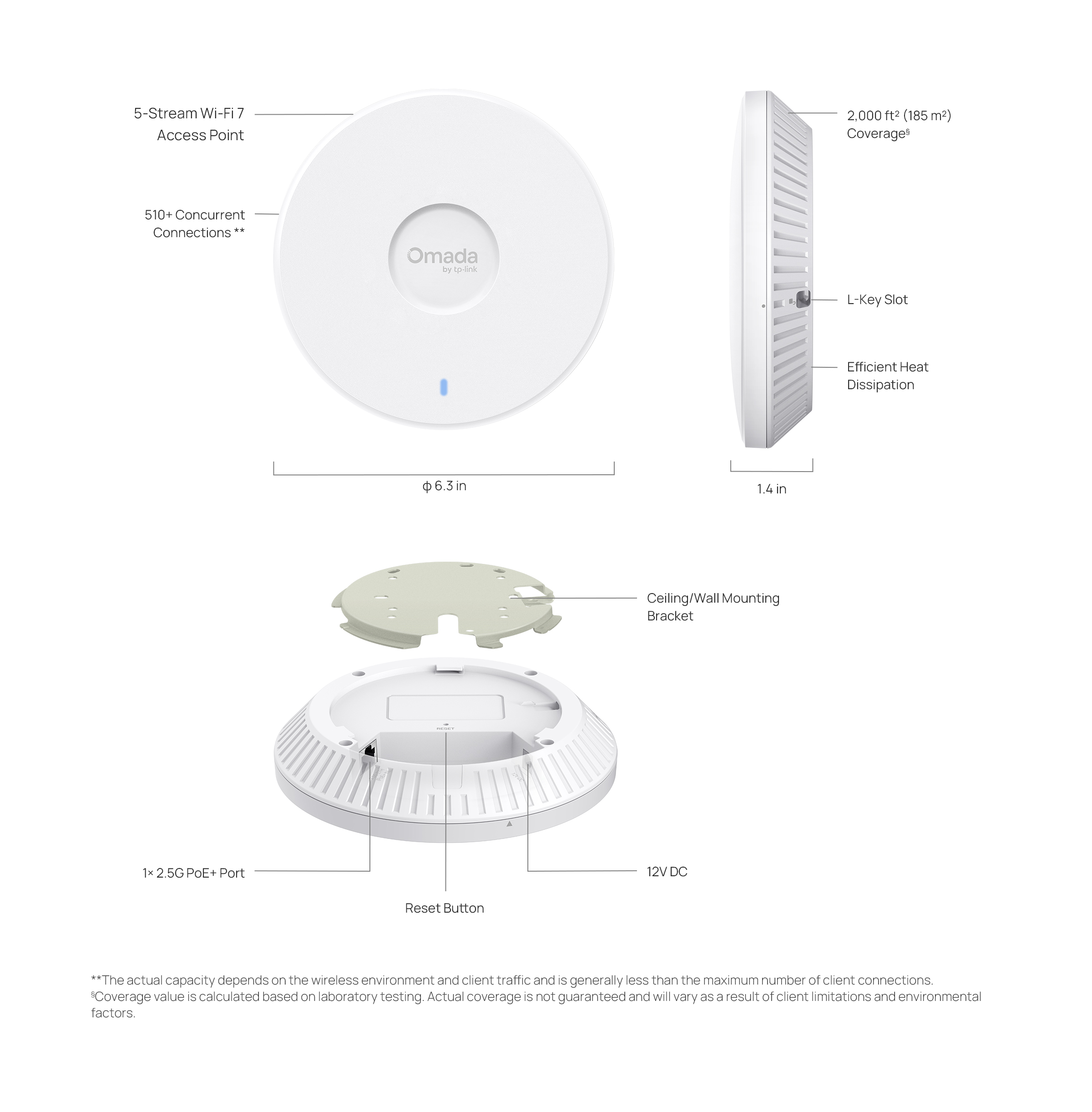

| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 2.5 Gbps Ethernet Port |

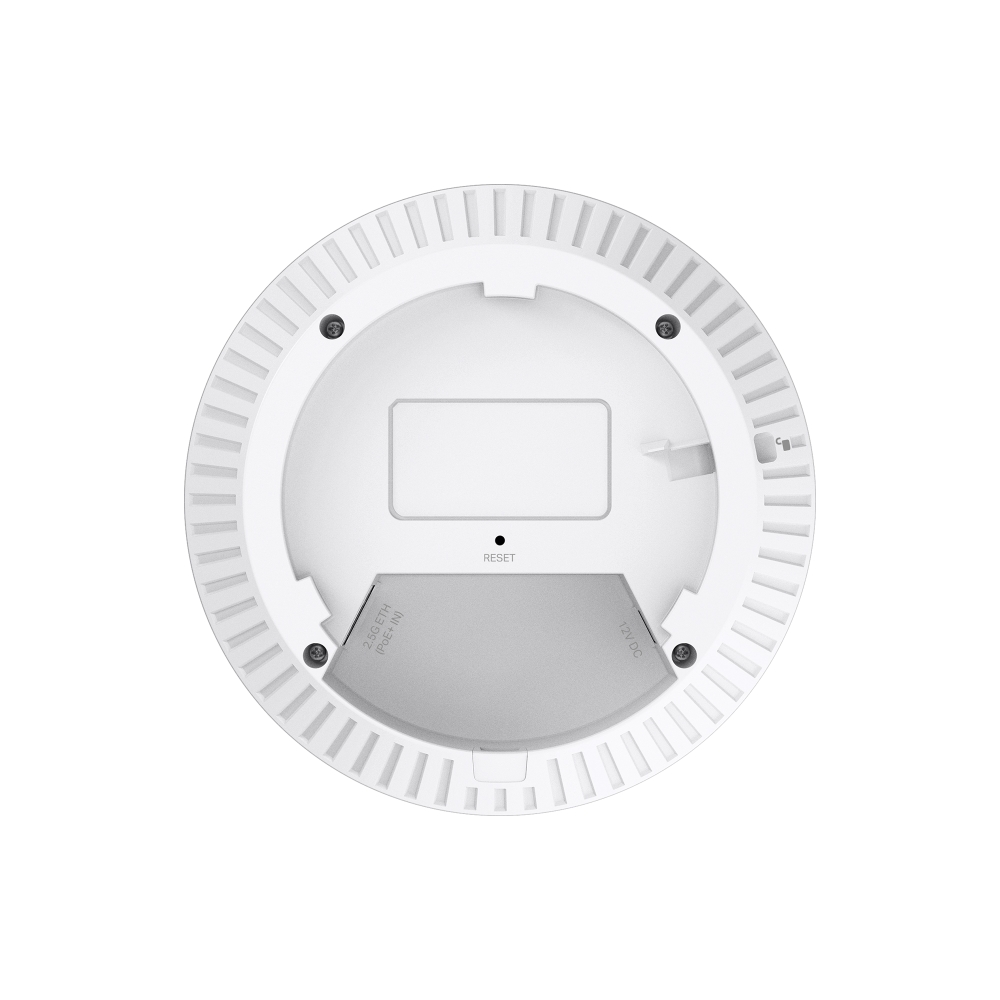

| Button | Reset |
| Power Supply | • 802.3at PoE• 12V/1.5A DCNote：DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length. |
| Weight | 0.47 kg (1.04 lb) |

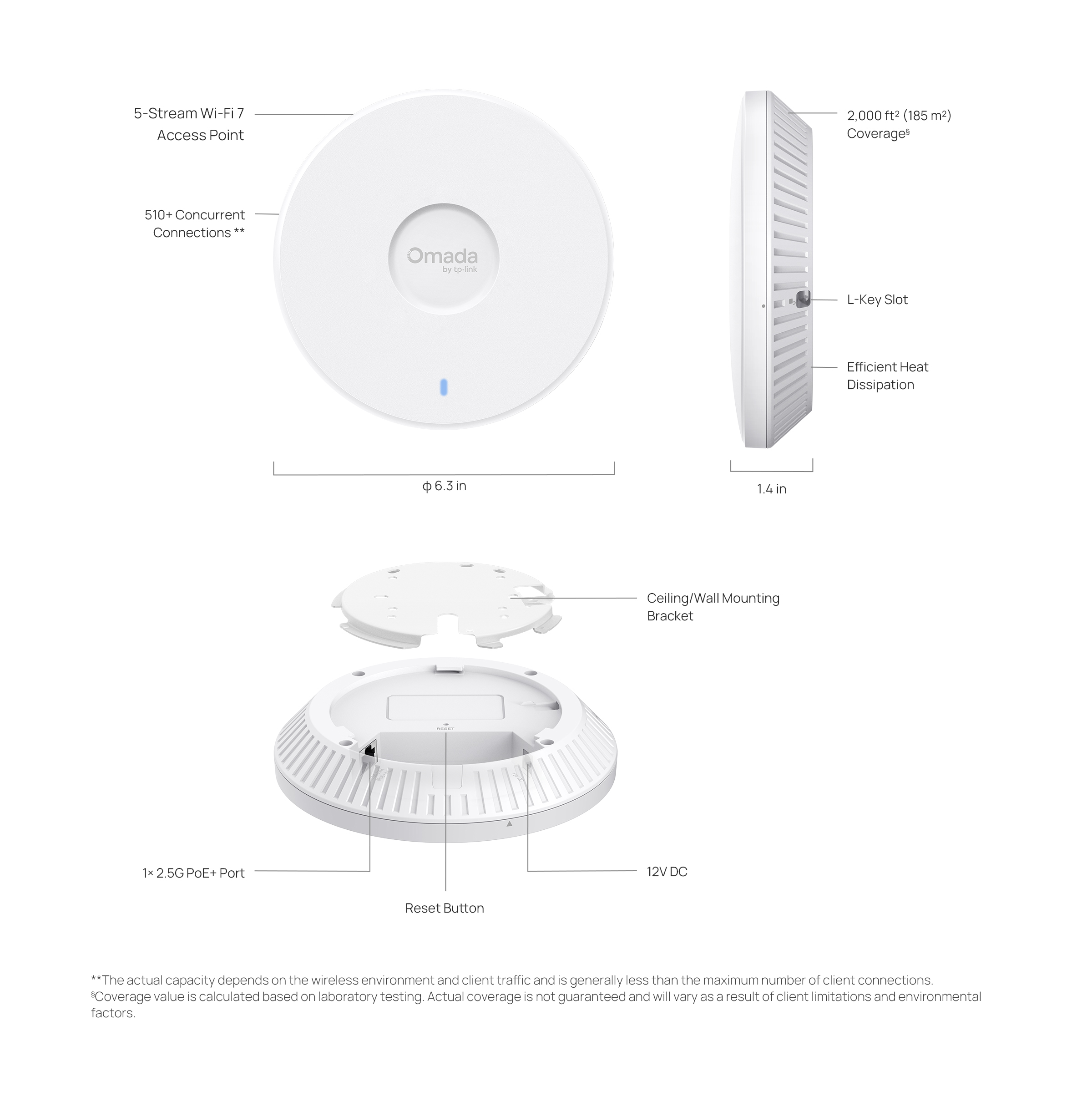

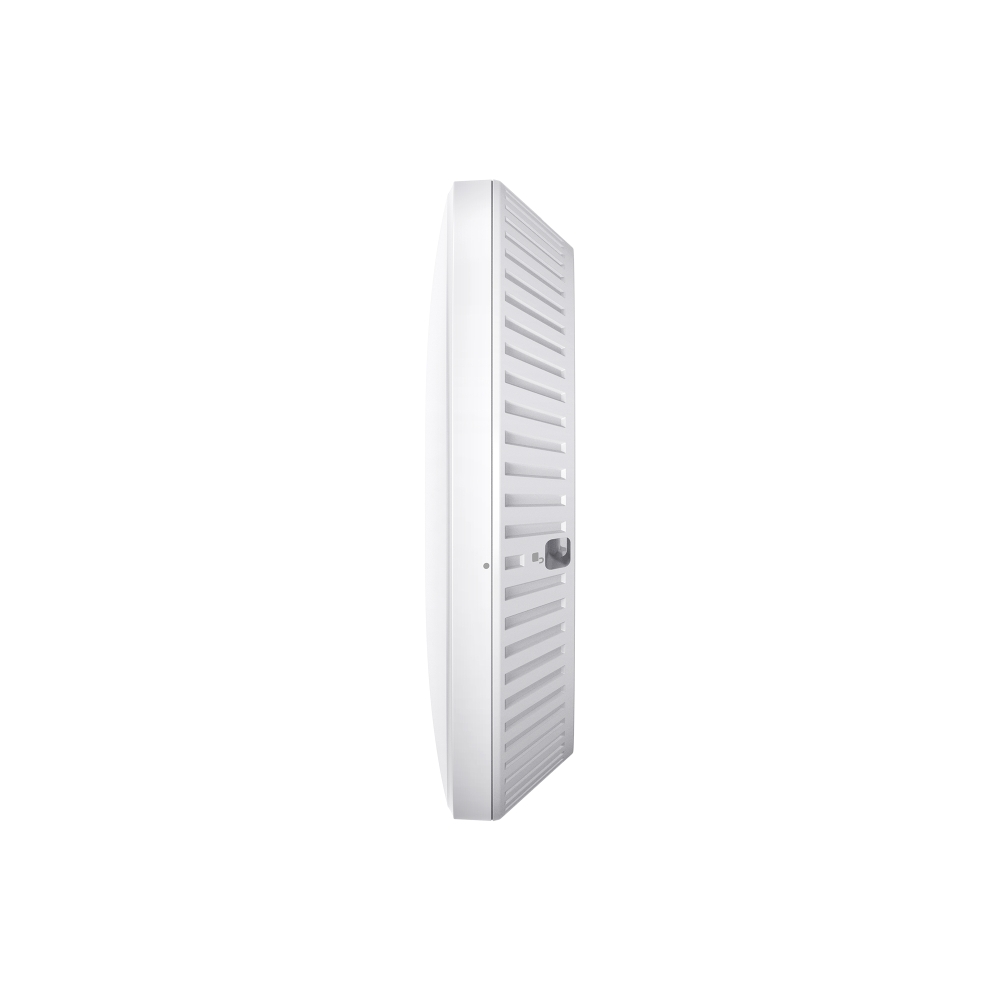

| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
| Antenna | • 2.4 GHz: 2 × 4 dBi• 5 GHz: 3 × 6 dBi |
| Bluetooth | 1 × 4 dBi (peak gain), internal antenna |

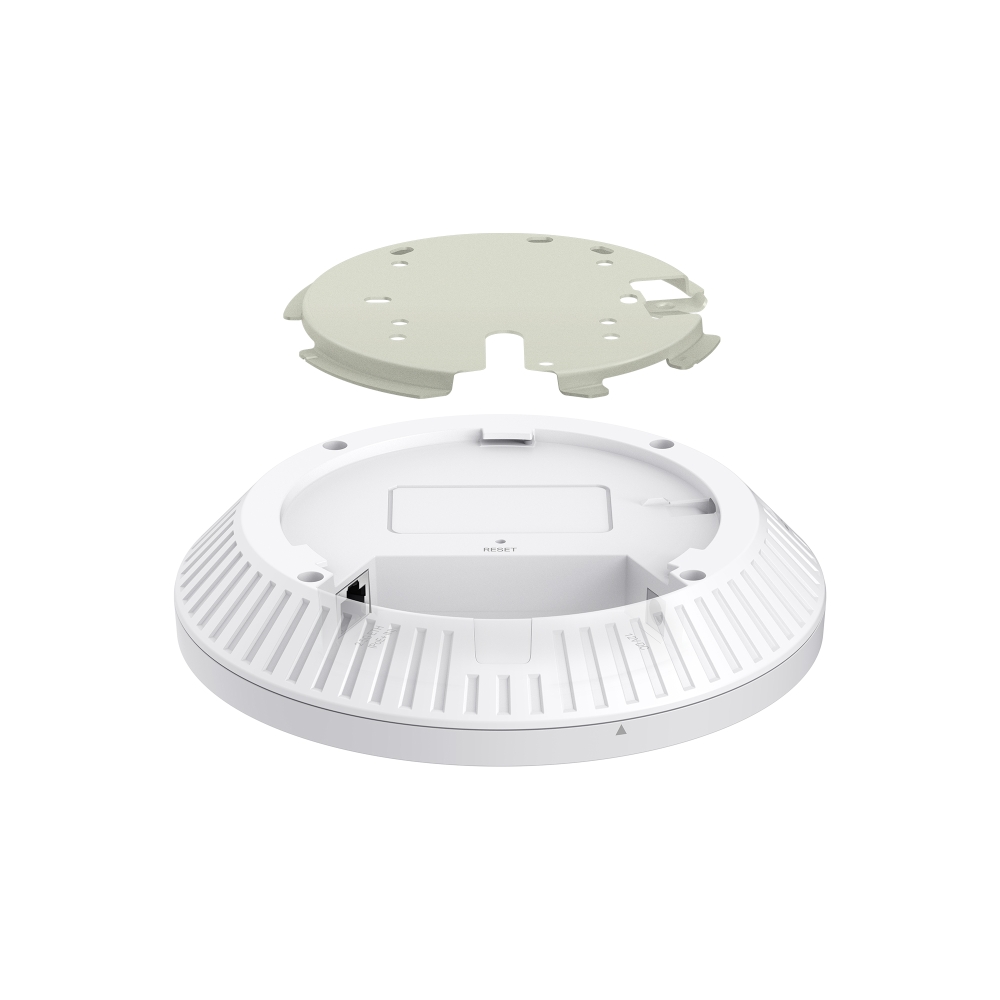

| Mounting | • Ceiling/Wall/Junction Box Mounting (Kits included) • T-Bar Mounting (Kits included) |
| Max. Power Consumption | • 17.5 W (PoE)• 15.8 W (DC) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 2,000 ft² (185 m²)* |
| Concurrent Clients | 510+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) |
| Wireless Functions | • MLO‡• 4K-QAM‡• Seamless Roaming• 160 MHz Bandwidth‡• Mesh§• OFDMA‡• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDS:16(8 on each band)• Wireless Schedule• Reboot Schedule• QoS(WMM)• Rate Limit• Static IP/Dynamic IP• Radius Accounting• MAC Authentication |
| Wireless Security | • Captive Portal Authentication§• Access Control• MAC Filter• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | 4-26 dBm (2.4 GHz)6-27 dBm (5 GHz, U-NII-1 & U-NII-2A & U-NII-2C & U-NII-3) |
| Management Features | |
|---|---|
| Omada App | Yes (Omada App V5.0 and above) |
| Centralized Management | • Omada Central (Cloud-Based)• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | FCC/CE/VCCI/JRF/ICES |

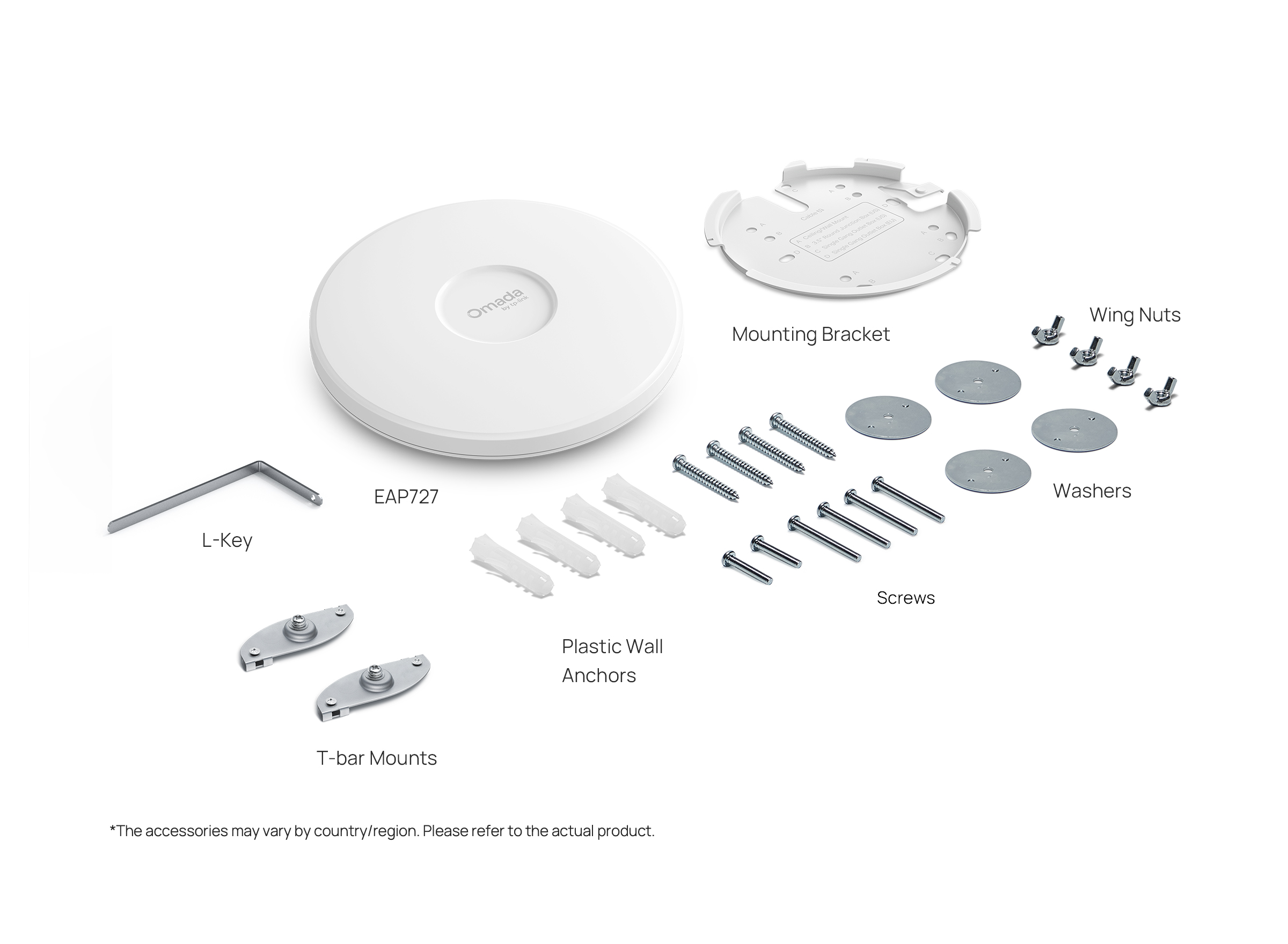

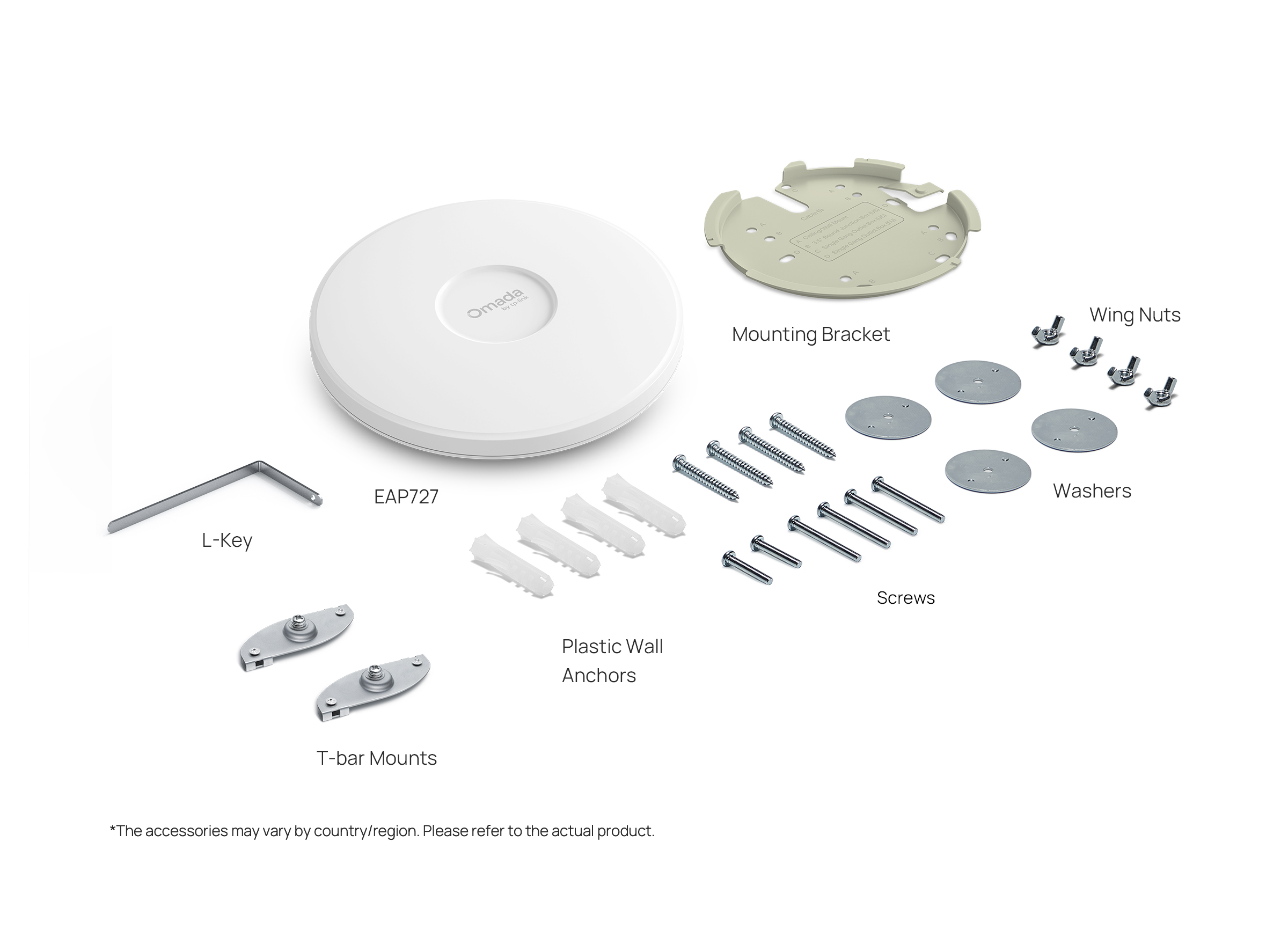

| Package Content | • EAP727 • Installation Guide• Mounting Kit |
| Environment | • Operating Temperature: 0℃ to +40℃ (32℉ to +104℉) • Storage Temperature : -40℃ to +70℃ (-40℉ to +158℉) • Operating Humidity: 10% to 90% (non-condensing) • Storage Humidity: 5% to 90% (non-condensing) • Storage Altitude: up to + 2000 m (6561 feet) • Operating Altitude: up to + 2000 m (6561 feet) |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 160 MHz bandwidth is only available on the 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be), and features including Multi-Link Operation (MLO), 160 MHz Bandwidth, 4K-QAM, Multi-RUs, and OFDMA requires clients to also support the corresponding features.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
§These features require the use of an Omada controller.
ErP Information:
1) Power consumption in networked standby: 6 W
2) Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 6.5 W
3) The default period of time after which the power management function switches the equipment automatically into a condition providing networked standby: 20 minutes
4) Recommended DC power supply: T120100-2C1
5) How to activate and deactivate wireless network: Enter the webpage of product through wired connecting. The wireless function can be turn on/off via ‘Wireless > Wireless Settings > Enable Checkbox’
