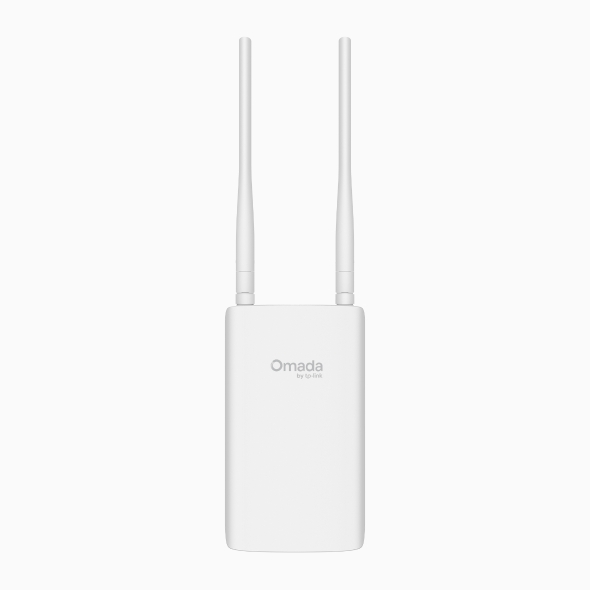

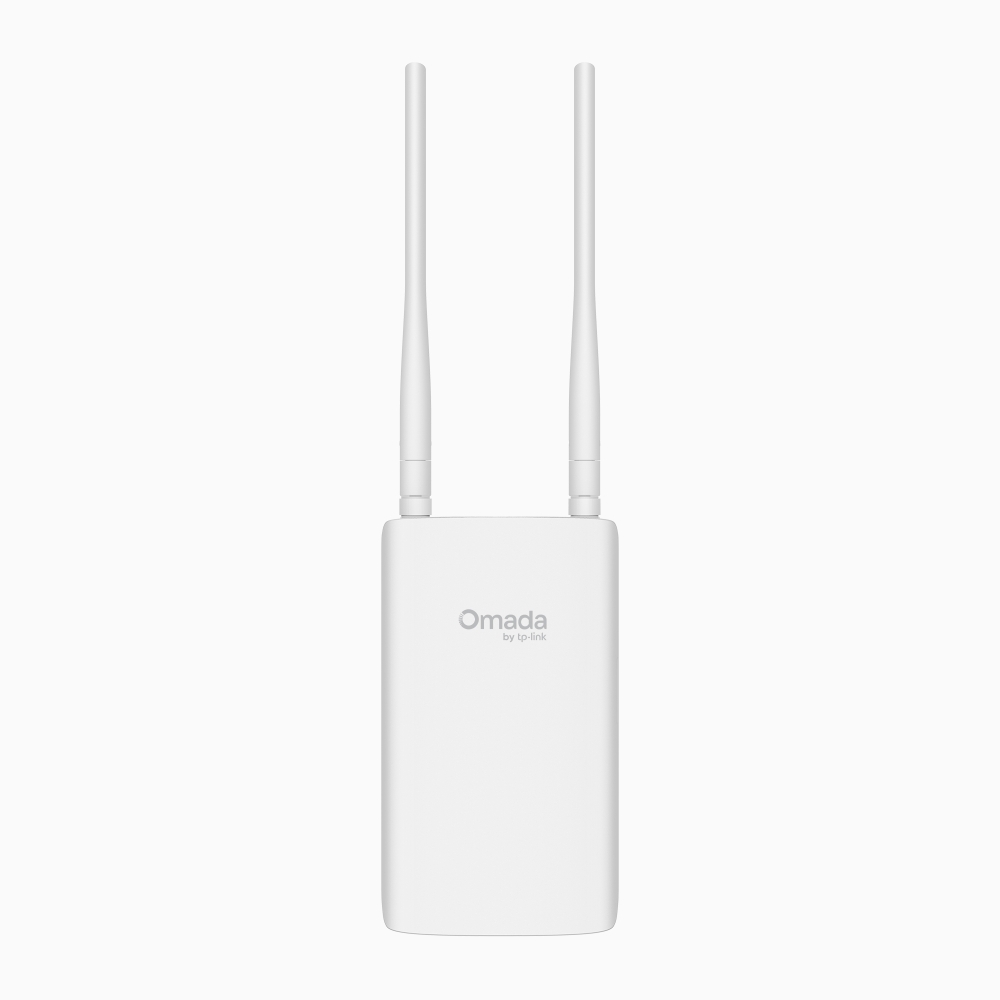

EAP603-Outdoor
Coming SoonAX1800 Indoor/Outdoor Wi-Fi 6 Access Point
- Seamless 1.8Gbps Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz.†
-
Dual-Band Omnidirectional Coverage: Up to 300 m (984 ft) long-range coverage.*
-
PoE+ Powered: Supports both 802.3at PoE and Passive PoE (adapter included).
-
Ideal for Outdoor Environments: IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
-
Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
-
Advanced Features: Omada Mesh, Seamless Roaming, and Centralized Cloud Management.§
-
Up to 1.8 Gbps Wi-Fi 6 Speeds†
-

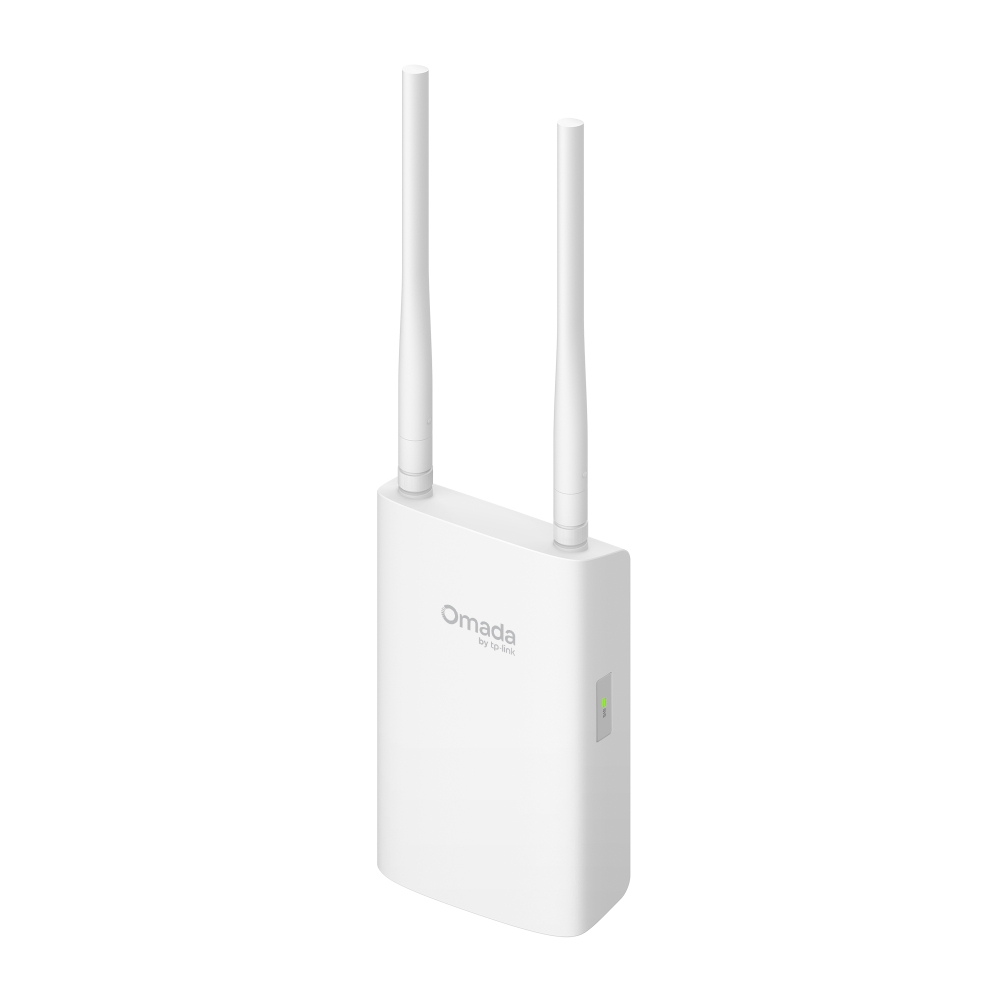

Long Coverage with 2× External Antennas
-
802.3at PoE &
Passive PoE (Adapter Included) -
1× Gigabit PoE+
Port -
Omada Mesh & Seamless Roaming
-
Centralized Cloud Management
-
IP65 Weatherproof
-
Easy Setup
Power up Your Business with Superior Wi-Fi6 Speeds
1775 Mbps
(5 GHz + 2.4 GHz)
5 GHz
1201 Mbps
2.4 GHz
574 Mbps
HE 80
1024 QAM
MU-MIMO
OFDMA
Perfect for Outdoor Wi-Fi Coverage
Yard
Shed/Barn
Farm
Swimming Pool
Outdoor Café
Park
Long-Range Omni-directional Coverage
2× external antennas equipped with high-power amplifiers utilize Wi-Fi 6 technology to provide strong and expansive wireless coverage to various outdoor environments.*
-
2.4 GHz up to
2150 ft/200 m -
5 GHz up to
3200 ft/300 m
Flexible Deployment with PoE Support
-
PoEPowered with PoE+ Switch
-
InternetUsing the Provided Passive PoE Adapter
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
PoE+
Omada PoE+ Switch
Designed for Outdoors
The fully sealed EAP603-0utdoor offers complete dustproof protection and the ability to withstand prolonged submersion in water. It withstands the harsh outdoor environments.
-
IP65 Weatherproof
-
6kV Lightning Protection
-
-30 °C-70 °C Working Range
-
Wind Resistance
Easy and Quick Setup

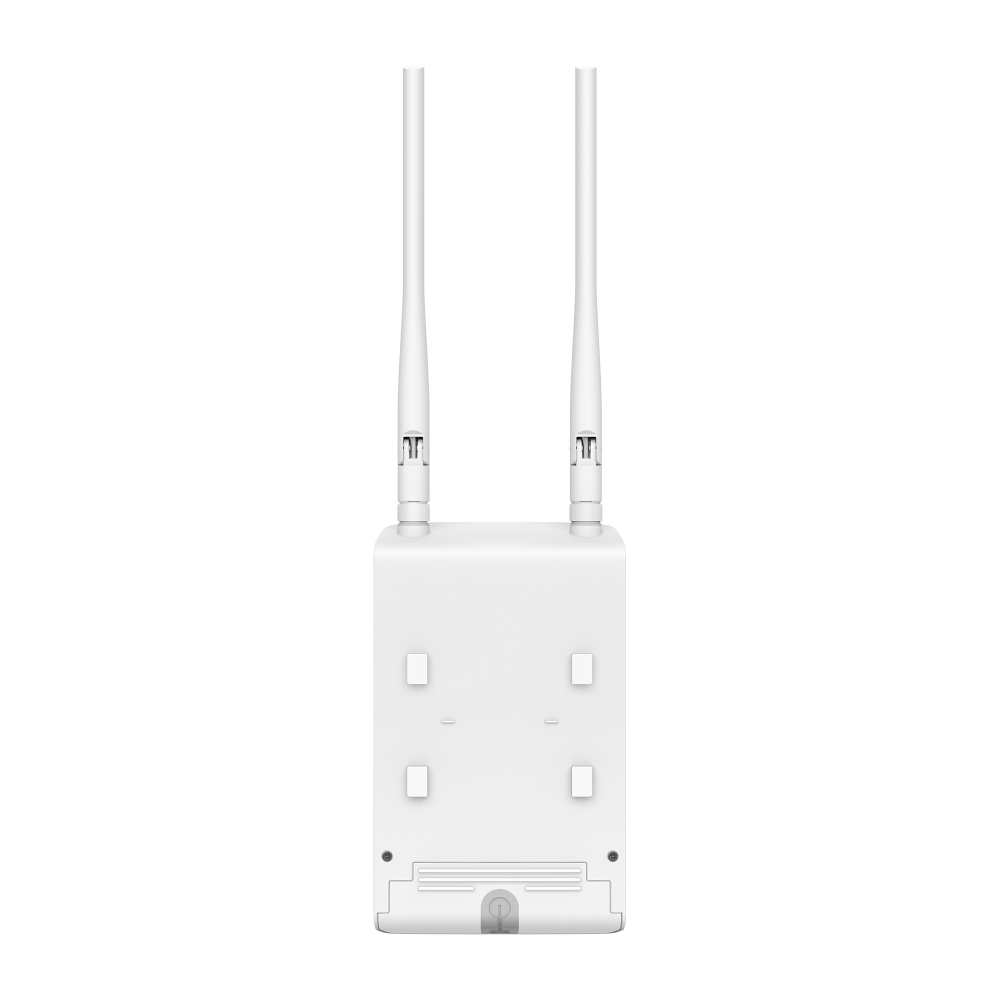

Easy Installation Through Pole and Wall Mount Options
Pole Mounting
Wall Mounting
Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP603-Outdoor through automatic device identification and one-click adoption.
Empowering Businesses
with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
Ceiling Mount
Wi-Fi 6 AP
Wall Plate
Wi-Fi 6 AP
Outdoor Wi-Fi 6 AP
EAP603-Outdoor
PoE Switch
VPN Gateway
Controllers
| HARDWARE FEATURES | |
|---|---|

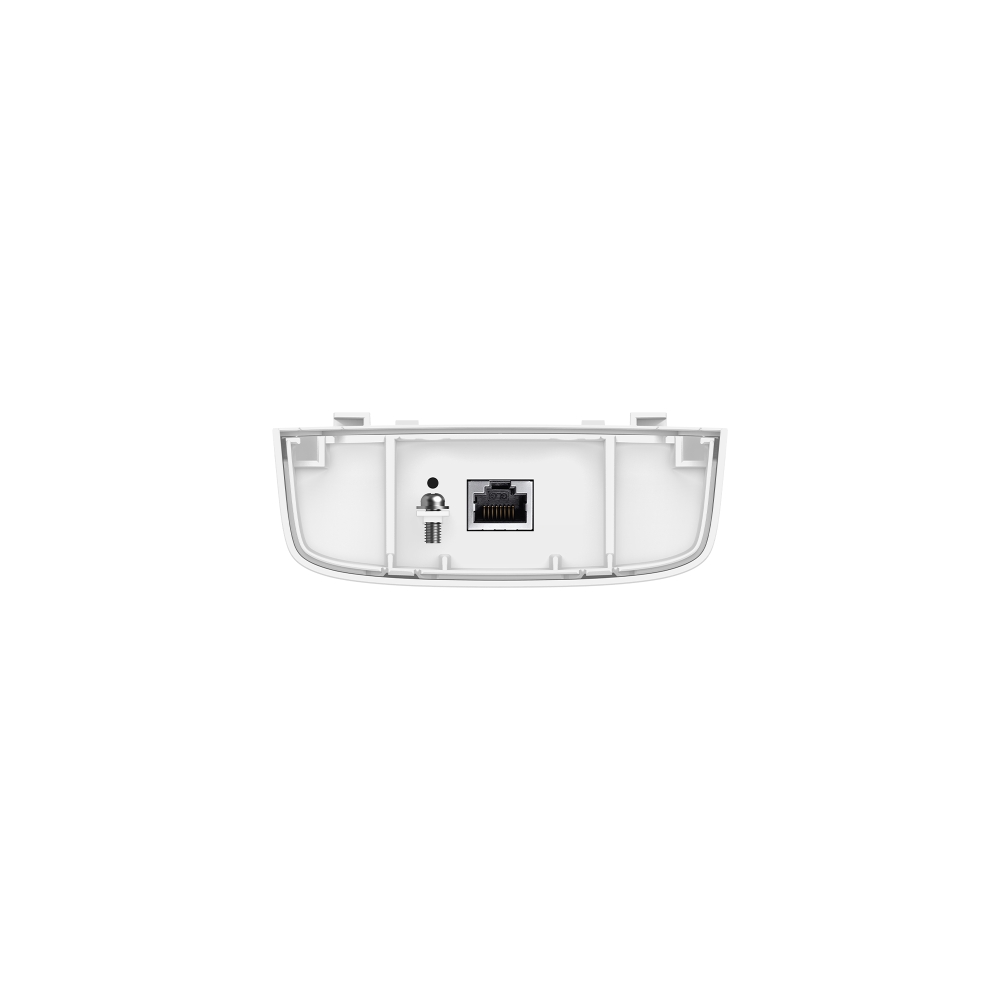

| Interface | • 1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in• 1× Grounding Termina |
| Button | 1× Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings. |
| Power Supply | Input: 802.3at PoE+: 42.5 - 57 V, 0.36A |
| Max. Power Consumption | • 802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up to 1 Gbps, etc.• Idle mode: 4.8W(PoE) |
| Dimensions ( W x D x H ) | • Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.)• Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.) |
| Antenna | Wi-Fi• 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas• 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas*Note: The gains above are the single-antenna peak gains.IoT• Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional antennas |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP66 for Wall MountIP65 for Pole Mount |
| Mounting | • Pole Mount (Kits included)• Wall Mount (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | • 2.4 GHz: up to 2,150 ft (200 m) • 5 GHz: up to 3,200 ft (300 m) |
| Wireless Standards | 5 GHz: IEEE 802.11a/n/ac/ax2.4 GHz: IEEE 802.11b/g/n/ax |
| Frequency | • 5 GHz• 2.4 GHz |
| Signal Rate | • 2.4 GHz: up to 573 Mbps • 5 GHz: up to 1201 Mbps*Note: Country-Specific Restriction Apply |
| Wireless Functions | • Maximum number of BSSIDs: 16 (8 on each band)• Maximum number of associated STAs: 250+• Guest Network• ACS (Automatic Channel Selection)• Airtime Fairness• Band Steering• 802.11 Rate Control• Rogue AP Detection• URL Filtering• WLAN Optimization• Lock to AP• SSID/Client Rate Limit• Load Balance• Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming)§ • Multicast/Broadcast Management (Multicast-to-Unicast Conversion, ARP-to-Unicast Conversation, Multicast Filtering, Multicast/Broadcast Rate Limit)• QoS (Quality of Service) |
| Wireless Security | • ACL• MAC Filter• 802.1X Authentication• MAC-Based Authentication• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None• Radius Accounting• PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC)• Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client• EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1 |
| Transmission Power | Maximum transmit power:CE (ERIP)• 2.4 GHz: 20 dBm • 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C, FCC (Conducted Power)• 2.4 GHz: 25 dBm • 5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3Minimum transmit powerCE (ERIP)• 2.4 GHz: 7 dBm • 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3FCC (Conducted Power)• 2.4 GHz: 4 dBm • 5 GHz: 4 dBm in U-NII-1, 4 dBm in U-NII-2A, 4 dBm in U-NII-2C, 4dBm in U-NII-3Adjustable power increment: 1 dBm*Note: MIMO combined power, excluding antenna gains. The actual transmit power depends on local laws and regulations |
| Management Features | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller• Omada Software Controller• Omada Central (Cloud-Based)• Omada App |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP603-Outdoor• Passive PoE Adapter• Power Cord• Installation Guide• Mounting Kit |
| Environment | • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
§Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada controllers.
*The advertised coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
