SG3452P V3.40

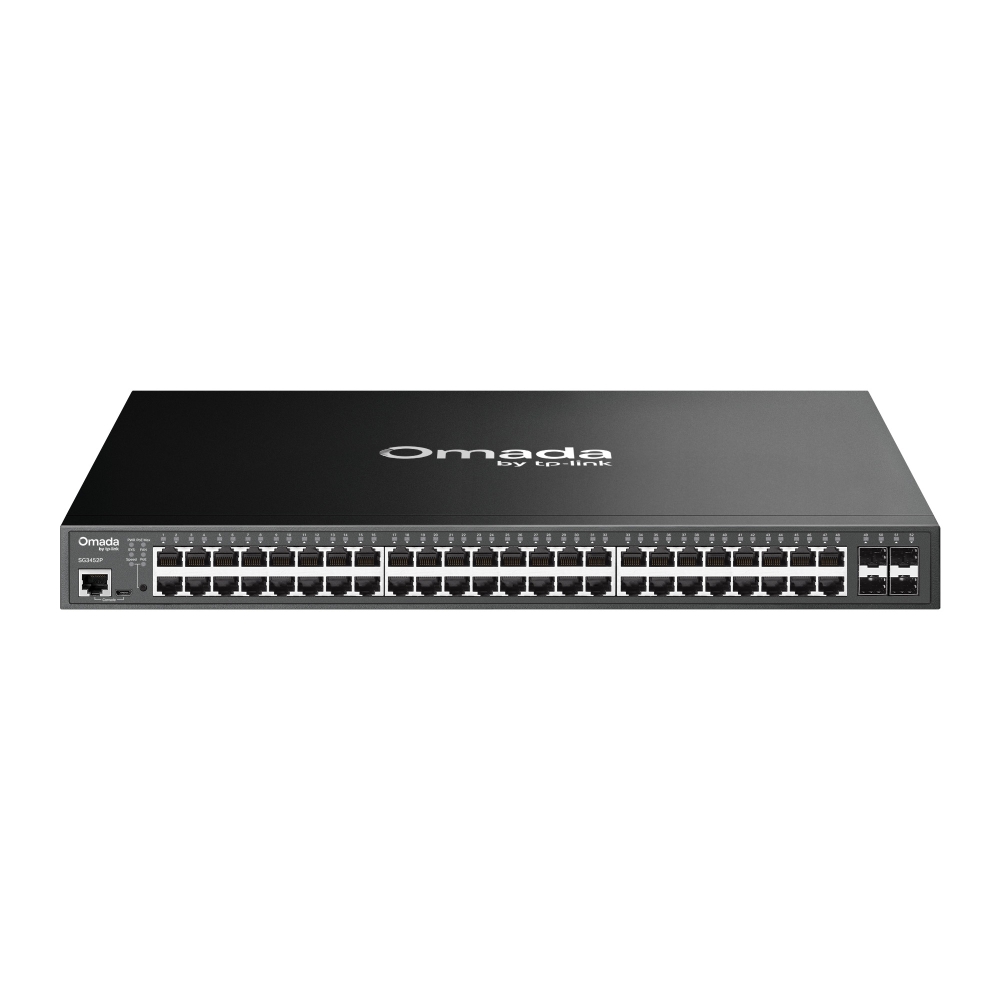

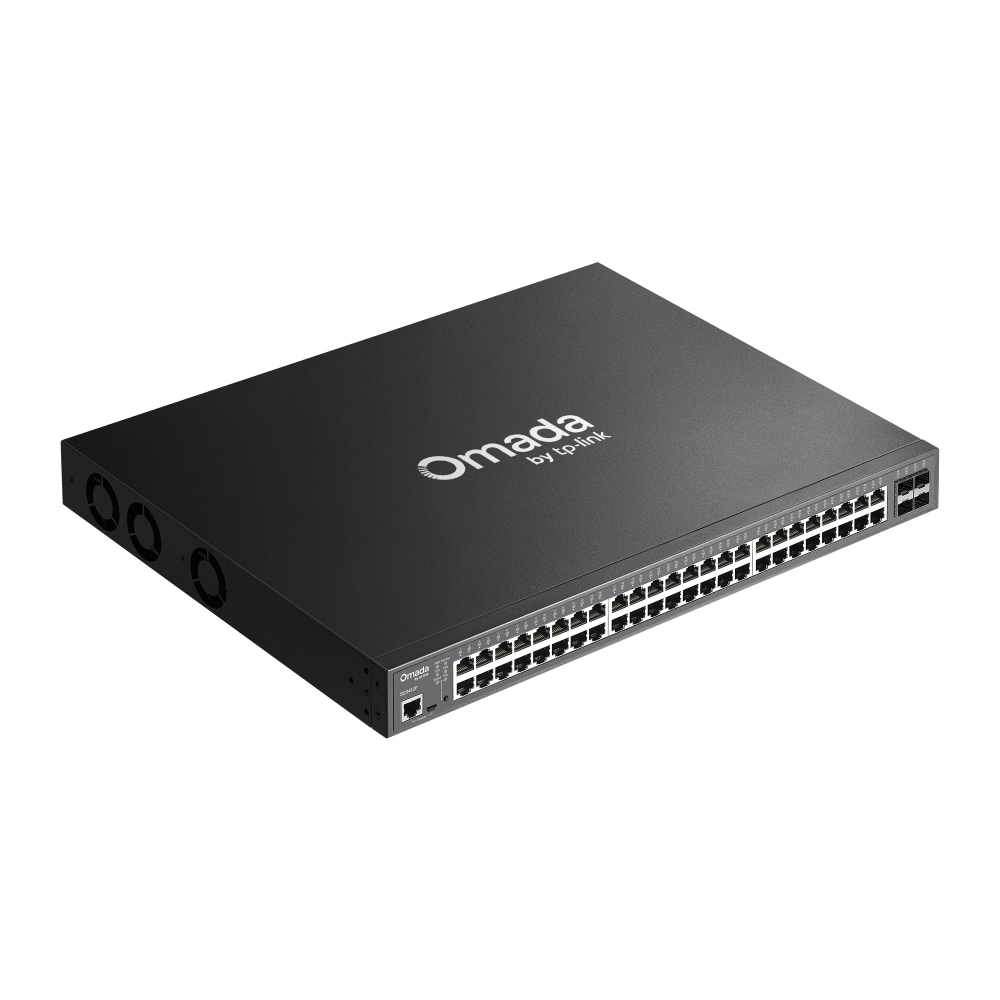

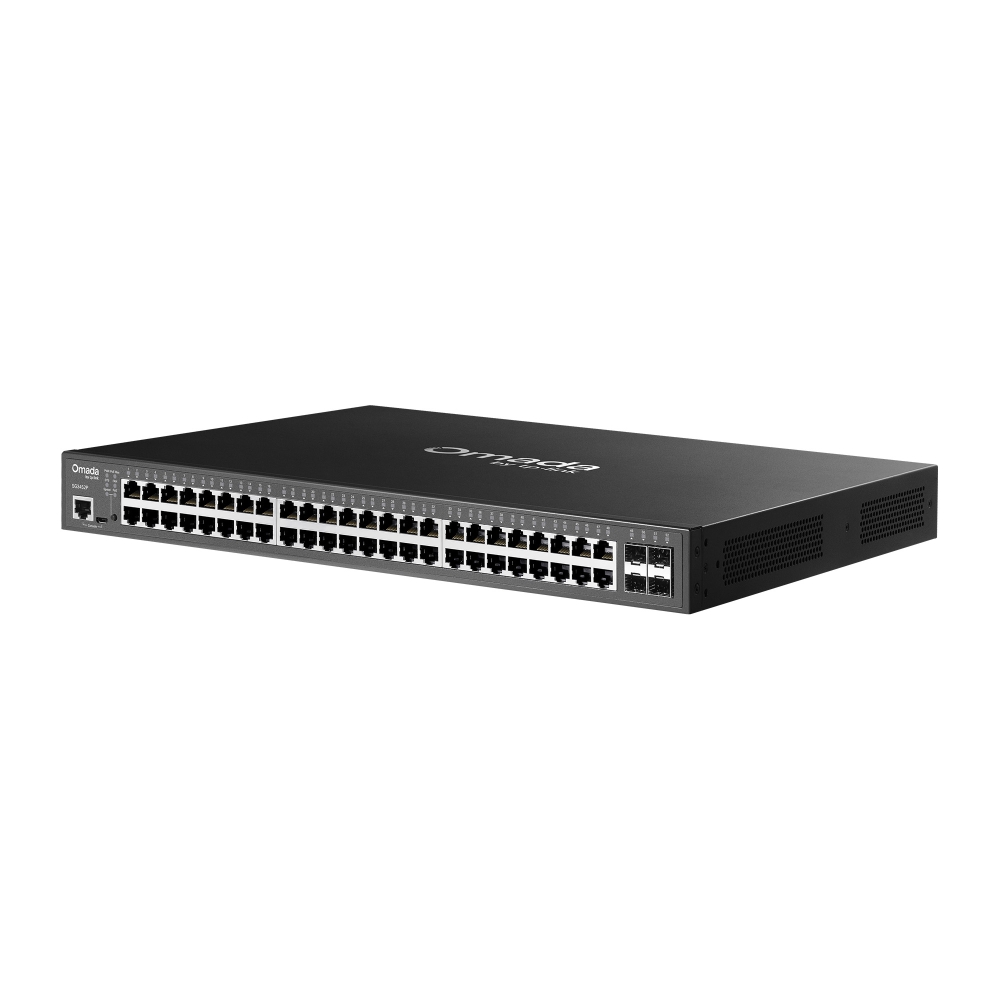

Omada Access 52-Port Gigabit Switch with 48-Port PoE+

48× Gigabit 802.3af/at PoE+ ports and 4× Gigabit SFP slots
384 W total PoE budget with up to 30 W PoE output per port*
Centralized cloud management via the web or the Omada app^†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
ERPS supports rapid protection and recovery in a ring topology
Durable metal casing and rackmountable design

Learn more about Omada PoE technology >

Learn more about Omada Cloud SDN>

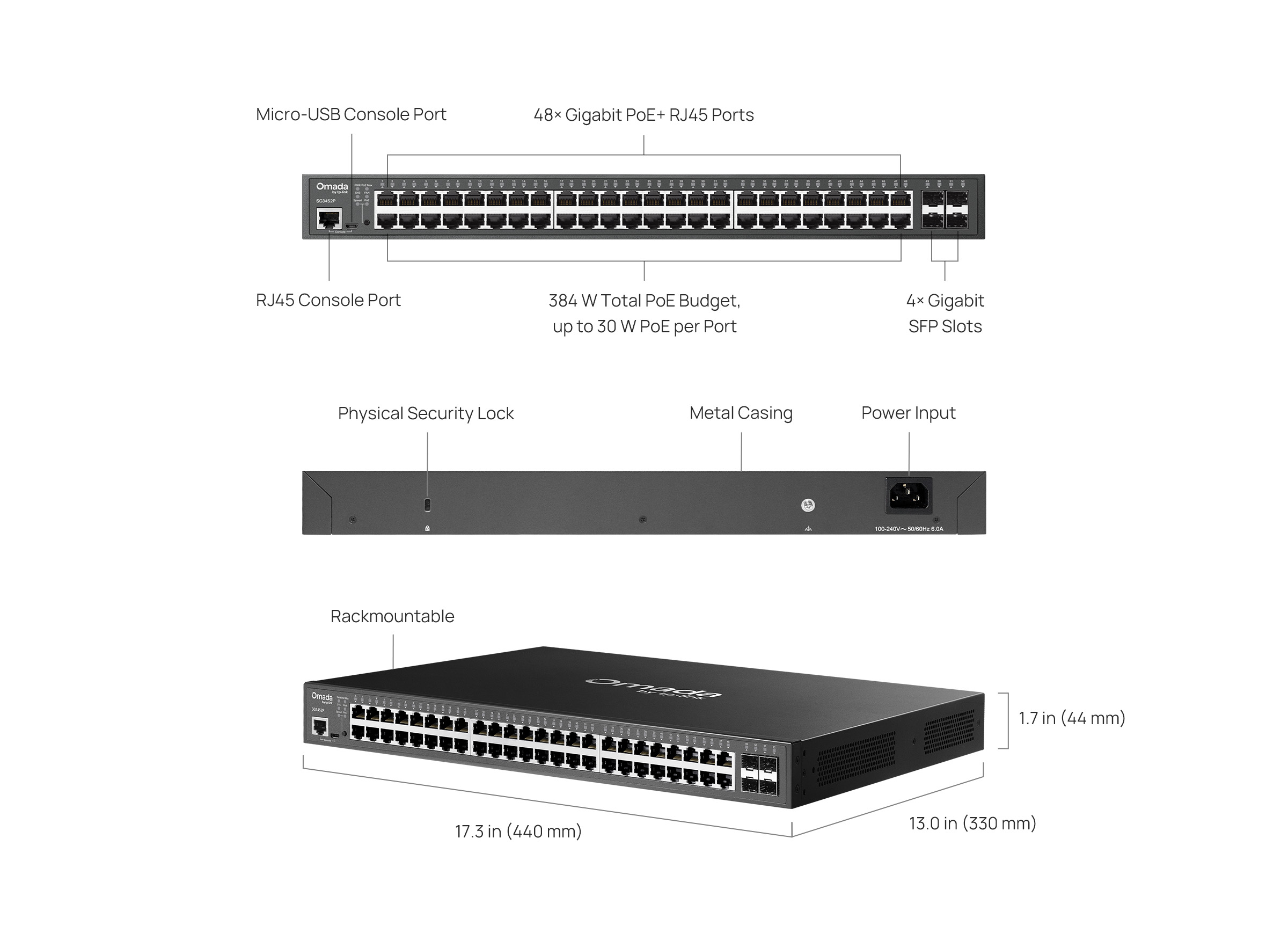

48× Gigabit PoE+ Ports,
4× Gigabit SFP Slots
384 W Total
PoE Budget*
Zero-Touch
Provisioning^†
Centralized
Management^†
Omada
App^†
Static
Routing
Ethernet Ring
Protection Switching
Traffic
Separation

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Learn More >

Cloud-Based Controller

Cloud

Standard Version or Essentials Version

On-Premises Controllers

Software

Hardware

Internet

Omada Gateway

Omada
PoE Switch

PoE

Omada
Access Points

Cloud Access to Omada Controller

Web Browser

Omada App

IP Camera

Multiple Application Scenarios

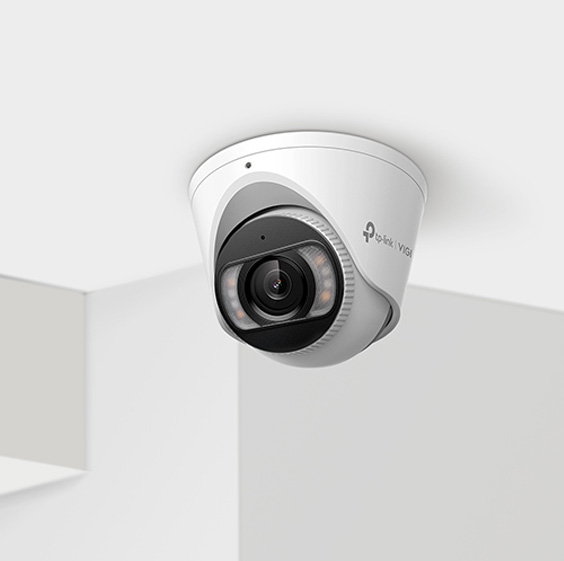

Surveillance

Works with IP Cameras
Conference Call

Works with IP Phones
Wi-Fi Coverage

Works with Access Points
Wired Connections

Works with Non-PoE Devices
such as PCs
and Printers

HARDWARE FEATURES
Interface	• 48× 10/100/1000 Mbps PoE+ RJ45 Ports • 4× Gigabit SFP Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port
Fan Quantity	3
Physical Security Lock	√
Power Supply	100-240 V AC, 50/60 Hz
PoE Ports (RJ45)	• Standard: 802.3at/af compliant • PoE+ Ports: 48 Ports (up to 30 W PoE Output per Port) • PoE Power Budget: 384 W* • Fast PoE & Perpetual PoE
Dimensions ( W x D x H )	17.3×13.0×1.7 in (440×330×44 mm)
Surge Protection	±6 kV
Mounting	Rack Mountable
Max. Power Consumption	• 464.2W (110 V/60 Hz @ 25 °C) (with 384 W PD connected) • 447.4 W (220 V/50 Hz @ 25 °C) (with 384 W PD connected)
Max. Heat Dissipation	• 1582.92 BTU/hr (110 V/60 Hz @ 25 °C) (with 384 W PD connected) • 1525.63 BTU/hr (220 V/50 Hz @ 25 °C) (with 384 W PD connected)

PERFORMANCE
Packet Buffer Memory	12 Mbit
Jumbo Frame	9 KB
Switching Capacity	104 Gbps
Packet Forwarding Rate	77.38 Mpps
MAC Address Table	16 K

SOFTWARE FEATURES
Quality of Service	• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark
L2 and L2+ Features	• 32 IPv4/IPv6 Interfaces • Static Routing: 48 Static Routes • Static ARP: 128 static entries • 316 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring
L2 Multicast	• Supports 511 (IPv4, IPv6) IGMP groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features	• Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Intelligent Network Monitoring^† • Abnormal Event Warnings^† • Unified Configuration^† • Reboot Schedule^† ISP Features**: • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • Digital Diagnostic Monitoring (DDM) • PPPoE ID Insertion • sFlow • ERPS • 802.3ah Ethernet Link OAM
VLAN	• VLAN Group: Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 48 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • GVRP • VLAN VPN (QinQ): Port-Based QinQ; Selective QinQ • Voice VLAN
Access Control List	• Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy: Mirroring, Redirect, Rate Limit, QoS Remark • ACL apply to Port/VLAN
Security	• IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard: 100 Entries • DoS Defend • DHCP Filter • Static/Dynamic Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode • 802.1X - Port-based authentication - Mac-base authentication - VLAN Assignment - MAB - Guest VLAN - Radius authentication and accountability support • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control
IPv6	• IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • RADIUS Accounting Client MIB (RFC2620) • RADIUS Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link Private MIB

Management Features
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later) • Omada Hardware Controller (Requires built-in version 5.15.20 or later) • Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log • Dying Gasp • ONVIF

OTHERS
Certification	CE, FCC, RoHS

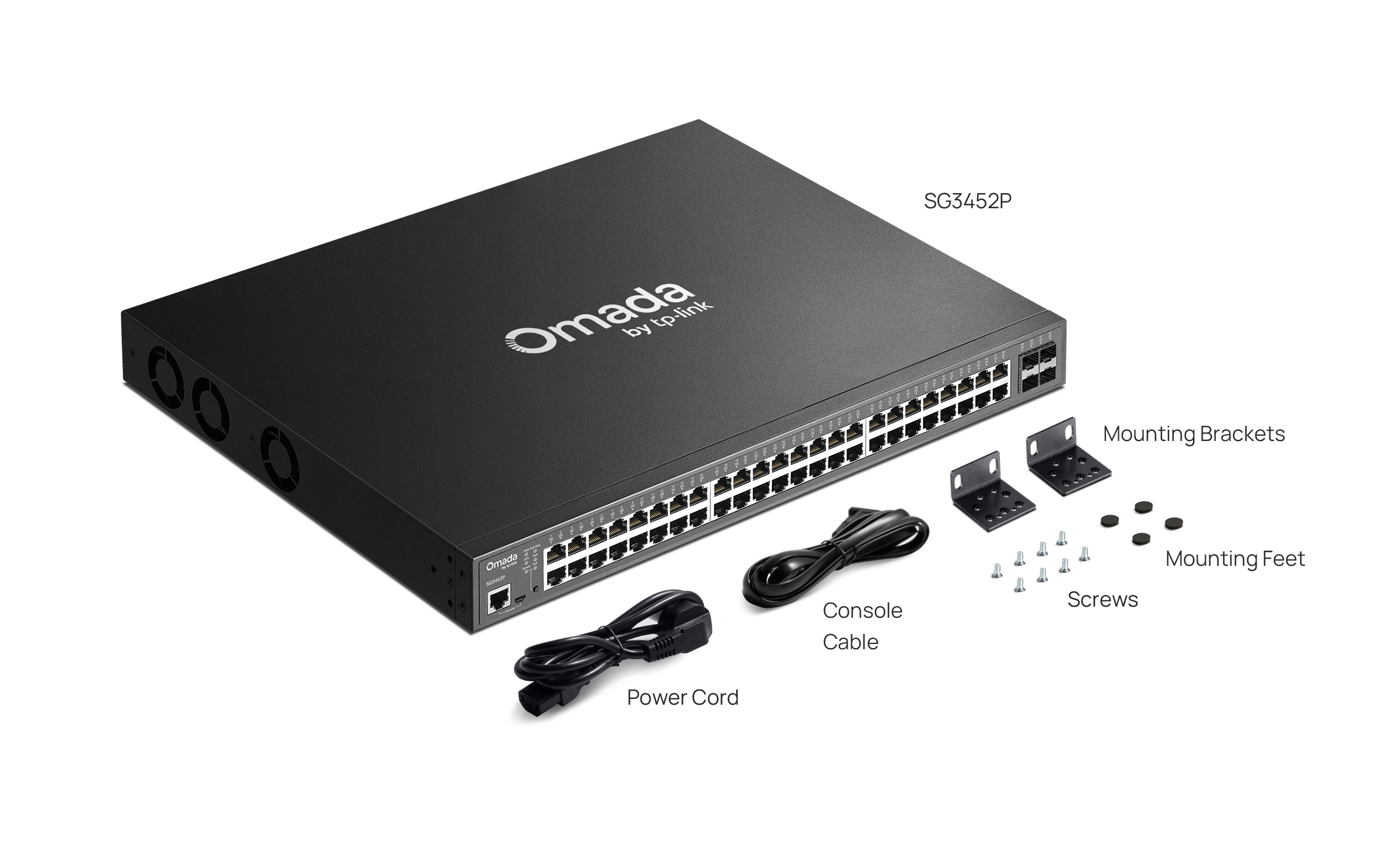

Package Content	• SG3452P Switch • Power Cord • Console Cable • Mounting Brackets • Mounting Feet • Screws • Installation Guide
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: -5 ̊C–45 ℃ (23 °F–113 ℉); • Storage Temperature: -40 °C–70 ℃ (-40 °F–158 ℉) • Operating Humidity: 10%–90% RH non-condensing • Storage Humidity: 5%–90% RH non-condensing

For additional version information, please go to the support page.

^†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.

*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.

**ISP features can only be configured in standalone mode.
