DS108G-M2
End of LifeOmada 8-Port 2.5G Multi-Gigabit Unmanaged Desktop Switch
- Eight 2.5 Gbps Ports. 8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 40 Gbps of switching capacity.
- Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.
- Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,
- Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.*
- Loop Prevention. Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping.
- Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play. No configuration or central management required.**
- Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
-
Eight 2.5G
Ports -
Hassle-Free
Cabling -
Fanless Design for
Silent Operation -
Plug
and Play -
Loop
Prevention -
Optimized Multicast,
Prioritized Traffic -
Desktop/
Wall-Mounting -
Metal
Casing
2.5G Super-Fast Speeds without Changing Cables
This switch delivers 2.5 times faster network performance than traditional Gigabit switches. It works with CAT5e, CAT6, CAT6a and above cables without upgrading your cabling.
-
2.5 Gbps 2.5×
Faster -
1 Gbps
-
CAT5e Cable
-
CAT6 Cable
-
CAT6a Cable
Unlock the peak performance of 2.5G
Multi-Gig Bandwidth
and Devices
Wi-Fi 6/7 AP
Computer
NAS/Server
Video
Video RecorderRecorder

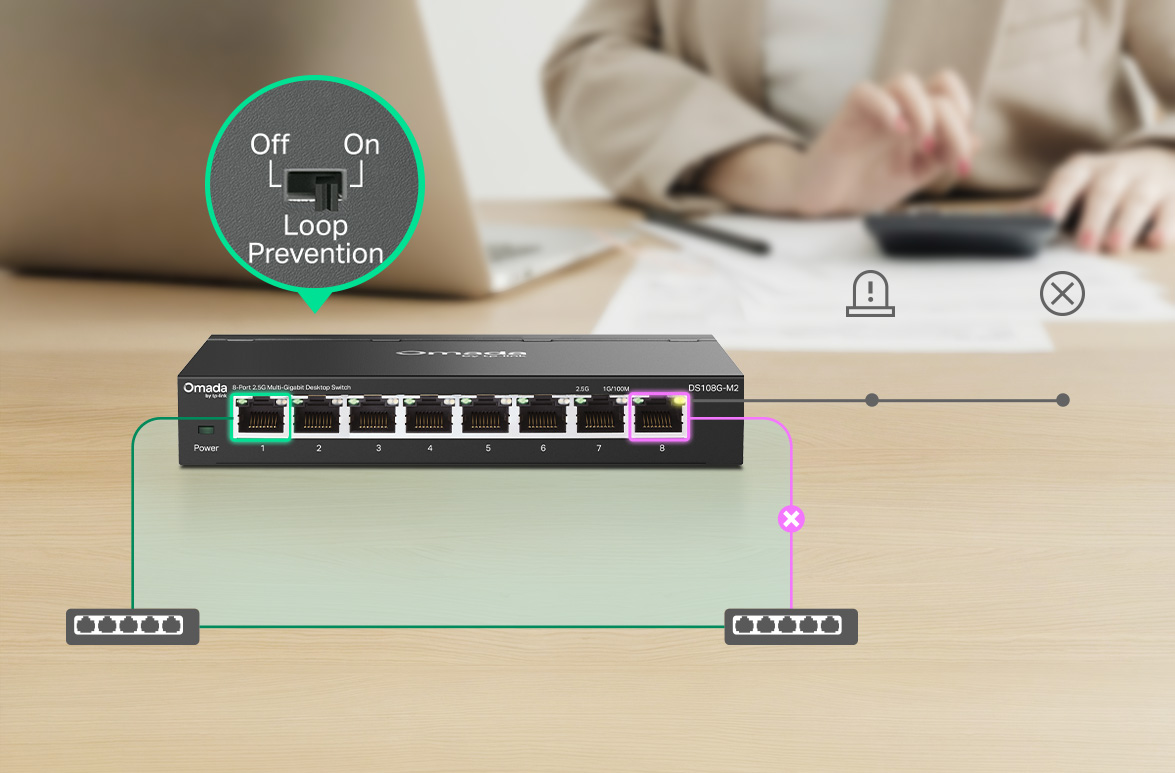

Prevent Network Loops
with Ease
Automatically detect loops and block the corresponding port while the port indicator flash slowly to alert. Easy to monitor and address loop-related issues within your network.

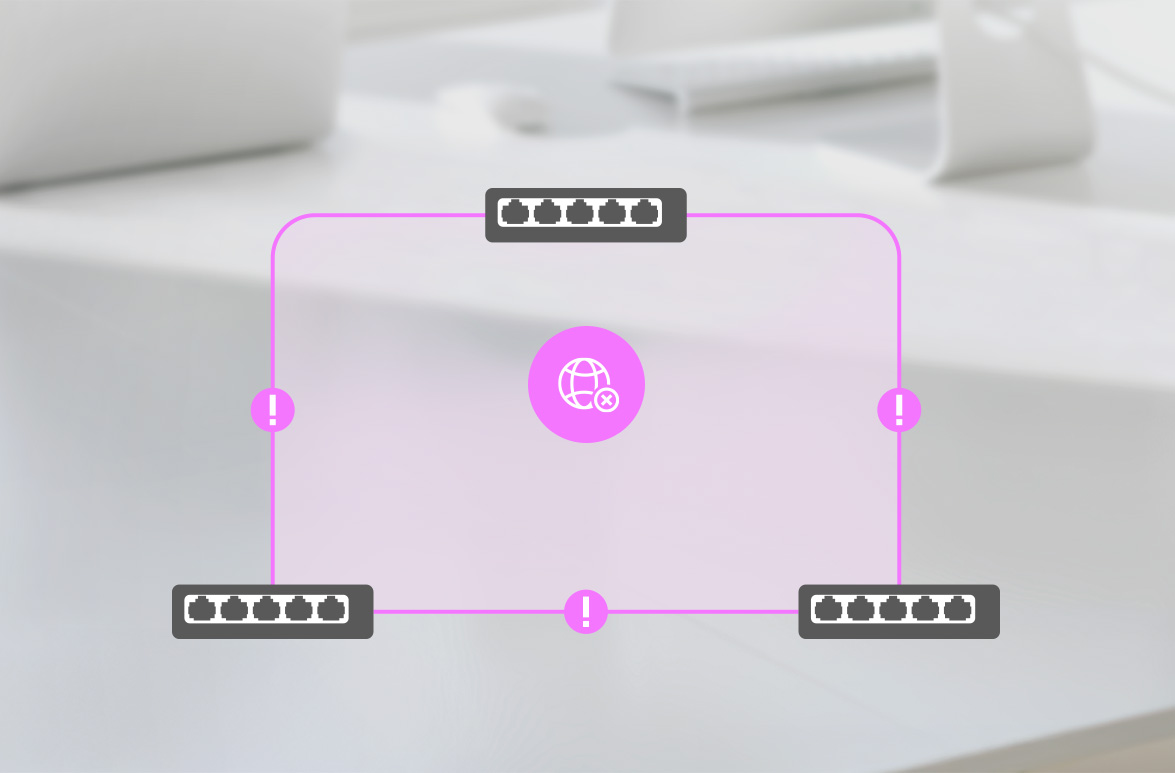

Other switch
Network Outage
Without Loop Prevention
Loop Prevention
Detection
Block
With Loop Prevention

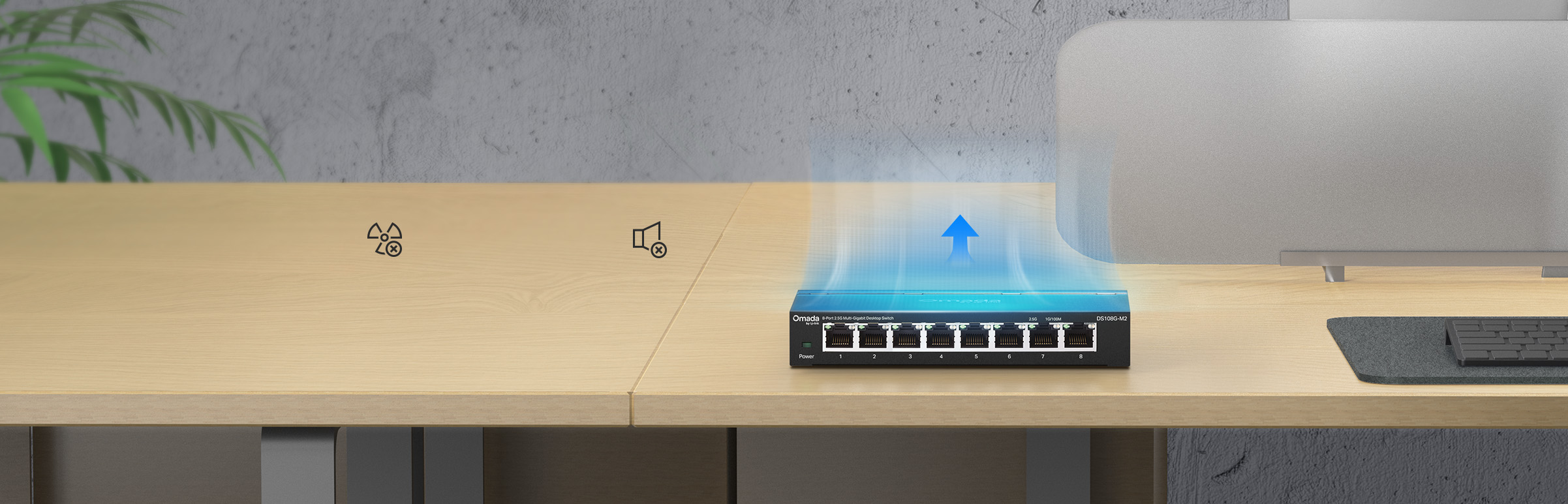

Fanless Design for Heat Dissipation and Silent Operation
Fanless Design
Silent Operation
Multiple Application Scenarios
LAN Party
Home Entertainment
Small and Home Offices
Plug and Play
1. Connect to Power
2. Connect the Devices
IP Phone
IP Camera
Access Point
Internet
Router
3. Enjoy
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
| Interface | 8× 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 12 VDC / 1.0 A) |
| LED | • Power• Link/Act Indicators |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25.4 mm) |
| Max. Power Consumption | 8.87 W |
| Max. Heat Dissipation | 30.158 BTU/h |
| PERFORMANCE | |
|---|---|
| Jumbo Frame | 12 KB |
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.8 Mpps |
| MAC Address Table | 4 K |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • 802.3X Flow Control• 802.1p/DSCP QoS• IGMP Snooping• Loop Prevention |
| Transmission Method | Store and Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC ,RoHS |
| Package Content | • DS108G-M2• Power Adapter• Installation Guide• Rubber Feet |
| Environment | • Operating Temperature: -5–40 °C (23–104 °F)• Storage Temperature: -40–70 °C (-40–158 °F)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
*Only Cat5e or better cables do not need to be replaced.
**Omada Unmanaged Switches do not support Omada SDN central management.
