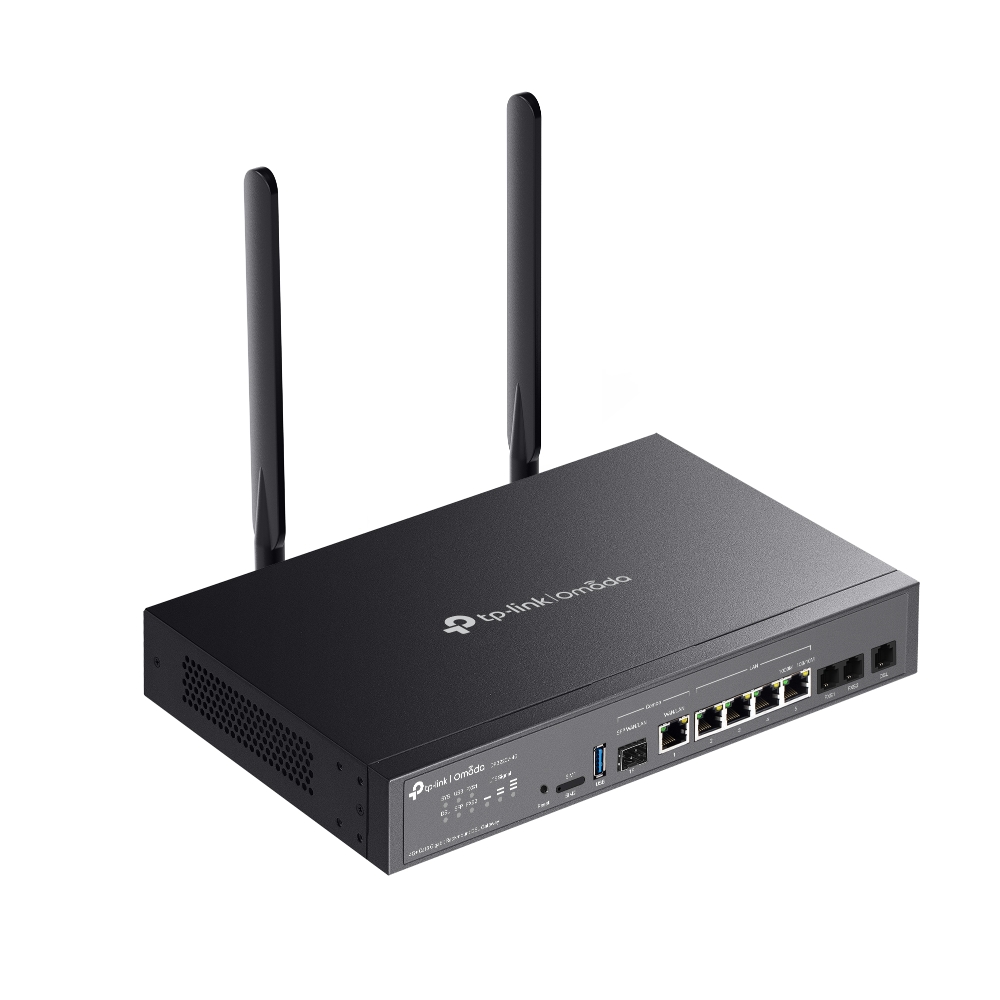

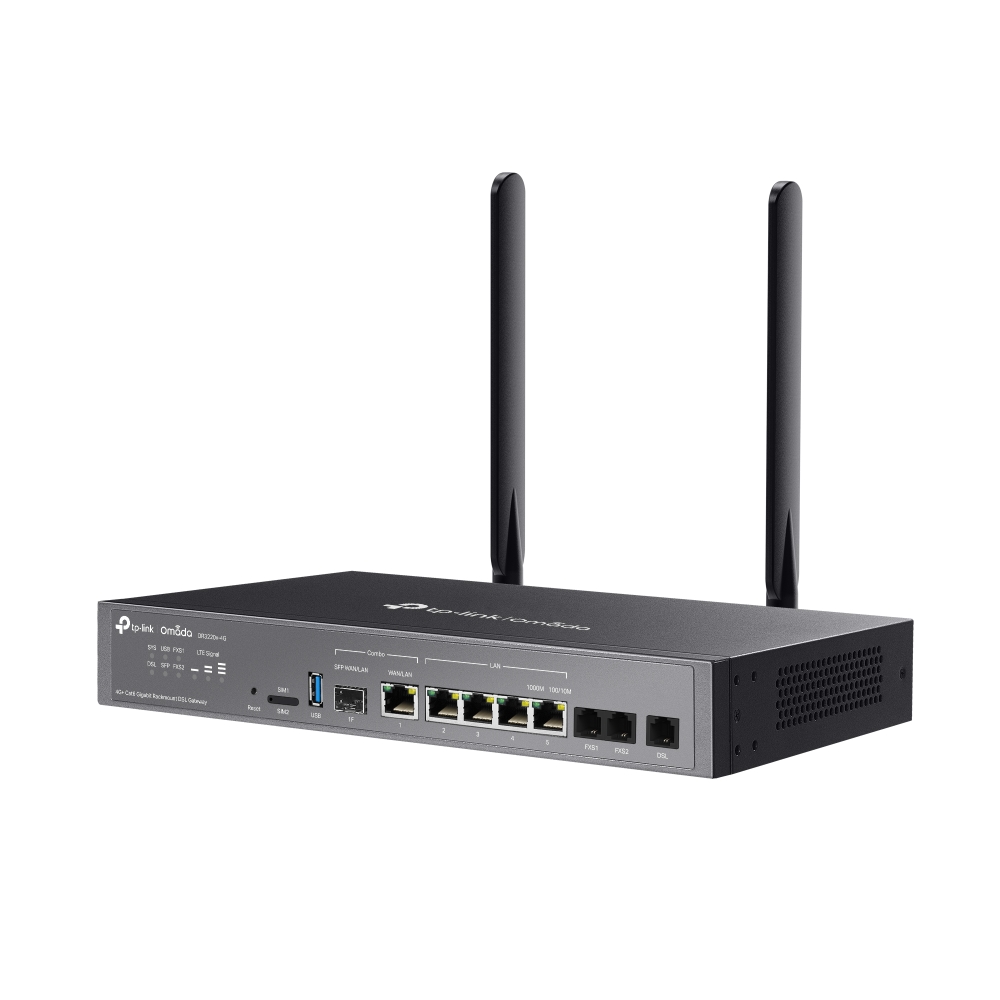

DR3220v-4G
Omada 4G+ Cat6 Gigabit Rackmount DSL Gateway
- Support 4G+ Cat6 up to 300 Mbps*
- Super VDSL (VDSL2 35b): Supports 350Mbps DSL Access†
- VDSL2/ADSL2+/ADSL2/ADSL Compatibility

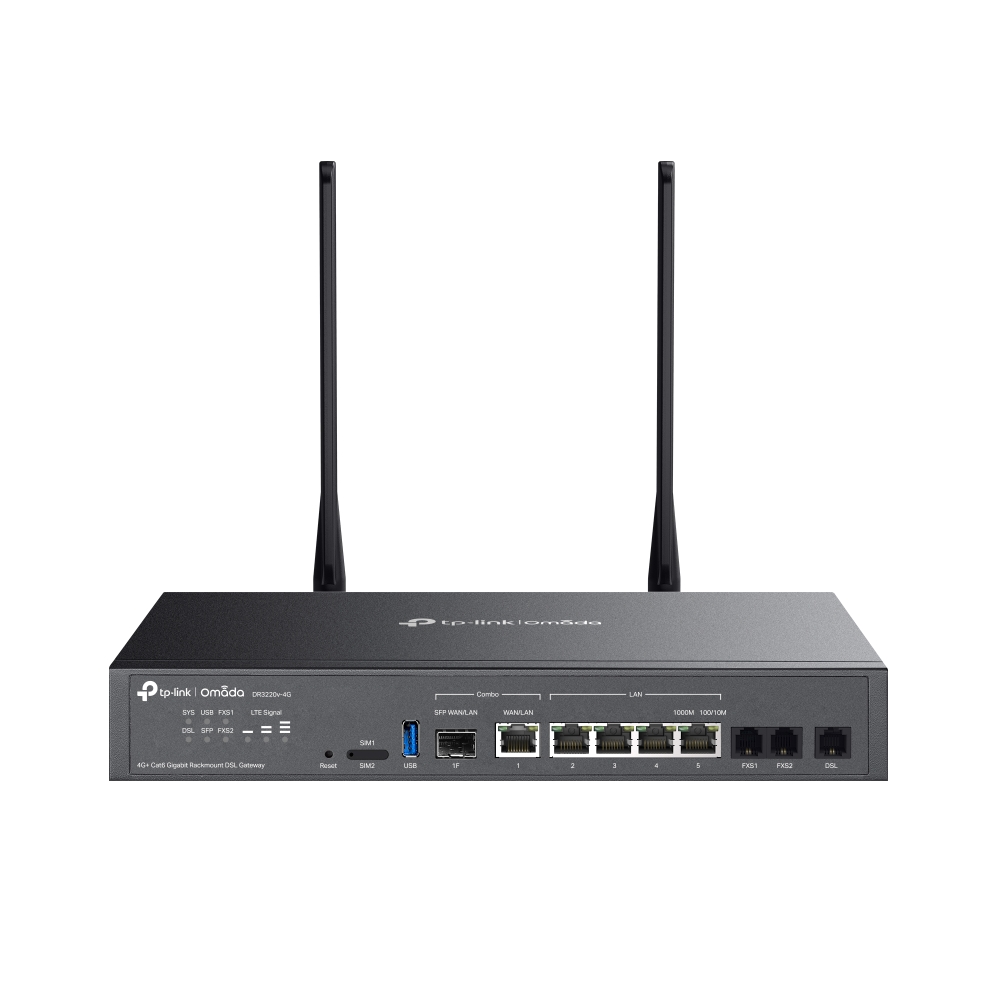

- 1× DSL Port, 2× FXS Ports, 1× Gigabit SFP/RJ45 Combo WAN/LAN Port, 4× Gigabit RJ45 LAN Ports, 1× USB 3.0 Port
- 1× Dual-SIM Nano SIM Slot for 4G/LTE Failover
- DPI Security Support
- IPSec / PPTP / L2TP / OpenVPN / WireGuard / GRE** / SSL VPN
- Load Balancing Across DSL, 4G, and Ethernet WAN for Optimized Connectivity
- Centralized Cloud Management
- Desktop / Rack-Mounting
-
Super VDSL
(Up to 350 Mbps)† -
VDSL2/ADSL2+/
ADSL2/ADSL
Compatibility -
4G+ Cat6 Up to 300
Mbps* -
2× Nano SIM for 4G/LTE Failover
-
5× Gigabit Ports
(1× Combo SFP/RJ45 WAN/LAN, 4× RJ45 LAN) -
IPSec/PPTP/L2TP/
OpenVPN/WireGuard
/GRE/SSL VPN -
VoIP Support
-
Centralized
Management -
Load Balancing
Between DSL,
Ethernet WAN and 4G -
Easy & Flexible Installation
Get the Higher DSL Speeds Cost-Effectively
The integrated DSL port supports Super VDSL (VDSL2 35b) and is compatible with VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.
Get Instant 4G+ LTE
Internet up to 300 Mbps
-
CH#1150Mbps4G LTE Gateway
-
CH#1CH#2300Mbps4G+ Cat6 Gateway
Versatile Connectivity
DR3220v-4G's compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, 4G access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.
Ethernet Access
4G/3G USB Modem
Modem
Software Defined Networking (SDN) with Cloud Access
Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.Δ
Cloud-Based Controller
High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
| SECURITY | |
|---|---|
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • Web Group Filtering**• URL Filtering• Web Security** |
| ARP Inspection | • Sending GARP Packets• ARP Scanning**• IP-MAC Binding |
| Attack Defense | • TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN |
| HARDWARE FEATURES | |
|---|---|

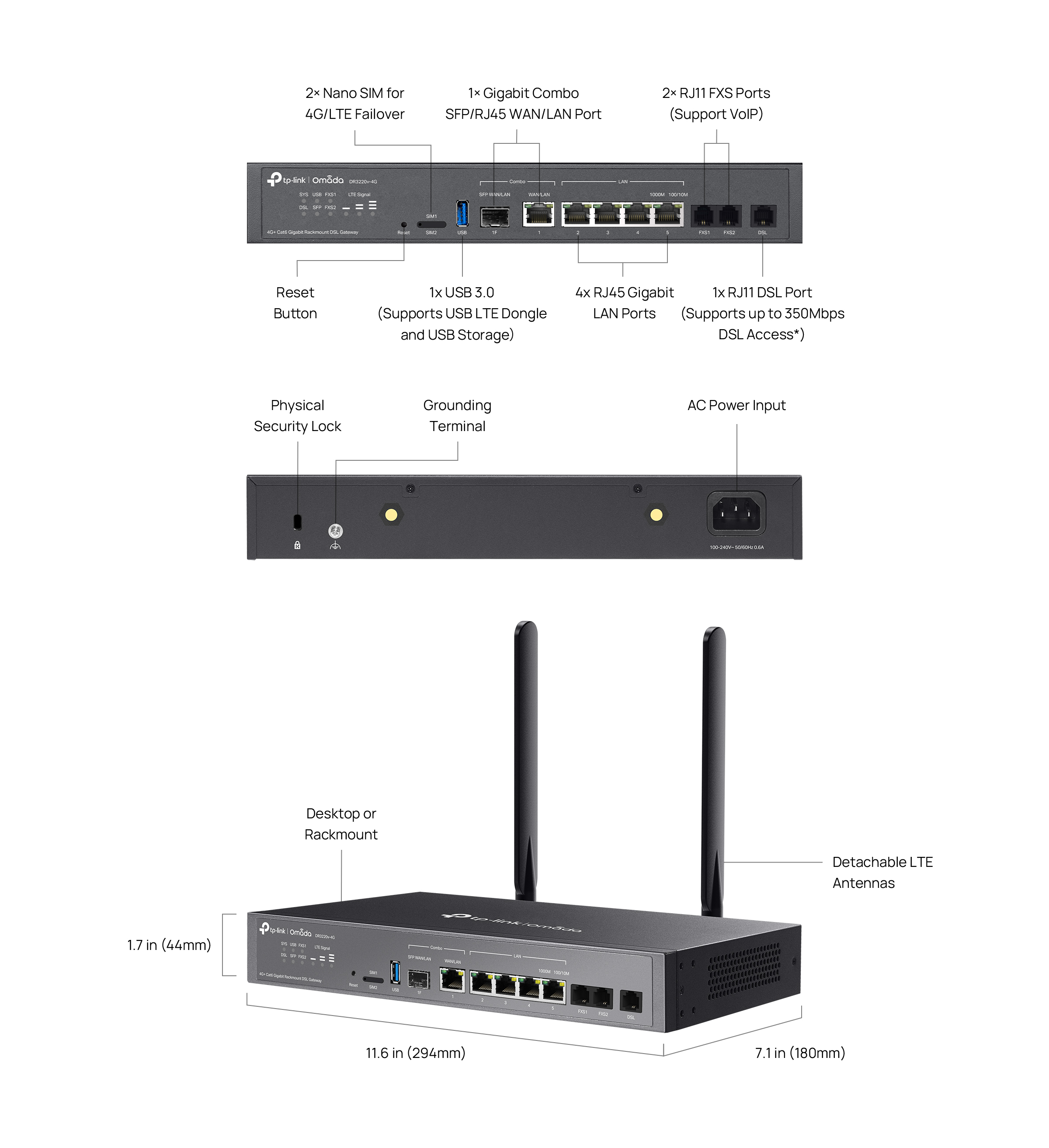

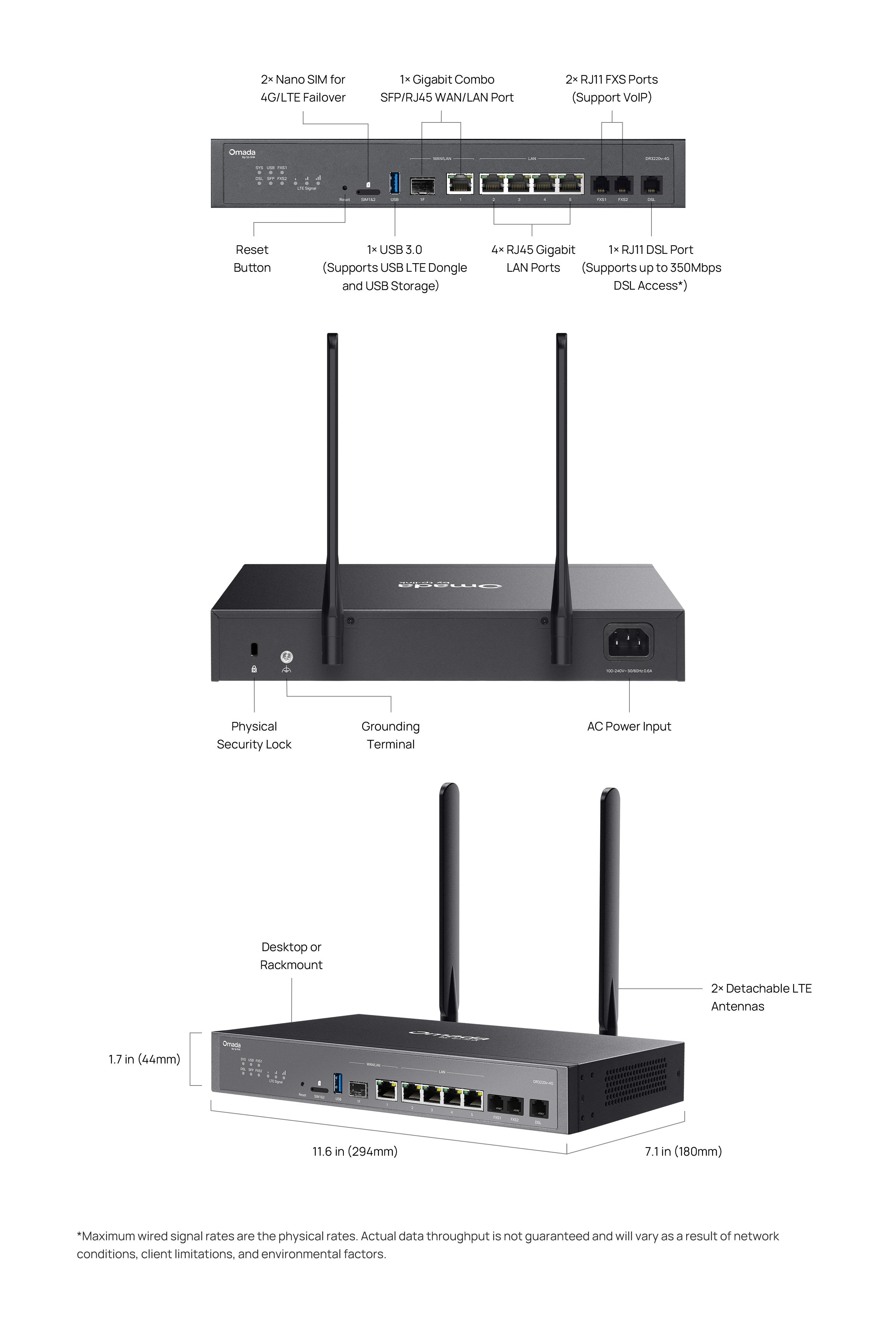

| Interface | • 1 Combo Gigabit SFP/RJ45 Port (1 SFP WAN/LAN Port + 1 WAN/LAN Port)• 4 × RJ45 Gigabit LAN Ports• 1 DSL Port• 2 FXS Ports |
| Button | Reset Button |
| Power Supply | 100-240V/50-60Hz 0.6A |
| Slot | 1*USB 3.0 (supports USB LTE dongle and USB Storage) |
| Flash | 256MB NAND |
| DRAM | 512MB DDR4 |
| Dimensions ( W x D x H ) | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) (Antenna dimensions not included) |
| Antenna | LTE: Two 3dBi omnidirectional detachable antennas |
| SIM Slot | 1 Dual-SIM Nano SIM slot (4G+ Cat6) |
| Mounting | Desktop/ Rack-mounting |
| Max. Power Consumption | • 8.55 W (No Link) • 24.4 W (Full load + USB ) |
| PERFORMANCE | |
|---|---|
| GRE | • Unencrypted: 491.9Mbps• Encrypted: 244.3Mbps |
| WireGuard VPN | 290Mbps |
| Concurrent Session | 150,000 |
| New Sessions /Second | 4,050 |
| NAT (Static IP) | 937.2 Mbps/936.1Mbps |
| NAT(DHCP) | 945.8 Mbps /940.6Mbps |
| NAT(PPPoE) | 942.9 Mbps/942.9Mbps |
| NAT (L2TP) | 837.4 Mbps / 881.5Mbps |
| NAT (PPTP) | 803.0 Mbps / 910.5 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 526.6Mbps• ESP-SHA256-AES256: 543.3Mbps• ESP-SHA384-AES256: 549.0Mbps• ESP-SHA512-AES256: 561.7Mbps |
| OpenVPN | 129.3Mbps |
| L2TP VPN Throughput | Unencrypted: 909.4 MbpsEncrypted: 494.9Mbps |
| PPTP VPN Throughput | Unencrypted: 897.5 MbpsEncrypted: 190.8 Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81274 pps/ 91275 pps |
| BASIC FUNCTIONS | |
|---|---|
| WAN Connection Type | • Static IP• Dynamic IP• PPPoE (supports MRU Configuration)• PPTP• L2TP |
| MAC Clone | Modify WAN Address |
| DHCP | • DHCP Server• DHCPv6 PD Server (only in Standalone Mode)• DHCP Options Customization• DHCP Address Reservation• Multi-IP Interfaces• Multi-Net DHCP |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Features | |
|---|---|
| Bandwidth Control | IP-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance• Application Optimized Routing• Link Backup (Timing, Failover)• Online Detection |
| NAT | • One-to-One NAT• Multi-Net NAT• Virtual Server• Port Triggering**• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP |
| Session Limit | IP-based Session Limit |
| VPN | |
|---|---|
| GRE | Only in Standalone Mode |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IPsec Failover• IKE v1/v2• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server• PPTP VPN Client (10)§• 50 Tunnels• PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server• L2TP VPN Client (10)§• 50 Tunnels• L2TP over IPSec |
| OpenVPN | • OpenVPN Server• OpenVPN Client (5)§• 55 OpenVPN Tunnels• "Certificate + Account" Mode• Full Mode |
| WireGuard VPN | ✔ |
| Management Features | |
|---|---|
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of Omada Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface• Remote Management• Export & Import Configuration• SNMP v1/v2c/v3• Diagnostics (Ping & Traceroute)• NTP Synchronize1• Port Mirroring• CLI (only in Standalone Mode)• Syslog Support• TR-069 (data models of TR-098 and TR-181 are supported) |
| Zero-Touch Provisioning | Yes. Require the use of Omada Controller. |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |

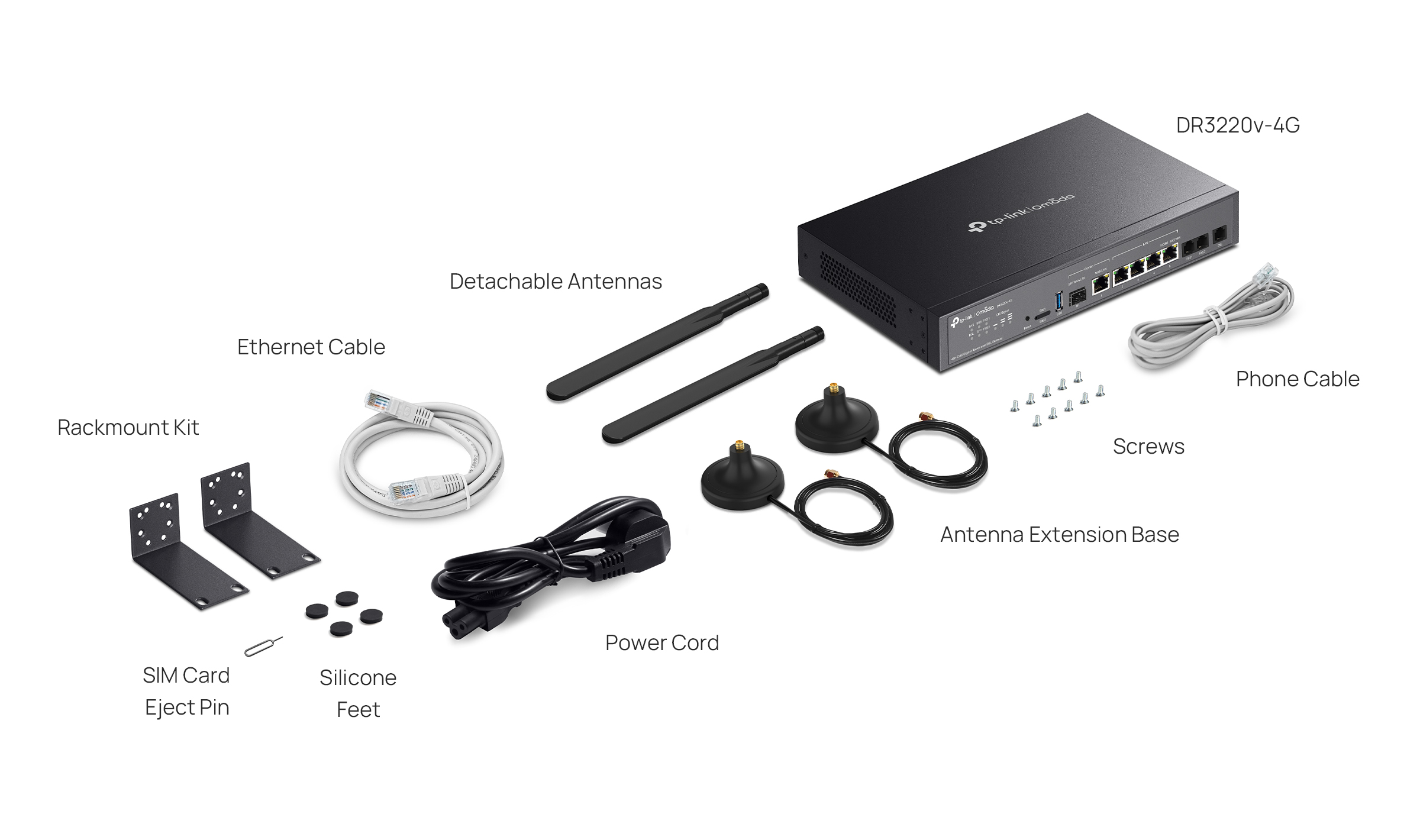

| Package Content | • DR3220v-4G• Power Cord• Ethernet Cable• Phone Cable • Rubber Feet• SIM Card Eject Pin• Rackmount Kit• Antenna Extension Base• Quick Installation Guide |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11• MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)• Operating Humidity: 10% to 90% non-condensing• Storage Humidity: 5% to 90% non-condensing |
†Maximum wired signal rates are the physical rates. Actual data throughput is not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors.
*Actual 4G downlink speeds vary between buildings. Factors affecting 4G speeds include the internet service plan, real-time network capacity, equipment and client limitations, and environmental factors.
**Supported only in Standalone Mode.
§Supported only in Controller Mode.
