EAP720-WE
BE3600 In-Wall Wi-Fi 7 Access Point

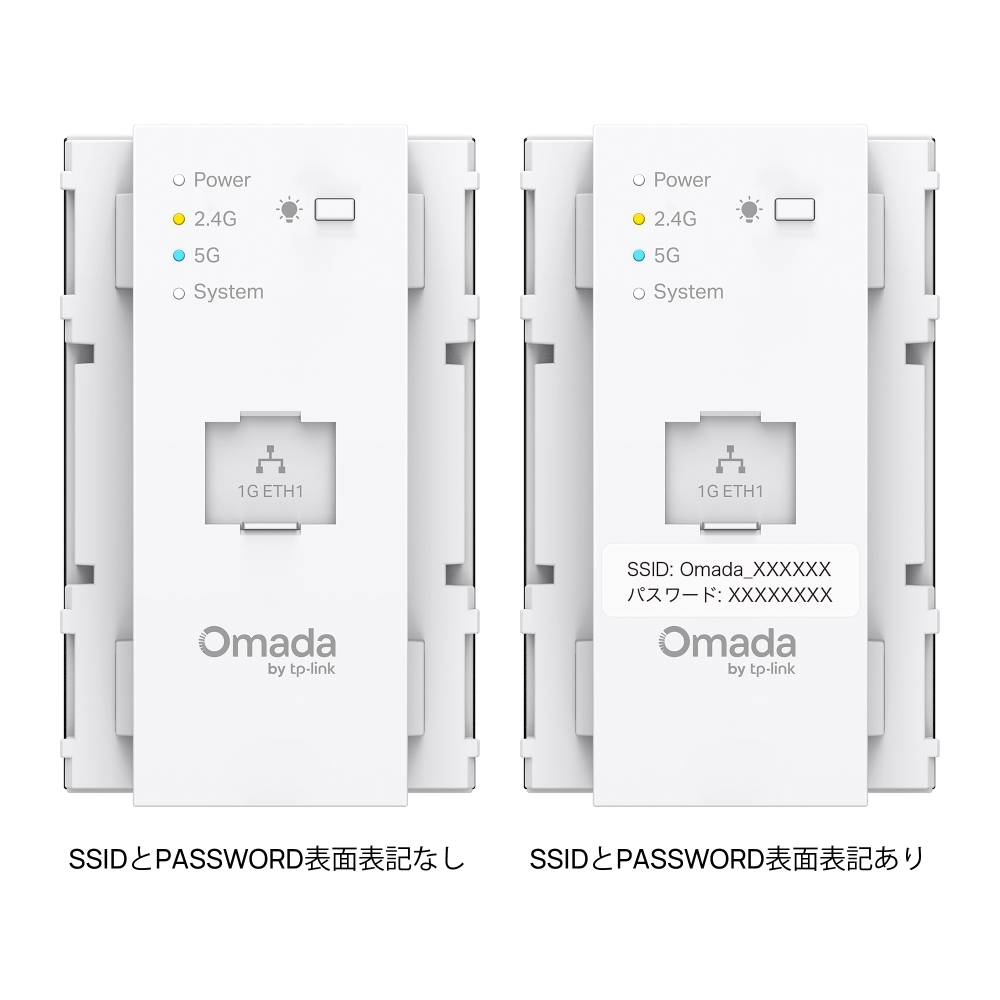

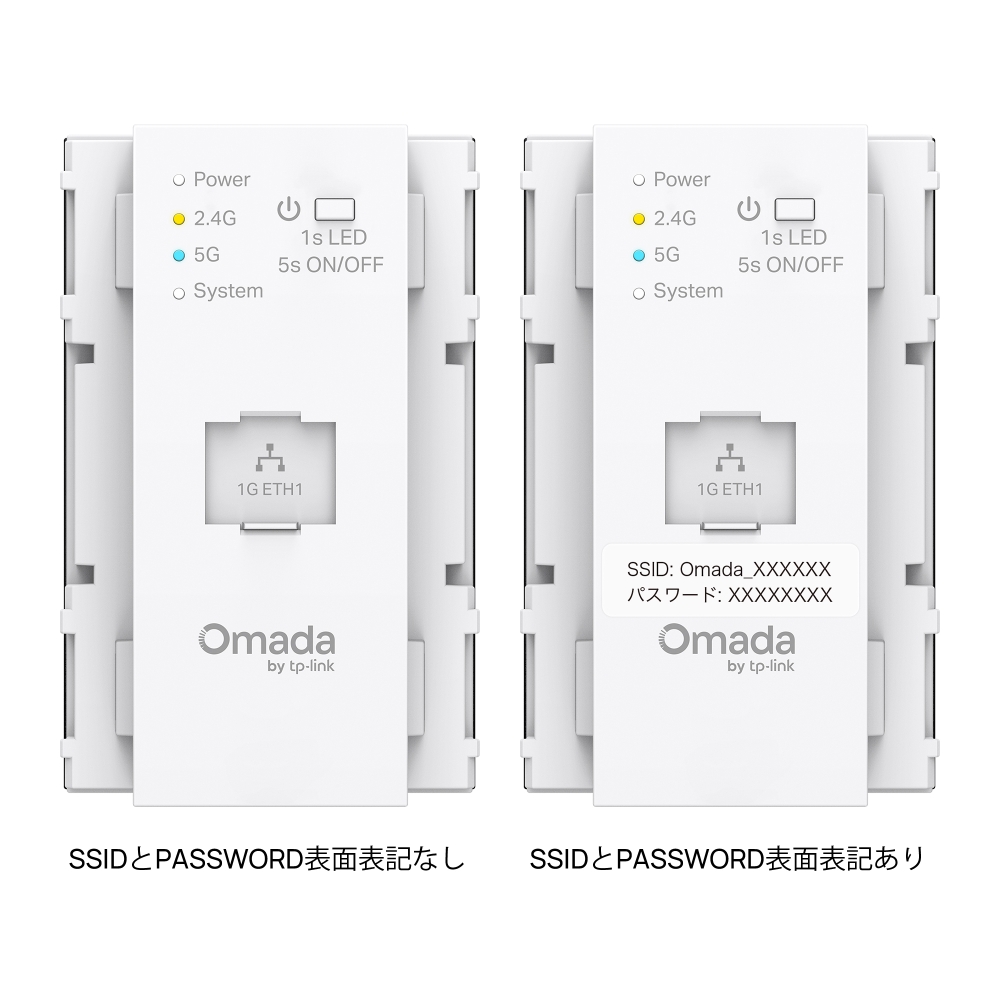

- Two Version Offered: With SSID and password and without SSID and password. The version with SSID and password supports plug and play.*
- Ultra-Fast BE3600 WiFi 7 Speeds: Simultaneous 688 Mbps on 2.4 GHz and 2882 Mbps on 5 GHz totals 3570 Mbps WiFi speeds.†
- Superb Wi-Fi 7 Technology: Multi-Link Operation, 4K-QAM, and Multi-RUs ensure the high performance of your network.‡
- Seamless Connectivity: Omada mesh and seamless roaming bring smooth experience.§
- Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.

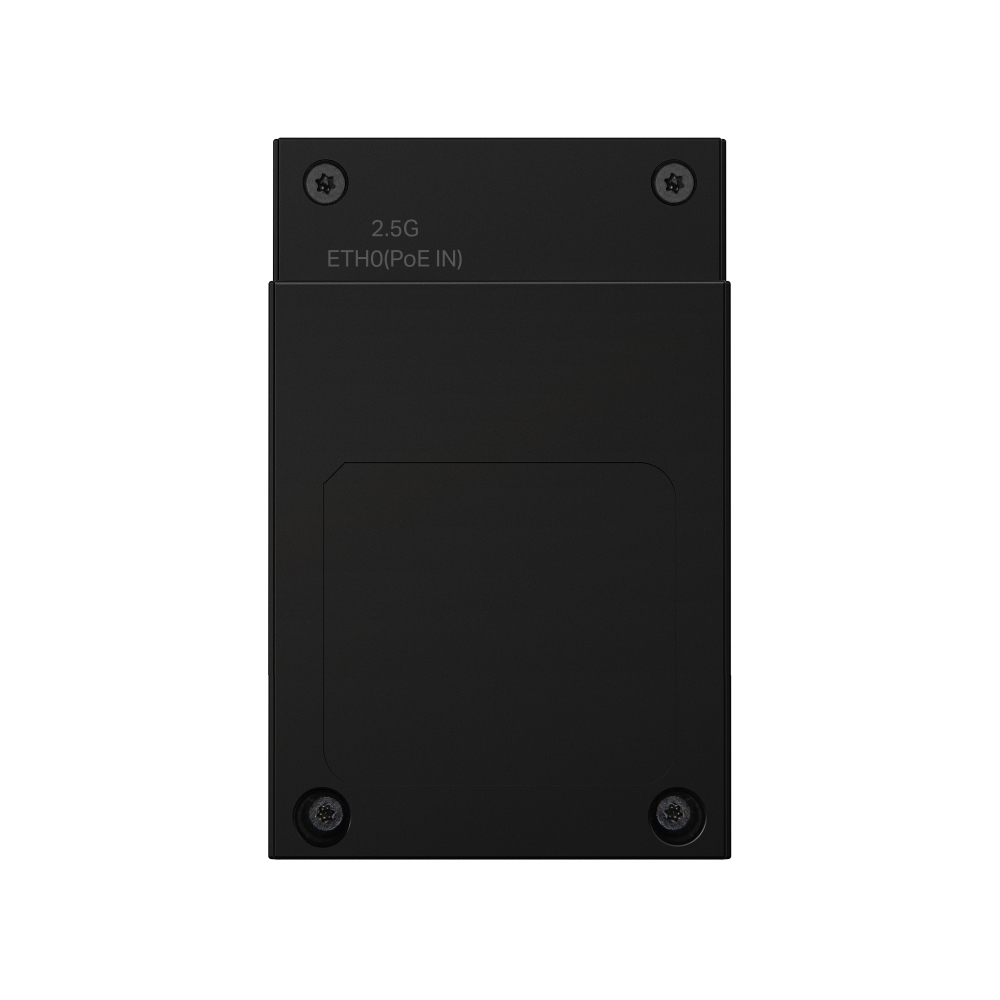

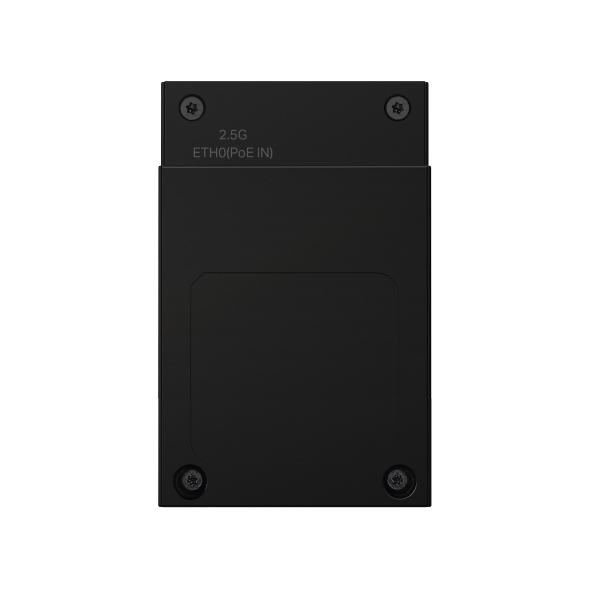

- Optimized Wired Performance: A 2.5GbE uplink port and a 1GbE downlink port for high-speed data transfers.
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Secure Guest Network: Implement multiple authentication options (SMS/Voucher) packed with high-quality wireless security technologies.§
- In-Wall Design for Easy Installation: Concealed wall-mounted design with 802.3af PoE support.
-
Wi-Fi 7 Speeds up to
3.6 Gbps† -
1× 2.5G Port + 1×
Gigabit Port -
802.3af PoE
-

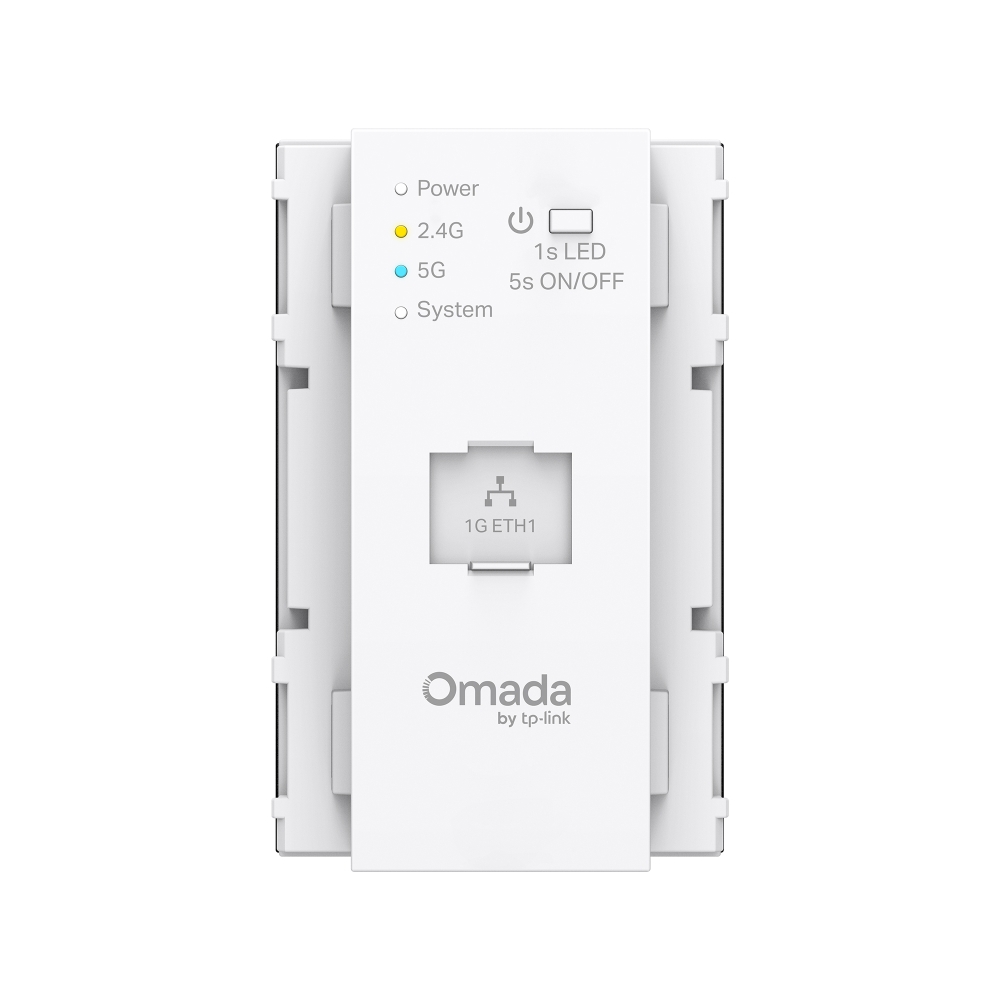

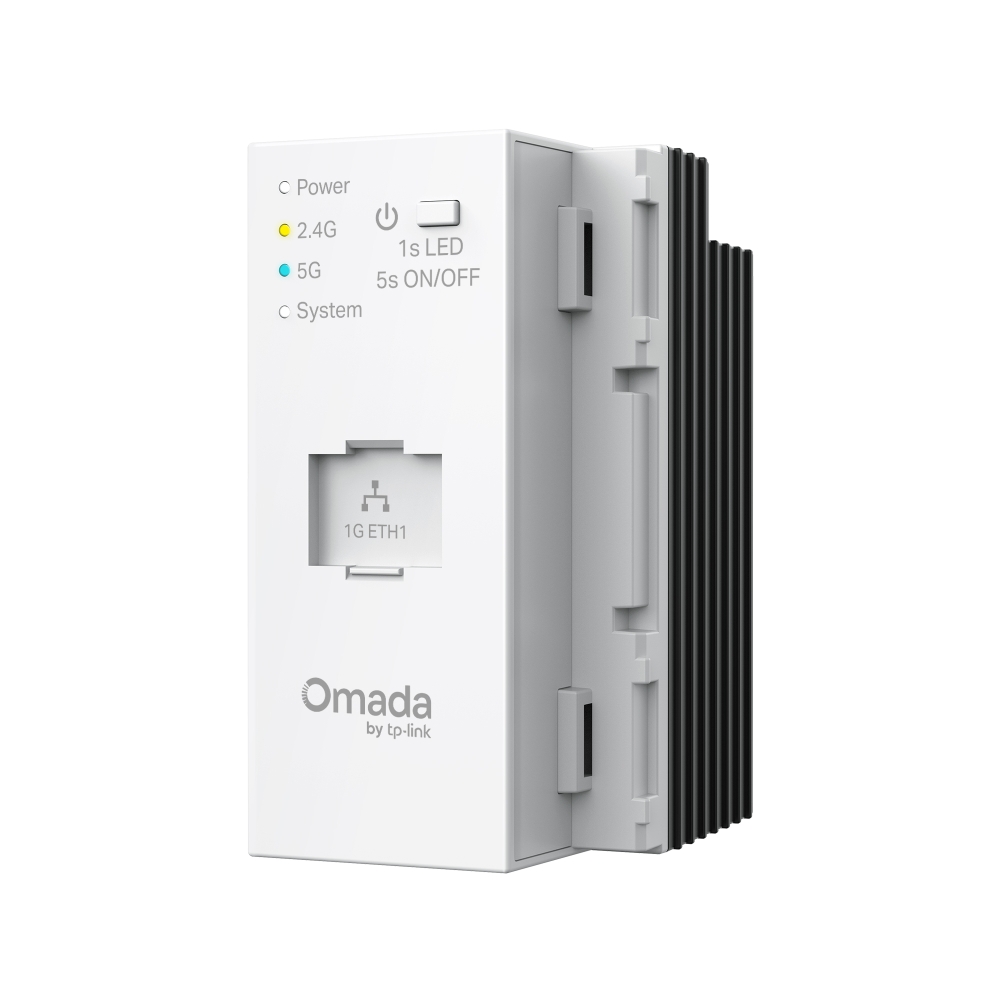

4x LEDs for Easy Networking
-
Enhanced
Security -
Centralized Cloud
Management*** -
Omada Mesh & Seamless Roaming§
-

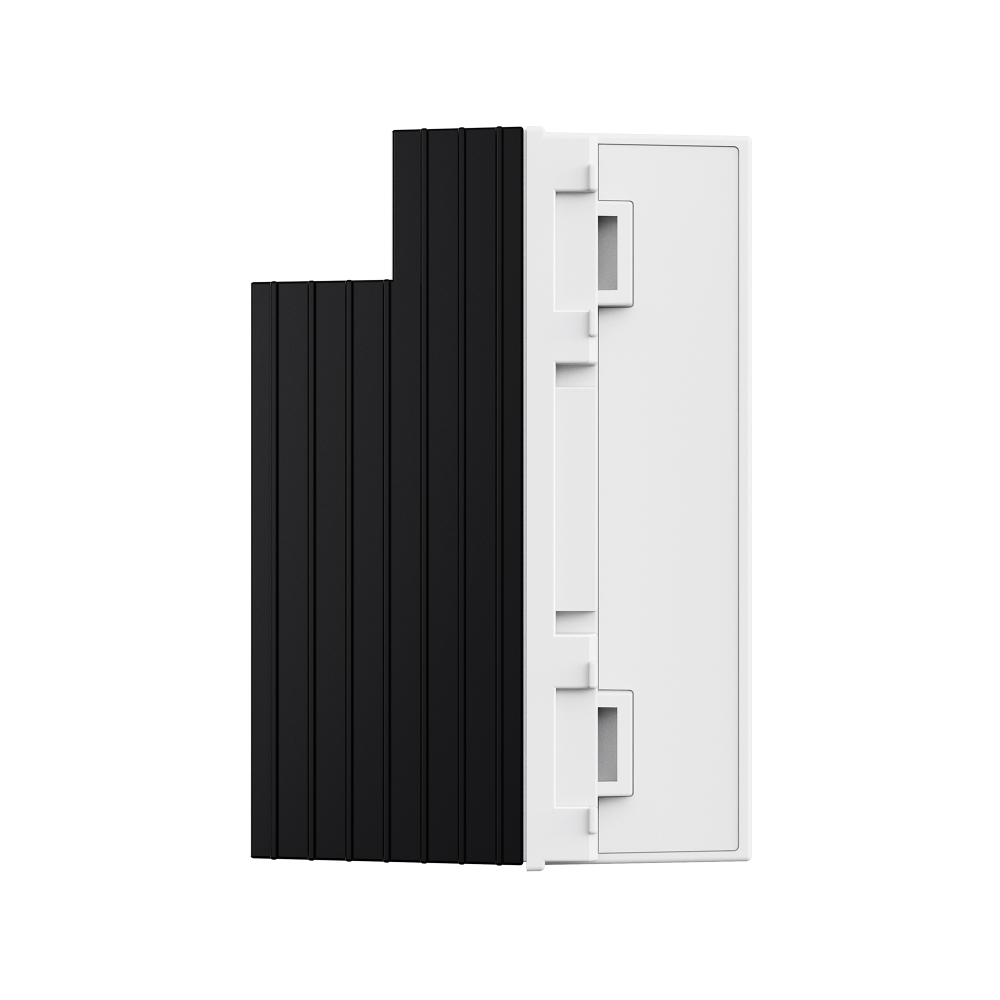

In-Wall, Low-Profile
Design

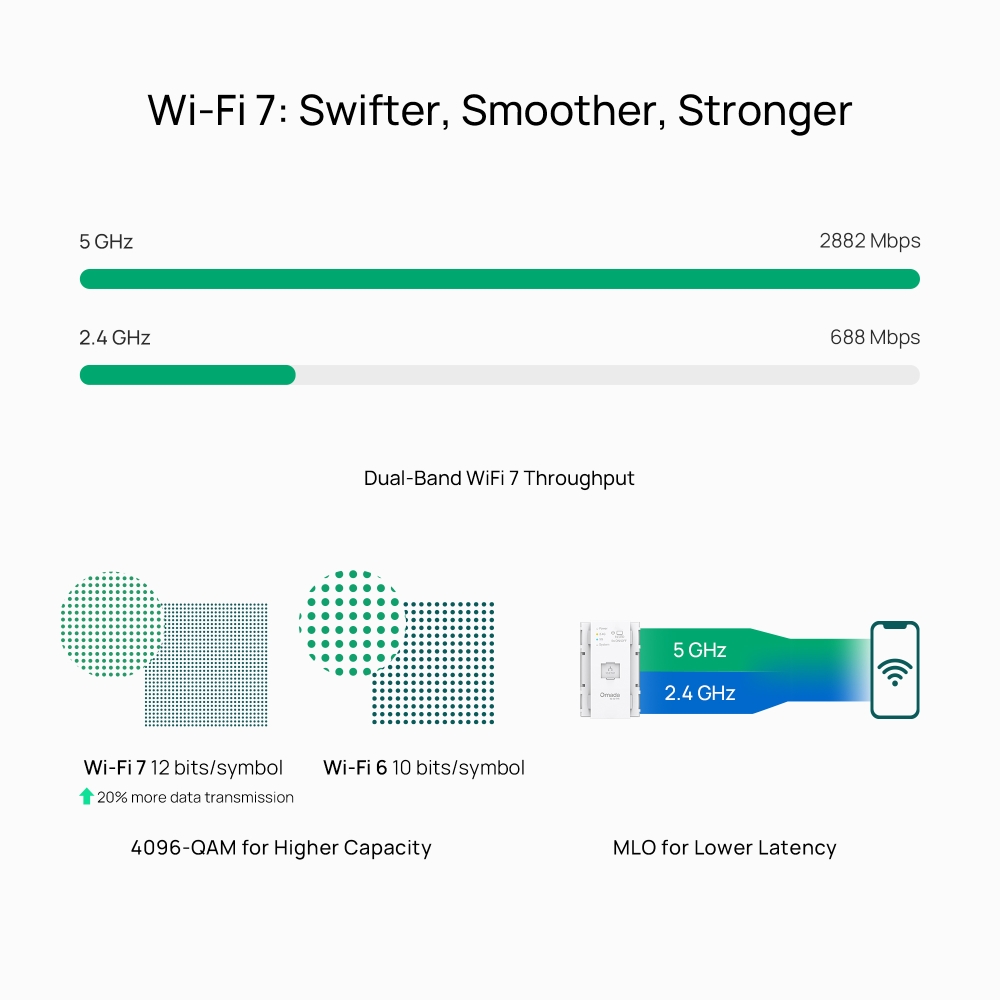

Wi-Fi 7: Swifter, Smoother, Stronger
-
5 GHz 2882 Mbps
-
2.4 GHz 688 Mbps
Dual-Band Wi-Fi 7 Throughput
-
Wi-Fi 7 12 bits/symbol
20% more data transmissionWi-Fi 6 10 bits/symbol4096-QAM for Higher Capacity
-
5 GHz2.4 GHz
MLO for Lower Latency

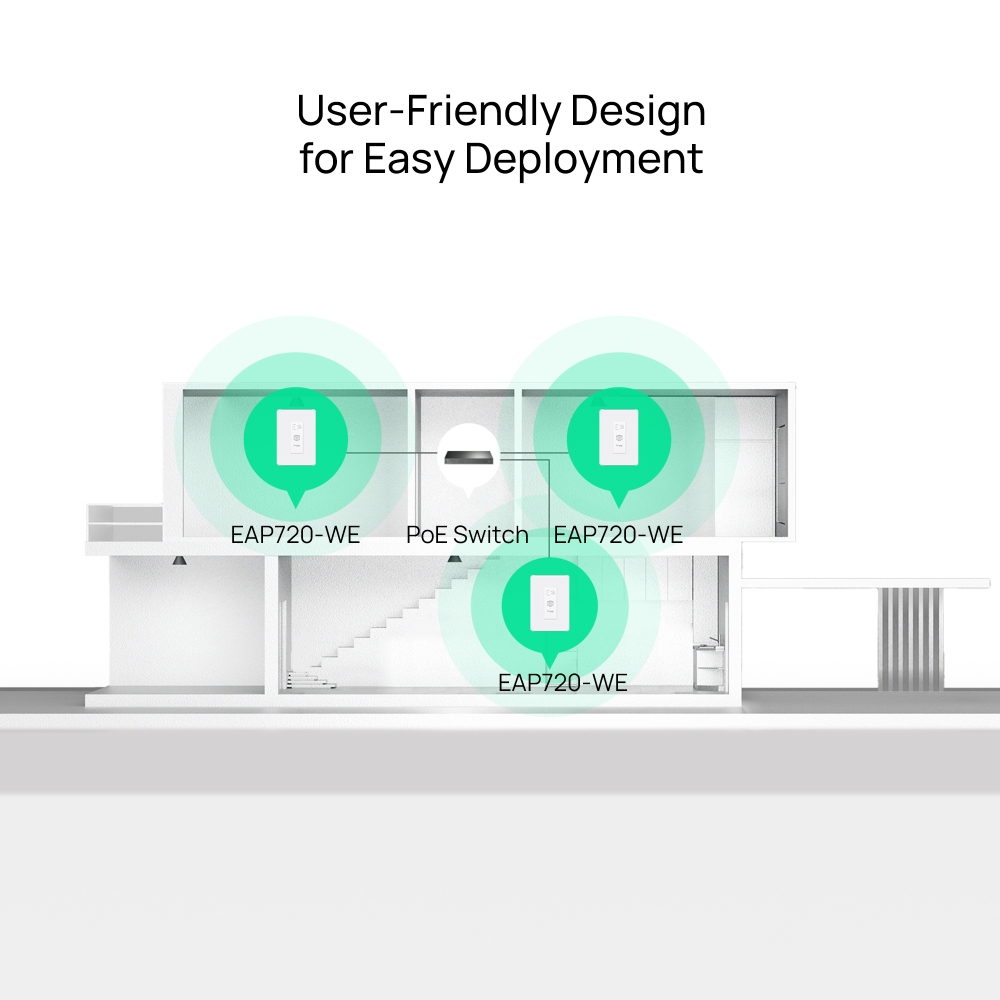

Simple Deployment with PoE Power
Supporting 802.3af PoE power supply, there’s no need to install additional wiring in the building. Plug the existing Ethernet cables in, and it’s ready to go.

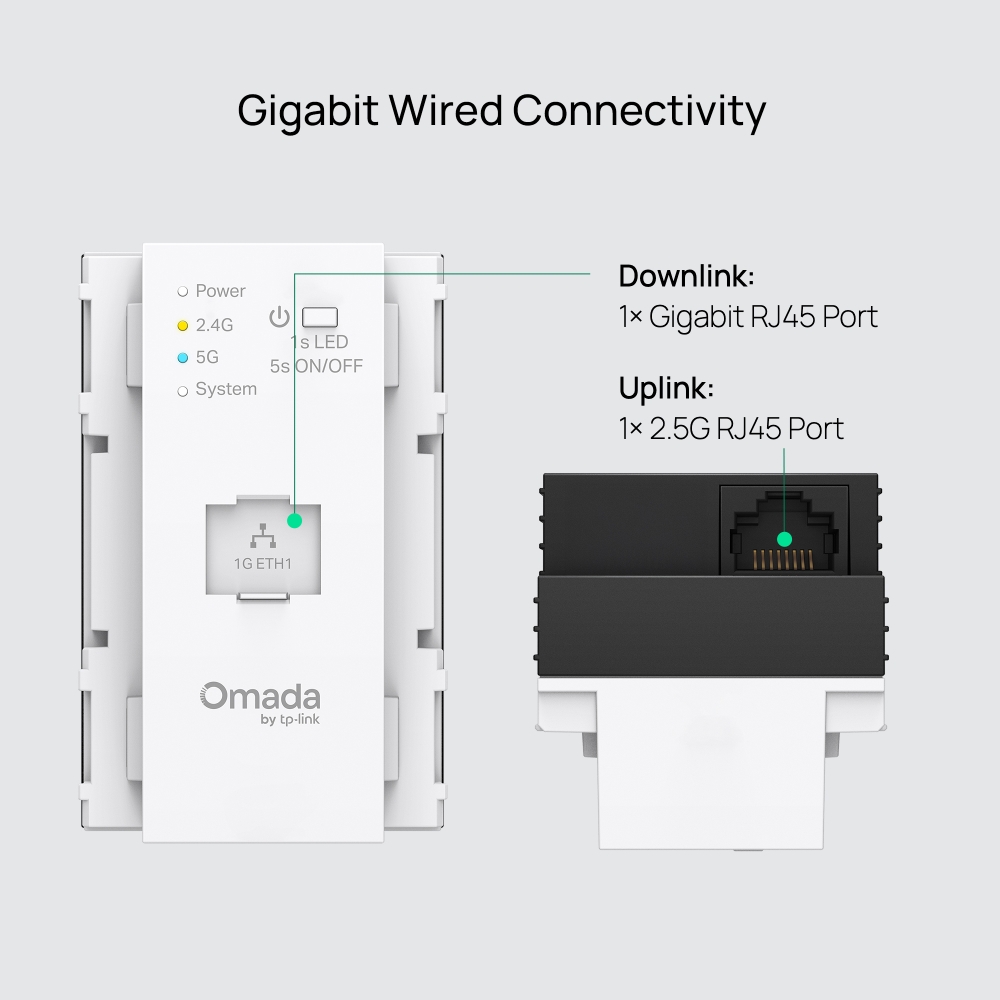

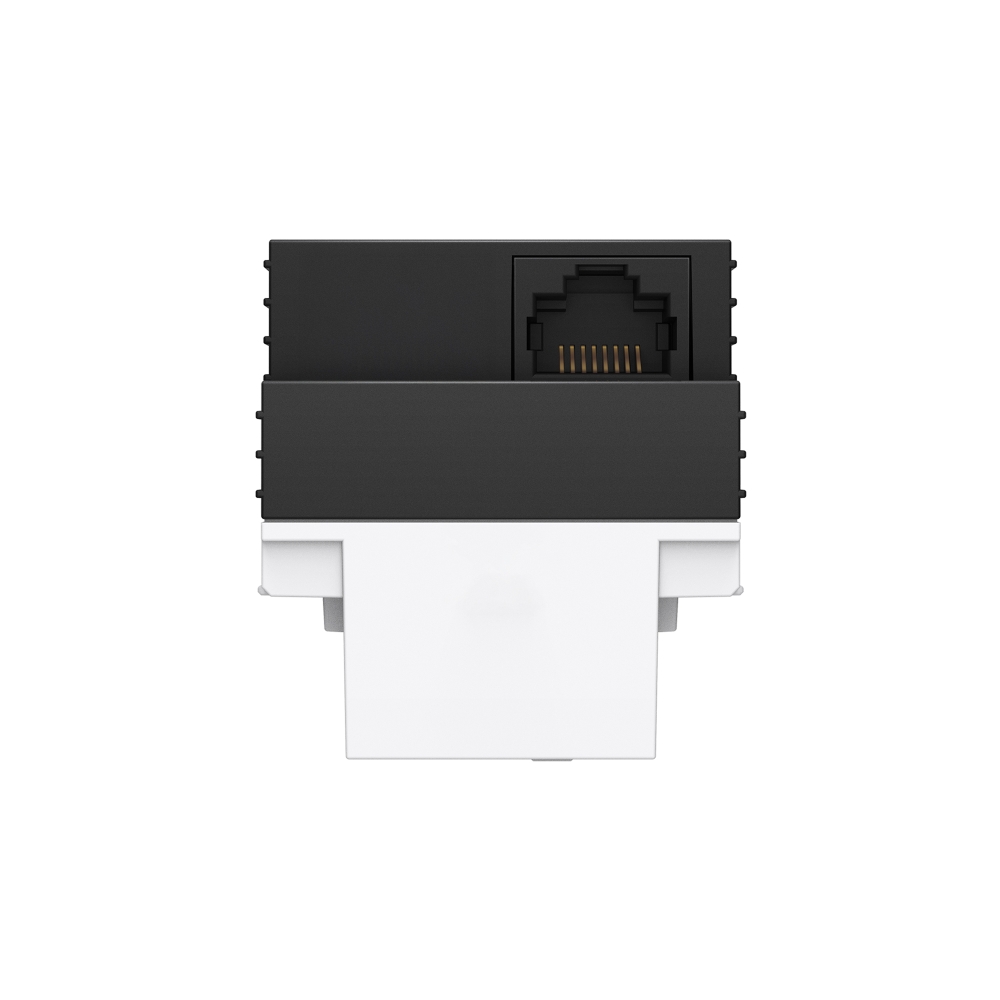

Optimized Wired Performance with 2.5G Port
Featuring a 2.5G uplink port and a 1 Gigabit downlink port, EAP720-WE delivers blazing-fast speeds for seamless 4K streaming and rock-solid connectivity across all your devices.

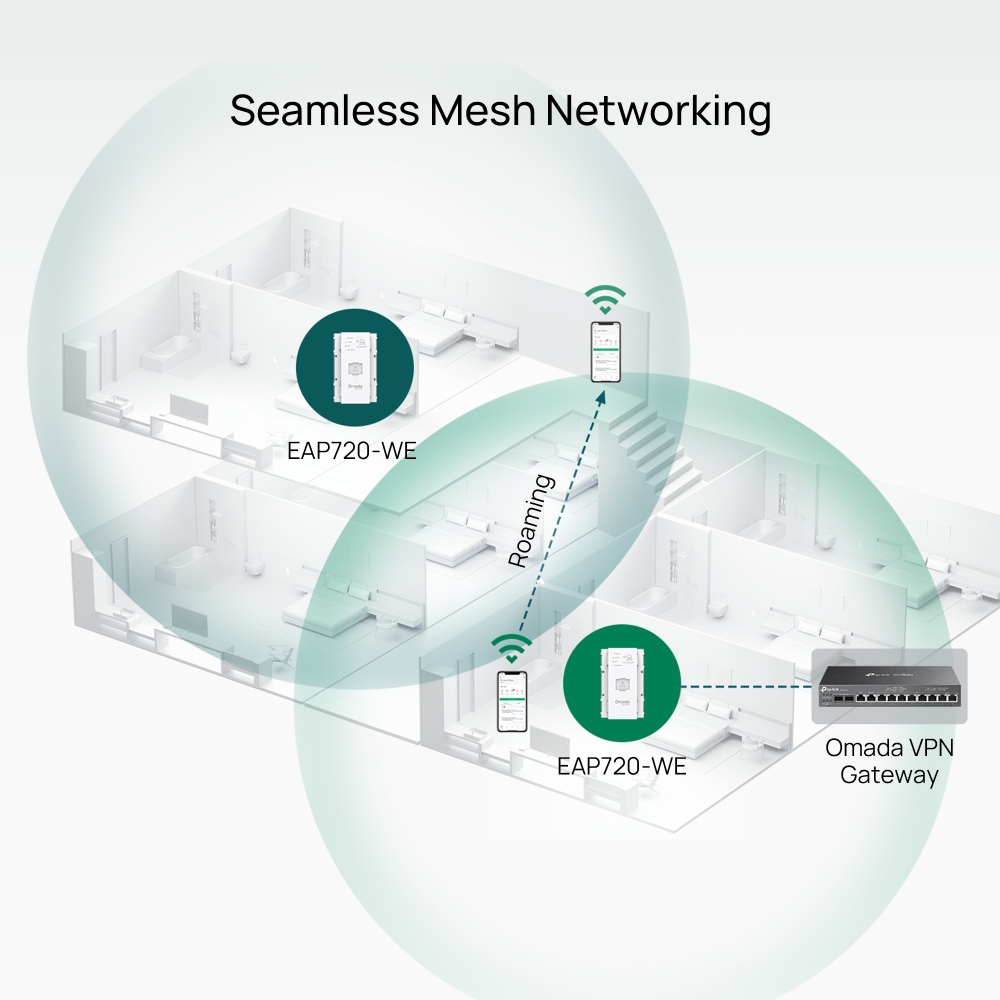

Seamless Mesh Networking
EAP720-WE supports Mesh and 802.11k/v/r roaming, ensuring full coverage and uninterrupted connections.
Gateway
In-Wall Design for All-Round Protection and Aesthetics
Seamless Integration into the Omada SDN
Ceiling Mount Wi-Fi 7 AP
Access Point EAP720-WE
Outdoor AP
PoE Switch
VPN Gateway
(Cloud-Based)
Boosted Network
Security
-
Secure Guest
Network with up to 16
SSIDs -
Boost Your Business
with SMS Login -
WPA3 for Worry-Free
Open Public
Networks -
Rogue
AP Detection
| ハードウェア機能 | |
|---|---|
| インターフェース | Uplink: 1× 2.5G Port Downlink: 1× Gigabit Port |
| 物理セキュリティロック | No |
| ボタン | 1 × LED/Power button• Press 1s: LEDs On/Off;• Hold 5s: Powers On/Off• Hold 20s: Reset |
| 電源 | 802.3af PoE |
| 消費電力 | 8.6 W |

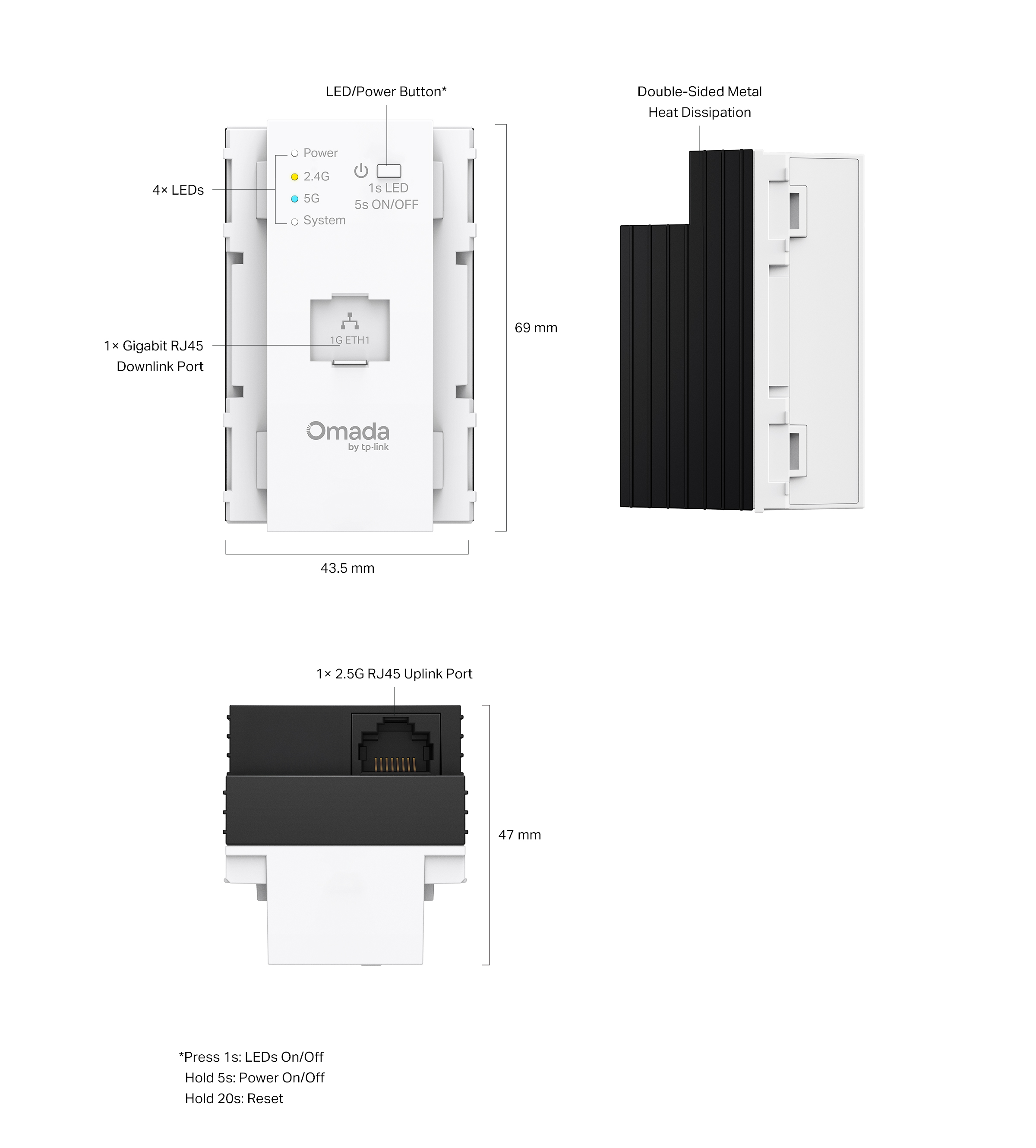

| 寸法 | 1.7 × 1.9 × 2.7 in (43.5× 47 × 69 mm) |
| アンテナ | Internal Antennas• 2.4 GHz: 2× 3 dBi• 5 GHz: 2× 4 dBi |
| 設置 | Junction Box Mounting |
| 管理機能 | |
|---|---|
| 復元＆バックアップ | Yes |
| NTP | Yes |
| 集中管理 | • Omada Hardware Controller• Omada Software Controller• Omada Cloud-Based Controller• Omada APP |
| Omadaコントローラーソフトウェア | • Omada Controller V6.1.0 and above • Omada Essential V6.1.0 and above |
| マネージメントアプリ | Omada App V5.0 and above |
| クラウドアクセス | Yes. Require the use of Omada Controller. |
| Emailアラート | Yes |
| LED オン/オフ切り替え | Yes |
| 管理 MAC アクセスコントロール | Yes |
| SNMP | v1, v2c, v3 |
| システムログ | Yes |
| SSH | Yes |
| Webベース 管理 | Yes |
| ゼロタッチプロビジョニング | Yes. Require the use of Omada Cloud-Based Controller. |
| ワイヤレス機能 | |
|---|---|
| Wi-Fi範囲 | 330 ft² (30㎡)** |
| 同時クライアント数 | 250+△ |
| Wi-Fi規格 | IEEE 802.11 a/b/g/n/ac/ax/be |
| 周波数帯 | 2.4 GHz and 5 GHz |
| 信号レート | • 2.4 GHz: Up to 688 Mbps• 5 GHz: Up to 2882 Mbps |
| ワイヤレス機能 | • 16 SSIDs (8 on each band) • Guest Network• Airtime Fairness• Band Steering• 802.11 Rate Control • Rogue AP Detection • URL Filtering• RF Scan • WLAN Optimization • Lock to AP • Rate Limit: Based on SSID/Client• Load Balance (Maximum Associated Clients, RSSI Threshold) • MLO: 2.4 GHz+5 GHz • Roaming:802.11 k/v/r, AIRoaming§• Multicast/Broadcast Management • QoS:WMM, DSCP, U-APSD• MU-MIMO• OFDMA: UL/DL OFDMA• Reboot Schedule• Static IP/Dynamic IP |
| ワイヤレスセキュリティ | • ACL • MAC Filter• MAC-Based Authentication• Captive Portal§ • EAP Types• Radius Accounting• PPSK without Radius • PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC) • Wireless Encryption: WPA/WPA2/WPA3-Personal, WPA/WPA2/WPA3-Enterprise |
| 送信パワー | • 2.4 GHz: 19 dBm (EIRP)• 5 GHz: 20 dBm (EIRP) |
| 高度な機能 | |
|---|---|
| ルーターモード | Yes |
| その他 | |
|---|---|
| 認証 | VCCI・JATE・TELEC |

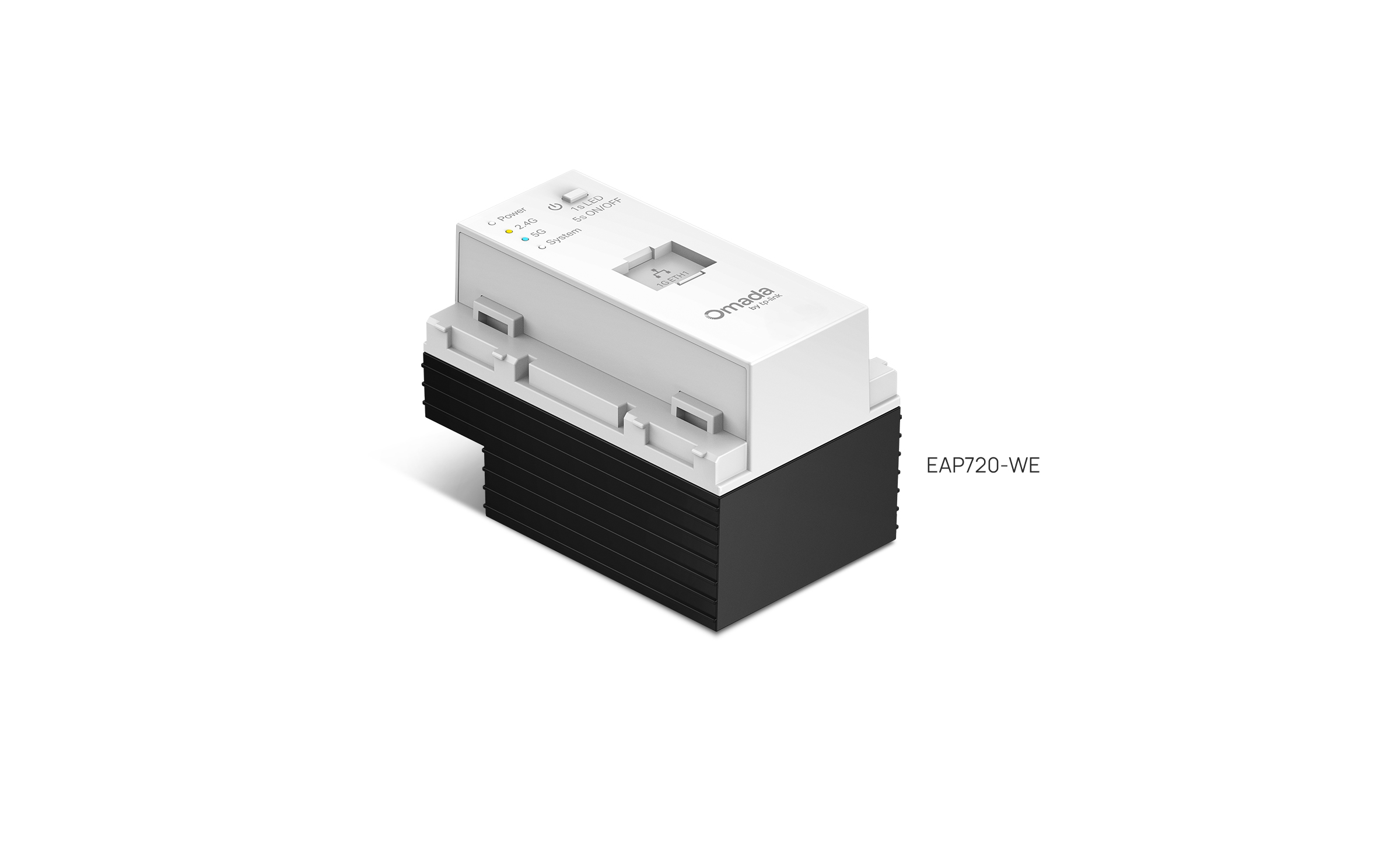

| パッケージ内容 | • EAP720-WE• Installation Guide |
| システム要件 | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| 動作環境 | • Operating Temperature: 0℃ to +45℃ (32℉ to +113℉)• Storage Temperature: -40℃ to +70℃ (-40℉ to +158℉)• Operating Humidity: 10% to 90% (non-condensing)• Storage Humidity: 5% to 90% (non-condensing)• Operating Altitude: up to + 2000 m (6561 feet) • Storage Altitude: up to + 2000 m (6561 feet) |
*If you do not use an Omada controller, the EAP720-WE with SSID and Password supports plug-and-play. Terminal users can quickly connect to the Internet with the shown SSID and password. If you use an Omada controller to manage EAP720-WE, you can configure it on the controller.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 160 MHz bandwidth is only available on the 5GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be) and features including Multi-Link Operation, 160 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.
§Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
△The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
**Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
