VLANs Explained: Security, VLAN Hopping, and 802.1X for Business Networks

Published: August 4, 2026 | Last Updated: August 4, 2026

A VLAN divides one physical network into isolated logical segments, so a device on one VLAN cannot reach a device on another unless a router or firewall permits it. That is a real security boundary, but it is also incomplete. A VLAN governs where traffic can go once a device is connected. It says nothing about which devices are allowed to connect in the first place, and a VLAN left on default settings can be bypassed by a well-documented attack.

Quick Answer

• VLANs contain a breach. A compromised device reaches its own VLAN and cannot move laterally without crossing a router or firewall rule.

• VLAN hopping comes in two forms. Double tagging exploits default native VLAN settings on any 802.1Q switch. Switch spoofing depends on Cisco's Dynamic Trunking Protocol and does not apply to switches that have no trunk negotiation.

• Authentication is the missing half. On Omada, 802.1X with VLAN Assignment authenticates the device first and places it into the correct VLAN based on its credentials rather than which jack it used.

Table of Contents

What Does a VLAN Actually Protect?

What Is VLAN Hopping?

How Does Double Tagging Work?

Does Switch Spoofing Apply to Every Switch?

Which Layer 2 Attacks Do VLANs Help Against?

How Do You Pair VLANs With Authentication?

Frequently Asked Questions

Final Thoughts

What Does a VLAN Actually Protect?

A VLAN protects against lateral movement. A device on one VLAN cannot reach a device on another unless a router or firewall explicitly permits it, so malware that infects one machine is confined to that VLAN instead of spreading across the business.

Without VLANs, every device shares one broadcast domain. A guest on the Wi-Fi is technically on the same network as the POS terminal and the file server, and an attacker who compromises any single device has an unobstructed path to everything else. Our network segmentation guide covers that containment argument in full, along with how to decide which zones you actually need.

Containment is also why VLANs appear throughout compliance work. Under PCI DSS, segmentation is not itself mandatory, but it determines how much of your network falls inside the scope of an assessment. Keeping payment systems on their own VLAN means the assessment covers the cardholder data environment rather than every device you own.

VLANs require a managed or smart switch, since an unmanaged switch has no VLAN support at all, and our guide to managed and unmanaged switches covers where that line sits. Segmentation sits inside a wider security model, described in our network security guide for Philippine businesses.

What it means for you: a VLAN is a boundary for traffic, not a gate for devices. Both matter, and only one of them is a VLAN.

What Is VLAN Hopping?

VLAN hopping is an attack that lets a device on one VLAN reach another VLAN it was never authorized to touch. There are two techniques, and they are not equally relevant to every network.

Double tagging exploits the native VLAN on 802.1Q trunks, which is standards-based and therefore applies to switches from any vendor. Switch spoofing exploits automatic trunk negotiation, which is a Cisco protocol and therefore applies only where Cisco switches are involved. Both are well documented, and both are preventable with configuration rather than additional hardware.

What it means for you: before acting on generic VLAN-hardening advice, check which of the two your equipment can actually be exposed to. Half of the standard checklist may not apply to your switches.

How Does Double Tagging Work?

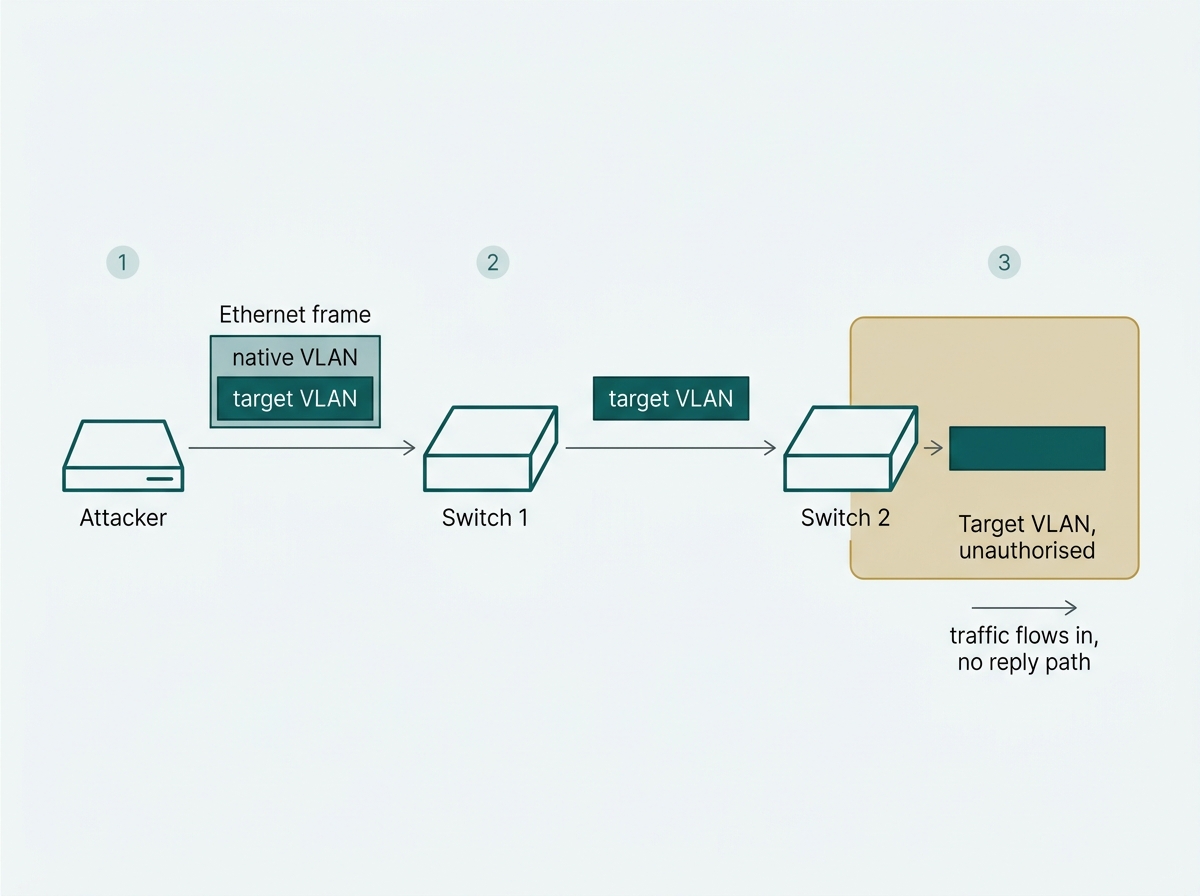

In a double-tagging attack, an attacker sends a frame carrying two VLAN tags. The first switch in the path strips the outer tag, which matches the native VLAN, and forwards the frame with the inner tag still attached. The next switch reads that remaining tag and delivers the frame to a VLAN the attacker was never permitted to reach.

The attack depends on the native VLAN being left at its default. Traffic on the native VLAN travels untagged across a trunk, which is precisely the property the outer tag abuses. It is also one-directional: the attacker can send traffic into the target VLAN but does not receive replies, which makes it useful for injection rather than interactive access, and easy to underestimate for that reason.

The mitigation is configuration, not equipment. Move the native VLAN away from its default value, keep user-facing ports off the default VLAN entirely, and restrict trunk ports to the VLANs that genuinely need to cross them rather than allowing all.

What it means for you: if your user ports are still sitting on the default VLAN, that is the single change worth making before anything else on this page.

Does Switch Spoofing Apply to Every Switch?

No. Switch spoofing depends on a switch running automatic trunk negotiation, and the protocol involved, Dynamic Trunking Protocol, is proprietary to Cisco. Switches from other vendors do not implement it.

Where it does apply, the attack works like this: an attacker configures their device to imitate a switch and negotiates a trunk link with a port left in its default negotiating mode. Instead of being restricted to the single VLAN that port was meant to serve, the attacker receives traffic for every VLAN the trunk carries. On affected hardware, the mitigation is to disable trunk negotiation on any port that should not be a trunk and to configure trunks explicitly.

On switches without trunk negotiation, including Omada switches, trunk ports are configured manually, and there is no negotiation exchange for an attacker to hijack. This particular path is closed structurally rather than by a setting you have to remember to change. That is worth knowing for two reasons: it saves you looking for a control that is not there, and it matters if you run a mixed-vendor network, since a Cisco switch elsewhere in the same environment can still present the exposure.

What it means for you: in a single-vendor Omada network, this is not on your list. In a mixed network with Cisco switches, it is on theirs.

Which Layer 2 Attacks Do VLANs Help Against?

VLANs are the thing being attacked in both hopping techniques rather than the defense against them, and the fixes there are configuration choices. Against MAC flooding, a VLAN limits how far the damage reaches, but port security is what stops it. Against an unknown device on an open port, a VLAN decides where that device may go while 802.1X decides whether it gets on at all. In three of the four rows, the VLAN is necessary and not sufficient.

What it means for you: the right-hand column is the actual work list. A VLAN plan with none of those paired controls is organization, not security.

How Do You Pair VLANs With Authentication?

A VLAN controls where traffic goes once a device is on the network. 802.1X controls whether it gets on. Pairing them means a port grants no access until the device or user authenticates, and the VLAN is then assigned from the credentials rather than from which jack happened to be used.

On Omada, this is the VLAN Assignment feature, found under Settings, Authentication, and 802.1X on Omada Controller v5.9 and above. You enable 802.1X, select a RADIUS profile, turn on VLAN Assignment, and choose which ports require authentication, with Authentication Type set to Port-Based. Once a client authenticates, the RADIUS server returns the VLAN based on that client's username, so the username-to-VLAN mappings need to exist in the RADIUS database beforehand. A built-in RADIUS profile is available in the controller, so a separate server is not a prerequisite for getting started.

Two features make this workable in a real office rather than only in theory. Guest VLAN assigns a specific VLAN to clients whose authentication fails or times out, so an unrecognized device lands somewhere harmless and defined instead of simply being dropped. MAC Authentication Bypass handles the devices that cannot run an 802.1X supplicant at all, which in most offices means printers, IP cameras and sensors: their MAC addresses are configured as usernames on the RADIUS server so they authenticate by identity rather than being exempted. Without those two, an 802.1X rollout stalls the moment it meets a printer.

To confirm it is working, show the dot1x auth-state through Tools; the terminal shows which port was authenticated and which VLAN the client was placed into.

For the configuration mechanics behind creating and assigning VLANs, see VLAN configuration explained, and for a broader set of tools businesses use alongside VLANs, see network security tools for business. To see the controller platform that supports VLAN assignment and 802.1X authentication together, explore Omada SDN controllers.

What it means for you: decide the Guest VLAN and the MAB list before you enable anything. Those two decisions are what determine whether the rollout finishes or gets switched back off in week two.

Frequently Asked Questions

Are VLANs enough to secure a business network on their own?

No. VLANs control where traffic can travel once a device is connected, not which devices are allowed on. Pairing VLANs with 802.1X authentication and with firewall rules between segments is what completes the boundary.

What is VLAN hopping?

VLAN hopping lets a device on one VLAN gain unauthorized access to another. It happens either through double tagging, which exploits the native VLAN with a specially crafted two-tag frame, or through switch spoofing, where an attacker imitates a switch to negotiate a trunk link.

How do you prevent VLAN hopping?

For double tagging, change the native VLAN away from its default, keep user-facing ports off the default VLAN, and restrict trunk ports to only the VLANs that need to cross. For switch spoofing, disable trunk negotiation on hardware that supports it, which in practice means Cisco switches, since the protocol involved is Cisco proprietary.

Does switch spoofing affect Omada switches?

No. Switch spoofing relies on Dynamic Trunking Protocol, which is proprietary to Cisco and not implemented by other vendors. Omada trunk ports are configured manually, so there is no negotiation exchange for an attacker to hijack. It remains relevant in mixed-vendor networks that include Cisco switches.

What about devices that cannot use 802.1X, like printers and IP cameras?

Omada supports MAC Authentication Bypass, where the device's MAC address is configured as its username on the RADIUS server so it can be authenticated without running an 802.1X supplicant. There is also a guest VLAN option that places clients failing or timing out on authentication into a defined VLAN rather than dropping them.

What is the difference between a VLAN and a firewall for network security?

A VLAN creates the logical segments. A firewall or access control list enforces the rules for what traffic, if any, may pass between them. VLANs without enforcement rules provide organization rather than access control.

Is VLAN hopping still a real risk on modern networks?

Yes, though less so on correctly configured current hardware. Default settings left unchanged, misconfigurations, and legacy equipment keep it relevant, which is why moving user traffic off the default VLAN remains a standard hardening step regardless of vendor.

Final Thoughts

VLANs are a genuine security boundary, and only when they are configured with security in mind rather than for tidiness. The difference between a VLAN that contains a breach and one that can be walked around and usually comes down to a small number of settings: whether user traffic still sits on the default VLAN, whether trunk ports carry more VLANs than they need to, and whether anything at all controls which devices reach a port in the first place.

It is also worth knowing which warnings apply to you. Double tagging is a standards-level issue that concerns any 802.1Q switch. Switch spoofing is a Cisco protocol issue that does not, and generic hardening checklists rarely make that distinction.

Segmentation and authentication are separate layers that only work properly together. The VLAN decides where traffic can go. 802.1X decides who gets in. If you are planning that pairing, the two decisions to make first are which VLAN unauthenticated devices should land in and which of your printers, cameras, and sensors will need MAC Authentication Bypass. Bring that list, plus your current switch and controller versions, to an Omada specialist, and you will get back a VLAN and 802.1X plan you can actually finish deploying. Explore Omada SDN controllers to see where VLAN assignment, RADIUS profiles, and port authentication are configured together, and confirm your controller is on v5.9 or above before you plan around it.
