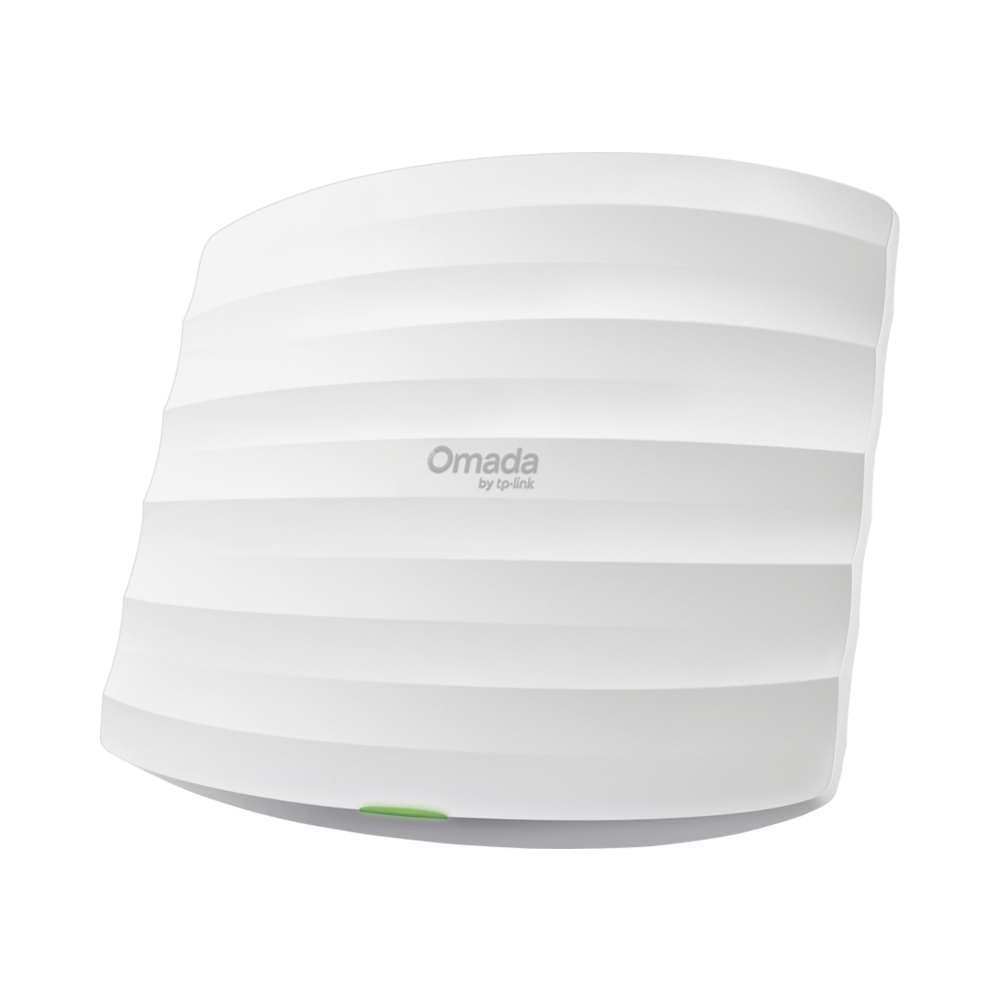

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
- Dual-Band Wi-Fi 5: 867 Mbps on 5 GHz and 450 Mbps on 2.4 GHz.†
- 1× Gigabit Port: Ensures a high-speed connection to the wired network, eliminating a potential bottleneck.
- Low Latency and Interference: MU-MIMO, Band Steering, and Beamforming ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3af PoE and 24V Passive PoE for flexible installation. Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, mesh, and seamless roaming.△
- More Connections and Wider Coverage: Supports 220+ concurrent clients** and covers up to 1250 ft² (115 ㎡) * for reliable and extensive wireless connectivity
Learn more about Omada Cloud SDN>
AC1350 Wireless
MU-MIMO
Gigabit
Ceiling Mount
Access
Point
AC1350 Dual-Band Wi-Fi 5
MU-MIMO
1× Gigabit Port
802.3af PoE
Omada Mesh & Seamless Roaming△
Centralized Cloud Management
Enhanced Security
Easy, Quick Setup
Premium AC1350
Dual-Band WiFi 5 Speeds
5 GHz
867 Mbps
2.4 GHz
450 Mbps
MU-MIMO
Beamforming
Band Steering
Load Balance
Multiple PoE Options for
Easy Installation
EAP223 supports both 802.3af PoE and Passive PoE power supply, which can be either powered by a PoE switch or the provided PoE adapter, making
deployment effortless and flexible.
Boosted Network
Security
Secure Guest Network
with up to 16 SSIDs
Boost Your Business
with SMS Login
WPA2 for Worry-Free
Open Public Networks
Rogue AP Detection
Seamless Integration into
Omada SDN
Ceiling Mount AP EAP223
Wall Plate AP
Outdoor AP
PoE Switch
VPN Gateway
Access
Controllers
(Cloud-Based)
or Essentials
version
| HARDWARE FEATURES | |
|---|---|

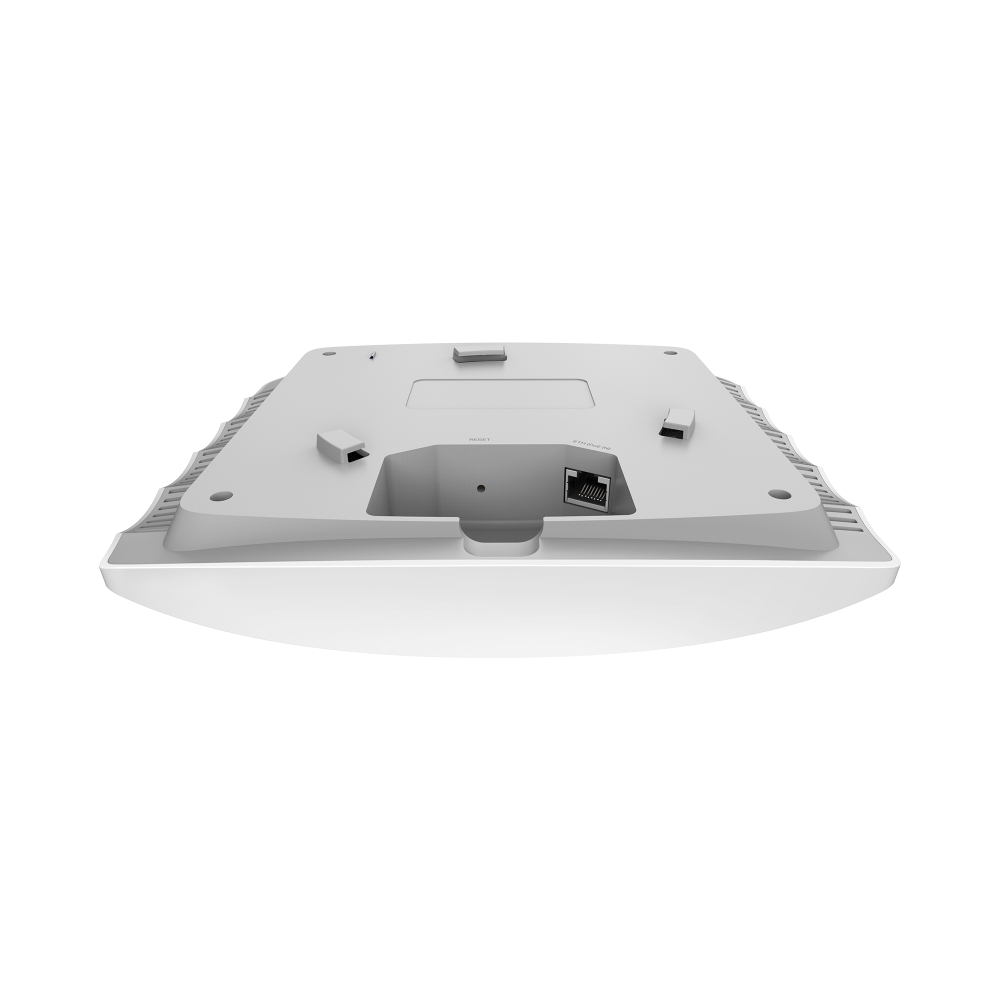

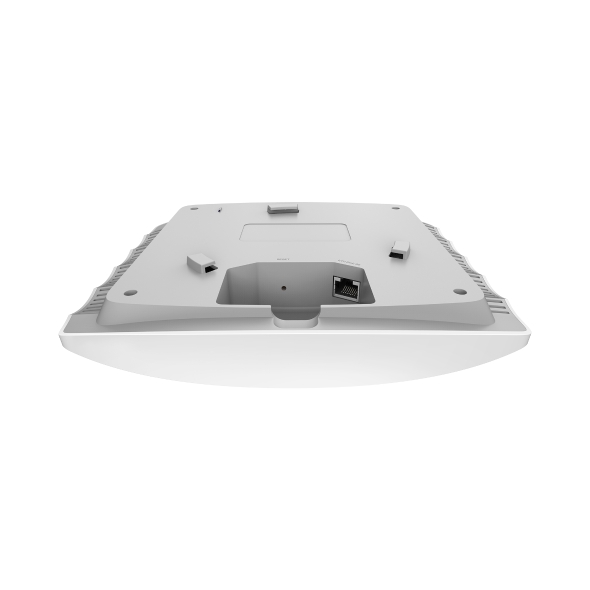

| Interface | 1× Gigabit Ethernet Port |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | • 802.3af PoE• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Max. Power Consumption | EU: 10.5 WUS: 12.6 W |

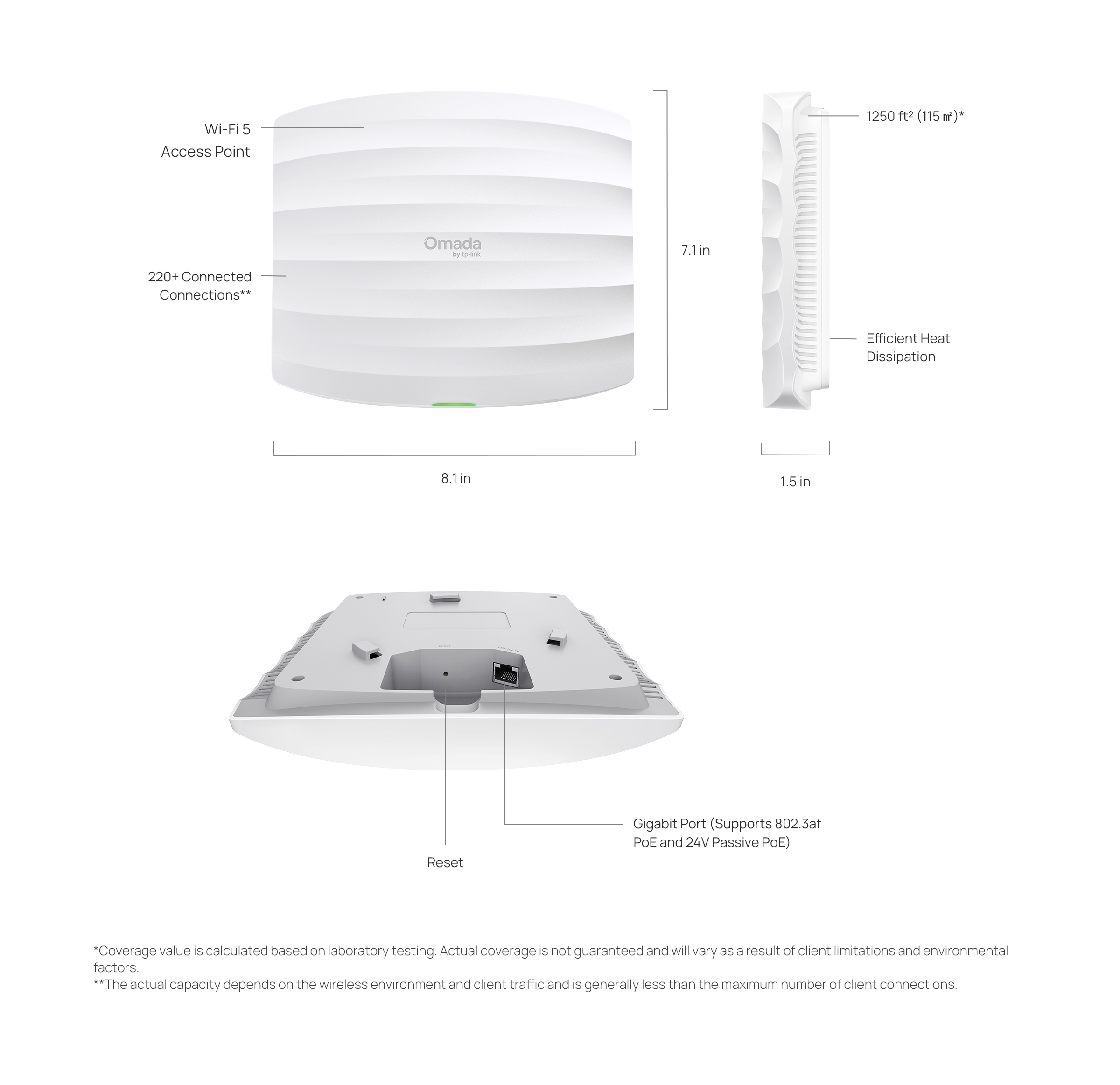

| Dimensions ( W x D x H ) | 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm) |
| Antenna | 3× Internal Omni• 2.4 GHz: 3× 4 dBi• 5 GHz: 2× 5 dBi |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Central (Cloud-Based)• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz:Up to 867 Mbps• 2.4 GHz:Up to 450 Mbps |
| Wireless Functions | • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• Seamless Roaming*• Omada Mesh*• Band Steering• Load Balance• MU-MIMO• Airtime Fairness• Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication*• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support |
| Transmission Power | • CE:10-20 dBm(2.4 GHz, EIRP)9-23 dBm(5 GHz, U-NII-1 & U-NII-2A, EIRP)9-27 dBm(5 GHz, U-NII-2C, EIRP)• FCC:6-24 dBm(2.4 GHz)4-22 dBm(5 GHz, U-NII-1 & U-NII-3) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP223• Mounting Kit• Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡MU-MIMO capability requires client devices that also support MU-MIMO.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△These features require the use of an Omada controller
