EAP603GP-Desktop
NewOmada AX1800 Wi-Fi 6 Desktop GPON Access Point
- Seamless 1.8 Gbps Wi-Fi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz†
- Multiple Ports for More Devices: 1× GPON port for high-speed, long-range access and 4× Gigabit RJ45 ports provide high-speed connections to more devices
- One Fiber for Multiple Services: Wired, wireless, voice, data, and HD video services
- Easy Use: One-click pairing and automatic adoption
- High Flexibility: Supports both desktop and wall mounting setups
- Advanced Features: Unified management for Omada devices and OLT^, PPSK△, multiple portals, Omada mesh, and seamless roaming§
-
Integrates into Omada Optical Networking
-
Unified Management for Omada Devices and OLT^
-
One Fiber, Multiple Services
-
Wi-Fi 6
Gigabit ONU -
1× GPON Port & 1× FXS Port & 4x GbE Ports
-
Seamless Roaming
& Omada Mesh -
PPSK &
Captive Portal -
Quick,
Easy Setup
Complete Omada Optical Networking Solution
The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for P2MP (point-to-multipoint) environments like hotels and MDUs.
Internet
Web Browser
Omada App
Omada Gateway
Omada Switch
OLT
ODN
(Splitter)
SIP Server
Omada
Cloud-Based Controller
Omada Software Controller
Omada Hardware Controller
Or
Or
GPON Access Point EAP603GP-Desktop
GPON Access Point EAP603GP-Desktop
GPON Access Point EAP603GP-Desktop
VoIP Phone
TV
Camera
Door Access
Fiber Optics
Copper or RJ11 Cable
Complete Product Types
Unified Management for Omada Devices and OLT^
Easy Adoption and Setup
Zero-Touch Provisioning
One Fiber, Multiple Services
Connect a fiber optic cable to the EAP603GP-Desktop to connect cameras, PCs, TVs, and an IP-Phone to carry data, voice, wired and wireless internet, HD video, and VoIP services.
ODN
(Splitter)
1× GPON Port
1× FXS Port
4× Gigabit RJ45 Ports
Phone
TV
Camera
PC
Tablet
Laptop
Fiber Optics
Copper Cable
RJ11 Cable
Seamless Wi-Fi 6 Mesh Networking
Leverage GPON Wi-Fi 6 technology for a robust and seamless network experience, delivering speeds up to 1.8 Gbps.* Omada Mesh and 802.11k/v/r roaming ensure a consistently smooth and reliable connection.
EAP603GP-Desktop
Roaming
EAP603GP-Desktop
TP-Link OLT
No Complex Installation，No Complicated Cabling
-
Desktop Mounting
No Additional Installation Needed
-
Wall Mounting
Flexible and Space-Saving
| HARDWARE FEATURES | |
|---|---|
| Interface | • 1x GPON Port • 1x FXS Port• 4x Gigabit Ethernet Ports |
| GPON Interface | • Port Type: SC-APC• Standards and Protocols: ITU-984.x, G.988, Class B+• Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream)• Fiber Type: 9/125 um Single mode• Max. Cable Length: 20 km |
| Button | • Reset• LED |
| Power Supply | 12V/1.5A DC |
| Max. Power Consumption | 15.5 W |
| Weight | 437g |
| Dimensions ( W x D x H ) | 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm) |
| Antenna | Internal Omni• 2.4 GHz: 2× 5 dBi• 5 GHz: 2× 4.5 dBi |
| Mounting | Desktop / Wall mouting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 140㎡(1500ft²)** |
| Concurrent Clients | 120+* |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: 1201 Mbps†• 2.4 GHz: 574 Mbps |
| Wireless Functions | • 2×2 (2.4G & 5G) MU-MIMO‡• HE80 (80 MHz Bandwidth)‡• OFDMA‡• Seamless Roaming §• Mesh§• Enable/Disable SSID Broadcast• Enable/Disable Wireless Radio• Guest Network• Automatic Channel Assignment• Beamforming• Rate Limit• Band Steering• Load Balance• Airtime Fairness • Transmit Power Control (Adjust Transmit Power on dBm)• QoS (WMM)• RADIUS Accounting• MAC Authentication• Reboot Schedule• Wireless Schedule and Statistics• Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• VLAN • Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, band1 & band2, EIRP)<27 dBm(5 GHz, band3, EIRP)• FCC: <25 dBm (2.4 GHz)<25 dBm (5 GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |

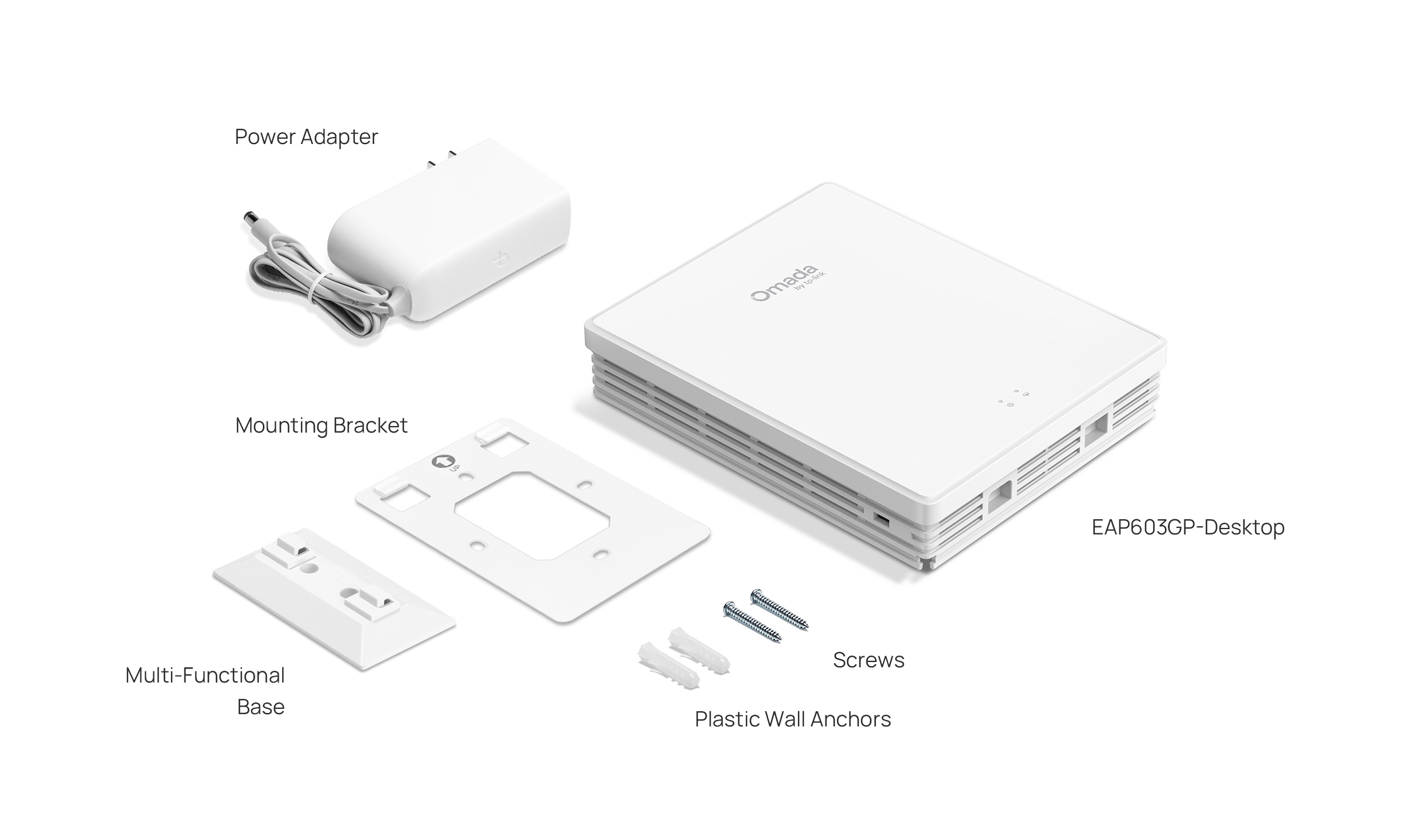

| Package Content | • EAP603GP-Desktop• Desktop/Wall Mounting Kit• Power Adapter• Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡Use of WiFi 6 (802.11ax) and its features like MU-MIMO, requires clients to support the corresponding features.
§Seamless Roaming, and Captive Portal require the use of Omada SDN controllers.
△This feature needs to be used with the switch that supports VPN Server. And at the same time, the Omada controller needs to be used with the switch that supports the Cli Template.
^Certain TP-Link OLT models supporting Omada SDN are available, and Omada OLT devices are being developed.
*The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
**Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
