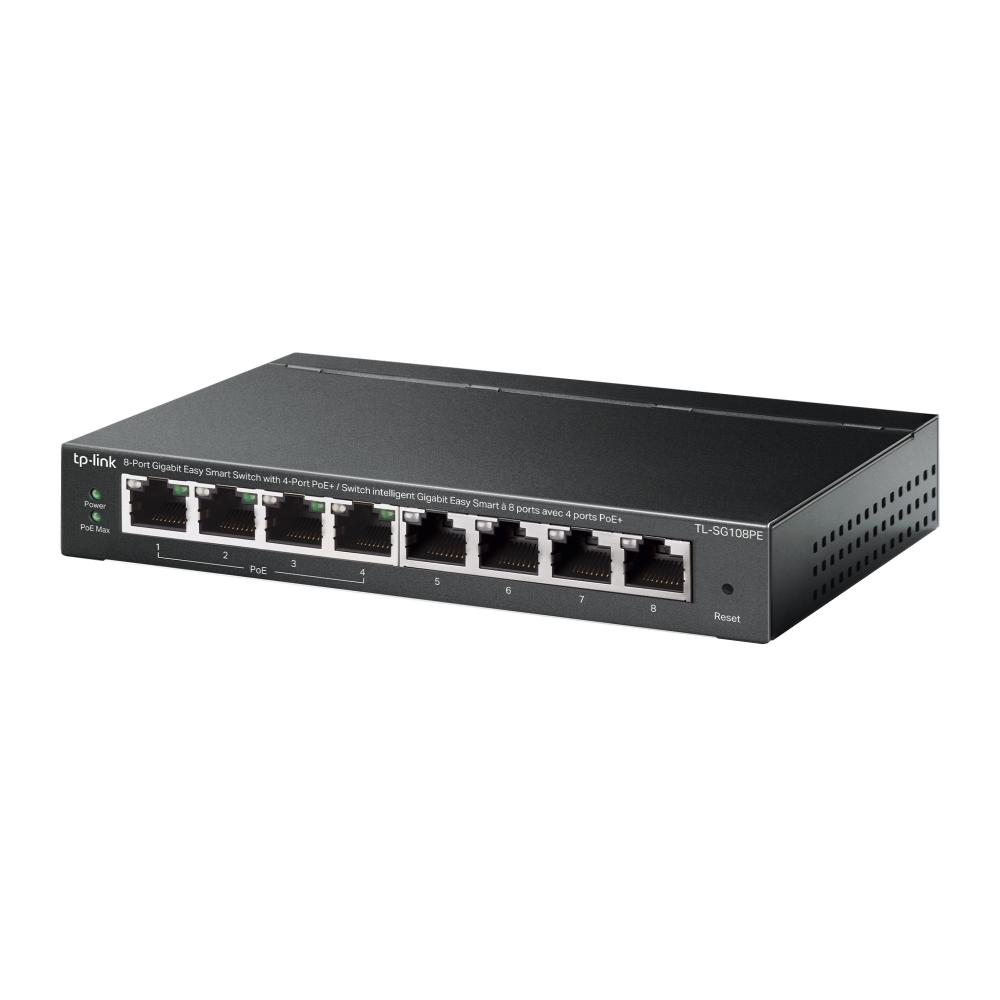

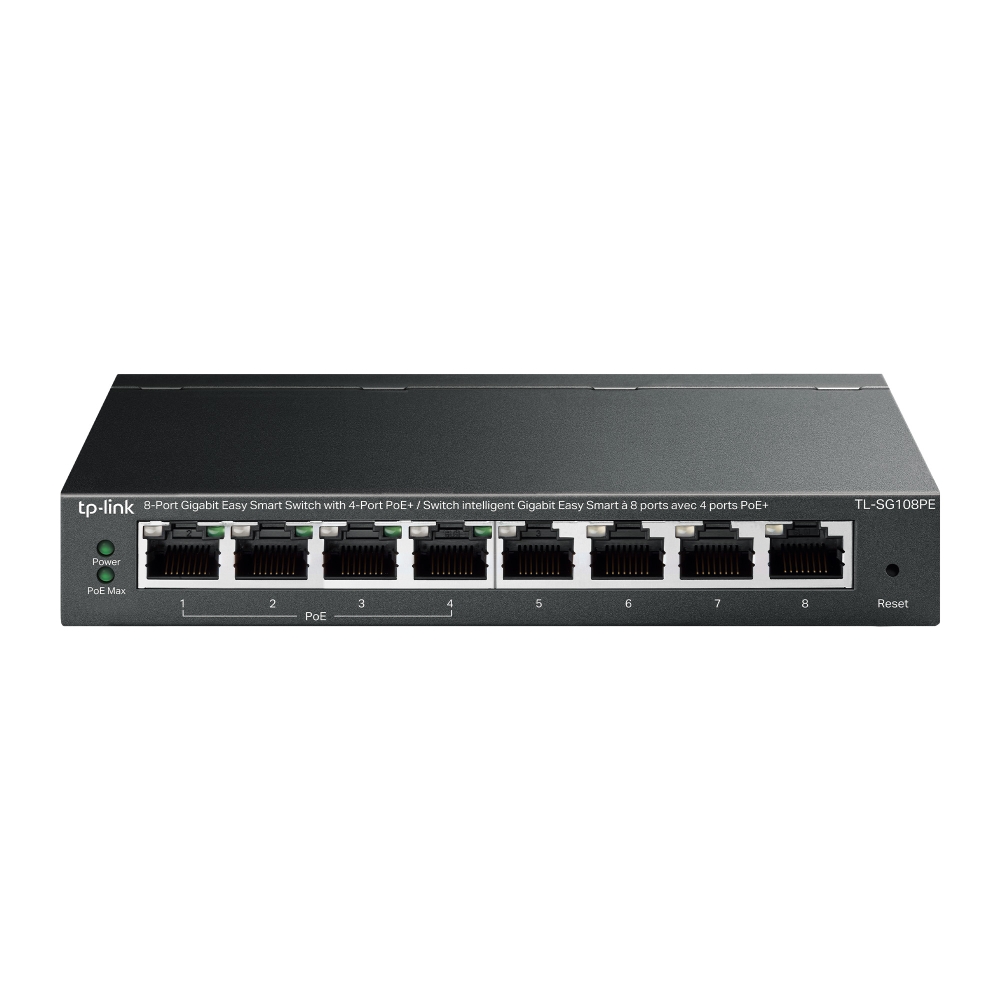

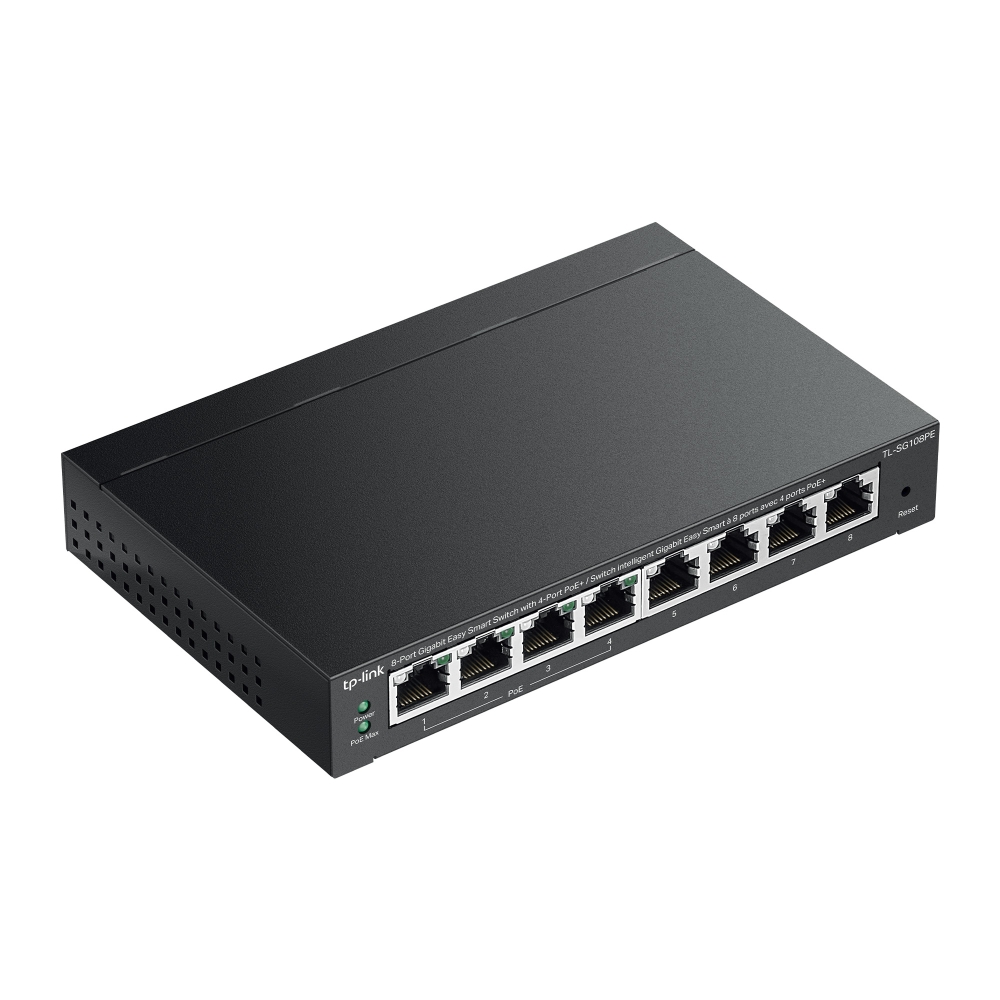

8-Port Gigabit Easy Smart Switch
with 4-Port PoE+
- Eight 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
- Supports PoE power up to 64 W for all PoE ports*
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
8× Gigabit RJ45 Ports
64W PoE Budget*
PoE Auto Recovery
Intelligent Management
VLAN
Optimized Multicast, Prioritized Traffic
Fanless Design for Silent Operation
Desktop/ Wall-Mounting
Full Gigabit Ports with 4 PoE+ Ports for Numerous Applications
4× Gigabit
PoE+
RJ45 Ports
Up to
30W
per PoE+ Port
Total
64W
PoE Power Budget
Compatible with
802.3af/at
PoE and non-PoE devices
Access Point
IP Phone
IP Camera
NAS
Desktop
Printer
Intelligent PoE Guarantee Stable Operation

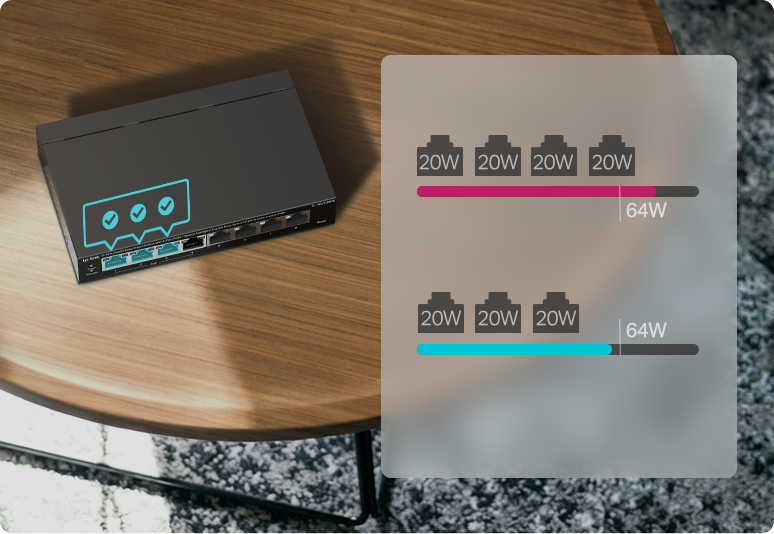

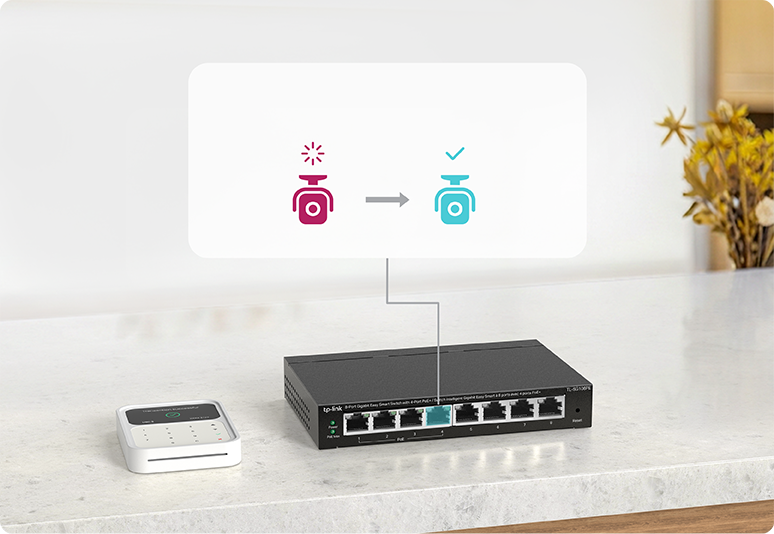

System Self‑Healing with PoE Auto Recovery
PoE Auto Recovery can help you monitor the status of PoE devices, automatically repairing abnormal devices.
Easy to Use with Intelligent PoE
-
• Automatic PD Detection
-
• Adaptive Output
-
• Overload Protection
-
• PoE Port Priority
Making Management Easy
Easily manage the switch through the web‑based user interface and management utility.
Network Monitoring
Traffic Prioritization
VLAN Management
QoS for Traffic Prioritization
Durable Metal Casing
TL-SG108PE's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, and a long service life.
Silent Operation
Its fanless design reduces power consumption and noise generated, making it ideal for noise‑sensitive environments.

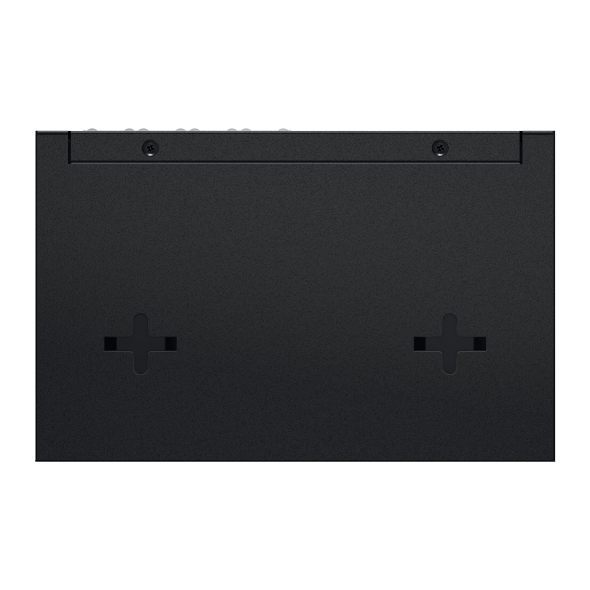

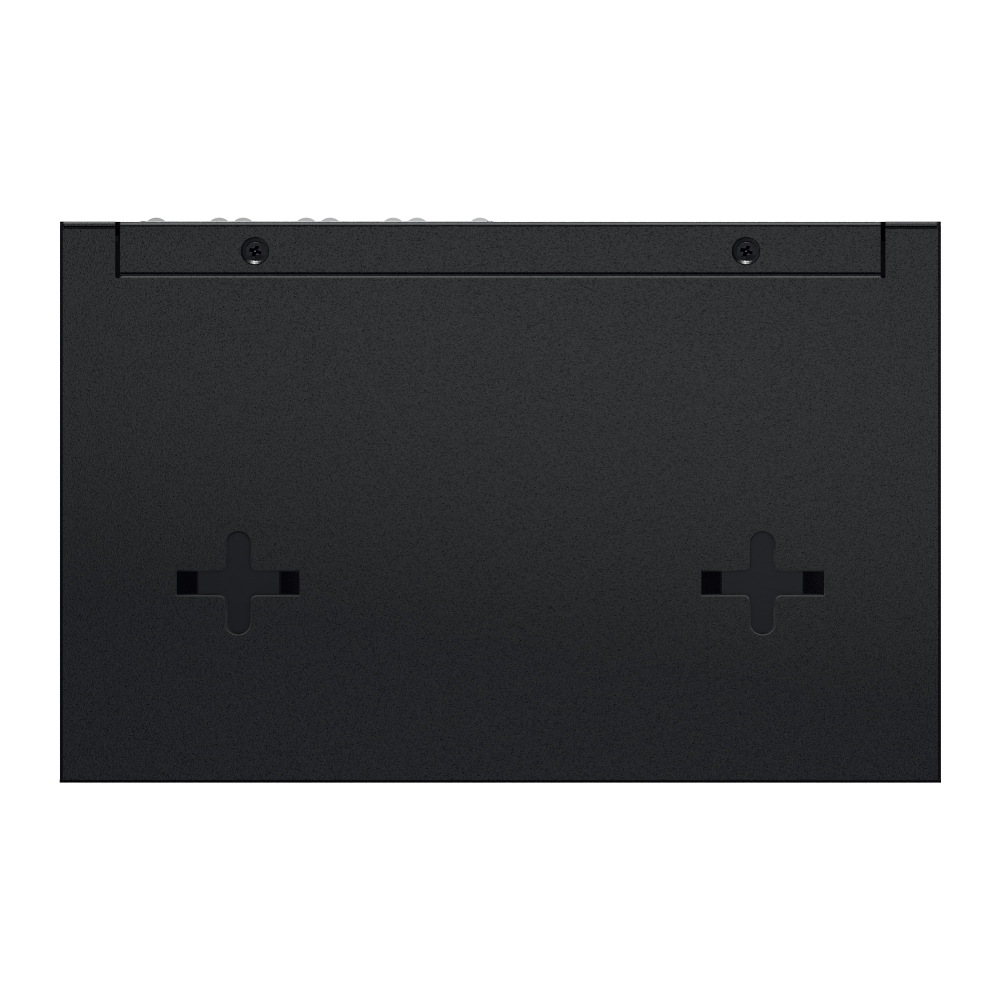

Desktop / Wall‑Mounting
You can put the switch on desk or mount it to the wall according to your demand.
Multiple Application Scenarios

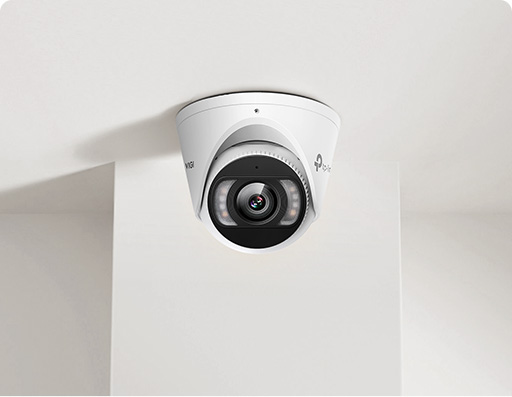

Surveillance
Works with IP Cameras

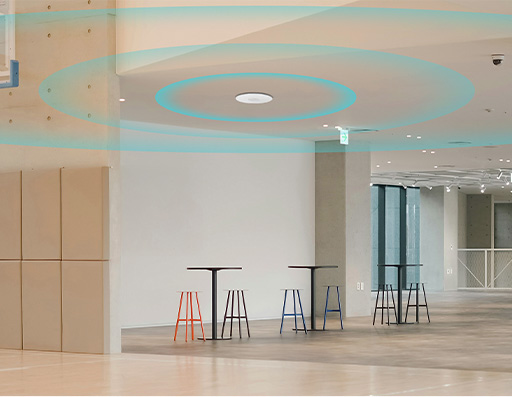

Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Easy to Use
1. Connect to Power
2. Connect the Devices
3. Enjoy
Related Cases
-
East European Comic Con
TP-Link Provides Internet Access for East European Comic Con for the Fourth Year Running
East European Comic Con
TP-Link Provides Internet Access for East European Comic Con for the Fourth Year Running
“TP-Link Romania have provided a high-quality service and the right equipment to meet our requirements in each of the projects we have worked on together. EECC2017 was their toughest challenge so far and they passed with flying colors.” —Marius Radu, EECC Gaming Director
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at |
|---|---|
| Interface | Eight 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |

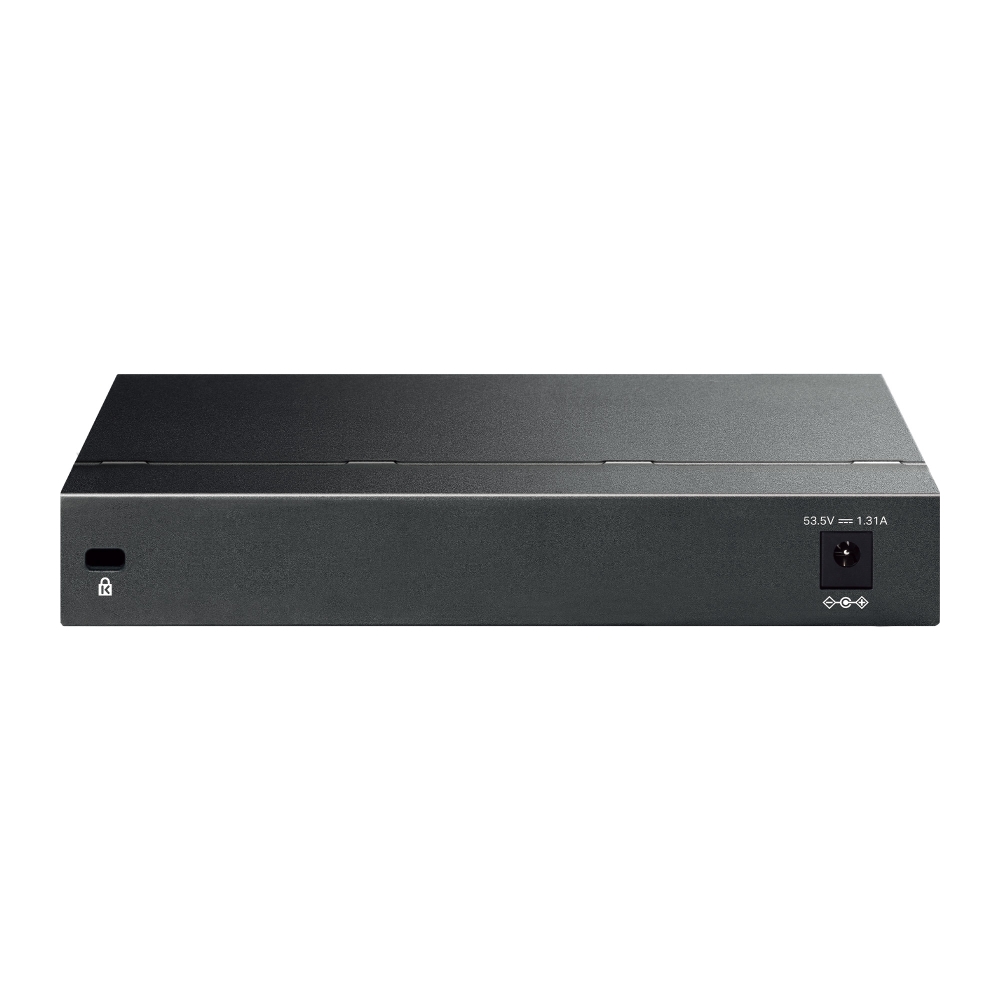

| Power Supply | External Power Adapter (Output: 53.5 VDC/1.31 A) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliantPoE Ports: Port 1- Port 4PoE Power Budget: 64W |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Max. Power Consumption | 5.41 W (220V/50Hz with no PD connected)74.27 W (220V/50Hz with 64 W PD connected) |
| Max Heat Dissipation | 18.45 BTU/h (with no PD connected)253.26 BTU/h (with 64 W PD connected) |
| Packet Buffer Memory | 1.5 Mb |
|---|---|
| Jumbo Frame | 16 KB |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4 K |
| Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
|---|---|
| L2 Features | IGMP Snooping V1/V2/V3Static Link AggregationPort MirroringCable DiagnosticsLoop PreventionPoE Auto Recovery |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Management Features | Web-based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| Certification | FCC, CE, RoHS |
|---|---|
| Package Content | TL-SG108PEPower AdapterInstallation GuideRubber Feet |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing |
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
