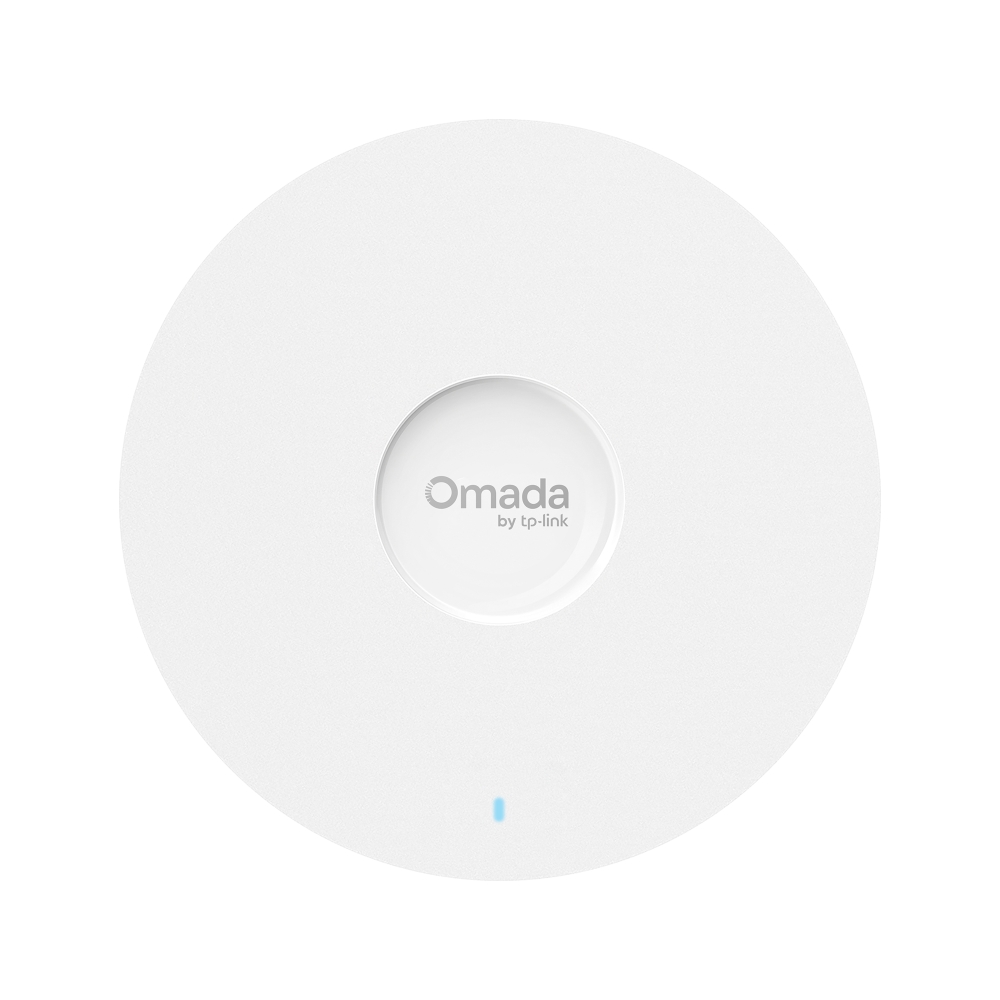

AX5400 Ceiling Mount WiFi 6 Access Point
- 6-Stream Dual-Band Wi-Fi 6: 4,804 Mbps on 5 GHz, and 574 Mbps on 2.4 GHz.†
- 1× 2.5G Port: Ensures fast connectivity throughout the network.
- Low Latency and Interference: 160 MHz Bandwidth, MU-MIMO, OFDMA, and 1024-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation. Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management, Mesh, and Seamless Roaming.△
- More Connections and Wider Coverage: Supports 250+ concurrent clients** and covers up to 1500 ft² (140 ㎡) * for reliable and extensive wireless connectivity.
-
AX5400 Dual-Band
WiFi 6† -
1× 2.5GbE Port
-
802.3af PoE
-
Omada Mesh &
Seamless Roaming△ -
Centralized Cloud Management
-
Enhanced
Security -
Easy, Quick Setup
-

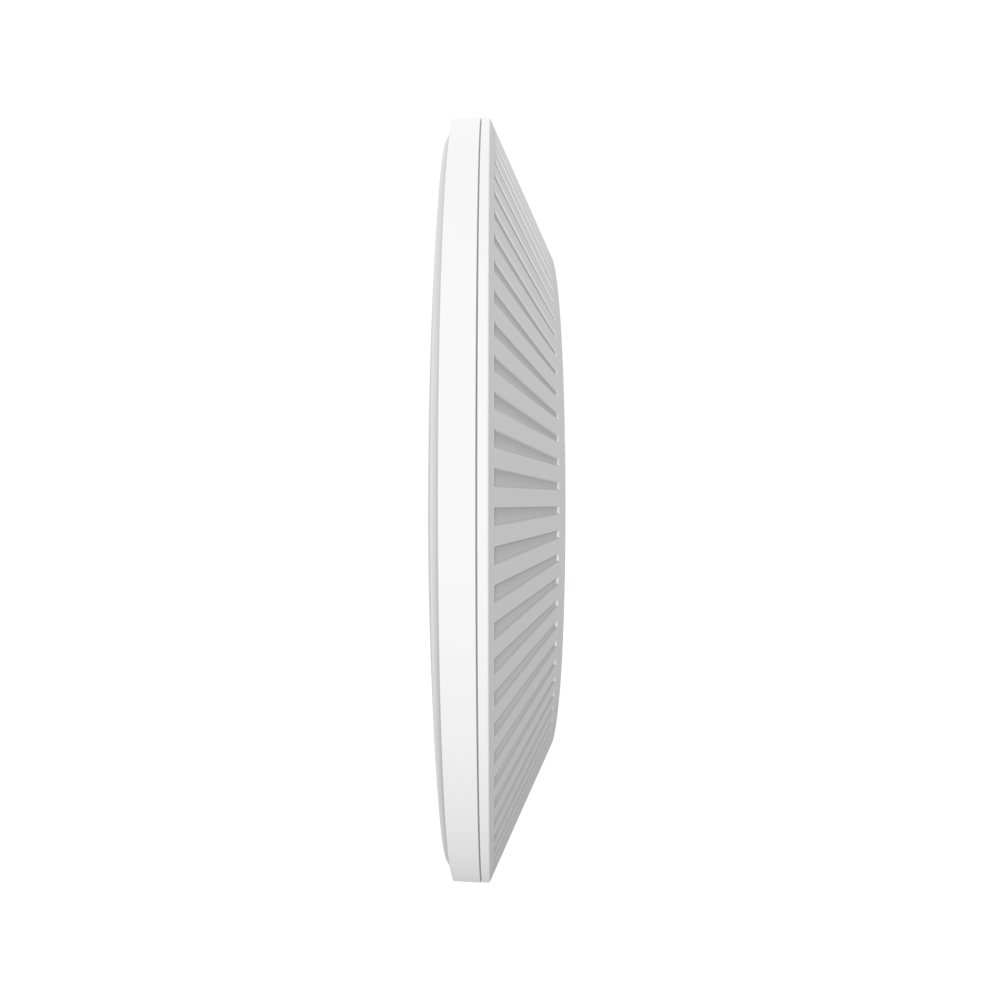

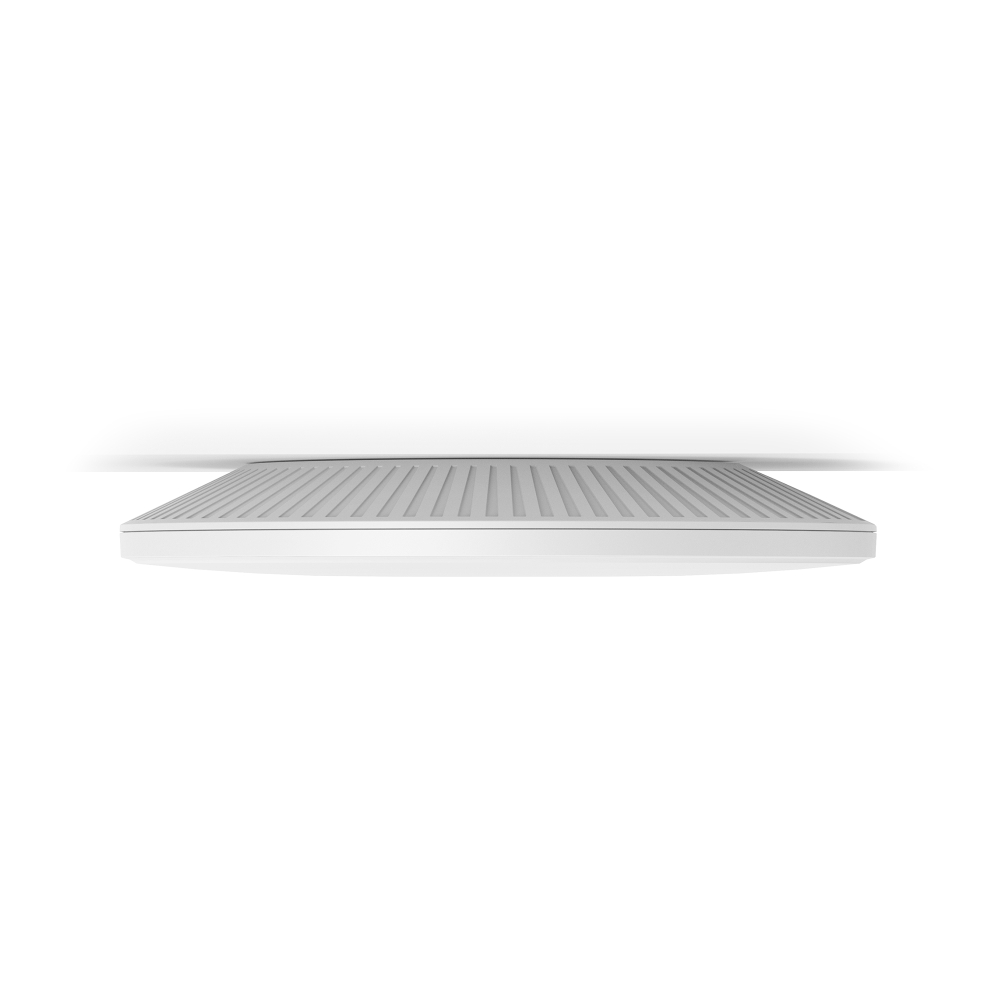

Ultra-Thin Design
Power Up Your Business with New-Era Wi-Fi 6
Lightning-Fast AX5400 Wi-Fi 6 Speeds
-
5 GHz 4804 Mbps
-
2.4 GHz 574 Mbps
-
Wi-Fi 6 with OFDMAWi-Fi 5 with OFDM
Higher Efficiency with OFDMA
-
More Simultaneous Connections with MU-MIMO
Optimized Wired Performance with 2.5G PoE+ Port
With a 2.5 Gigabit Ethernet Port, EAP670 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment.
Boosted Network Security
-
Secure Guest Network
with up to 16 SSIDs -
Boost Your Business
with SMS Login -
WPA3 for Worry-Free
Open Public Networks -
Rogue AP Detection
Empowering Businesses
with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
Ceiling Mount AP
EAP670
Wall Plate AP
Outdoor AP
PoE Switch
VPN Gateway
(Cloud-Based)
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 2.5 Gigabit RJ45 Port |
| Button | Reset |
| Power Supply | • 802.3at PoE• 12 V / 2 A DC (Power Adapter included) |
| Max. Power Consumption | • EU: 20.8 W• US: 22.3 W |

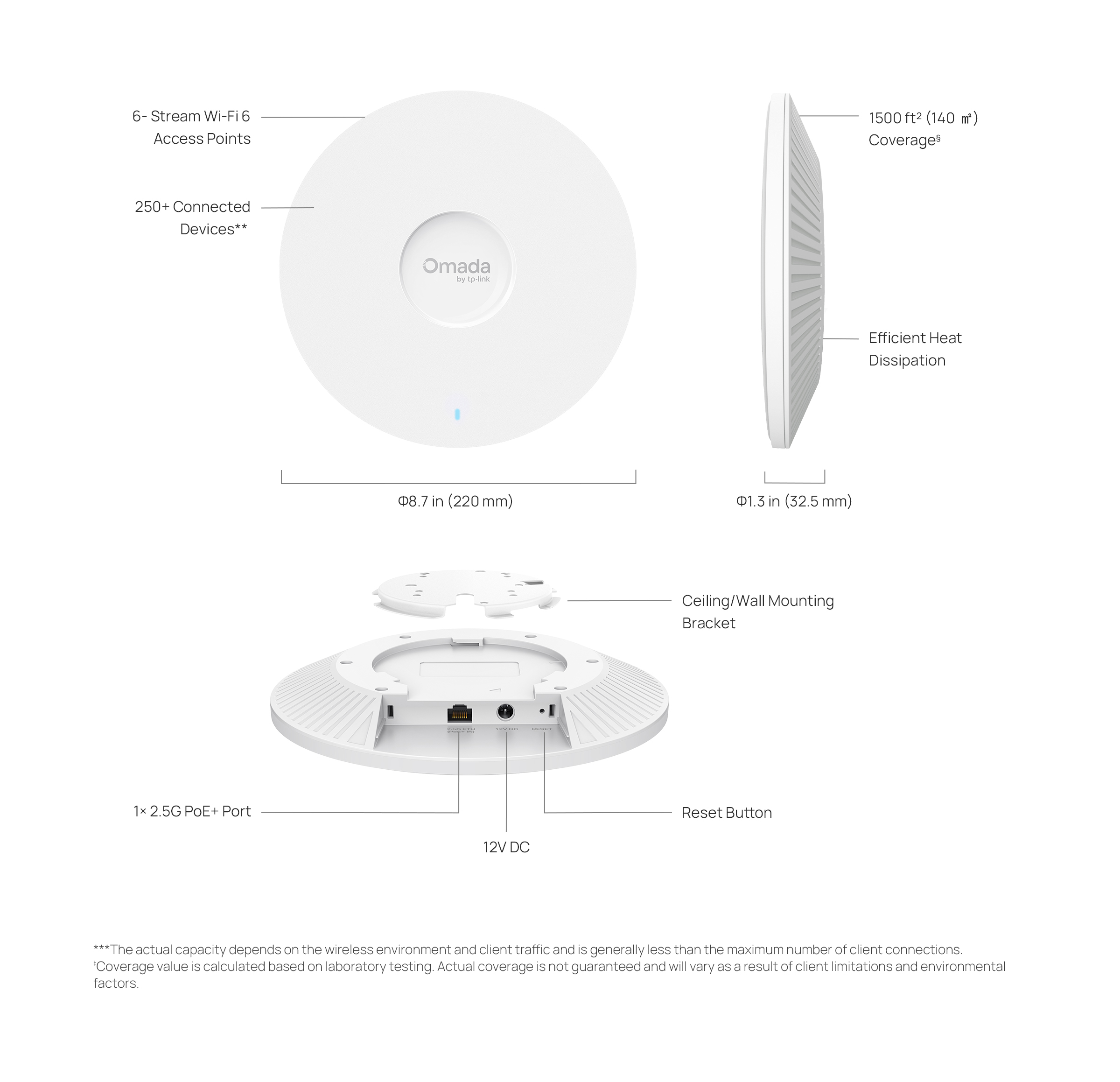

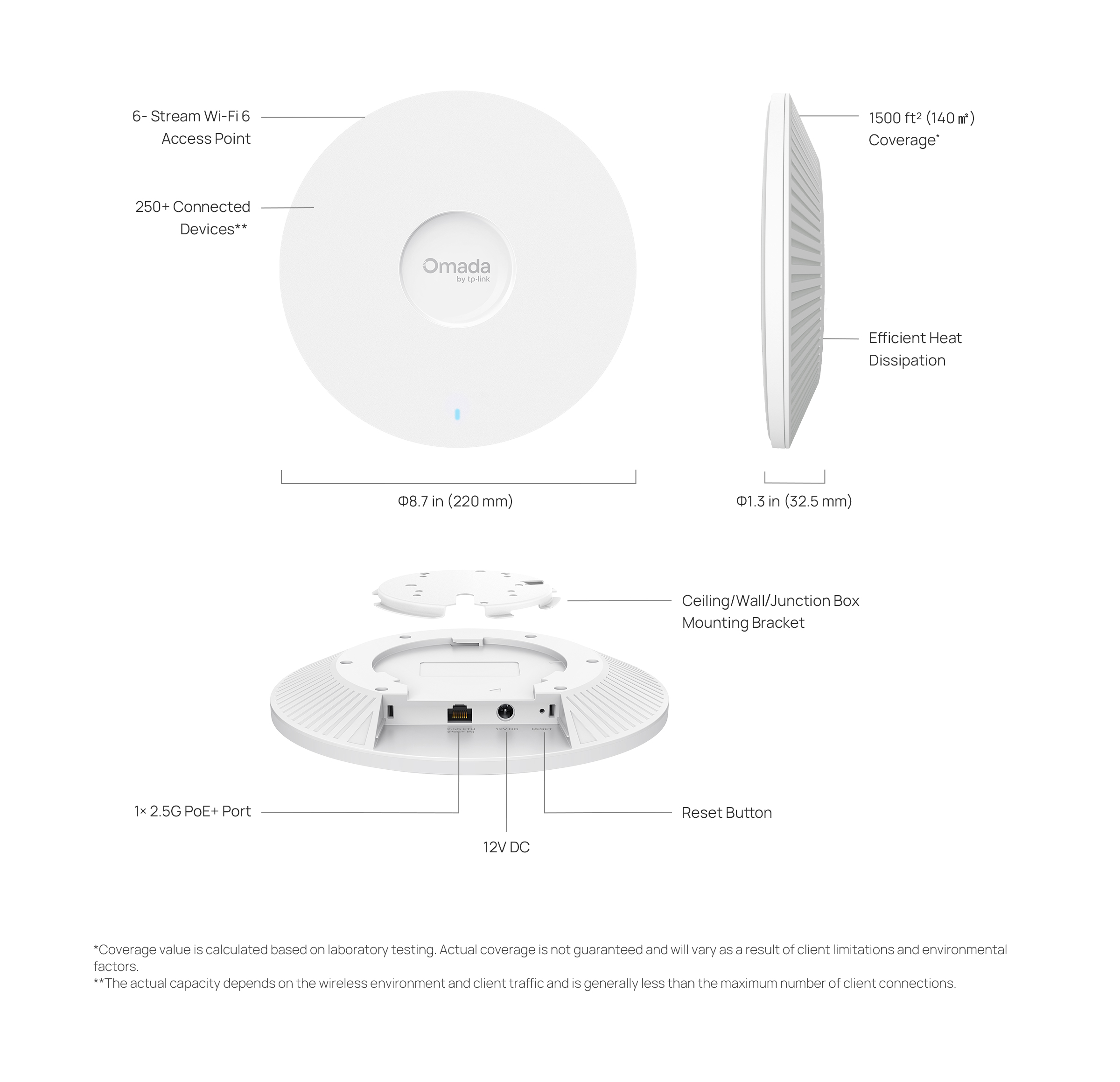

| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna | Internal Omni• 2.4 GHz: 2× 4 dBi• 5 GHz: 4× 5 dBi |
| Bluetooth | V5.2 |

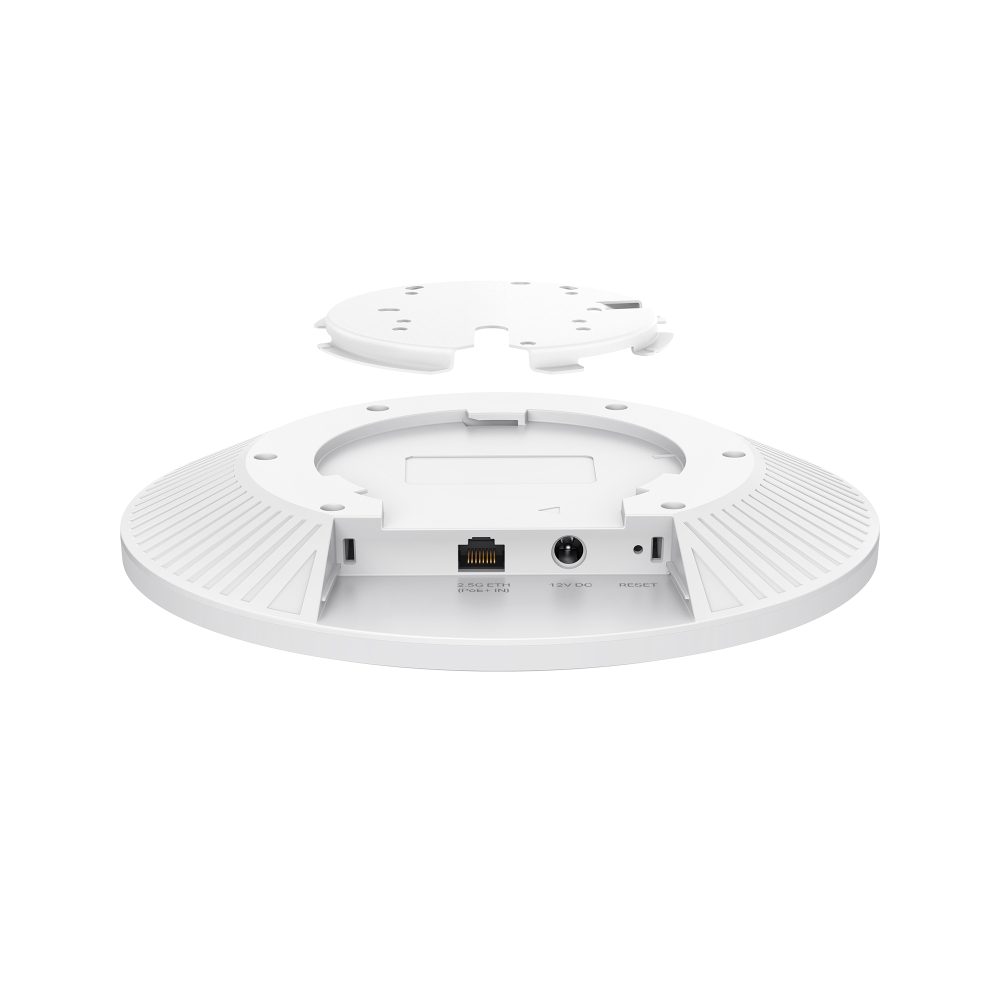

| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 1500 ft² (140㎡)*** |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 4804 Mbps• 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• MU-MIMO (5G: 4x4 DL/UL MU-MIMO)• HE160 (160 MHz Bandwidth)‡• Seamless Roaming(802.11k/v/r)§• Omada Mesh§• Band Steering• Load Balance• Airtime Fairness • Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication§• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE:7-20 dBm(2.4 GHz, EIRP)7-23 dBm(5 GHz, U-NII-1 & U-NII-2A, EIRP)7-30 dBm(5 GHz, U-NII-2C, EIRP)• FCC:4-22 dBm (2.4 GHz)4-22 dBm (5 GHz, U-NII-1 & U-NII-3) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP670• Power Adapter• Ceiling/Wal/Junctionl Mounting Kits• Installation Guide• Cable Compartment Cover |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡‡ Use of Wi-Fi 6 (802.11ax), and features including 160 MHz Bandwidth, OFDMA, MU-MIMO, and 1024-QAM requires clients to also support the corresponding features. The 160 MHz bandwidth is only available on 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions.
§These features require the use of an Omada controller.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
