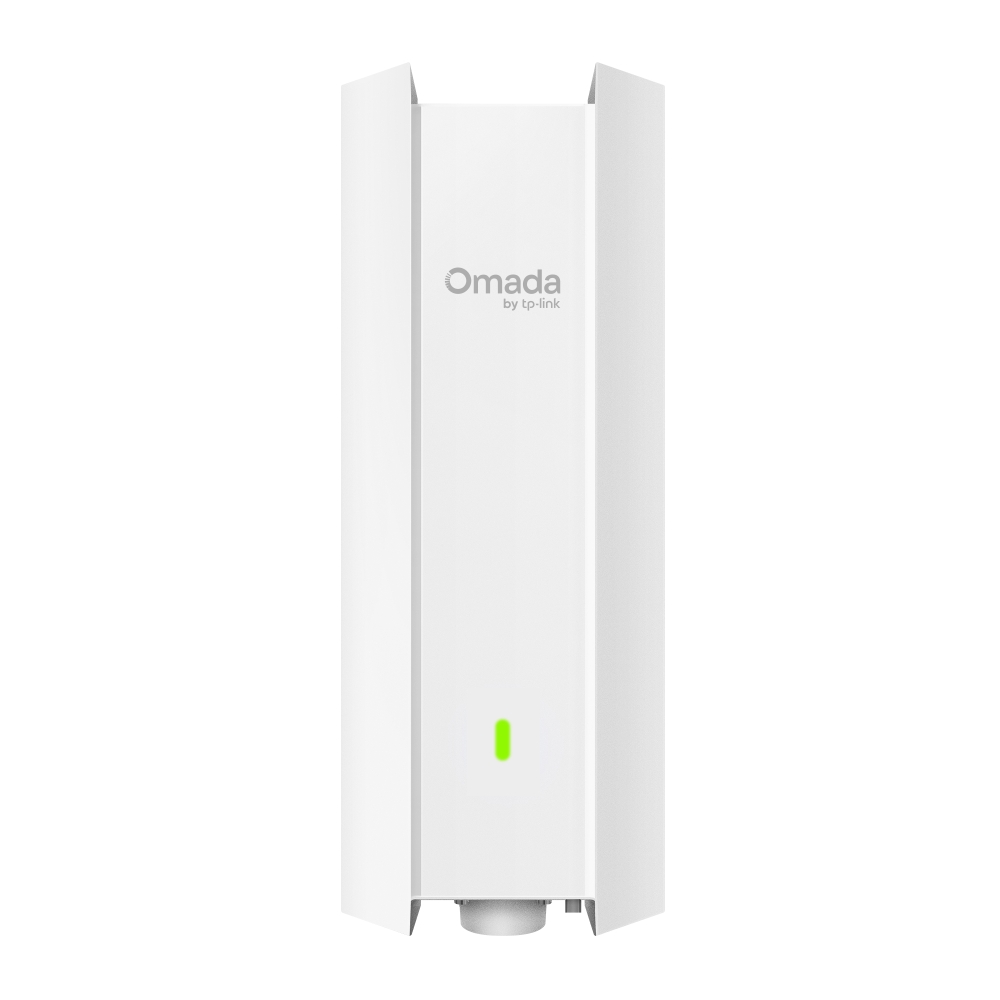

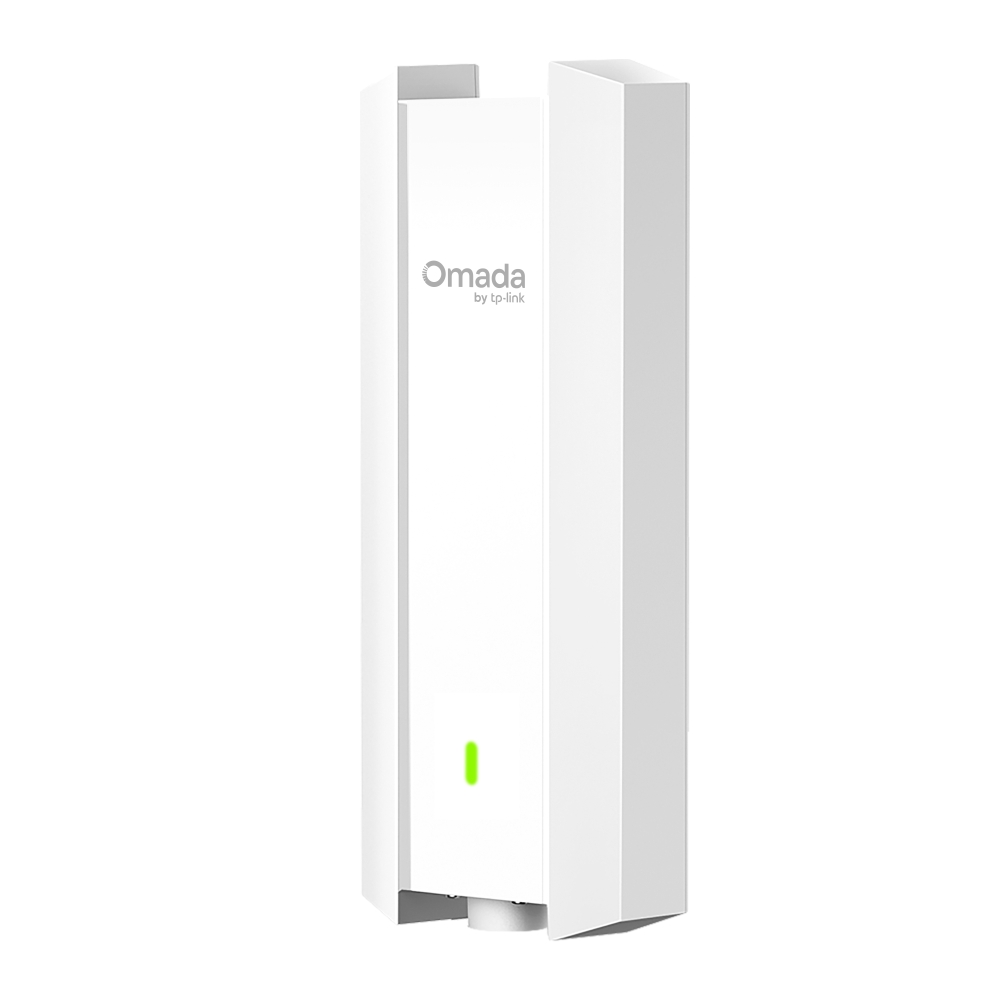

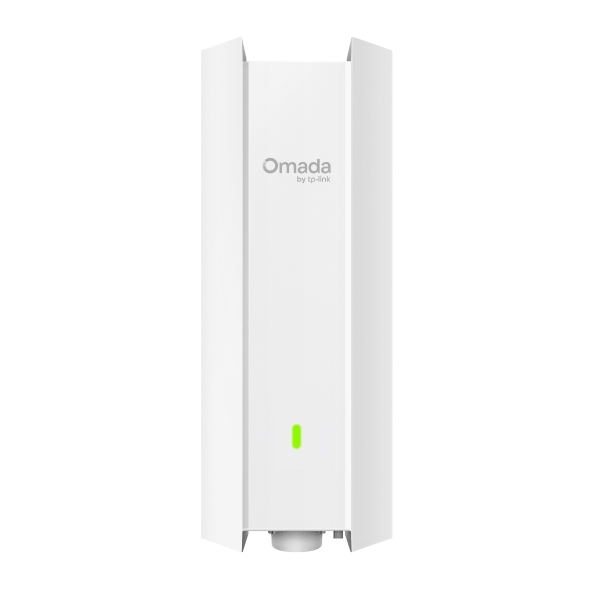

AX3000 Indoor/Outdoor WiFi 6 Access Point
- Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.1
- Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
- 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.2
- Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP68 weatherproof enclosure.
- Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment.3
- Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.3
- PoE Powered: : Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.3
Learn more about Omada Wi-Fi 6>
-
WiFi 6 Speeds up to 3.0 Gbps†
-
MU-MIMO
-
Long-Range Coverage
-
802.3at PoE
-
Seamless Roaming & Omada Mesh
-
Centralized Cloud Management
-
Easy Setup
-
IP68
Weatherproof
High-Performance Wi-Fi 6
Powered by the latest WiFi 6 technologies, such as MU-MIMO and 1024 QAM, the EAP650-Outdoor brings speeds up to 3.0 Gbp.
-
5 GHz 2402 Mbps
-
2.4 GHz 574 Mbps
-
1024 QAM
-
MU-MIMO
-
OFDMA
Ideal for Outdoor Scenes
Equipped with an IP68 weatherproof enclosure, the EAP650-Outdoor withstands the most extreme environments.
-
Swimming Pool
-
Outdoor Café
-
Amphitheatre
-
Park
-
Yard / Garden
-
Shed / Barns
Long-Range Coverage
Professional antennas equipped with high-power amplifiers utilize Wi-Fi 6 technology to provide strong and expansive wireless coverage over 2.4 GHz (200 m) and 5 GHz (300 m) wireless bands to various outdoor environments.*
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
PoE+
Omada PoE+ Switch
Easy and Quick Setup

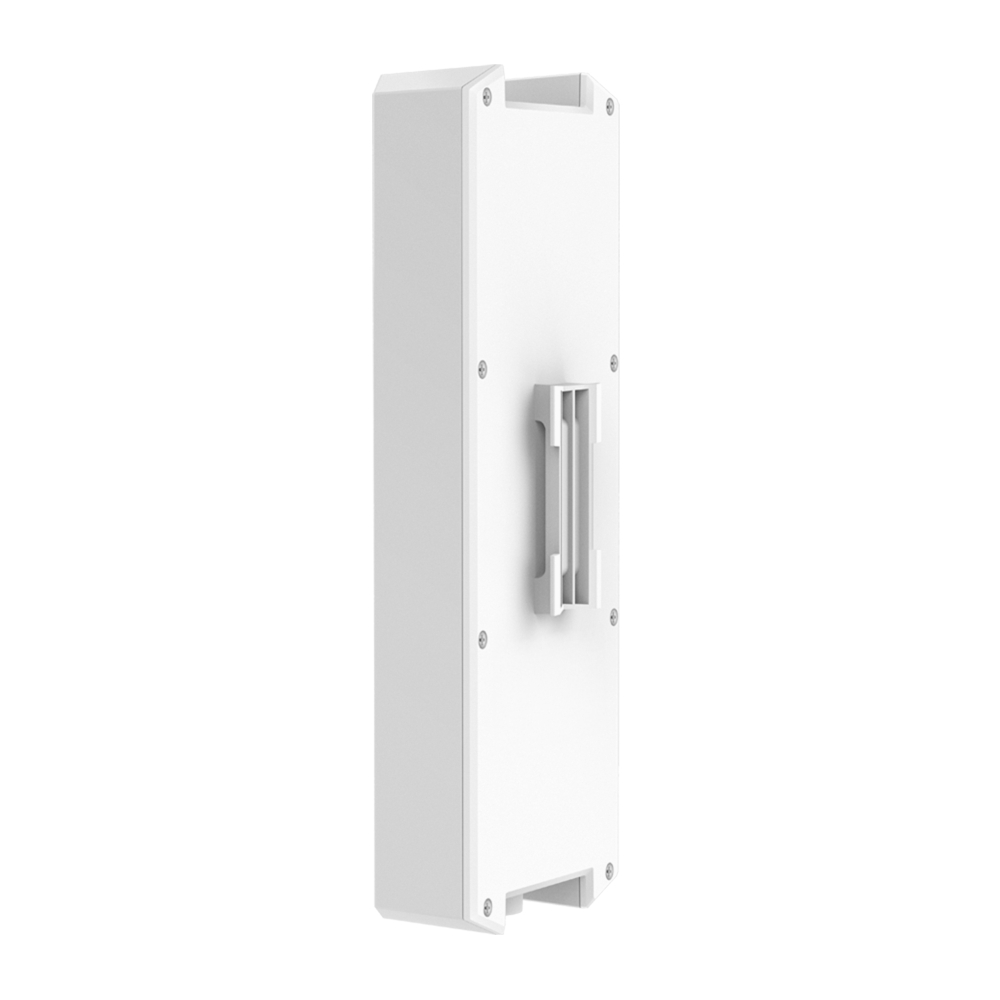

Easy Installation Through Pole and Wall Mount Options

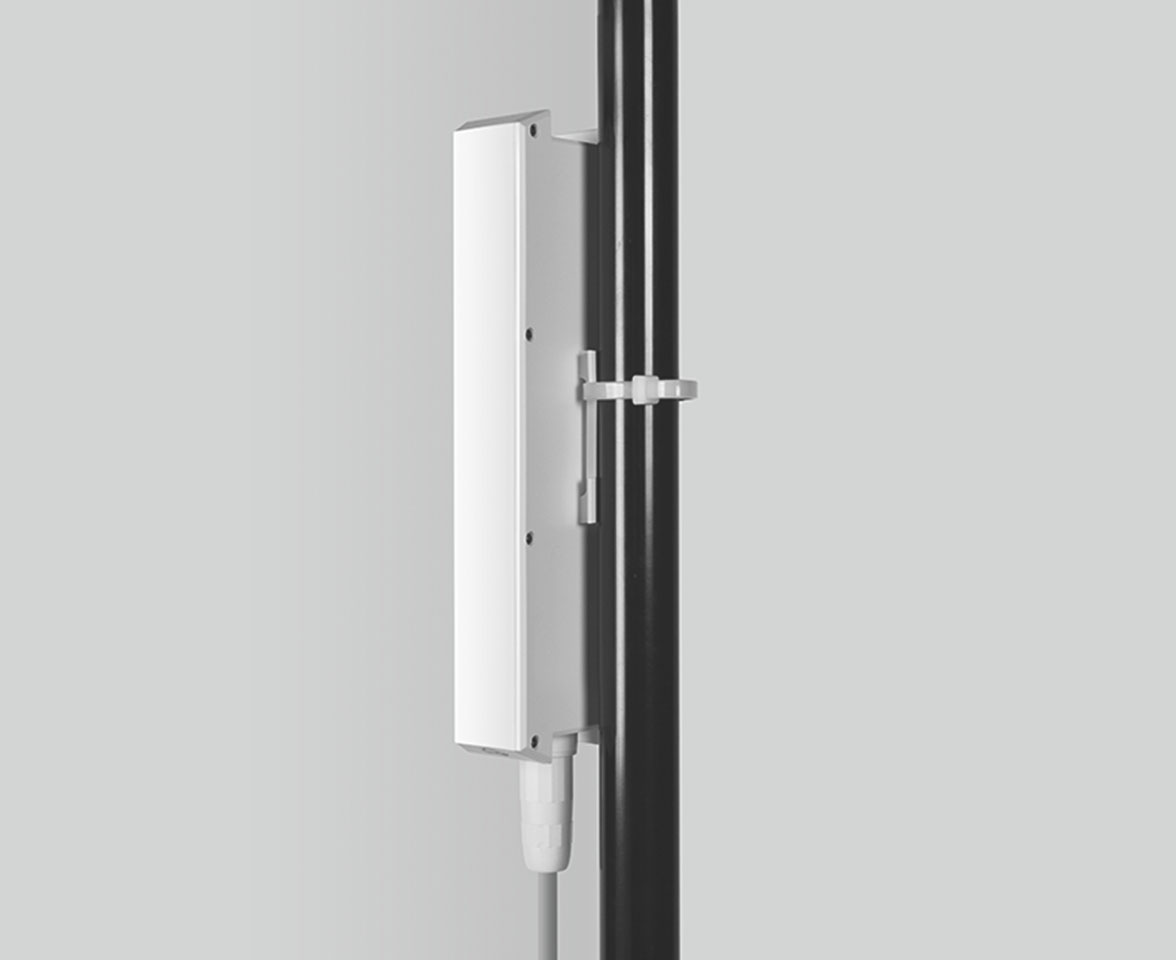

Pole Mounting

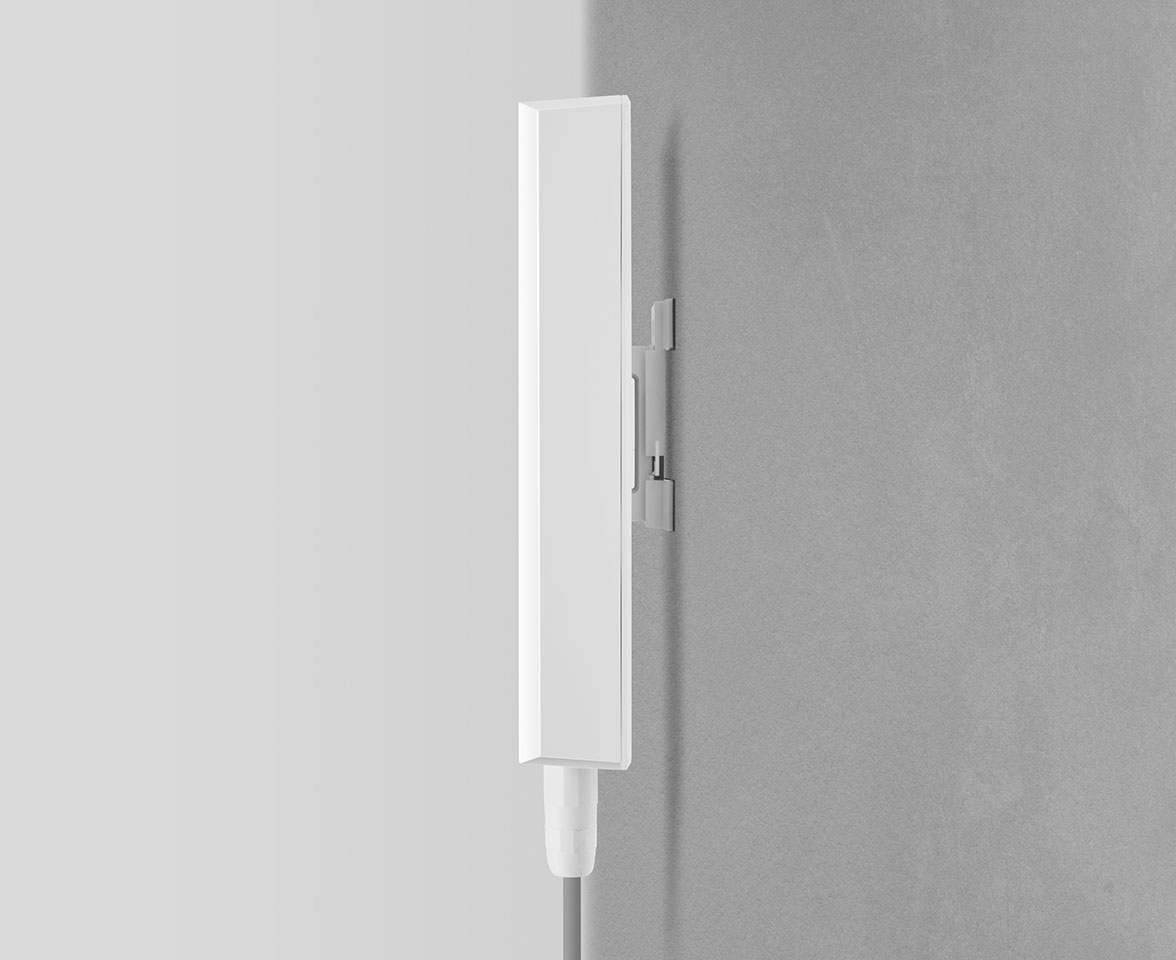

Wall Mounting

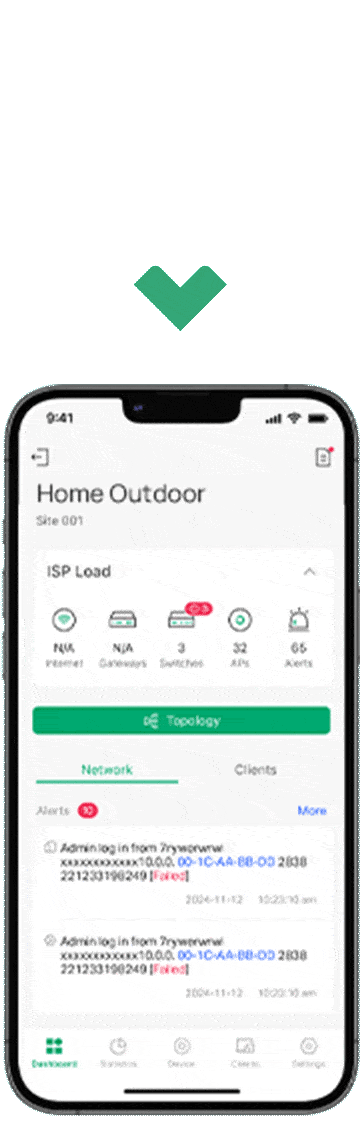

Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP650-Outdoor through automatic device identification and one-click adoption.
Empowering Businesses
with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.
Ceiling Mount
Wi-Fi 6 AP
Wall Plate
Wi-Fi 6 AP
Outdoor Wi-Fi 6 AP
EAP650-Outdoor
PoE Switch
VPN Gateway
(Cloud-Based)
| HARDWARE FEATURES | |
|---|---|

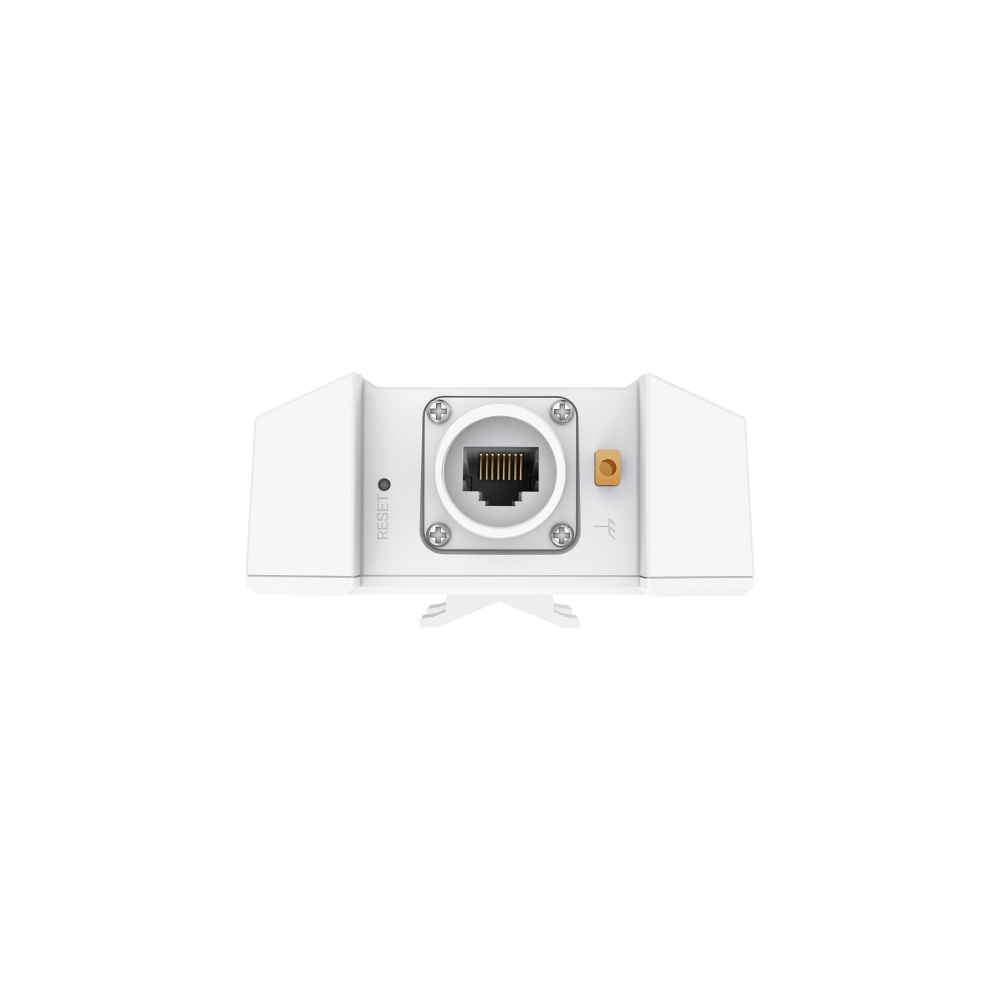

| Interface | 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE) |
| Button | Reset |
| Power Supply | • 802.3at PoE• 48V Passive PoE (PoE Adapter Included - For Dry Indoor Use Only) |
| Max. Power Consumption | • EU: 12.5W (802.3at PoE or Passive PoE)• US: 14.7W (802.3at PoE or Passive PoE) |

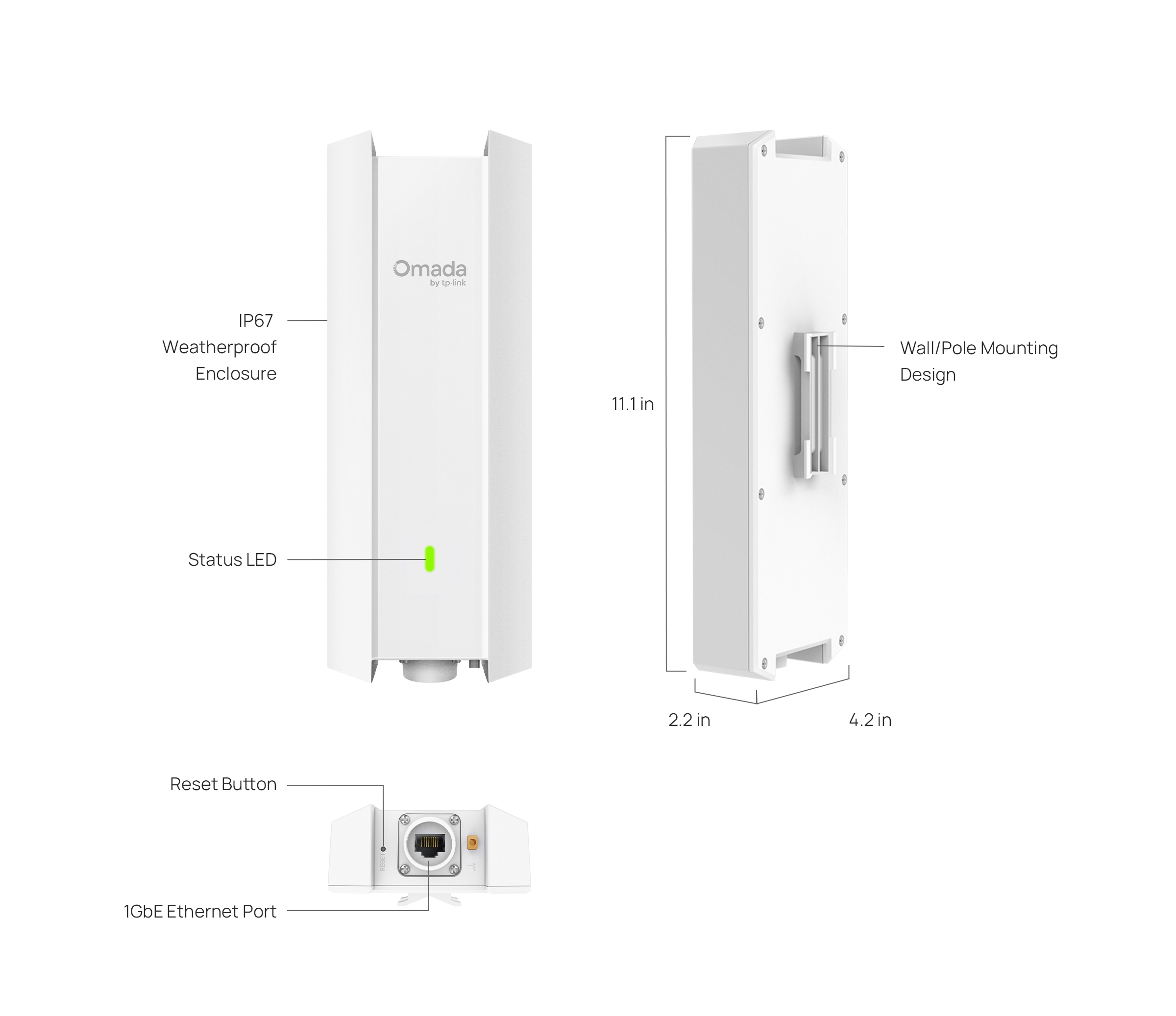

| Dimensions ( W x D x H ) | 4.2 × 2.2 × 11.1 in (106.5 × 57 × 281 mm)(without antenna & mounting kit) |
| Antenna | • 2.4 GHz: 2× 4 dBi• 5 GHz: 2× 5 dBi |
| Weatherproof Enclosure | IP68 |
| Mounting | Pole/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Concurrent Clients | 250+6 |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | • 802.11ax: 8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160)• 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to2 VHT20/40/80)• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps• 802.11b: 1, 2, 5.5, 11 Mbps• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Functions | • 1024-QAM• 4× Longer OFDM Symbol• OFDMA• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS (WMM)• MU-MIMO• Omada Mesh3• Seamless Roaming(802.11k/v/r)3• Band Steering• Load Balance• Airtime Fairness• Beamforming• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication3• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)• FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • Access Point EAP650-Outdoor• Passive PoE Adapter• Power Cord• Mounting Kits• Installation Guide• Waterproof Kit |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: -30–70 ℃ (-22–158 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
1. Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
2. Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.
3. Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada SDN controllers for configuration methods.
4. Based on field tests. The number listed here is the maximum distance one EAP650-Outdoor can reach and connect the devices. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.
5. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Note that EAP650-Outdoor v1.0 doesn't support the Omada Cloud-Based Controller. Please go to www.tp-link.com/omada-cloud-based-controller/product-list to confirm which models are compatible with the Omada Cloud-Based Controller.
6. The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
