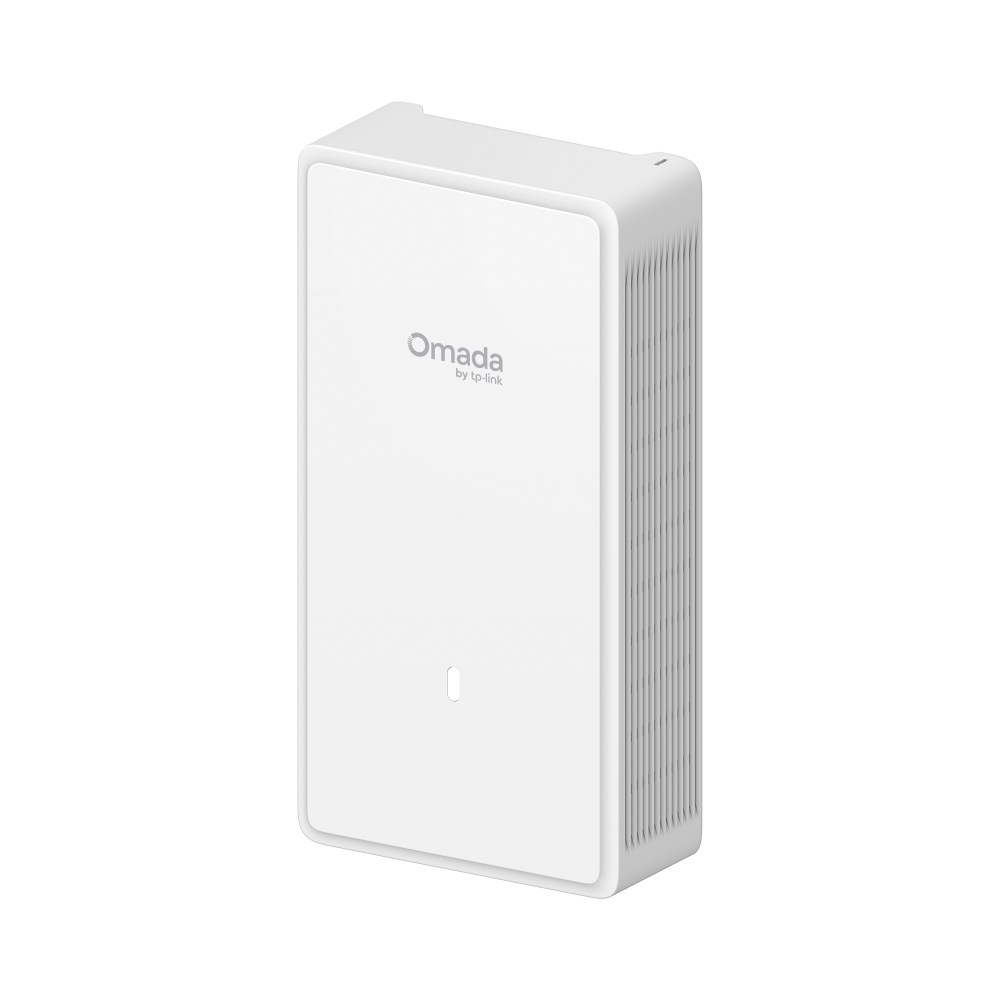

EAP775-Wall

Coming Soon

BE11000 Wall Plate Wi-Fi 7 Access Point

  • 6-Stream Tri-Band Wi-Fi 7: 5765 Mbps on 6 GHz, 4324 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz

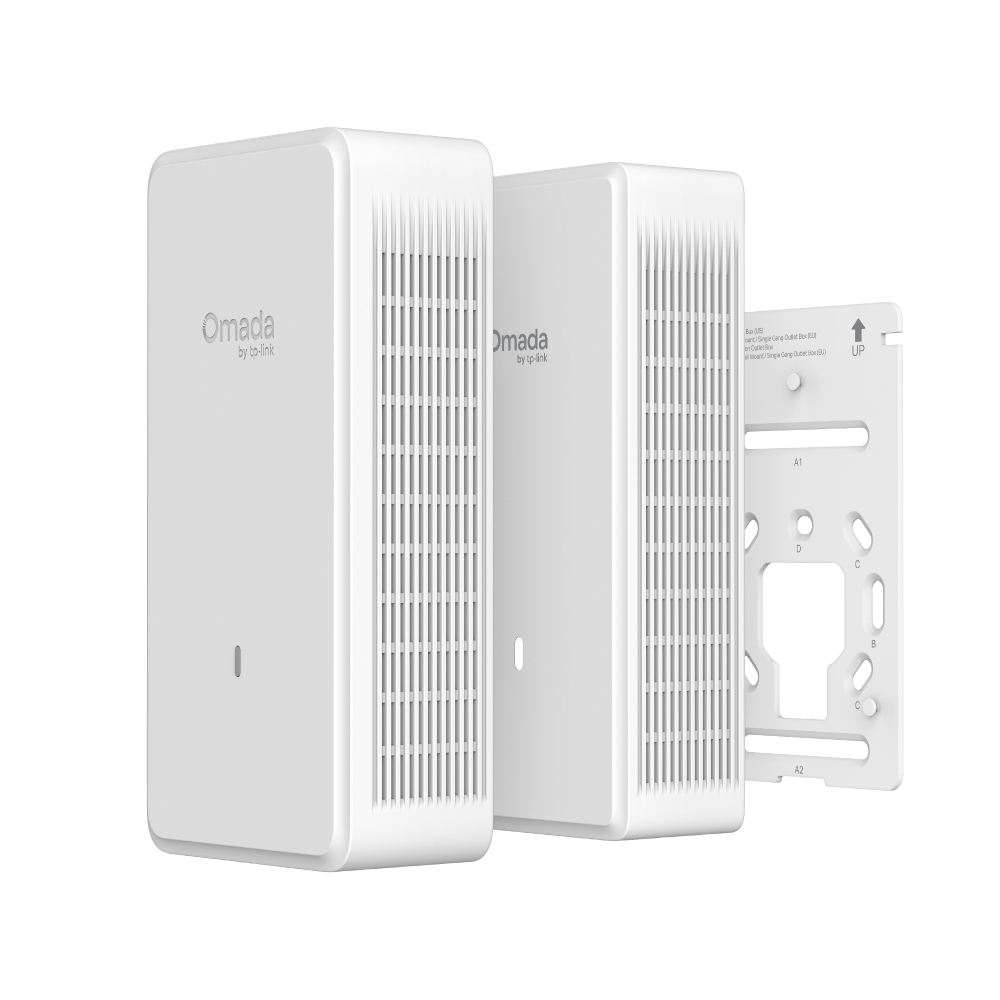

  • Paintable Cover and Versatile Mounting DesignSeamless integrated into any indoor environment.
  • 1× 2.5G Uplink Port: Ensures fast connectivity throughout the network.
  • Multiple Downlink with PoE Flexibility: One 2.5G and three Gigabit ports, with two Gigabit ports supporting dual PoE output or single PoE+ output.
  • Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.
  • Easy Setup: Work with Omada SDN for one-click setup.
  • Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.

Learn more about Omada Cloud SDN>​


HARDWARE FEATURES

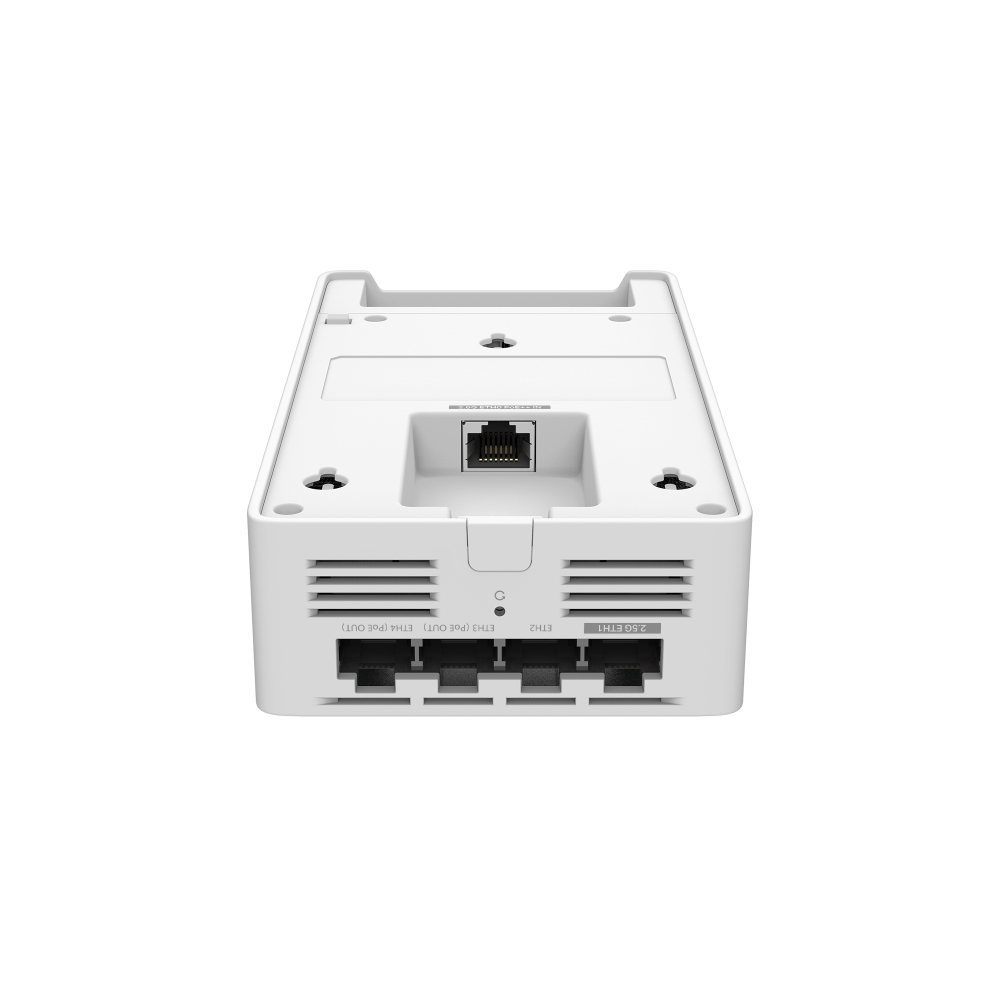

Interface • Uplink: 1× 2.5G Ethernet Port
• Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports
(Two of the Gigabit ports support flexible PoE Out, offering either two PoE Out ports or one PoE+ Out port. The PoE pass-through feature requires 802.3at/bt input.)
Button Reset, LED
Power Supply 802.3at/bt PoE

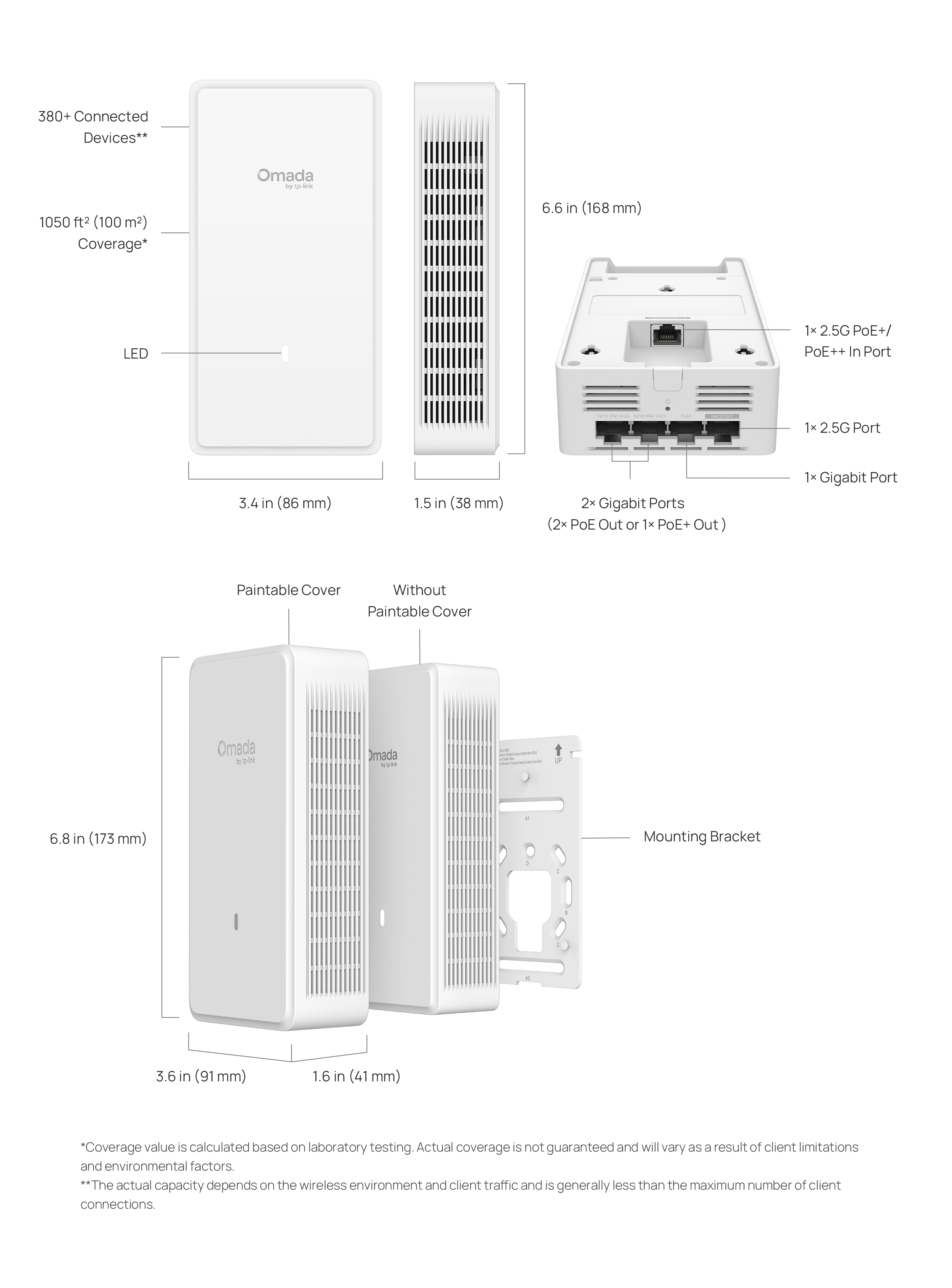

Dimensions ( W x D x H ) 6.8 × 3.6 × 1.6 in (172.9 × 91.2 × 41.3 mm)
Antenna 6× Internal Antennas
• 2.4 GHz: 2× 5 dBi
• 5 GHz: 2× 5 dBi
• 6 GHz: 2× 6 dBi
Bluetooth V5.2
Mounting Wall Mounting (Kits included)
WIRELESS FEATURES
Concurrent Clients 380+§
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 2.4 GHz, 5 GHz, and 6 GHz
Signal Rate • 6 GHz: Up to 5765 Mbps
• 5 GHz: Up to 4324 Mbps
• 2.4 GHz: Up to 688 Mbps
Wireless Functions • MLO
• 4K-QAM
• Multi-RUs
• 240 MHz Bandwidth
• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming
• Beamforming
• Rate Limit (Based on SSID/Client)
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP
Wireless Security • Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Management Features
Omada App Yes
Centralized Management • Omada Hardware Controller
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of an Omada Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog System Log
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification FCC, RoHS

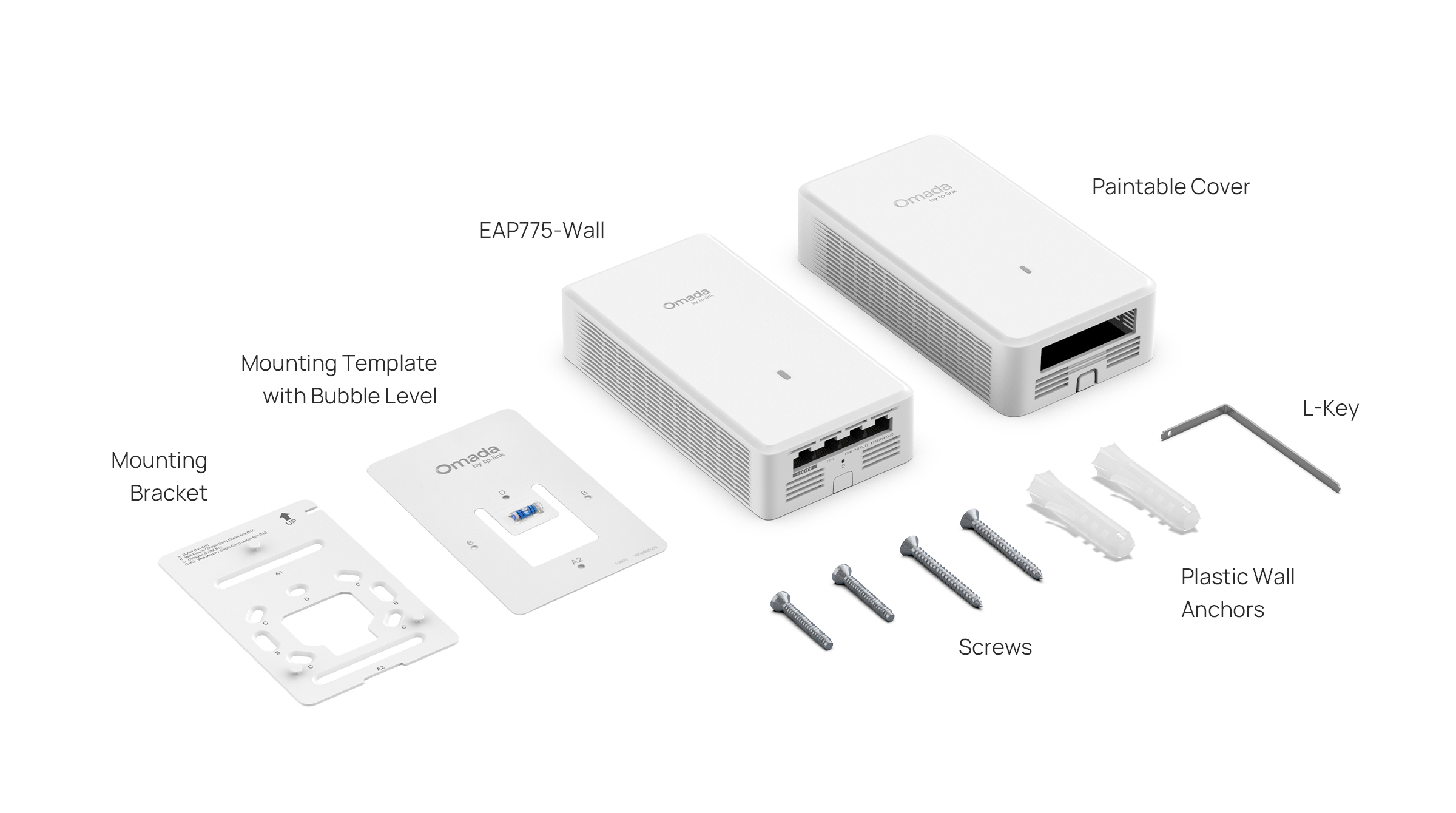

Package Content • EAP775-Wall
• Installation Guide
• Mounting Kits
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

Use of Wi-Fi 7 (802.11be) and features including 240 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.

§The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada controller.
